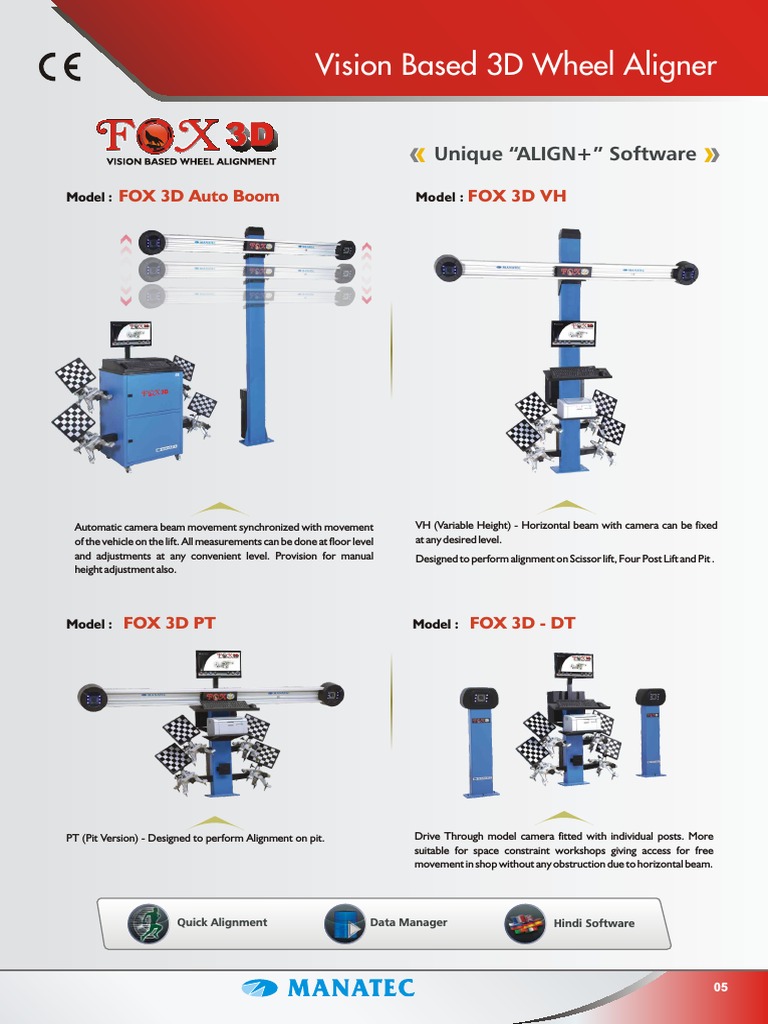

Vision Based 3D Wheel Aligner

Unique “ALIGN+” Software

Model : FOX 3D Auto Boom Model : FOX 3D VH

Automatic camera beam movement synchronized with movement VH (Variable Height) - Horizontal beam with camera can be fixed
of the vehicle on the lift. All measurements can be done at floor level at any desired level.
and adjustments at any convenient level. Provision for manual Designed to perform alignment on Scissor lift, Four Post Lift and Pit .
height adjustment also.

Model : FOX 3D PT Model : FOX 3D - DT

PT (Pit Version) - Designed to perform Alignment on pit. Drive Through model camera fitted with individual posts. More
suitable for space constraint workshops giving access for free
movement in shop without any obstruction due to horizontal beam.

Quick Alignment Data Manager Hindi Software

05
 10 Mega Pixel
Camera Unique “ALIGN+” Software

Data acquisition using high resolution scientific imaging cameras

No Electronics on wheels

SIMPLE 4 STEP ALIGNMENT : SAVE TIME - INCREASE REVENUE

Animation guidance
01 02 (optional features Availabale in Autodata)
Pre-Alignment Inspection Push - Pull Runout

03 04
Turn Left / Right Alignment Results Live readings to adjust

Universal Wheel Bracket SMART CONTROL - Optional

Suitable for 12” – 24”rim Tablet Remote Control
diameter

Inner : 12” – 20”

Outer : 16” – 24”

Highly user-friendly Wi-Fi enabled tablet Portable 2.4 GHz Wireless control device
device to display alignment results and to to operate the PC from the alignment bay
Alloy rims & Steel rim with operate the PC from the Alignment bay (Max 10meters).
Run flat tyre Fancy disc (Max 10 meters).

06 www.manatec.in
 Quick Align Program Features Menu
Unique OEM wizard program
helps in customizing the
screens by the technician Useful features like
himself by selecting and vehicle information
skipping routine inspection modification, multi users
screens, attention screens, function, vehicle data
Caster swing etc., updates, unit conversion
etc. are available.
This saves considerable time
and increases the productivity
of the alignment centre.

Data Manager Lift level compensation

Data Manager software to

retrieve alignment history by
month, year and registration
number. Useful tool for
workshop managers.

Salient Features
Vision
n based 3D Imaging technology using 2 High Performance When a scissor lift or a 4-post lift is used for wheel alignment, there may be
SI (Scientific Image) Camera level differences during the elevation of the platforms. These differences will
Simultaneous Front and Rear wheel alignment (4x4)
n
affect castor/camber angles mostly. Compensation feature will overcome the
error in readings due to level unevenness during elevation.
Push Pull Runout /Setback / Thrust angle compensation
n
Lift level compensation at adjustment level
n
Unlimited memory for vehicle specifications
n
Technical Specifications
Option for selection of vehicle specification during alignment
n Measurement parameters Range Accuracy
Power failure data protection
n Camber (Front / Rear) ± 15° 00' ± 00° 02'
Automatic tracking of Left & Right turns for Caster/Kingpin measurements
n
Caster ± 28° 00' ± 00° 05'
Adjustment of Camber in wheel Jacked-up position & Toe curve measurement
n
Rear Setback & Track width difference,
n Kingpin Inclination ± 25° 00' ± 00° 05'
Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements
n Toe (Front / Rear) ± 20° 00' ± 00° 02'
Effortless Toe (Easy Toe) adjustment program
n
Total Toe ± 40° 00' ± 00° 04’
Camber measurement at Zero Toe
n
Toe Out on Turns ± 20° 00' ± 00° 02'
Drag link adjustment
n
Toe out on Turns & Lock angle measurements
n Setback (Front / Rear) ± 25 mm ± 2 mm
Animated pictorial display of angles during alignment
n Thrust angle ± 05° 00' ± 00° 02'
Zoom in option for live parameters
n
Runout ± 10° 00' ± 00° 02'
Two Color Bar display for adjustment of all angles
n
Quick Wheel Alignment program by user defined
n
Included angle ± 40° 00' ± 00° 05'
Data Manager Software for storing alignment results
n Track width difference ± 300 mm ± 5 mm
Customer Address in printout & customer data edit option
n Power supply 230V AC, 50Hz / 110V AC, 60Hz
3-D Pictorial & Two color text printout
n
Power consumption 200W (without Printer)
Multi-lingual program & Voice prompt
n
Two wheel Alignment program by fixing only front two target plates
n Power consumption for Autoboom 400W (without Printer)
Operating temperature 0º - 50ºC
Standard Accessories
Wheel brackets Rotary Plates -
Target Plates Steering Lock
(12” - 24”) (2 ton)
– 4 Nos. – 1 No.
– 4 Nos. – 2 Nos.

PC with Align+
Brake Pedal Lock - Wheel stoppers LED Monitor, & Data Manager
– 1 No. – 2 Nos.
Keyboard & Mouse Software

Optional Accessories
Long Rear wheel Wheel Bracket adapters Rim locking pin
Printer (Inkjet or Laser)–1 No.
sliders – 2 Nos. (10”-26”) – 16 Nos. Steel & Alloy, Flat & – 16 Nos.
Alloy rims Steel rim

07
 Fox 3D Customized Installation Configurations

Installation of Fox 3D Wheel Aligner can be customized depending on the availability of space
in the customer premises.
The Horizontal beam fitted with camera sensors can be installed using various configurations
without any change in Technical features and Specifications, as indicated below.

Roof Hanging Wall Mount Sidewise

Double Side Wall Mount Wall Mount

Installed close to the wall at a minimum

Horizontal beam with cameras is mounted on elevated position using our
width and length
Double Side Wall Mount model - Space clearance at ground level.
of the Alignment bay - Space saving.

Graphical Printout Text Printout Pre-Alignment Inspection Report

–00º14’ –00º25’ –00º14’ –00º26’

CAMBER CAMBER CAMBER CAMBER

+00º03’ +00º14’ +00º11’ +00º05’ +00º14’ +00º09’

TOE TOTAL TOE TOE TOE TOTAL TOE TOE

+03º46’ +03º35’ +03º47’ +03º35’

CASTER CASTER CASTER CASTER

+12º08’ –00º02’ +12º28’ +12º08’ –00º04’ +12º28’

THRUST THRUST
KINGPIN ANGLE KINGPIN KINGPIN ANGLE KINGPIN

–01º20’ –00º41’ –01º20’ –00º41’

CAMBER CAMBER CAMBER CAMBER

+00º06’ +00º17’ +00º11’ +00º06’ +00º21’ +00º15’

TOE TOTAL TOE TOE TOE TOTAL TOE TOE
