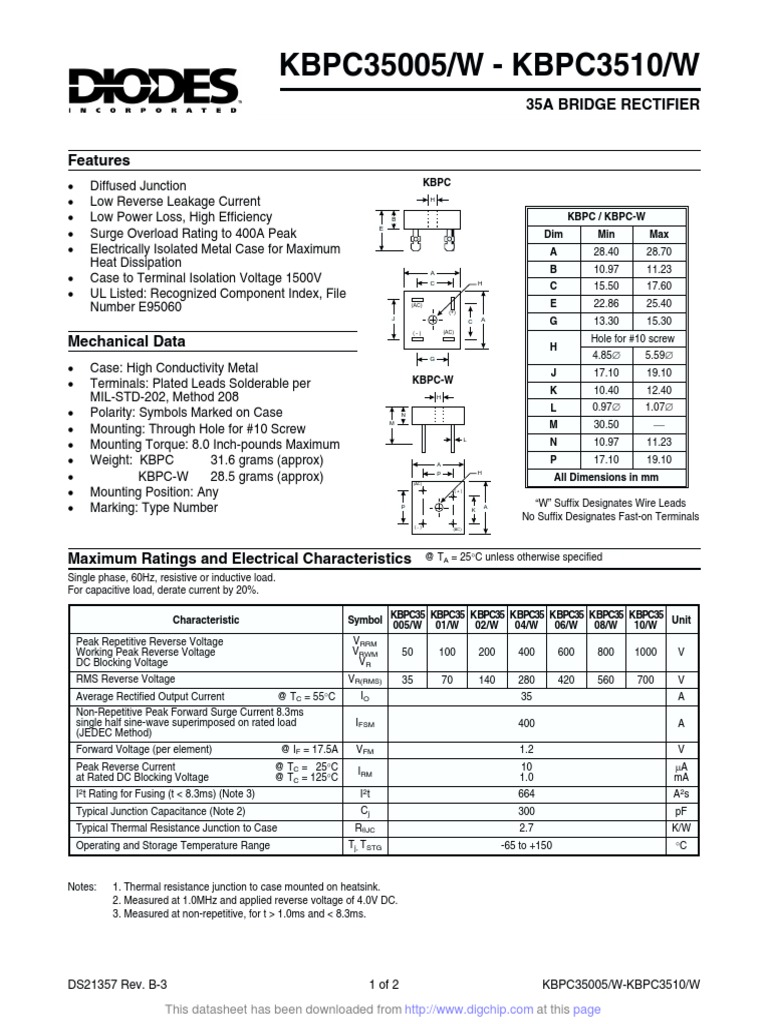

KBPC35005/W - KBPC3510/W

35A BRIDGE RECTIFIER

Features
· Diffused Junction KBPC
· Low Reverse Leakage Current H

· Low Power Loss, High Efficiency B KBPC / KBPC-W

E
· Surge Overload Rating to 400A Peak Dim Min Max
· Electrically Isolated Metal Case for Maximum A 28.40 28.70
Heat Dissipation B 10.97 11.23
A
· Case to Terminal Isolation Voltage 1500V C H
C 15.50 17.60
· UL Listed: Recognized Component Index, File
Number E95060 (AC) E 22.86 25.40
(+)
J A
C G 13.30 15.30
(-) (AC)

Mechanical Data Hole for #10 screw

H
G 4.85Æ 5.59Æ
· Case: High Conductivity Metal J 17.10 19.10
· Terminals: Plated Leads Solderable per KBPC-W
K 10.40 12.40
MIL-STD-202, Method 208 H

L 0.97Æ 1.07Æ
· Polarity: Symbols Marked on Case N

· Mounting: Through Hole for #10 Screw

M
M 30.50 ¾
L
· Mounting Torque: 8.0 Inch-pounds Maximum N 10.97 11.23
· Weight: KBPC 31.6 grams (approx) A P 17.10 19.10
· KBPC-W 28.5 grams (approx) (AC)
P H
All Dimensions in mm
· Mounting Position: Any (+)

“W” Suffix Designates Wire Leads

· Marking: Type Number P K A
No Suffix Designates Fast-on Terminals
(-) (AC)

Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified

Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

Characteristic Symbol KBPC35 KBPC35 KBPC35 KBPC35 KBPC35 KBPC35 KBPC35 Unit
005/W 01/W 02/W 04/W 06/W 08/W 10/W
Peak Repetitive Reverse Voltage VRRM
Working Peak Reverse Voltage VRWM 50 100 200 400 600 800 1000 V
DC Blocking Voltage VR
RMS Reverse Voltage VR(RMS) 35 70 140 280 420 560 700 V
Average Rectified Output Current @ TC = 55°C IO 35 A
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load IFSM 400 A
(JEDEC Method)
Forward Voltage (per element) @ IF = 17.5A VFM 1.2 V
Peak Reverse Current @ TC = 25°C IRM 10 mA
at Rated DC Blocking Voltage @ TC = 125°C 1.0 mA
I2t Rating for Fusing (t < 8.3ms) (Note 3) I 2t 664 A 2s
Typical Junction Capacitance (Note 2) Cj 300 pF
Typical Thermal Resistance Junction to Case RqJC 2.7 K/W
Operating and Storage Temperature Range Tj, TSTG -65 to +150 °C

Notes: 1. Thermal resistance junction to case mounted on heatsink.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. Measured at non-repetitive, for t > 1.0ms and < 8.3ms.

DS21357 Rev. B-3 1 of 2 KBPC35005/W-KBPC3510/W

This datasheet has been downloaded from http://www.digchip.com at this page

 40 100

IF, INSTANTANEOUS FORWARD CURRENT (A)

Mounted on a
220 x 220 x 50mm

IF, AVERAGE FORWARD CURRENT (A)

AL plate heatsink

30 10

20 1.0

10 0.1

Tj = 25°C
Resistive or
Inductive load Pulse Width = 300µs
0.01
0
0 25 50 75 100 125 150 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8

TC, CASE TEMPERATURE (°C) VF, INSTANTANEOUS FORWARD VOLTAGE (V)

Fig. 1 Forward. Current Derating Curve. Fig. 2 Typical Forward Characteristics (per element)

400
IFSM, PEAK FORWARD. SURGE CURRENT (A)

Single Half-Sine Wave

IR, INSTANTANEOUS REVERSE CURRENT (µA)

(JEDEC Method) 10
Tj = 100°C

300

1.0

200

Tj = 25°C
0.1
100

Tj = 150°C
0 0.01
1 10 100 0 20 40 60 80 100 120 140
NUMBER OF CYCLES AT 60 Hz PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 3 Maximum Non-Repetitive Surge Current Fig. 4 Typical Reverse Characteristics (per element)

DS21357 Rev. B-3 2 of 2 KBPC35005/W-KBPC3510/W
