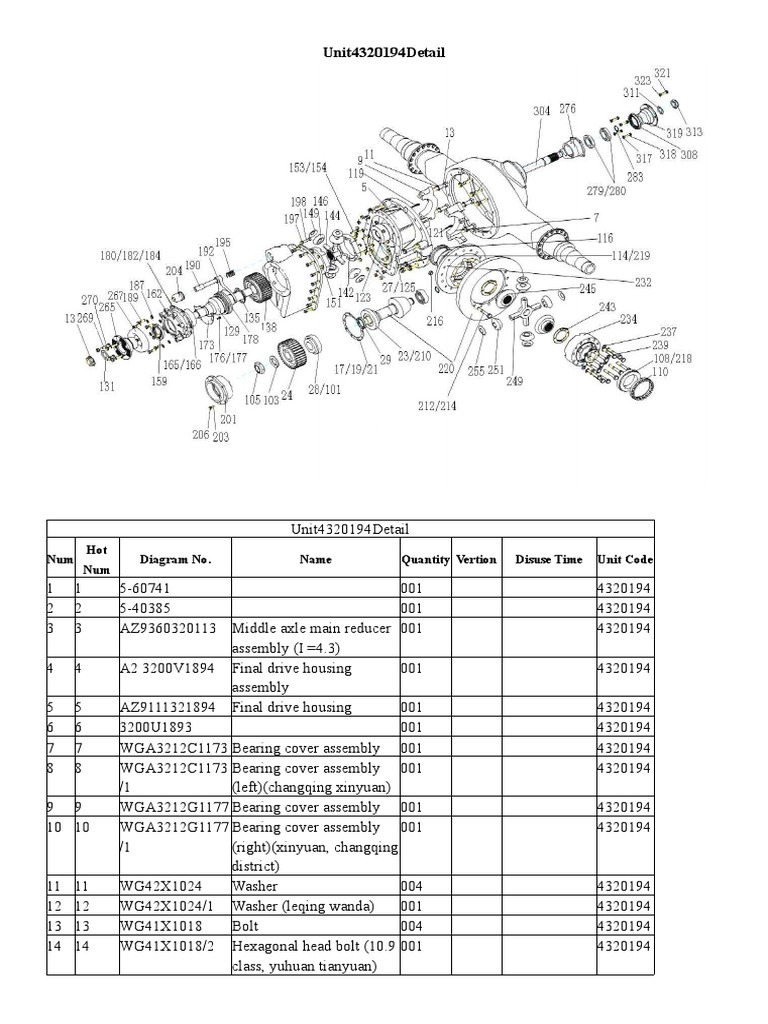

Unit4320194Detail

Unit4320194Detail
Hot
Num Diagram No. Name Quantity Vertion Disuse Time Unit Code
Num
1 1 5-60741 001 4320194
2 2 5-40385 001 4320194
3 3 AZ9360320113 Middle axle main reducer 001 4320194
assembly (I =4.3)
4 4 A2 3200V1894 Final drive housing 001 4320194
assembly
5 5 AZ9111321894 Final drive housing 001 4320194
6 6 3200U1893 001 4320194
7 7 WGA3212C1173 Bearing cover assembly 001 4320194
8 8 WGA3212C1173 Bearing cover assembly 001 4320194
/1 (left)(changqing xinyuan)
9 9 WGA3212G1177 Bearing cover assembly 001 4320194
10 10 WGA3212G1177 Bearing cover assembly 001 4320194
/1 (right)(xinyuan, changqing
district)
11 11 WG42X1024 Washer 004 4320194
12 12 WG42X1024/1 Washer (leqing wanda) 001 4320194
13 13 WG41X1018 Bolt 004 4320194
14 14 WG41X1018/2 Hexagonal head bolt (10.9 001 4320194
class, yuhuan tianyuan)
15 15 2297D5048 Adhesive 001 4320194
16 16 2297C7023 Activator 001 4320194
17 17 WG2203F2788 Shim 004 4320194
18 18 WG2203F2788/1 Active bevel gear bearing 001 4320194
seat gasket
19 19 WG2203G2789 Shim 003 4320194
20 20 WG2203G2789/1 Active bevel gear bearing 001 4320194
seat gasket
21 21 WG2203H2790 Shim 004 4320194
22 22 WG2203H2790/1 Active bevel gear bearing 001 4320194
seat gasket
23 23 H 715311 Drive bevel gear inner 001 4320194
bearing outer ring
24 24 WG3892U4909 Gear 001 4320194
25 25 WG3892U4909/1 Finished product of driven 001 4320194
cylindrical gear (Qingdao
samsung precision
forging)
26 26 4-24130A 001 4320194
27 27 JLM714110 Input shaft inner bearing 001 4320194
outer ring
28 28 65500 Active outside bevel gear 001 4320194
bearing outer ring
29 29 S 2203P9246 Shim 001 4320194
30 30 WG2203P9246 Spacer 001 4320194
31 31 WG2203P9246/1 Driving bevel gear 001 4320194
32 32 2203Q9247 Spacer 001 4320194
33 33 2203R9248 Spacer 001 4320194
34 34 2203S9249 Spacer 001 4320194
35 35 2203T9250 Spacer 001 4320194
36 36 2203U9251 Spacer 001 4320194
37 37 2203V9252 Spacer 001 4320194
38 38 2203W9253 Spacer 001 4320194
39 39 2203X9254 Spacer 001 4320194
40 40 2203Y9255 Spacer 001 4320194
41 41 2203Z9256 Spacer 001 4320194
42 42 2203A9257 Spacer 001 4320194
43 43 2203B9258 Spacer 001 4320194
44 44 2203C9259 Spacer 001 4320194
45 45 2203D9260 Spacer 001 4320194
46 46 2203E9261 Spacer 001 4320194
47 47 2203F9262 Spacer 001 4320194
48 48 2203G9263 Spacer 001 4320194
49 49 2203H9264 Spacer 001 4320194
50 50 2203J9266 Spacer 001 4320194
51 51 2203K9267 Spacer 001 4320194
52 52 2203L9268 Spacer 001 4320194
53 53 2203M9269 Spacer 001 4320194
54 54 2203N9270 Spacer 001 4320194
55 55 2203P9272 Spacer 001 4320194
56 56 2203Q9273 Spacer 001 4320194
57 57 2203R9274 Spacer 001 4320194
58 58 2203S9275 Spacer 001 4320194
59 59 2203T9276 Spacer 001 4320194
60 60 2203U9277 Spacer 001 4320194
61 61 2203V9278 Spacer 001 4320194
62 62 2203W9279 Spacer 001 4320194
63 63 2203X9280 Spacer 001 4320194
64 64 2203Y9281 Spacer 001 4320194
65 65 2203Z9282 Spacer 001 4320194
66 66 2203A9283 Spacer 001 4320194
67 67 2203B9284 Spacer 001 4320194
68 68 2203C9285 Spacer 001 4320194
69 69 2203D9286 Spacer 001 4320194
70 70 2203E9287 Spacer 001 4320194
71 71 2203L9320 Spacer 001 4320194
72 72 2203M9321 Spacer 001 4320194
73 73 2203N9322 Spacer 001 4320194
74 74 2203P9324 Spacer 001 4320194
75 75 2203Q9325 Spacer 001 4320194
76 76 2203R9326 Spacer 001 4320194
77 77 2203S9327 Spacer 001 4320194
78 78 2203T9328 Spacer 001 4320194
79 79 2203U9329 Spacer 001 4320194
80 80 2203V9330 Spacer 001 4320194
81 81 2203W9331 Spacer 001 4320194
82 82 2203X9332 Spacer 001 4320194
83 83 2203Y9333 Spacer 001 4320194
84 84 2203Z9334 Spacer 001 4320194
85 85 2203A9335 Spacer 001 4320194
86 86 2203B9336 Spacer 001 4320194
87 87 2203C9337 Spacer 001 4320194
88 88 2203D9338 Spacer 001 4320194
89 89 2203E9339 Spacer 001 4320194
90 90 2203F9340 Spacer 001 4320194
91 91 2203G9341 Spacer 001 4320194
92 92 2203H9342 Spacer 001 4320194
93 93 2203J9344 Spacer 001 4320194
94 94 2203K9345 Spacer 001 4320194
95 95 2203L9346 Spacer 001 4320194
96 96 2203M9347 Spacer 001 4320194
97 97 2203N9348 Spacer 001 4320194
98 98 2203P9350 Spacer 001 4320194
99 99 2203Q9351 Spacer 001 4320194
100 100 1244W1765 Spacer 001 4320194
101 101 65237 Active outside bevel gear 001 4320194
bearing inner ring
102 102 2297U4519 Grease 001 4320194
103 103 WG1229G4063 Washer 001 4320194
104 104 WG1229G4063/1 Flat washer 001 4320194
105 105 WG40X1145 Nut 001 4320194
106 106 WG40X1145/2 Self-locking nut (level 001 4320194
12.0, zhenjiang hengqiang)
107 107 2297U4519 Grease 001 4320194
108 108 52618 Outer ring 001 4320194
109 109 1199Z3250 LOCTITE 001 4320194
110 110 WG2214J1128 Nut 001 4320194
111 111 WG2214J1128/1 Differential bearing 001 4320194
adjusting nut finished
(jinan licheng yuanlong)
112 112 2297D7076 LOCTITE 001 4320194
113 113 2297U4519 Grease 001 4320194
114 114 592A Outer ring 001 4320194
115 115 1199Z3250 LOCTITE 001 4320194
116 116 WG2214G1125 Nut 001 4320194
117 117 WG2214G1125/1 Differential bearing 001 4320194
adjusting nut finished
(jinan licheng yuanlong)
118 118 2297D7076 LOCTITE 001 4320194
119 119 WG1199R2176 Pin 001 4320194
120 120 WG1199R2176/1 Split pin - adjustment ring 001 4320194
lock
121 121 WG1246P1134 Pin 001 4320194
122 122 WG1246P1134/1 Flexible pin 001 4320194
123 123 WG2234T1190 Gear 001 4320194
124 124 WG2234T1190/1 Half-shaft gear of inter- 001 4320194
shaft differential (Qingdao
samsung precision
forging)
125 125 JLM714149 Inner ring 001 4320194
126 126 A2 3297X1194 Input shaft & interaxle 001 4320194
differential assembly
127 127 3-22852 001 4320194
128 128 A1 3297X1194 Input shaft & nut assembly001 4320194
129 129 WGA3297X1194 Input shaft assembly 001 4320194
130 130 WGA3297X1194 Input shaft assembly 001 4320194
/1
131 131 WG1229N1730 Washer 001 4320194
132 132 WG1229N1730/1 Washer 001 4320194
133 133 WG40X1233 Nut 001 4320194
134 134 WG40X1233/3 Self-locking nut 001 4320194
(zhenjiang hengqiang)
135 135 WG1229A4785 Washer 001 4320194
136 136 WG1229A4785/1 Input shaft thrust washer 001 4320194
137 137 3-26606 001 4320194
138 138 WG9360324934 Gear assembly 001 4320194
139 139 WG9360324934/ gear assembly (Qingdao) 001 4320194
1
140 140 4-26501B 001 4320194
141 141 A 3235S1969 Differential housing 001 4320194
components
142 142 3235S1969 Housing 001 4320194
143 143 3235R1968 001 4320194
144 144 WG3278N300 Cross-axis 001 4320194
145 145 WG3278N300/2 Cross shaft (ya 'an, 001 4320194
sichuan province)
146 146 WG2233K245 Gear 004 4320194
147 147 WG2233K245/1 Inter-shaft differential 001 4320194
planetary gear (Qingdao
samsung precision
forging)
148 148 4-26501 001 4320194
149 149 WG1229Q2929 Shim 004 4320194
150 150 WG1229Q2929/1 Thrust washers 001 4320194
151 151 3235Q1967 Housing 001 4320194
152 152 3235P1966 001 4320194
153 153 MS210045A 1 Bolt 008 4320194
154 154 WG1229K1597P Washer 008 4320194
155 155 WG1229K1597P/ Gaskets 001 4320194
1
156 156 WG2297S5349 Clip 001 4320194
157 157 WG2297S5349/1 Clip ring (leqing wanda) 001 4320194
158 158 A1 3226H1126 Bearing cage assembly 001 4320194
159 159 WGA1205J2428 Oil seal 001 4320194
160 160 WGA1205J2428/ Oil seal assembly (rubber 001 4320194
1 factory)
161 161 2297U4519 Grease 001 4320194
162 162 A 3226H1126 Bearing cage assembly 001 4320194
163 163 3226H1126 The input bearing semi- 001 4320194
finished products
164 164 3226G1125 001 4320194
165 165 HM813810 Outer ring 001 4320194
166 166 HM813843 Inner ring 001 4320194
167 167 WG5X1034 O-ring 001 4320194
168 168 WG5X1034/1 "O" ring (rubber factory) 001 4320194
169 169 2297U4519 Grease 001 4320194
170 170 Q72316 Gasket 001 4320194
171 171 WG1250N1080 Plug 001 4320194
172 172 WG1250N1080/1 Screw plug 001 4320194
173 173 WG9111320020 Oil shield 001 4320194
174 174 WG9111320020/ Oil shield (leqing wanda) 001 4320194
1
175 175 2297D7076 LOCTITE 001 4320194
176 176 Q150B0816 Bolt 003 4320194
177 177 Q40308 Spring washer 003 4320194
178 178 WG3107U1061 Sleeve 001 4320194
179 179 WG3107U1061/1 Meshing sleeve (jinan 001 4320194
zhongchuan)
180 180 WG2203K9241 Shim 003 4320194
181 181 WG2203K9241/1 Shim 001 4320194
182 182 WG2203L9242 Shim 002 4320194
183 183 WG2203L9242/1 Shim 001 4320194
184 184 WG2203M9243 Shim 001 4320194
185 185 WG2203M9243/ Shim 001 4320194
1
186 186 2297D7076 LOCTITE 001 4320194
187 187 WG1229D4632 Washer 007 4320194
188 188 WG1229D4632/1 Flat washer 001 4320194
189 189 MS212045 1 Bolt 007 4320194
190 190 WG2244K1025 Push rod 001 4320194
191 191 WG2244K1025/1 Inter-shaft differential lock 001 4320194
putter (leqing wanda)
192 192 A 3296T1086 Fork assembly 001 4320194
193 193 WGA3296S1085 Fork assembly 001 4320194
194 194 WGA3296S1085/ Fork welding assembly 001 4320194
1 (jingjiang hengyi)
195 195 WG2258U411 Spring 001 4320194
196 196 WG2258U411/1 Spring (jinan east pipe) 001 4320194
197 197 MN 312 1 Hexagon head nut (C- 001 4320194
010M)
198 198 WG41X1208 Bolt 001 4320194
199 199 WG41X1208/1 Bolt (10.9 class, yuhuan 001 4320194
tianyuan)
200 200 2297H7054 Sealant 001 4320194
201 201 WG3266C1095 Cover 001 4320194
202 202 WG3266C1095/1 Driving bevel gear cover 001 4320194
203 203 Q40310 Spring washer 005 4320194
204 204 WGA3261Q1057 Cylinder assembly 001 4320194
205 205 WGA3261Q1057 Cylinder assembly 001 4320194
/1 (jingjiang hengyi)
206 206 Q150B1020 Bolt 005 4320194
207 207 WG9111320010 Plug 001 4320194
208 208 WG9111320010/ Screw plug (jade ring 001 4320194
1 door)
209 209 2297D7076 LOCTITE 001 4320194
210 210 H715343 Inner ring 001 4320194
211 211 2297U4519 Grease 001 4320194
212 212 WG9360320829 Bolt 012 4320194
213 213 WG9360320829/ Differential shell bolt 001 4320194
1 (changshu standard parts
factory)
214 214 WG1229W1557 Washer 012 4320194
215 215 WG1229W1557/ Flat washer 001 4320194
1
216 216 WG40X1182 Nut 012 4320194
217 217 WG40X1182/2 Self-locking nut 001 4320194
-GB3098.212.0 (zhenjiang
hengqiang)
218 218 52400 Inner ring 001 4320194
219 219 594A Inner ring 001 4320194
220 220 WG9360320063 Bevel gear assembly, I = 001 4320194
43/10
221 221 WG9360320063/ Bevel gear assembly (I = 001 4320194
1 43/10, zhuzhou gear)
222 222 WG9360320065/ Bevel gear (partial 44.45, 001 4320194
1 tooth number 43, zhuzhou
gear)
223 223 3-18550A 001 4320194
224 224 4-36756 001 4320194
225 225 4-36758 001 4320194
226 226 5-36757 001 4320194
227 227 4-36756 001 4320194
228 228 4-36758 001 4320194
229 229 5-36757 001 4320194
230 230 AZ9360320028 Differential assembly 001 4320194
231 231 AZ9360320050 Differential housing 001 4320194
assembly
232 232 AZ9360320038 Differential half-housing 001 4320194
233 233 5-40280-M Differential shell shape 001 4320194
tolerance
234 234 3235H2114 Without a shell flange 001 4320194
differential half finished
products
235 235 3235C2161 001 4320194
236 236 5-40280-M Differential shell shape 001 4320194
tolerance
237 237 WG1229U1503 Washer 012 4320194
238 238 WG1229U1503/1 Flat washer 001 4320194
239 239 WG41X1275 Bolt 012 4320194
240 240 WG41X1275/3 Differential housing 001 4320194
coupling bolt (level 12.9)
(yuhuan tianyuan)
241 241 AZ9360320024 Differential housing 001 4320194
components
242 242 2297U4519 Grease 001 4320194
243 243 WG1229L3002 Shim 002 4320194
244 244 WG1229L3002/1 Thrust washers 001 4320194
245 245 WG2234C1069 Gear 002 4320194
246 246 WG2234C1069/1 Half-shaft gear (zhuzhou 001 4320194
gear)
247 247 3-22852 001 4320194
248 248 4-26501 001 4320194
249 249 WG3278W335 Cross-axis 001 4320194
250 250 WG3278W335/1 Differential cross shaft (ya 001 4320194
'an, sichuan)
251 251 WG9118321001 Gear 004 4320194
252 252 WG9118321001/ Differential planetary gear 001 4320194
1 (Qingdao samsung
precision forging)
253 253 3-22852 001 4320194
254 254 4-26501 001 4320194
255 255 WG1229K3001 Shim 004 4320194
256 256 WG1229K3001/1 Thrust washers 001 4320194
257 257 2297U4519 Grease 001 4320194
258 258 BP 2501217 1 Connecting components 001 4320194
259 259 2297H7054 Sealant 001 4320194
260 260 WG1250U1217 Plug 001 4320194
261 261 WG1250U1217/1 Screw plug 001 4320194
262 262 MWA 516 Washer 001 4320194
263 263 WG41X1022 Bolt 001 4320194
264 264 WG41X1022/2 Special bolts (10.9 class, 001 4320194
yuhuan tianyuan)
265 265 AZ9360320280 Flange assembly 001 4320194
266 266 AZ9111320281 Flange 001 4320194
267 267 WG9761320279 Dust shield 001 4320194
268 268 WG9761320279/ Dust cover (leqing wanda) 001 4320194
1
269 269 Q151B1450TF2 Bolt 004 4320194
270 270 AZ9003888458 Self-locking nut (grade 14 004 4320194
x 1.5 10)
271 271 WG2297Y4835 Name plate 001 4320194
272 272 WG2297Y4835/1 Nameplate (jinan 001 4320194
quancheng)
273 273 4-18664 001 4320194
274 274 2297B5436 LOCTITE 001 4320194
275 275 A2 3226T1112 Through shaft & Bearing 001 4320194
cage assembly
276 276 A 3226T1112 Bearing cage assembly 001 4320194
277 277 WG3226T1112 Bearing cage 001 4320194
278 278 WG3226T1112/1 Bearing seat 001 4320194
279 279 JLM104910 Outer ring 001 4320194
280 280 LM104949 Inner ring 002 4320194
281 281 JLM104910 Outer ring 001 4320194
282 282 2297U4519 Grease 001 4320194
283 283 S 1229P2590 Circlip 001 4320194
284 284 WG1229P2590 Circlip 001 4320194
285 285 WG1229P2590/1 Flexible baffle ring 001 4320194
286 286 WG1229Q2591 Circlip 001 4320194
287 287 WG1229Q2591/1 Flexible baffle ring 001 4320194
288 288 WG1229R2592 Circlip 001 4320194
289 289 WG1229R2592/1 Flexible baffle ring 001 4320194
290 290 WG1229S2593 Circlip 001 4320194
291 291 WG1229S2593/1 Flexible baffle ring 001 4320194
292 292 WG1229T2594 Circlip 001 4320194
293 293 WG1229T2594/1 Flexible baffle ring 001 4320194
294 294 WG1229U2595 Circlip 001 4320194
295 295 WG1229U2595/1 Flexible baffle ring 001 4320194
296 296 WG1229V2596 Circlip 001 4320194
297 297 WG1229V2596/1 Flexible baffle ring 001 4320194
298 298 WG1229W2597 Circlip 001 4320194
299 299 WG1229W2597/ Flexible baffle ring 001 4320194
1
300 300 WG1229X2598 Circlip 001 4320194
301 301 WG1229X2598/1 Flexible baffle ring 001 4320194
302 302 WG1229Y2599 Circlip 001 4320194
303 303 WG1229Y2599/1 Flexible baffle ring 001 4320194
304 304 WG9360321010 Through shaft 001 4320194
305 305 WG9360321010/ Hollow shaft(yuhuan 001 4320194
1 door)
306 306 WG1229W4131 Circlip 001 4320194
307 307 WG1229W4131/ Flexible baffle ring 001 4320194
1
308 308 WGA1205L2430 Oil seal 001 4320194
309 309 WGA1205L2430 Oil seal assembly (rubber 001 4320194
/1 factory)
310 310 2297U4519 Grease 001 4320194
311 311 WG1229T1736 Washer 001 4320194
312 312 WG1229T1736/1 Flat washer 001 4320194
313 313 WG9761321237 Nut 001 4320194
314 314 WG9761321237/ Flange nut (bottom zero) 001 4320194
1
315 315 Q5005060 Pin 001 4320194
316 316 1199Y3795 LOCTITE 001 4320194
317 317 Q40110 Washer 004 4320194
318 318 Q150B1025 Bolt 004 4320194
319 319 WG9111320201 Flange 001 4320194
320 320 WG9111320201/ Output flange (tianyuan, 001 4320194
1 zhejiang)
321 321 WG9012310124 Bolt 008 4320194
322 322 WG9012310124/ Hexagonal head bolt (jade 001 4320194
2 ring)
323 323 190003888459 Nut 008 4320194
324 324 1199M663 Paint 001 4320194
