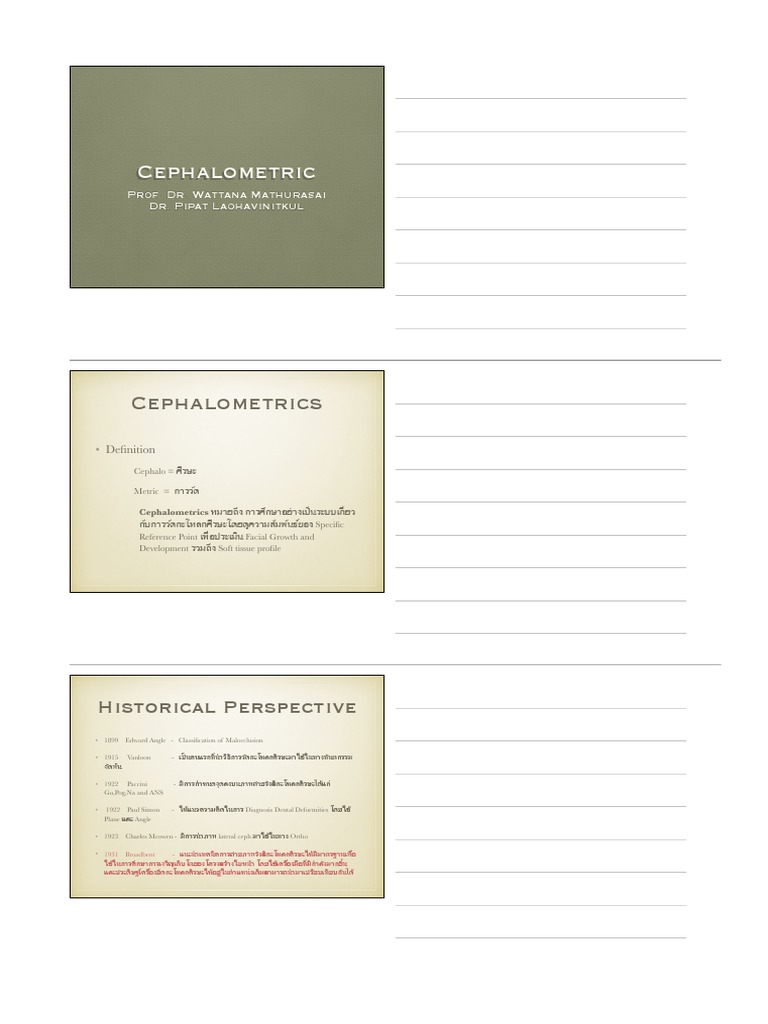

Cephalometrics
• Definition
Cephalo = ศีรษะ
Metric = การวัด
Historical Perspective
• 1899 Edward Angle - Classification of Malocclusion
Technical Aspect
• ส่วนประกอบหลักในการถ่ายภาพ Lateral Cephalogram
มี 3 ส่วน คือ
1. X-ray Apparatus
เครื่องฉายรังสี ประกอบด้วย X-ray
Tube, Transformers ,
Colimators ,Filters และ Coolant
System
High Voltage 60-90 kvp
Generating Capability 100 mA
Technical Aspect
Technical Aspect
3. Cephalostat or Headholder
Cephalostat เป็นเครื่องมือยึดกะโหลกศีรษะให้อยู่กับที่และ
อยู่ในตำแหน่งเดิมทุกครั้งสมารถนำมาเปรียบเทียบกันได้ แรก
เริ่มที่แนะนำโดย Broadbent จะยึดตำแหน่งศีรษะโดยให้
Frankfort Horizontal Plane ขนานกับพื้น ประกอบด้วย Ear
rod , Infra orbital Pointer , Nasion Rest
*** แต่ปัจจุบันถ่ายภาพรังสีโดยใช้ Natural Head Position แล้ว ***
Cephalostat
แนวรังสีผ่านระดับ สายตา
แนวรังสีผ่านกึ่งกลาง รูหู
FHP Vs NHP
• เหตผลที่เปลี่ยนจากตำแหน่งศีรษะที่ให้ FHP ขนานพื้น มาใช้
Natural Head Position แทนเนื่องจาก
หาได้ลำบากในภาพถ่ายรังสี
• วิธีการที่ง่ายที่สุดที่จะทำให้ได้ภาพถ่ายรังสีกะโหลกศีรษะด้านข้าง
ในตำแหน่ง NHP คือจัดให้คนไข้นั่งตัวตรงและให้คนไข้มองไปไกลๆ
Focus ที่จุดที่อยู่ในระดับสายตาเพื่อให้ ระดับศีรษะถูกกำหนดโดย Internal
Physiological Mechanism
Cephalometric Analysis
• Cephalometric Analysis ถูกใช้เพื่อประเมินแสดงและทำนายความ
สัมพันธ์ในทุกระนาบของ Soft Tissue , Craniofacial and Dentofacial
Complexที่เวลาใดเวลาหนึ่งหรือคนละช่วงเวลากัน
Application in Orthodontics
ข้อควรระวังในการใช้
Cephalometrics
• เทปกาว
• Veiw Box
Lateral
Cephalogram
Cephalometric Landmarks
Constructed Landmarks
S
Ptm
Ar
• Landmark ควรจะต้องทำให้สามารถวัดค่าเชิงปริมาณ
ของเส้นและมุมต่างๆที่ออกมาจากจุด landmark ได้
Criteria for landmark
Selection
• การวัดจุดหรือค่าต่างๆควรมีความสัมพันธ์อย่างมี
นัยสำคัญกับข้องมูลที่เราต้องการค้นหา
• การวัดค่าต่างๆต้องสามารถนำมาวิเคราะห์ทางสถิติ
ได้ แต่ไม่ต้องถึงกับที่ต้องใช้วิธีพิเศษทางสถิติใดๆ
ในการวิเคราะห์ข้อมูล
Major Cephalometric
Landmarks
Ro
Cl
Te
Pt
Kr
Unilateral Landmarks
• Nasion(Na) - เป็นจุดที่อยู่หน้าสุดในแนวกลางใบหน้า
อยู่ระหว่าง Frontal Bone และ Nasal Bone บริเวณ Fronto
Nasal Suture
Na
Na
Unilateral Landmarks
• Anterior Nasal Spine(ANS) - Tip of The sharp bony
process of The Maxilla in the midline
ANS
Unilateral Landmarks
• Prosthion( Pr,Superior Prosthion , Supradentale )
- เป็นจุดที่อยู่ตำ่สุดและหน้าสุดในแนวกลาง ของ Maxillary
Alveolar Process อยู่ระหว่างฟัน Upper Central Incisor
Pr
Unilateral Landmarks
• Subspinale ( Point A ) - เป็นจุดที่เว้าลึกที่สุดในแนว
กลางอยู่ระหว่าง ANS และ Alveolar Crest , อยู่ระหว่างฟัน
Upper Central Incisor 2 ซี่
Ui
Unilateral Landmarks
• Lower Central Incisor Tip ( Li ) - จุดปลายฟันหน้า
ล่าง
Li
Unilateral Landmarks
• Infradentale ( Id ) - จุดสูงสุดและหน้าสุดของ Lower
Alveolar Bone ในแนวกลาง ระหว่าง Lower Central
Incisor 2 ซี่
Id
Unilateral Landmarks
• Supramentale ( Point B ) - จุดที่ลึกที่สุดในแนวกลาง
อยู่ระหว่าง Alveolar Crest กับ Metal Process
Unilateral Landmarks
• Pogonion ( Pog ) - จุดหน้าสุดในแนวกลางบริเวณ
Symphysis
Pog
Unilateral Landmarks
• Menton ( Me ) - จุดตำ่สุด ในแนวกลาง บริเวณ
Symphysis
Me
Unilateral Landmarks
• Gnathion ( Gn ) - จุดหน้าสุดและตำ่สุดบริเวณ
Symphysis ของคาง
Gn
วิธีการหาจุด Gnathion
Tips หาได้จากลากเส้นแบ่งครึ่งมุมที่เกิดจาก Mandibular Plane กับ
Facial Plane จุดที่เส้นแบ่งครึ่งมุมนี้ตัดกับ Symphysis คือจุด Gn
Unilateral Landmarks
• Basion ( Ba ) - จุดกึ่งกลาง บนขอบด้านหน้าของ Foramen
Magnum
Ba
Ba
วิธีการหา Basion
Ba
แนว Palatal Plane
Odontoid Process(C2)
Unilateral Landmarks
• Posterior Nasal Spine ( PNS ) - The most posterior
point in the bony hard palate in the sagittal plane Marks
the distal limit of Maxilla
PNS
Unilateral Landmarks
• Glabella ( G ) - จุดที่นูนที่สุดของ Forehead ในระนาบ
Mid-sagital Plane
Unilateral Landmarks
• Subnasale ( Sn ) - เป็นจุดที่ขอบล่างสุดของจมูก บรรจบ
กับ ขอบนอกสุดของ Upper Lip
Bilateral Landmarks
• Orbitale ( Or ) - จุดตำ่สุดบน the inferior bony margin
of the orbit
Or
วิธีการหา Orbitale
Tips - Or มันจะสัผัสกับ Zygomatic Process
Bilateral Landmarks
• Gonion ( Go ) - จุดที่อยู่หลังสุดและตำ่สุดบริเวณมุมขา
กรรไกรล่าง
Go
วิธีการหา Gonion
• Tips - ลากเส้นแบ่งครึ่งมุมที่เกิดจาก เส้นสัมผัสขอบหลังของ Ramus ทำกับ เส้น
สัมผัสขอบล่างของ Mandible จุดที่เส้นแบ่งครึ่งมุมนี้ตัดกับ มุมขากรรไกรล่าง คือ จุด
Go
Bilateral Landmarks
• Condylion ( Co ) - The most Superior Point บนหัว
Condyle
Co
Bilateral Landmarks
• Articulare ( Ar ) - จุดตัดระหว่าง Inferior border of
Cranial Base กับ Posterior Border of Ramus
Ar
Bilateral Landmarks
• Pterygomaxillary Point ( Ptm ) - เป็นจุดตัดของ
inferior border of foramen rotundum กับ Posterior wall
of Pterygomaxillary fissure
Ptm
Bilateral Landmarks
• PT Point -Point at junction between Ptm and foramen
rotundum (at 11 o'clock from Ptm)
PT
Unilateral Landmarks
• Sella ( S ) - จุดกึ่งกลางของ Sella Turcica
Sp
Si
Bilateral Landmarks
• Porion ( Po ) - The Highest bony point on the upper
margin of The external ordinary meatus
Po
วิธีการหา Porion
1. ลากเส้นเชื่อม จุด Clinoidale(Cl) กับ Roof of Orbit(RO)
เส้นนี้เรียกว่า Supraorbital Plane
Bilateral Landmarks
• Bolton Point ( Bo ) - The highest point at the posterior
condylar notch of the occipital bone
Bo
Bilateral Landmarks
• Key Ridge ( Kr ) - The lowest most point on the
contour of the anterior wall of the infratemporal fossa
Kr
Note ตำแหน่งของ Key Ridge จะตรงกับ Mesio Buccal Root ของฟัน Upper First Molar
Bilateral Landmarks
• Clinoidale ( Cl ) - The most superior point on the
contour of Anterior Clinoid
Cl
Bilateral Landmarks
• Roof of Orbit ( Ro ) - roof of orbital cavity is formed
by the bone between the anterior cranial fossa above and
the orbital cavity below
Ro
Bilateral Landmarks
• Temporale ( Te ) - Temporale is the intersection of the
shadow of ethmoid and the anterior wall of the infra -
temporal fossa
Te
Example
Horizontal Planes
• SN Plane - เป็น Cranial line ระหว่าง Center of Sella
Tursica กับ จุด Nation
Horizontal Planes
• Occlusal Plane - มี 3 แบบ
Occlusal Plane
Occlusal Plane
Horizontal Planes
• Mandibular Plane - มี Mandibular Plane หลายแบบที่ถูกใช้ ใน Cephalometrics
Analysis ขึ้นกับว่าใช้ใน Analysis ของใคร Most Common used ได้แก่
1. เส้นสัมผัสขอบล่างของ Mandible
Horizontal Planes
• Basion-Nasion - เป็นเส้นที่ลากเชื่อมระหว่าง จุด Ba กับ
จุด Na
Vertical Planes
• A-Po Line - เป็นเส้นที่ลากจาก จุด A บน Maxilla ไปยัง
จุด Pog บน Mandible
Vertical Planes
• Facial Plane - เส้นที่ลากเชื่อมระหว่าง จุด Na กับ จุด
Pog
Vertical Planes
• Bolton’s Plane - เส้นที่ลากเชื่อมระหว่าง จุด Bolton’s
point กับ จุด Na
Vertical Planes
• Facial Axis - เส้นที่ลากเชื่อมระหว่างจุด PT point กับ จุด
Gn
Vertical Planes
• Esthetic Plane( E Plane ) - เส้นที่ลากเชื่อมระหว่าง
ปลายจมูก กับ ปลายคาง
Cephalometric Analysis
• Down’s Analysis ( 1948 )
• Bjork Analysis
• Steiner Analysis ( 1953 )
• Tweed’s Analysis ( 1954 )
• Sassouni Analysis ( 1955 )
• Harvold Analysis ( 1974 )
• Wits Analysis ( 1975 )
• Ricketts Analysis ( 1979 )
• McNamara Analysis ( 1983 )
• Counterpart Analysis
• Template Analysis
• Jarabak Analysis ( 1972 )
Cephalometric Analysis
