National University of Computer & Emerging Sciences, Lahore

Department of Electrical Engineering (Spring 2021)

EE223 –Signals & Systems

Assignment #3 (CLO#3)

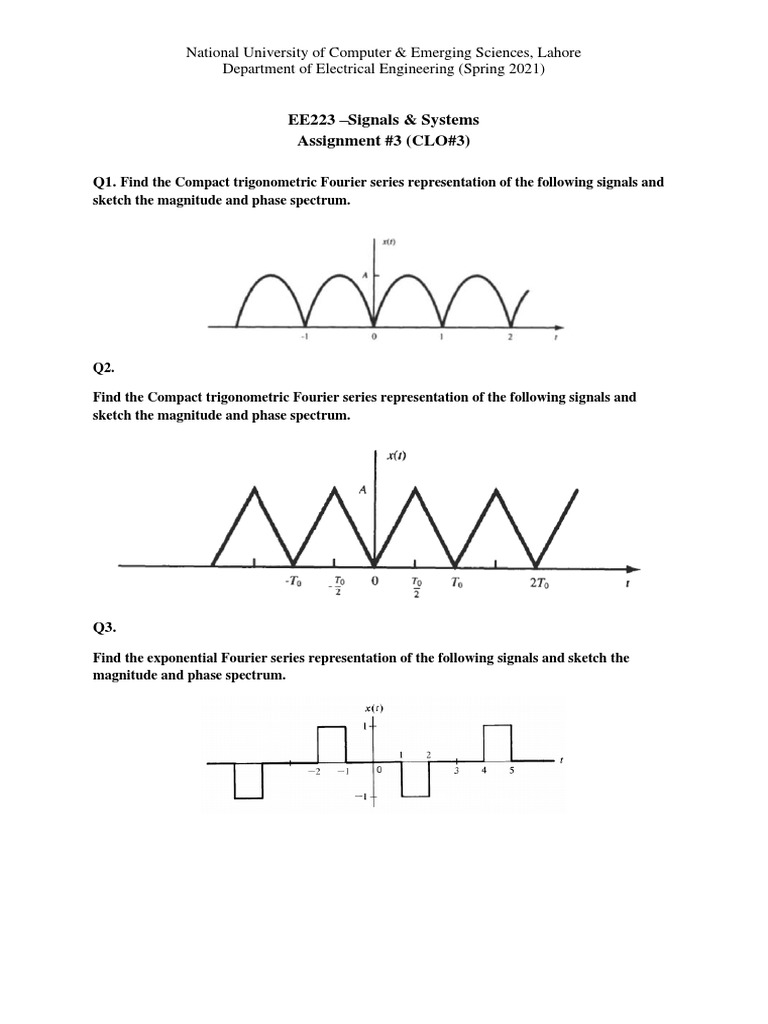

Q1. Find the Compact trigonometric Fourier series representation of the following signals and
sketch the magnitude and phase spectrum.

Q2.

Find the Compact trigonometric Fourier series representation of the following signals and
sketch the magnitude and phase spectrum.

Q3.

Find the exponential Fourier series representation of the following signals and sketch the
magnitude and phase spectrum.
 National University of Computer & Emerging Sciences, Lahore
Department of Electrical Engineering (Spring 2021)

Q4.

Find the exponential Fourier series representation of the following signals and sketch the
magnitude and phase spectrum.

Q5.
Find the compact trigonometric Fourier series of the following periodic signal and sketch the
magnitude and phase spectrum.

Q6.
Find the exponential Fourier series representation of the following signals and sketch the
magnitude and phase spectrum.

Q7.
State with reasons whether the following signals are periodic or aperiodic. For periodic
signals, find the period and state which of the harmonics are present in the series.

(a) 2 sin(3𝑡) + 7cos⁡(𝜋𝑡)

(b) 7 cos(𝜋𝑡) + 5sin⁡(2𝜋𝑡)
(c) 3 cos(√2𝑡) + 5 cos(2𝑡)
5𝑡 6𝑡 𝑡
(d) Sin( 2 ) + 3 cos ( 2 ) + 3sin⁡(7 + 30°)
 National University of Computer & Emerging Sciences, Lahore
Department of Electrical Engineering (Spring 2021)

Q8.

A periodic signal 𝑓(𝑡) is expressed by the following Fourier series:

𝝅 1 𝜋
𝑓(𝑡) = 3 + √3⁡cos 2𝑡⁡ + sin 2𝑡 + 𝐬𝐢𝐧 (𝟓𝒕 − ) − cos (7𝑡 + )
𝟔 2 3
a) Sketch the amplitude and phase spectra for the compact trigonometric series.
b) By inspection of spectra in part (a), sketch the exponential Fourier series spectra.
c) By inspection of spectra in part (b), write the exponential Fourier series for f(t).
d) Verify by calculations that part( c ) is equal to the given signal 𝑓(𝑡).

Q9. The exponential Fourier series of a certain function is given as:

𝒙(𝒕) = (𝟐 + 𝒋𝟐)𝒆−𝒋𝟑𝒕 + 𝒋𝟐𝒆−𝒋𝒕 + 𝟑 − 𝒋𝟐𝒆𝒋𝒕 + (𝟐 − 𝒋𝟐)𝒆𝒋𝟑𝒕

(a) Sketch the exponential Fourier spectra.

(b) By inspection of the spectra in part (a), sketch the trigonometric Fourier spectra for x(t).
Find the compact trigonometric Fourier series from these spectra.
(c) Show that the trigonometric series found in part (b) is equivalent to the exponential series
for x(t).
(d) Find the signal bandwidth.

Q10. The figure below shows the exponential Fourier spectra of a periodic signal x(t).

(a) By inspection, find the exponential Fourier series representing x(t).

(b) By inspection, sketch the trigonometric Fourier spectra for x(t).
(c) By inspection of the trigonometric Fourier spectra found in part (b), find the
trigonometric Fourier series for x(t).
(d) Show that the series found in parts (a) and (c) are equivalent.
