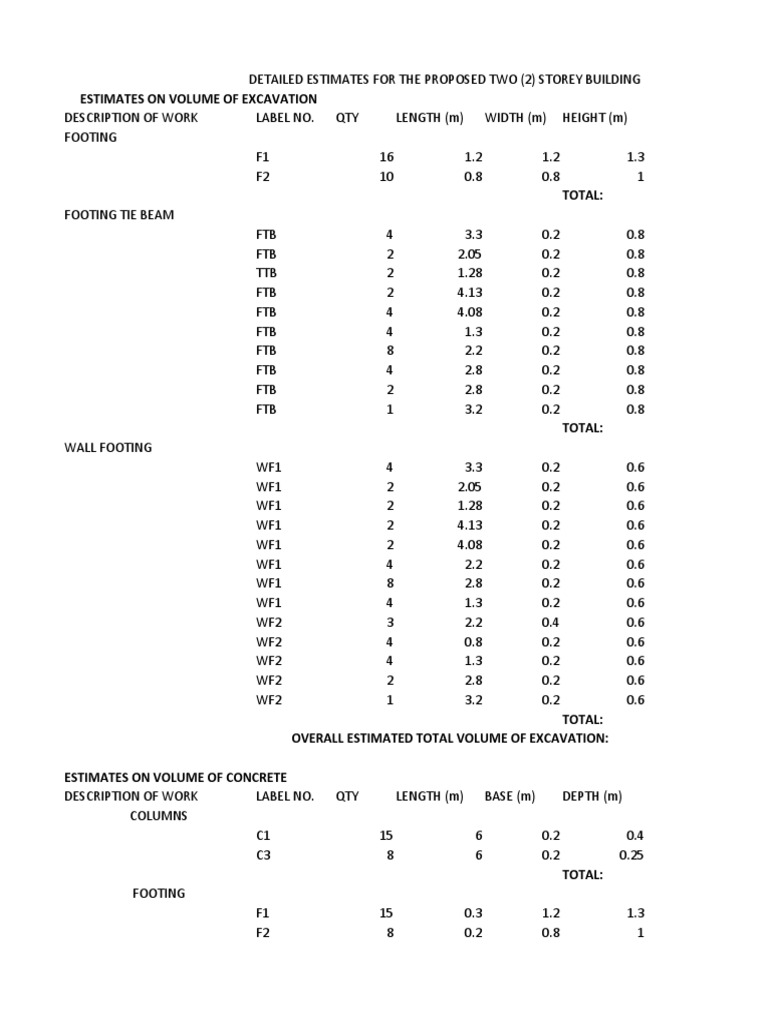

    DETAILED ESTIMATES FOR THE PROPOSED TWO (2) STOREY BUILDING

    ESTIMATES ON VOLUME OF EXCAVATION


    DESCRIPTION OF WORK LABEL NO. QTY LENGTH (m) WIDTH (m) HEIGHT (m)
    FOOTING
    F1 16 1.2 1.2 1.3
    F2 10 0.8 0.8 1
    TOTAL:
    FOOTING TIE BEAM
    FTB 4 3.3 0.2 0.8
    FTB 2 2.05 0.2 0.8
    TTB 2 1.28 0.2 0.8
    FTB 2 4.13 0.2 0.8
    FTB 4 4.08 0.2 0.8
    FTB 4 1.3 0.2 0.8
    FTB 8 2.2 0.2 0.8
    FTB 4 2.8 0.2 0.8
    FTB 2 2.8 0.2 0.8
    FTB 1 3.2 0.2 0.8
    TOTAL:
    WALL FOOTING
    WF1 4 3.3 0.2 0.6
    WF1 2 2.05 0.2 0.6
    WF1 2 1.28 0.2 0.6
    WF1 2 4.13 0.2 0.6
    WF1 2 4.08 0.2 0.6
    WF1 4 2.2 0.2 0.6
    WF1 8 2.8 0.2 0.6
    WF1 4 1.3 0.2 0.6
    WF2 3 2.2 0.4 0.6
    WF2 4 0.8 0.2 0.6
    WF2 4 1.3 0.2 0.6
    WF2 2 2.8 0.2 0.6
    WF2 1 3.2 0.2 0.6
    TOTAL:
    OVERALL ESTIMATED TOTAL VOLUME OF EXCAVATION:

    ESTIMATES ON VOLUME OF CONCRETE


    DESCRIPTION OF WORK LABEL NO. QTY LENGTH (m) BASE (m) DEPTH (m)
    COLUMNS
    C1 15 6 0.2 0.4
    C3 8 6 0.2 0.25
    TOTAL:
    FOOTING
    F1 15 0.3 1.2 1.3
    F2 8 0.2 0.8 1
    TOTAL:
    WALL FOOTING
    WF2 3 3.2 3 0.1
    WF2 4 3.2 2.5 0.1
    WF2 3 3.2 2.2 0.1
    WF2 3 3.2 1.3 0.1
    WF2 4 3.2 2 0.1
    TOTAL:
    SLAB
    S1 3 5.48 3 0.1
    S1 3 5.53 3 0.1
    S1 3 4.5 3 0.1
    S2 3 1 2.5 0.1
    S2 3 5.6 3 0.1
    S2 3 5.2 3 0.1
    S2 3 3.2 3 0.1
    S2 3 4.7 3 0.1
    TOTAL:
    BEAM
    FTB 15 3 0.2 0.4
    EB 3 0.4 2.5 0.15
    CB 5 0.4 1 0.2
    B1 4 0.4 5.6 0.25
    B1 4 0.4 2 0.25
    B1 4 0.4 3.2 0.25
    B1 15 0.4 3 0.2
    B2 3 0.35 2 0.2
    B3 3 4 0.2 0.3
    RB1 4 8.13 0.2 0.35
    RB2 4 8.38 0.2 0.35
    RB2 3 3 0.2 0.35
    FTB 15 3 0.2 0.4
    TB 12 0.2 0.2 0.3
    TOTAL:
    OVERALL ESTIMATED TOTAL VOLUME OF CONCRETE:

    ESTIMATE OF NUMBER OF BAGS OF CONCRETE


    RATIO (CEMENT:SAND:AGGREGATE) VOLUME OF CEMENT VOLUME OF SAND
    1C:2S:4A 11.9922571428571 23.9845142857143
    BUILDING

    VOLUME OF CONCRETE (cu.m)

    29.952
    6.4
    36.352

    2.112
    0.656
    0.4096
    1.3216
    2.6112
    0.832
    2.816
    1.792
    0.896
    0.512
    13.9584

    1.584
    0.492
    0.3072
    0.9912
    0.9792
    1.056
    2.688
    0.624
    1.584
    0.384
    0.624
    0.672
    0.384
    12.3696
    62.68

    VOLUME OF CONCRETE (cu.m)

    7.2
    2.4
    9.6

    7.02
    1.28
    8.3

    2.88
    3.2
    2.112
    1.248
    2.56
    12

    4.932
    4.977
    4.05
    0.75
    5.04
    4.68
    2.88
    4.23
    31.539

    3.6
    0.45
    0.4
    2.24
    0.8
    1.28
    3.6
    0.42
    0.72
    2.2764
    2.3464
    0.63
    3.6
    0.144
    22.5068
    83.9458

    ER OF BAGS OF CONCRETE
    VOLUME OF SAND VOLUME OF AGGREGATES NUMBER OF BAGS OF CEMENT VOLUME OF WATER (w/c =0.5)
    23.9845142857143 47.9690285714286 431.721257142857 8634.42514285714
    OF WATER (w/c =0.5)
    4.42514285714
