    Parts List

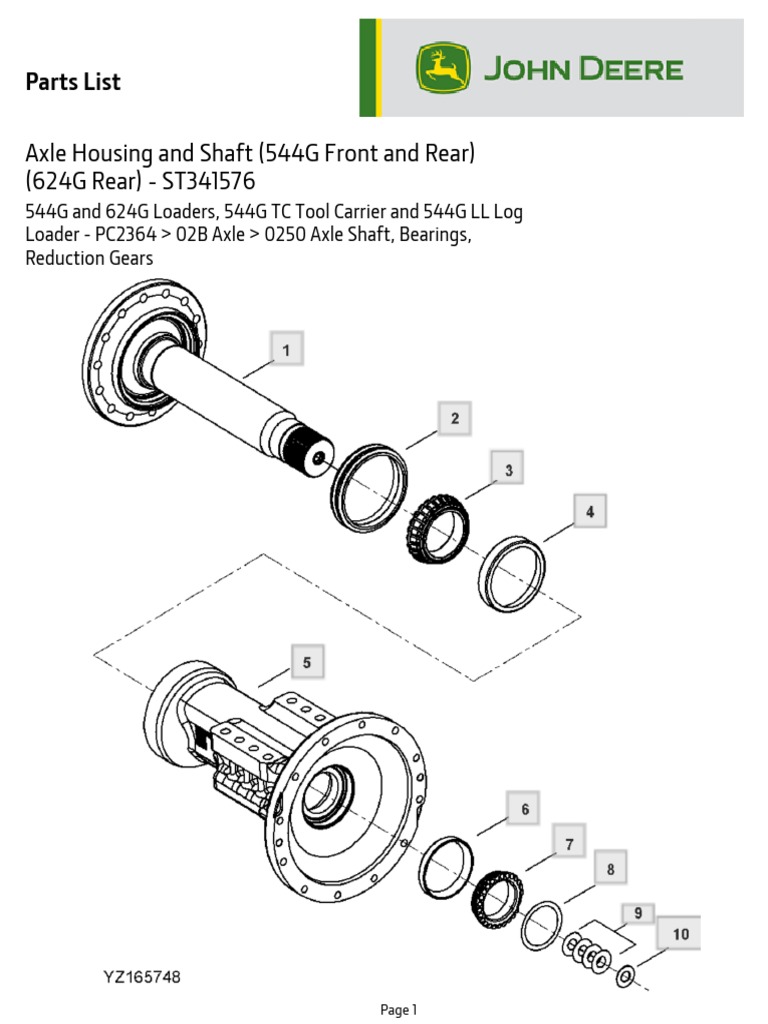

    Axle Housing and Shaft (544G Front and Rear)


    (624G Rear) - ST341576
    544G and 624G Loaders, 544G TC Tool Carrier and 544G LL Log
    Loader - PC2364 > 02B Axle > 0250 Axle Shaft, Bearings,
    Reduction Gears

    Page 1
    Part Quantity
    Required
    1 - Shaft 1
    Part Number : YZ121066
    Supported Models : 544G, 624G
    Remarks : (SUB YZ120240)(FACE SEAL)

    1 - Spindle 1
    Part Number : R110324
    Supported Models : 544G, 624G
    Remarks : (LIP SEAL)

    2 - Seal 1
    Part Number : YZ121201
    Supported Models : 544G, 624G
    Remarks : (SUB FOR YZ120452)(FACE SEAL)

    2 - Seal 1
    Part Number : R163304

    Supported Models : 544G, 624G


    Remarks : (SUB FOR R127839) (MACHINE SERIAL NO.-587704)(FRONT AXLE) (OIL SEAL) (LIP SEAL)

    2 - Seal 1
    Part Number : R163304

    Supported Models : 544G, 624G


    Remarks : (SUB FOR R127839)(MACHINE SERIAL NO. -587838) (1200 SERIES FRONT AXLE NARROW GAUGE) (OIL SEAL)
    (LIP SEAL)

    2 - Seal 1
    Part Number : R163304

    Supported Models : 544G, 624G


    Remarks : (SUB FOR R127839)(MACHINE SERIAL NO. -587836) (1200 SERIES REAR AXLE)(OIL SEAL) (LIP SEAL)_

    3 - Bearing Cone 1
    Part Number : JD9018
    Supported Models : 544G, 624G

    4 - Bearing Cup 1
    Part Number : JD8248

    Page 2
    Part Quantity
    Required
    Supported Models : 544G, 624G

    5 - Housing 1
    Part Number : YZ120382
    Supported Models : 544G, 624G
    Remarks : (FACE SEAL)

    5 - Housing 1
    Part Number : R116158
    Supported Models : 544G, 624G
    Remarks : (ALSO ORDER 15H559 AND T71988)(LIP SEAL)

    6 - Bearing Cup 1
    Part Number : JD9118
    Supported Models : 544G, 624G

    7 - Bearing Cone 1
    Part Number : JD9055
    Supported Models : 544G, 624G

    8 - Washer 1
    Part Number : R48437
    Supported Models : 544G, 624G

    9 - Shim 1
    Part Number : R59439
    Supported Models : 544G, 624G
    Remarks : 0.13 MM (.005")

    9 - Shim 1
    Part Number : R59440
    Supported Models : 544G, 624G
    Remarks : 0.51 MM (.020")

    9 - Shim 1
    Part Number : R61461
    Supported Models : 544G, 624G
    Remarks : 0.08 MM (.003")

    9 - Shim 1
    Part Number : R79989
    Page 3
    Part Quantity
    Required
    Supported Models : 544G, 624G
    Remarks : 0.18 MM (.007")

    10 - Washer 1
    Part Number : F2380R
    Supported Models : 544G, 624G

    Page 4
