Visit these links for more information and documentation for your Fortinet product.
© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
• Technical Documentation - http://docs.forticare.com of their respective holders.
• Fortinet Knowledge Center - http://kc.forticare.com Regulatory Compliance
• Fortinet Technical Support - http://support.fortinet.com FCC Class B Part 15 CSA/CUS
19 November 2010
01-412-0468-20101119

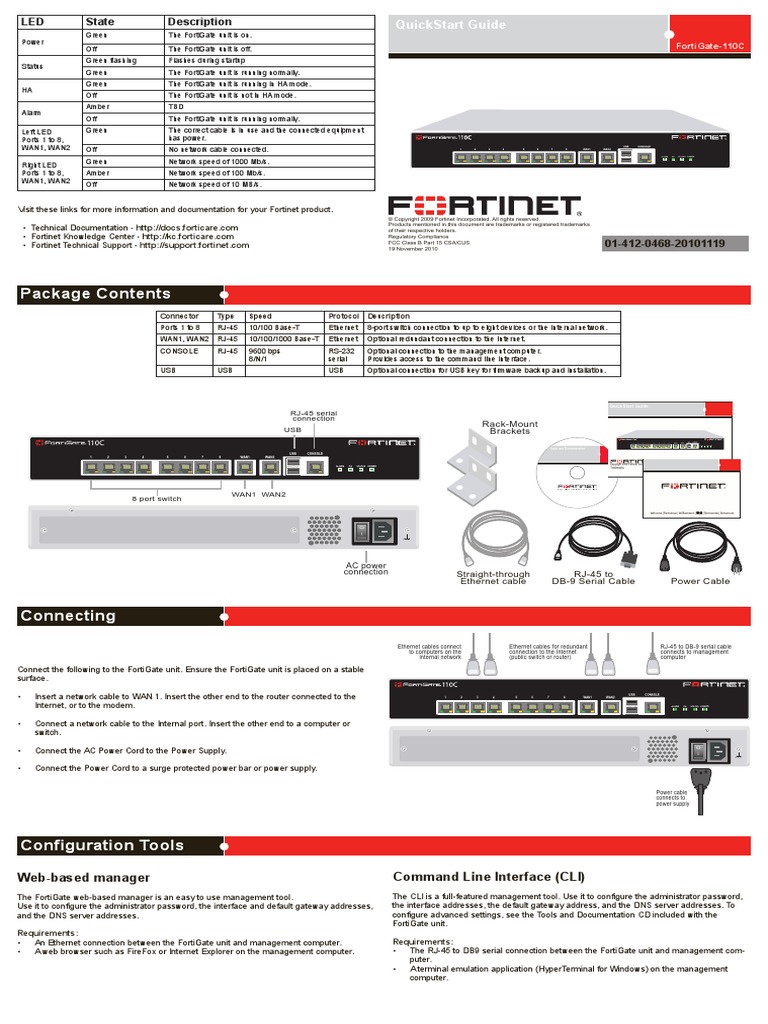

Package Contents
Connector Type Speed Protocol Description
Ports 1 to 8 RJ-45 10/100 Base-T Ethernet 8-port switch connection to up to eight devices or the internal network.
WAN1, WAN2 RJ-45 10/100/1000 Base-T Ethernet Optional redundant connection to the Internet.
CONSOLE RJ-45 9600 bps RS-232 Optional connection to the management computer.
8/N/1 serial Provides access to the command line interface.
USB USB USB Optional connection for USB key for firmware backup and installation.
QuickStart Guide
RJ-45 serial FortiGate-30B
connection
Rack-Mount
USB Brackets
USB CONSOLE
1 2 3 4 5 6 7 8 WAN1 WAN2
USB CONSOLE
1 2 3 4 5 6 7 8 WAN1 WAN2
WAN1 WAN2
8 port switch
Welcome | Bienvenue | Willkommen | 歓迎 | Bienvenido | Benvenuto
AC power
connection Straight-through RJ-45 to
Ethernet cable DB-9 Serial Cable Power Cable
Connecting
Ethernet cables connect Ethernet cables for redundant RJ-45 to DB-9 serial cable
to computers on the connection to the Internet connects to management
internal network (public switch or router) computer
Connect the following to the FortiGate unit. Ensure the FortiGate unit is placed on a stable
surface.
• Insert a network cable to WAN 1. Insert the other end to the router connected to the 1 2 3 4 5 6 7 8 WAN1 WAN2
USB CONSOLE
• Connect a network cable to the Internal port. Insert the other end to a computer or
switch.
• Connect the Power Cord to a surge protected power bar or power supply.
Power cable
connects to
power supply
Configuration Tools
Configuring
Refer to the Tools and Documentation CD for information on how to control traffic, and how to configure HA, antivirus protection, FortiGuard, Web content filtering, Spam filtering, intrusion
prevention (IPS), and virtual private networking (VPN).
