s e r i e s

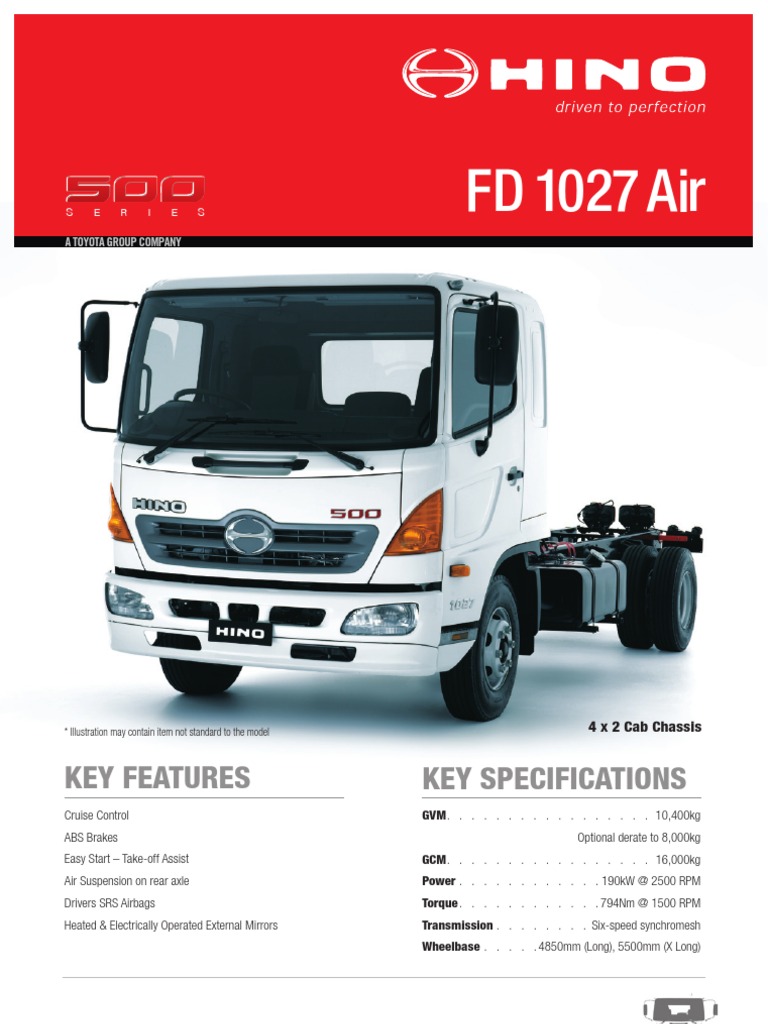

FD 1027 Air
A TOYOTA GROUP COMPANY

* Illustration may contain item not standard to the model 4 x 2 Cab Chassis

key FEATURES key specifications

Cruise Control GVM. . . . . . . . . . . . . . . . . 10,400kg
ABS Brakes Optional derate to 8,000kg
Easy Start – Take-off Assist GCM. . . . . . . . . . . . . . . . . 16,000kg
Air Suspension on rear axle Power. . . . . . . . . . . . 190kW @ 2500 RPM
Drivers SRS Airbags Torque. . . . . . . . . . . . 794Nm @ 1500 RPM
Heated & Electrically Operated External Mirrors Transmission. . . . . . . . Six-speed synchromesh
Wheelbase. . . . . 4850mm (Long), 5500mm (X Long)

www.hino.com.au Medium Duty

 FD 1027 Air
Engine & Driveline
specifications
ENGINE
Model . . . . . . . . . . . Hino J08E TB
Max. output (ISO Net). . . . . . . 190kW (258 PS) at 2500 RPM
Max. output (JIS GROSS) . . . . . . 193kW (263 PS) at 2500 RPM
Max. torque (ISO Net) . . . . . . . 794Nm (81 kgf/m) at 1500 RPM
Max. torque (JIS GROSS) . . . . . . 794Nm (81kgf/m) at 1500 RPM
Max. engine speed. . . . . . . . 2550 RPM
Engine compliance. . . . . . . . ADR 80/02
Type . . . . . . . . . . . Diesel, turbocharged & intercooled, six-cylinder
in-line, overhead camshaft & water-cooled
Combustion system. . . . . . . . Direct injection with EGR
Bore & stroke . . . . . . . . . . 112 x 130mm
Piston displacement. . . . . . . . 7.684L
Compression ratio. . . . . . . . 18.5:1
Engine oil capacity . . . . . . . . 13.5L
Coolant capacity . . . . . . . . . 21.0L
Fuel injection pump. . . . . . . . Electronic control common-rail type
Intake system . . . . . . . . . . Stack-type air intake
Air cleaner. . . . . . . . . . . Dual paper elements
Air compressor type . . . . . . . . Single cylinder, water-cooled
Bore & stroke . . . . . . . . . . 70 x 40mm
Fan clutch. . . . . . . . . . . Equipped
Exhaust . . . . . . . . . . . Horizontal outlet
CLUTCH
Model . . . . . . . . . . . . . CSP 350
Type. . . . . . . . . . . . . Dry single plate with damper springs
Facing material. . . . . . . . . Cera-metallic
Facing outside diameter. . . . . . 350mm
Control . . . . . . . . . . . . Hydraulic with air booster
TRANSMISSION & GEAR RATIOS
Model. . . . . . . . . . . . . LJ06S
Type. . . . . . . . . . . . . Six forward & one reverse speeds, overdrive, Number of tyres. . . . . . . . . Seven (Including one spare)
synchromesh on 2nd to 6th
Control . . . . . . . . . . . . Cable with power shift
Rear axle gear ratio. . . . . . . . 3.900:1
1st. . . . . . . . . 6.477 5th. . . . . . . . . 1.000
2nd. . . . . . . . . 4.016 6th. . . . . . . . . 0.723
3rd. . . . . . . . . 2.450 Rev.. . . . . . . . . 6.064
4th. . . . . . . . . 1.470
PERFORMANCE
Calculations based on 10.4 ton GVM, 9.5R17.5 tyre
Engine rpm @ 100km/h. . . . . . 1820
Max theoretical speed (km/h). . . . 139
Gradeability tan (%) @ GVM . . . . 48.6%
BRAKES
Type . . . . . . . . . . . . . Hydraulic system with two leading shoes for front
& rear acting on all wheels
Control . . . . . . . . . . . . Air over hydraulic, dual circuits
Drum diameter x lining
Width . . . . . . . . . . . . . Front 320 x 110mm
. . . . . . . . . . . . . . . Rear 320 x 145mm
Air dryer . . . . . . . . . . . . Equipped
ABS . . . . . . . . . . . . . Equipped
Brake auto-shoe adjuster . . . . . . Equipped
Parking brake . . . . . . . . . . Spring brake, acting on rear wheels
Exhaust brake. . . . . . . . . . Electric-pneumatic with valve in exhaust pipe
AXLE LOAD & TYPE
Axle load limit . . . . . . . . . . Front axle . . . . . . . . . . . . 3600kg
Rear axle. . . . . . . . . . . . 7000kg
Front axle type. . . . . . . . . . LF366 series Reversed Elliot, I-Beam
Rear axle type. . . . . . . . . . SH13 full-floating, single reduction,
single-speed hypoid
SUSPENSION
Front suspension Type. . . . . . Semi-elliptic tapered leaf springs with
shock absorbers
Size. . . . . . . . . . . . . . 1300 span x 70mm width
Rear suspension Type . . . . . . Hendrickson HAS Air bag with shock absorbers
WHEELS & TYRES
Wheel type . . . . . . . . . . . Six-stud disc wheel (JIS type) PCD 222.25
Rim size . . . . . . . . . . . . 6.75 x 17.5 – offset 135mm
Tyre size . . . . . . . . . . . . 9.5R17.5-129/127
Spare tyre carrier . . . . . . . . . Equipped
FUEL TANK
Capacity . . . . . . . . . . . 200L
Fuel pre-filter & sedimenter . . . . . Equipped
Fuel tank cap key. . . . . . . . . Equipped
 FD 1027 Air Power
J08E-TB& Torque chart (ISO Net) J08E TB J

Cab, Instrumentation OUTPUT (kW)

240
TORQUE (N-m)

900
(kgf-m)
(PS

& Chassis
794Nm /1500rpm
85
(PS) (81kgm/1500rpm) 200
220
280 800
200
75 180
260 700
240 180 65 160
600
CAB DETAILS 220 160
193kW
190kW /2500rpm
140
200 500
(263ps/2500rpm)
(258ps/2500rpm) 120
Type. . . . . . . . . . . . . F orward control, all steel construction with 140
180 400
torsion bar tilt mechanism 120 100
Drivers SRS Airbag. . . . . . . . Equipped
100
Seating capacity . . . . . . . . . Three
Driver’s seat . . . . . . . . . . Urethane foam pads, high-back, 4-way 80
adjustable seat with fabric cover & air
2,550
suspension 1000 1400 1800 2200 2600 3000
Side passenger’s seat . . . . . . . Urethane foam pads, high-back & reclining seat
ENGINE SPEED (rpm)
with fabric cover & under-tray
Centre passenger’s seat. . . . . . Urethane foam pads & foldaway type with seat
back tray, fabric cover
Seat belt. . . . . . . . . . . . 3-point type on driver’s & side passenger’s seat,
2-point type on centre passenger’s seat
INSTRUMENTS
Sun visor & overhead console. . . . For driver & passenger sides 1. Meters & gauges Engine over-run buzzer
J08E-UA
Windshield wipers. . . . . . . . Electric, dual, intermittent & 2-speed Speedometer with trip meter Coolant level lamp & buzzer
Ventilator . . . . . . . . . . . Forced type by electric blower Odometer Brake fluid lamp & buzzer
OUTPUT (kW)
Fuel gauge TORQUE
Brake adjustment (N-m)
lamp & buzzer
Rear view mirrors . . . . . . . . Inside: One flat
Outside: Electric & heated, two flat, two convex Tachometer High beam indicator lamp (kgf-m)
spotters Coolant240
temperature gauge Turn signal indicator lamp
800
(PS)
Air pressure gauge Parking brake indicator lamp 75 (P
Cigarette lighter (24V) . . . . . . . Equipped 220
2. 280
Switches 608Nm /1500rpm Seat belt lamp & buzzer 700 28
Power windows . . . . . . . . . Equipped (62kgm/1500rpm)
200starting-stopping 65
260One-key Exhaust brake indicator lamp 26
Floor mat. . . . . . . . . . . . Vinyl type 600
Lighting180 Engine control system lamp 55
240 24
Front air spoiler. . . . . . . . . Equipped Directional indicator, dimmer Hazard indicator lamp 500
Central locking & keyless entry . . . . Equipped 220 160 22
& passing Back-up buzzer
Heater & defroster. . . . . . . . Standard 200Wiper & washer 4. Others 400 20
140
Air conditioner . . . . . . . . . . Standard 180Hazard lamp 152kW
Idle/2500rpm
193kW up control knob 18
(263ps/2500rpm)
(207ps/2500rpm) 300
Trim . . . . . . . . . . . . . Full trim type (side, roof & back) Exhaust120brake Horn button
Map lamp 12V electric source (harness type)
Cab pockets . . . . . . . . . . Equipped on both door sides 100
Fog lamp
Rest area. . . . . . . . . . . . Equipped 80
Easy Start
Car audio . . . . . . . . . . . AM/FM radio with CD player Cruise Control
Speakers. . . . . . . . . . . . Driver & passenger sides 3. Warning, pilot lamps & buzzers 2,550
Easy Start. . . . . . . . . . . Equipped Oil pressure lamp1000 1400 1800 2200 2600 3000
& buzzer
Foot rest. . . . . . . . . . . . Equipped Air pressure lamp & buzzer ENGINE SPEED (rpm)
Engine control link. . . . . . . . Equipped
Cruise Control. . . . . . . . . . Equipped
Cup holder. . . . . . . . . . . Equipped
STEERING
Type. . . . . . . . . . . . . T elescopic & tilt steering column with locking
AO9C-TJ device. Recirculating ball with Integral Power A
ELECTRICAL Steering
Gear ratio . OUTPUT
. . . (kW)
. . . . . . . 18.6:1 TORQUE (N-m)
Type. . . . . . . . . . . . . 24V, negative earth Steering angle . . . . . . . . . . Inside: 50-53˚ Outside: 39˚
(kgf-m)
Batteries. . . . . . . . . . . . 2 x 12V in series connection. Capacity 65Ah at
280 1079Nm /1,100rpm
1200
20-hour rate 120
(PS) (110kgm/1100rpm) (P
260 1100
Alternator type . . . . . . . . . . Brushless with built-in rectifier & 350 35
CHASSIS
240FRAME 1000
voltage regulator. Capacity 24V, 60A 320 100 32
Starter type. . . . . . . . . . . 24V, 4.5kW Type.290 . . 220
. . . . . . . . . . Ladder-shaped channel section side
900rails 29
Headlamps . . . . . . . . . . . Halogen type including fog lamps Rear260
chassis200
width . . . . . . . . 820mm 800 26
80
High/low beam . . . . . . . . . Equipped Max.230
section (depth x flange x thickness) . . . 231.6 x 73 x 6.8mm 23
180 700
Fluorescent reading lamp . . . . . . Equipped Tensile
200
strength. . . . . . . . . 540N/mm² {55kgf/mm²}
221kW
193kW /2100rpm
/2500rpm
20
(263ps/2500rpm)
(300ps/2100rpm)
Electric horn . . . . . . . . . . Equipped Hooks. . .160
. . . . . . . . . . Equipped for front & rear 600

140 500

120 400
 s e r i e s

DIMENSIONS - mm / Capacities
FD 1027 Air Model Hino FD 1027 Air . . . . . . . . . . . Long. . . . . . . . X Long
Product code . . . . . . . . . . . . FD8JLKG 260. . . . . FD8JPKG 260

Dimensions Wheelbase (WB) . . . . . . . . . . . . . . 4850. . . . . . . . . 5500

Overall length (OL). . . . . . . . . . . . . . 8135. . . . . . . . . 9145
Overall width (OW). . . . . . . . . . . . . . 2175 . . . . . . . 2175
Overall height (OH). . . . . . . . . . . . . . 2465 . . . . . . . 2465
Cab to axle centre (CA). . . . . . . . . . . . 3950. . . . . . . . . 4600
Rear overhang - at frame end (ROHF). . . . . . . 2060. . . . . . . . . 2420
Front chassis height (HF) . . . . . . . . . . . . 790 . . . . . . . . . 790
Rear chassis height (HR). . . . . . . . . . . . 805. . . . . . . . . 805
Road clearance (at diff. case) (RC). . . . . . . . 220. . . . . . . . . 220
Front track (FT) . . . . . . . . . . . . . . . 1770. . . . . . . . 1770
Rear track (RT). . . . . . . . . . . . . . . 1660. . . . . . . . 1660
Turning circle kerb to kerb . . . . . . . . . . 15,000 . . . . . . . . 17,000
Turning circle wall to wall . . . . . . . . . . 16,400. . . . . . . . 18,400
Chassis mass – kg (standard tools, 10 litres of fuel, without spare tyre)
OW
Total. . . . . . . . . . . . . . . . . . . 3325. . . . . . . . . 3385
Front. . . . . . . . . . . . . . . . . . . 2185. . . . . . . . . 2220
Rear. . . . . . . . . . . . . . . . . . . 1140. . . . . . . . . 1165
GVM. . . . . . . . . . . . . . . . . . 10,400. . . . . . . . 10,400
GCM. . . . . . . . . . . . . . . . . . 16,000. . . . . . . . 16,000
CA *GVM can be derated to 8,000

OH GENUINE ACCESSORY OPTIONS

Bull bar Side skirts
Chrome wheel covers Stoneguard
Electric mirrors Sunvisor
WB ROHF
Multimedia sat nav Timber dash panel
OL Rear vision camera Engine driven PTO 1:1.08 step-up
Roof scoop
Please check with your dealer for price, availability & fitment for these options

WARRANTY
New vehicle warranty period

Standard warranty
Medium Duty Model Axle configuration Cab corrosion perforation
(whichever comes first)

500 FD 1027 Air 4x2 3 years or 150,000km 36 months

Battery warranty – 12 months from date of delivery Genuine parts or accessories warranty – 3 years unlimited kilometres when fitted by an authorised Hino dealer *
* For conditions, refer to the Hino Parts & Service warranty brochure

DISCLAIMER
Important notice. Hino Trucks are distributed in Australia by Hino Motor Sales Australia Pty Ltd A.C.N. 064 989 724.
All efforts have been made to ensure the information contained in this brochure was correct at time of printing or uploading. Hino Motor Sales Australia Pty Ltd reserves the right to alter any
details of the specifications and equipment without notice. Hino in so far as it is permitted by law to do so, shall not be liable in any way as a result of any reliance placed by any person on
anything contained in this brochure. You should therefore check with your authorised Hino dealer at the time of ordering your motor vehicle to ensure that colour, specifications, equipment,
design features and options are available for the vehicle you are ordering. Please note that some options may only be available in combination with others. Authorised Hino dealers will on
request provide up to date information on all accessories, design features, prices and availability.

Date of issue - 01/01/10 FD 1027 Air v2.X
