Final Lab

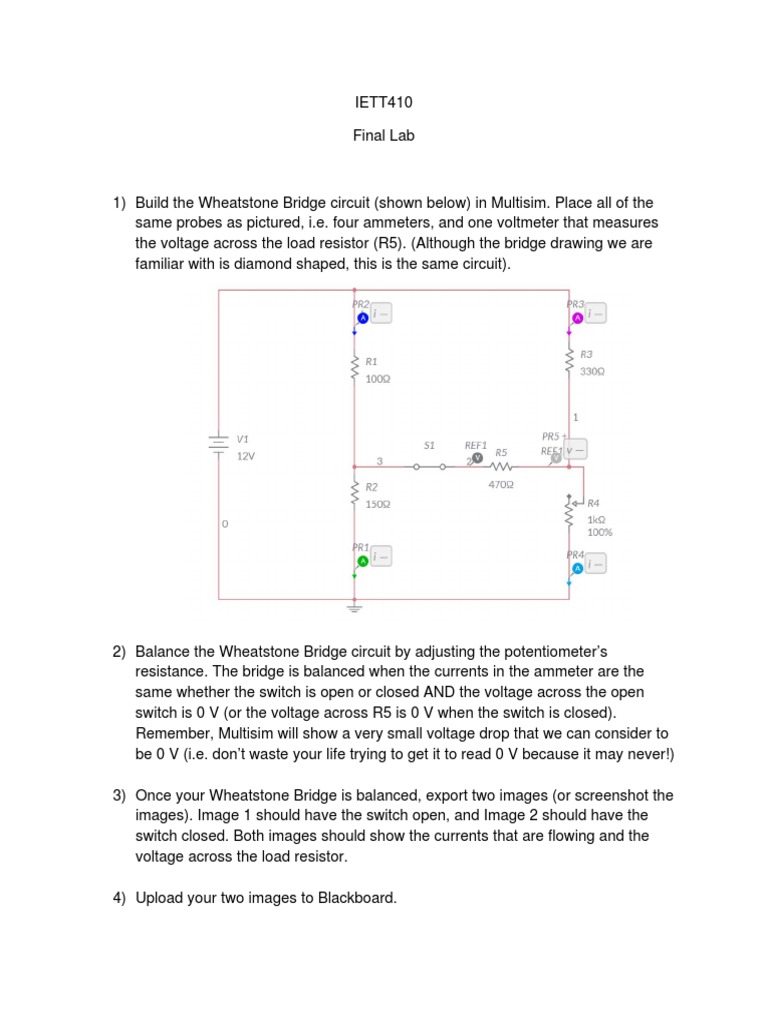

1) Build the Wheatstone Bridge circuit (shown below) in Multisim. Place all of the
same probes as pictured, i.e. four ammeters, and one voltmeter that measures
the voltage across the load resistor (R5). (Although the bridge drawing we are
familiar with is diamond shaped, this is the same circuit).
3) Once your Wheatstone Bridge is balanced, export two images (or screenshot the
images). Image 1 should have the switch open, and Image 2 should have the
switch closed. Both images should show the currents that are flowing and the
voltage across the load resistor.
