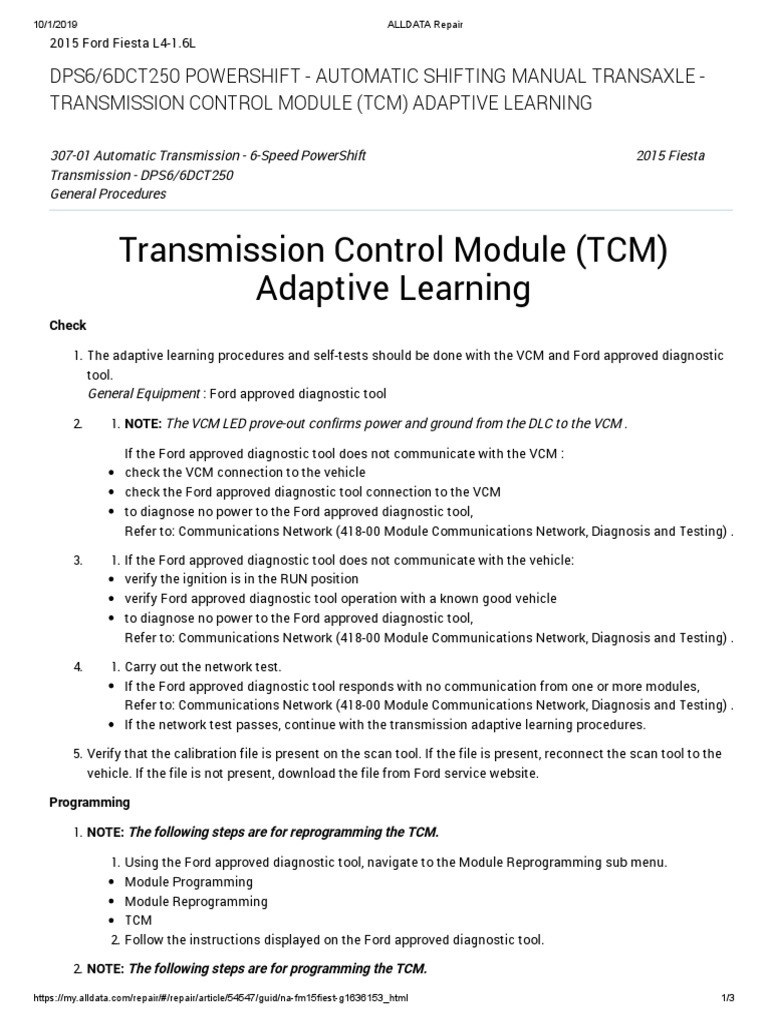

10/1/2019 ALLDATA Repair

2015 Ford Fiesta L4-1.6L

DPS6/6DCT250 POWERSHIFT - AUTOMATIC SHIFTING MANUAL TRANSAXLE -


TRANSMISSION CONTROL MODULE (TCM) ADAPTIVE LEARNING

307-01 Automatic Transmission - 6-Speed PowerShift 2015 Fiesta


Transmission - DPS6/6DCT250
General Procedures

Transmission Control Module (TCM)


Adaptive Learning
Check

1. The adaptive learning procedures and self-tests should be done with the VCM and Ford approved diagnostic
tool.
General Equipment : Ford approved diagnostic tool

2. 1. NOTE: The VCM LED prove-out confirms power and ground from the DLC to the VCM .

If the Ford approved diagnostic tool does not communicate with the VCM :
check the VCM connection to the vehicle
check the Ford approved diagnostic tool connection to the VCM
to diagnose no power to the Ford approved diagnostic tool,
Refer to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing) .

3. 1. If the Ford approved diagnostic tool does not communicate with the vehicle:
verify the ignition is in the RUN position
verify Ford approved diagnostic tool operation with a known good vehicle
to diagnose no power to the Ford approved diagnostic tool,
Refer to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing) .

4. 1. Carry out the network test.


If the Ford approved diagnostic tool responds with no communication from one or more modules,
Refer to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing) .
If the network test passes, continue with the transmission adaptive learning procedures.

5. Verify that the calibration file is present on the scan tool. If the file is present, reconnect the scan tool to the
vehicle. If the file is not present, download the file from Ford service website.

Programming

1. NOTE: The following steps are for reprogramming the TCM.

1. Using the Ford approved diagnostic tool, navigate to the Module Reprogramming sub menu.
Module Programming
Module Reprogramming
TCM
2. Follow the instructions displayed on the Ford approved diagnostic tool.

2. NOTE: The following steps are for programming the TCM.

https://my.alldata.com/repair/#/repair/article/54547/guid/na-fm15fiest-g1636153_html 1/3
10/1/2019 ALLDATA Repair

1. Using the Ford approved diagnostic tool, navigate to the Module Programming sub menu.
Module Programming
Programmable Module Installation
TCM
2. Follow the instructions displayed on the Ford approved diagnostic tool.

3. NOTE: The following steps are for TR (Transmission Range) sensor adaptive learning.

1. Using the Ford approved diagnostic tool, navigate to the TCM Adaptive Learning sub menu.
PCM
TCM
TCM Adaptive Learning
2. Select TR Sensor.
3. Select Perform Adaptive Learning.
4. Follow the instructions displayed on the Ford approved diagnostic tool.

4. NOTE: The following steps are for Shift drum adaptive learning.

1. Using the Ford approved diagnostic tool, navigate to the TCM Adaptive Learning sub menu.
PCM
Transmission
TCM Adaptive Learning
2. Select Shift Drum.
3. Follow the instructions displayed on the Ford approved diagnostic tool.

5. NOTE: The following steps are for Clutch adaptive learning.

1. Run engine until the instrument panel temperature gauge is reading between 1/3 and ½ of the normal
range.
2. Turn off all electrical accessories including rear defrost, HVAC, etc.
3. Using the Ford approved diagnostic tool, navigate to the TCM Adaptive Learning sub menu.
PCM
Transmission
TCM Adaptive Learning
Clutch
4. Select Clutch.
5. Follow the instructions displayed on the Ford approved diagnostic tool.

NOTE: It is important that consistent brake pedal pressure be maintained throughout the learn procedure.

NOTE: Do not turn the steering wheel during the learn procedure.

6. NOTE: The following steps are for Clutch system test.

1. Using the Ford approved diagnostic tool, navigate to the TCM Adaptive Learning sub menu.
PCM
Transmission
Clutch System Test
2. Follow the instructions displayed on the Ford approved diagnostic tool.

7. NOTE: The following steps are for Speed sensor test.

1. Using the Ford approved diagnostic tool, navigate to the TCM Adaptive Learning sub menu.
PCM

https://my.alldata.com/repair/#/repair/article/54547/guid/na-fm15fiest-g1636153_html 2/3
10/1/2019 ALLDATA Repair

Transmission
Speed Sensor Test
2. Select the desired speed sensor.
3. Follow the instructions displayed on the Ford approved diagnostic tool.

8. NOTE: The following steps are for Drive cycle.

NOTE: If a drive cycle is not completed, the customer may feel erratic shifts and driveability concerns.

NOTE: To perform drive cycle, drive the vehicle on a level road surface.

1. Depress vehicle brake pedal (do not use parking brake).


2. Shift to Drive.
3. Wait 15 seconds.
4. Shift to Reverse.
5. Wait 2 seconds.
6. Repeat (1-5) ten (10) times.
7. Accelerate from a stop with light throttle to 15 mph (24 km/h).
8. Brake gently to a complete stop (allow at least 6 seconds).
9. Repeat steps (7-8) five (5) times in dealership parking lot or similar setting.
10. Accelerate from a stop with light throttle performing 1-2, 2-3, 3-4 shifts maintaining 1700-2000 rpm.
11. Accelerate to a speed between 50 mph (80 km/h) and 65 mph (104 km/h), achieve 6th gear, keep
throttle steady with engine below 3000 rpm for a minimum of two (2) minutes.
12. Repeat step 11 two (2) times.
13. Test drive the vehicle.

https://my.alldata.com/repair/#/repair/article/54547/guid/na-fm15fiest-g1636153_html 3/3
