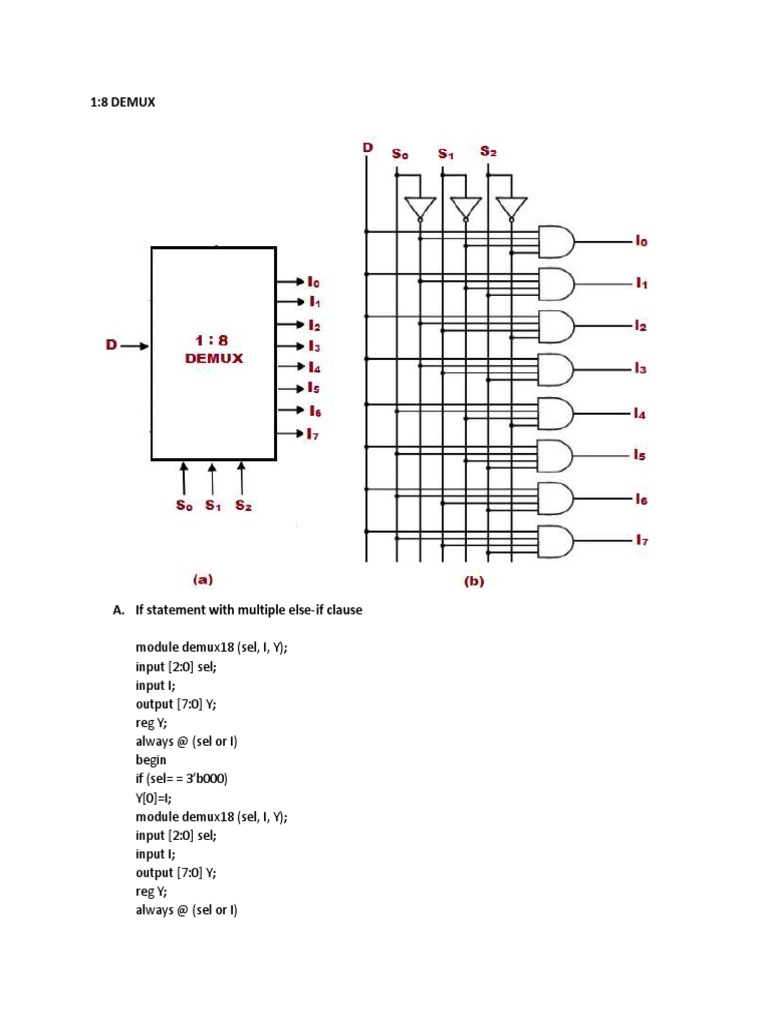

1:8 DEMUX

A. If statement with multiple else-if clause

module demux18 (sel, I, Y);

input [2:0] sel;
input I;
output [7:0] Y;
reg Y;
always @ (sel or I)
begin
if (sel= = 3’b000)
Y[0]=I;
module demux18 (sel, I, Y);
input [2:0] sel;
input I;
output [7:0] Y;
reg Y;
always @ (sel or I)
begin
if (sel= = 3’b000)
Y[0]=I;
else if (sel= = 3’b110)
Y[6]=I;
else
Y[7]=I;
end
endmodule

B. Case statement
module demux18 (sel, I, Y);
input [2:0] sel;
input I;
output [7:0] Y;
reg Y;
always @ (sel or I)
begin
case (sel)
3’b000 : Y[0]=I;
3’b001 : Y[1]=I;
3’b010 : Y[2]=I;
3’b011 : Y[3]=I;
3’b100 : Y[4]=I;
3’b101 : Y[5]=I;
3’b110 : Y[6]=I;
3’b111 : Y[7]=I;
default : Y[0]=I;
endcase
end
endmodule

C. Dataflow Modeling

module demux18 (sel, I, Y);

input [2:0] sel;
input I;
output [7:0] Y;
assign Y[0] = ( ~s2 & ~s1 & ~s0 & I) ,
Y[1] = ( ~s2 & ~s1 & s0 & I) ,
Y[2] = ( ~s2 & s1 & ~s0 & I) ,
Y[3] = ( ~s2 & s1 & s0 & I) ,
Y[4] = ( s2 & ~ s1 & ~ s0 & I) ,
Y[5] = ( s2 & ~ s1 & s0 & I),
Y[6] = ( s2 & s1 & ~ s0 & I),
Y[7] = ( s2 & s1 & s0 & I) ;
Endmodule

D. Ternary Operator

module demux18 (sel, I, Y);

input [2:0] sel;
input I;
output [7:0] Y;
assign Y[0] = (sel==3'b000) ? I : 1'b0;
assign Y[1] = (sel==3'b001) ? I : 1'b0;
assign Y[2] = (sel==3'b010) ? I : 1'b0;
assign Y[3] = (sel==3'b011) ? I : 1'b0;
assign Y[4] = (sel==3'b100) ? I : 1'b0;
assign Y[5] = (sel==3'b101) ? I : 1'b0;
assign Y[6] = (sel==3'b110) ? I : 1'b0;
assign Y[7] = (sel==3'b111) ? I : 1'b0;
endmodule

E. Structural Modeling

module demux18str(in,s0,s1,s2,d0,d1 ,d2,d3,d4,d5,d6,d7);

input in,s0,s1,s2;
output d0,d1,d2,d3,d4,d5,d6,d7;
and g1(d0,in,s0,s1,s2);
and g2(d1,in,(~s0),s1,s2);
and g3(d2,in,s0,(~s1),s2);
and g4(d3,in,(~s0),(~s1),s2);
and g5(d4,in,s0,s1,(~s2));
and g6(d5,in,(~s0),s1,(~s2));
and g7(d6,in,s0,(~s1),(~s2));
and g8(d7,in,(~s0),(~s1),(~s2));
endmodule
1:4 DEMUX
 1) Gate-Level Modelling :

module demux(i, s0, s1, y0, y1, y2, y3);

input i;

input s0;

input s1;

output y0;

output y1;

output y2;

output y3;

wire s0b,s1b;

not(s1b,s1);

not(s0b,s0);

and(y0,i,s1b,s0b);

and(y1,i,s1b,s0);

and(y2,i,s1,s0b);

and(y3,i,s1,s0);

endmodule

2) DataFlow Modelling :

module demux1_4(I, S0, S1, Y0, Y1, Y2, Y3);

input I;

input S0;

input S1;
 output Y0;

output Y1;

output Y2;

output Y3;

wire s0b,s1b;

assign S0b=~S0;

assign S1b=~S1;
Cummins College Of Engineering For women, Pune-52 E&TC

assign Y0= I & S0b & S1b;

assign Y1= I & S0 & S1b;

assign Y2= I & S0b & S1;

assign Y3= I & S0 & S1;

endmodule

3) Behavioural Modelling :

module demux7(I, S, Y);

input I;

input [1:0] S;

output reg [3:0] Y;

always@(I,S)

begin

case({S[0],S[1]})

2'b00: beginY[0]=I;Y[1]=1'b0;Y[2]=1'b0;Y[3]=1'b0; end

 2'b01: beginY[0]=1'b0;Y[1]=I;Y[2]=1'b0;Y[3]=1'b0; end

2'b10: beginY[0]=1'b0;Y[1]=1'b0;Y[2]=I;Y[3]=1'b0; end

2'b11: begin Y[0]=1'b0;Y[1]=1'b0;Y[2]=1'b0;Y[3]=I; end

default: $display("Invalid");

endcase

end

endmodule

Gate level

module 8x1_mux_using_2_4x1_mux{O,s,i);

input [7:0]i;

input[2:0]s;

output O;

mux a ({s[1:0]},{ i[3:0]},w1);

mux a1({s[1:0]},{ i[7:4]},w2);

not n(w3,s[2]);

and an(w4,w1,w3):
and an1(w5,w2,s[2]):

nor n1(o,w4,w5):

endmodule

BEHAVE

module mux( sel, in, out );

input[1:0] sel;

input[3:0] in;

output out;

reg output;

always @( sel or in )

begin

if( sel == 0)

out = in[0];

else if( sel == 1)

out = in[1];

else if( sel == 2)

out = in[2];

else if( sel == 3)

out = in[3];

else
out=1’bX

end

endmodule
