No: PD007 Revision 2 2001.

06

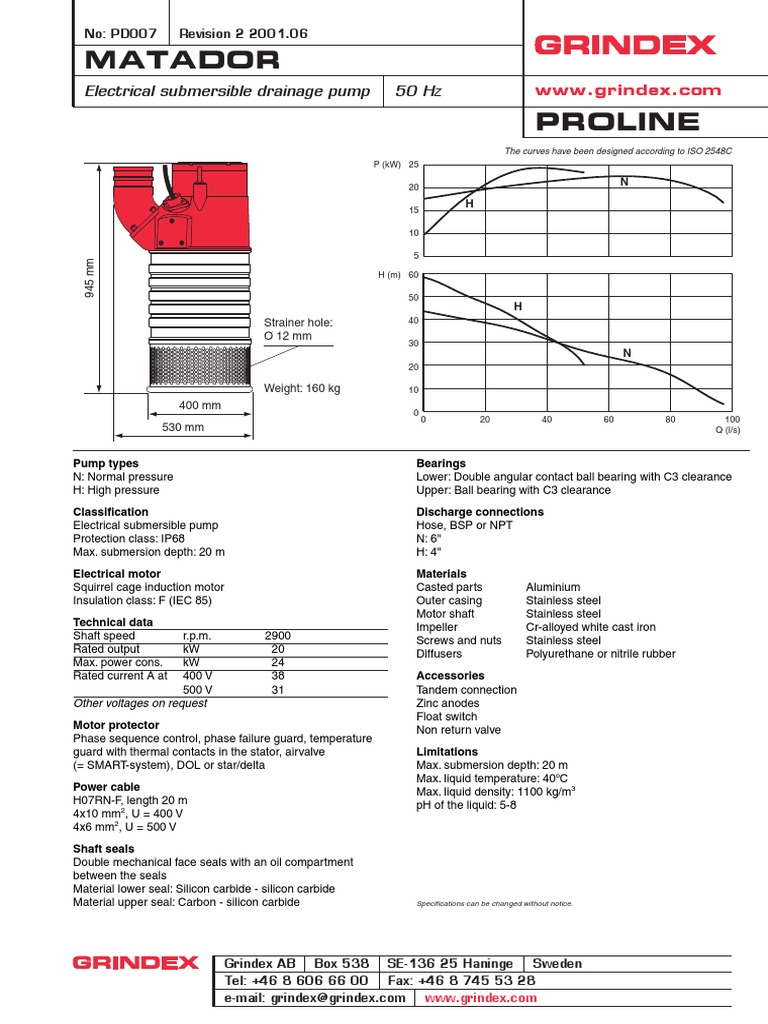

MATADOR
Electrical submersible drainage pump 50 Hz www.grindex.com

PROLINE
The curves have been designed according to ISO 2548C
P (kW) 25

20
N
H
15

10

5
945 mm

H (m) 60

50
H
Strainer hole: 40
Ø 12 mm
30
N
20

Weight: 160 kg 10
400 mm
0
0 20 40 60 80 100
530 mm Q (l/s)

Pump types Bearings

N: Normal pressure Lower: Double angular contact ball bearing with C3 clearance
H: High pressure Upper: Ball bearing with C3 clearance

Classification Discharge connections

Electrical submersible pump Hose, BSP or NPT
Protection class: IP68 N: 6"
Max. submersion depth: 20 m H: 4"

Electrical motor Materials

Squirrel cage induction motor Casted parts Aluminium
Insulation class: F (IEC 85) Outer casing Stainless steel
Motor shaft Stainless steel
Technical data Impeller Cr-alloyed white cast iron
Shaft speed r.p.m. 2900 Screws and nuts Stainless steel
Rated output kW 20 Diffusers Polyurethane or nitrile rubber
Max. power cons. kW 24
Rated current A at 400 V 38 Accessories
500 V 31 Tandem connection
Other voltages on request Zinc anodes
Float switch
Motor protector Non return valve
Phase sequence control, phase failure guard, temperature
guard with thermal contacts in the stator, airvalve Limitations
(= SMART-system), DOL or star/delta Max. submersion depth: 20 m
Max. liquid temperature: 40°C
Power cable Max. liquid density: 1100 kg/m3
H07RN-F, length 20 m pH of the liquid: 5-8
4x10 mm2, U = 400 V
4x6 mm2, U = 500 V

Shaft seals
Double mechanical face seals with an oil compartment
between the seals
Material lower seal: Silicon carbide - silicon carbide
Material upper seal: Carbon - silicon carbide Specifications can be changed without notice.
