Assist. Prof. DR - Thaar S. Al-Gasham, Wasit University, Eng. College 136

Chapter Five---------------------------------------------------------------------------------------------------------------Beam-Column
==========================================================================================
===

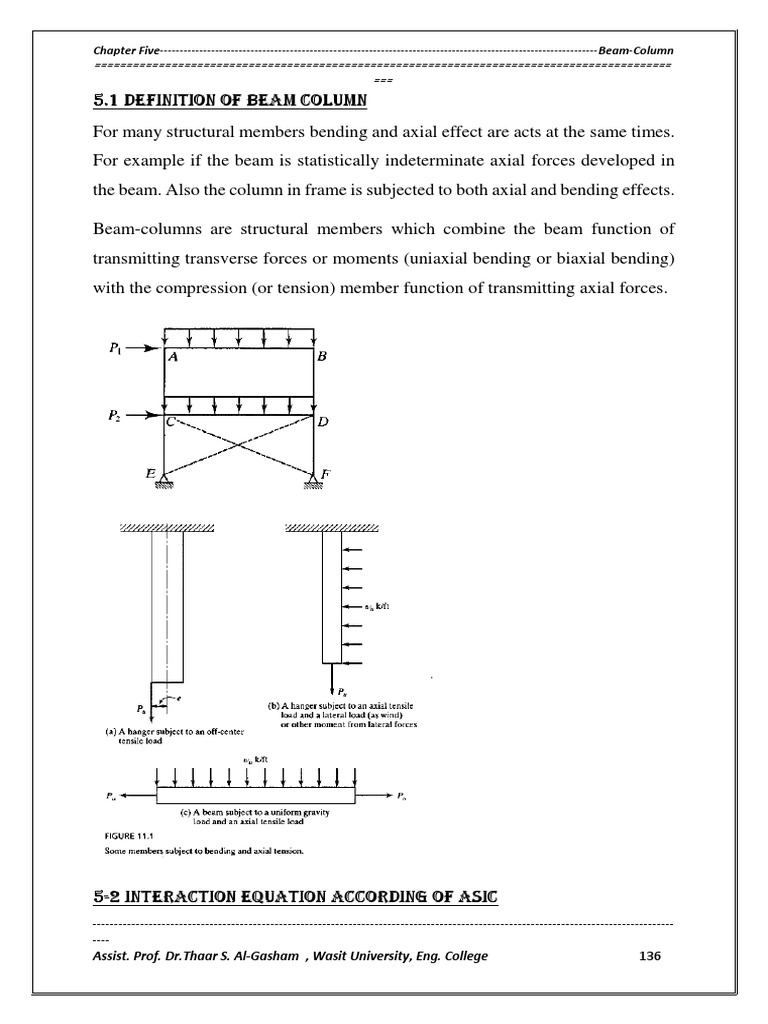

5.1 definition of beam column
For many structural members bending and axial effect are acts at the same times.
For example if the beam is statistically indeterminate axial forces developed in
the beam. Also the column in frame is subjected to both axial and bending effects.
Beam-columns are structural members which combine the beam function of

transmitting transverse forces or moments (uniaxial bending or biaxial bending)
with the compression (or tension) member function of transmitting axial forces.
5-2 interaction equation according Of ASIC

--------------------------------------------------------------------------------------------------------------------------------------
----
Assist. Prof. Dr.Thaar S. Al-Gasham , Wasit University, Eng. College 136
==========================================================================================
===
Example 1
The beam–column shown in Figure below is pinned at both ends and is subjected
to the loads shown. Bending is about the strong axis. Determine whether this
member satisfies the appropriate AISC Specification interaction equation.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
LRFD Solution
1- The axial load calculation

 The effect length
𝑘𝑦 𝐿 = 17(1) = 17 𝑓𝑡
From Table (4-1)
∅𝑐 𝑃𝑛 = 405 𝑘𝑖𝑝
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑃𝑢 = 1.6𝑃𝑙 + 1.2𝑃𝑑 = 1.6(99) + 1.2(35) = 200.4 𝑘
2- Moment calculations
Since the beam-column bends about the strong axis, the terms related to My=0.
𝑙𝑏 = 17′ , 𝑡ℎ𝑒 𝑇𝑎𝑏𝑙𝑒 (3 − 10)𝑖𝑠 𝑢𝑠𝑒𝑓𝑢𝑙.
Or , we can calculated it by using the equations of moment strength as follows,
From Table(3-2)
𝐿𝑃 = 8.97 𝑎𝑛𝑑𝐿𝑟 = 31.6 𝑓𝑜𝑟𝑚 𝑇𝑎𝑏𝑙𝑒 (3 − 2)
Since 𝐿𝑏 < 𝐿𝑏 < 𝐿𝑟 , the beam will fail in inelastic LTB(Zone2)
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
From Table (3-2) ∅𝑏 𝑀𝑝𝑥 = 227, 𝐵𝑓 = 3.67
Cb=1.32 from Table (3-1)
∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )] ≤ ∅𝑏 𝑀𝑝𝑥
∅𝑏 𝑀𝑛 = 1.32[227 − 3.67(17 − 8.97)] = 260.7 > 227 ∴ 𝑢𝑠𝑒 227 𝑓𝑡 − 𝑘
The maximum moment due to a concentrated load is,
𝑃𝑢 𝐿 [1.6(12) + 1.2(5)](17)
𝑀𝑢 = = 107.1 𝑓𝑡 − 𝑘
4 4
𝑃𝑢 200.4
= = 0.4948 > 0.2
∅𝑐 𝑃𝑛 405
Use Eq.(3-6)
𝑃𝑢 8 𝑀𝑢𝑥 𝑀𝑢𝑦
+ ( + ) ≤ 1.0
∅𝑐 𝑃𝑛 9 ∅𝑏 𝑀𝑢𝑥 ∅𝑏 𝑀𝑢𝑦
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
8 107.1
0.4948 + ( + 0) = 0.914 < 1.0
9 227
This member satisfies the ASIC specifications according to LRFD method.
ASD Solution
1-The axial load calculation
 The effect length
𝑘𝑦 𝐿 = 17(1) = 17 𝑓𝑡
𝑃𝑛
= 270 𝑘𝑖𝑝
Ω𝑐
𝑃𝑢 = 𝑃𝑙 + 𝑃𝑑 = 99 + 35 = 134 𝑘
2- moment calculations
𝑀𝑛 𝑀𝑝𝑥 𝑀𝑝𝑥
= 𝐶𝑏 [ − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )] ≤
Ω𝑏 Ω𝑏 Ω𝑏
According to Table(3-2)
𝑀𝑝𝑥
= 151, 𝐵𝐹 = 2.44
Ω𝑏
𝑀𝑛 𝑀𝑛
= 1.32[151 − 2.44(17 − 8.97)] = 173.5 > 151 ∴ 𝑢𝑠𝑒 = 151
Ω𝑏 Ω𝑏
The maximum moment due to a concentrated load is,
𝑃𝑎 𝐿 [12 + 5](17)
𝑀𝑎 = = 72.25 𝑓𝑡 − 𝑘
4 4
𝑃𝑎 134
= = 0.4963 > 0.2
𝑃𝑛 270
Ω𝑐
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑃𝑎 8 𝑀𝑎𝑥 𝑀𝑎𝑦
+ ( + ) ≤ 1.0
𝑃𝑛 /Ω𝑐 9 𝑀𝑛𝑥 /Ω𝑏 𝑀𝑛𝑦 /Ω𝑏
8 72.25
0.4963 + ( + 0) = 0.922 < 1.0 𝑜. 𝑘
9 151
This member satisfies the ASIC specifications according to ASD method.
5.3 METHODS OF ANALYSIS FOR REQUIRED STRENGTH
The foregoing approach to the analysis of members, subjected to both bending

and axial load, is satisfactory so long as the axial load is not too large. The
presence of the axial load produces secondary moments, and unless the axial
load is relatively small, these additional moments must be accounted for. As
shown in Figure below.
In addition to the secondary moments caused by member deformation (P-d

moments, shown in Figure above), additional secondary moments are present
when one end of the member translates with respect to the other. These moments
are called P-Δ moments and are illustrated in Figure below. In a braced frame,
the member ends do not undergo translation, so only the P-d moments are present.
In an unbraced frame, the additional moment, PΔ, increases the end moment. The
distribution of moments in the member is therefore a combination of the primary
moment, the P-d moment, and the P-Δ moment. An unbraced rigid frame depends
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
on the transfer of moments at its joints for stability. For this reason, unbraced
frames are frequently referred to as moment frames. Multistory buildings can
consist of a combination of braced frames and moment frames.
Ordinary structural analysis methods that do not take the displaced geometry into
account are called first-order methods. Iterative analyses that account for these
effects are referred to as second-order methods.
5.4 THE MOMENT AMPLIFICATION METHOD
The moment amplification method entails computing the maximum bending

moment resulting from flexural loading (transverse loads or member end
moments) by a first-order analysis, then multiplying by a moment amplification
factor to account for the secondary moment.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
The amplified moment to be used in design is computed from the loads and
moments as follows (x and y subscripts are not used here; amplified moments
must be computed in the following manner for each axis about which there are
moments)
In addition to the required moment strength, the required axial strength must
account for second-order effects. The required axial strength is affected by the
displaced geometry of the structure during loading. This is not an issue with
member displacement (δ), but it is with joint displacement (Δ). The required axial
compressive strength is given by
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
5.5 amplification moment at braced frame
Figure below shows a member subjected to equal end moments producing single-
curvature bending (bending that produces tension or compression on one side
throughout the length of the member). Maximum moment amplification occurs
at the center, where the deflection is largest. For equal end moments, the moment
is constant throughout the length of the member, so the maximum primary
moment also occurs at the center. Thus the maximum secondary moment and
maximum primary moment are additive. Even if the end moments are not equal,
as long as one is clockwise and the other is counterclockwise there will be single
curvature bending, and the maximum primary and secondary moments will occur
near each other.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
That is not the case if applied end moments produce reverse-curvature bending
as shown in Figure below. Here the maximum primary moment is at one of the
ends, and maximum moment amplification occurs between the ends. Depending
on the value of the axial load P, the amplified moment can be either larger or
smaller than the end moment.
The maximum moment in a beam–column therefore depends on the distribution

of bending moment within the member.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Here, always this reduction factor is taken as 1.0.
In the effective length and first-order methods, the flexural rigidity is unreduced,
and EI* = EI. The moment of inertia I and the effective length factor K1 are for
the axis of bending, and K1 = 1.0 unless a more accurate value is computed (AISC
C3). Note that the subscript 1 corresponds to the braced condition and the
subscript 2 corresponds to the unbraced condition.
5.6 Evaluation of Cm
The factor Cm applies only to the braced condition. There are two categories of
members: those with transverse loads applied between the ends and those with no
transverse loads.
1. If there are no transverse loads acting on the member,
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀1
𝐶𝑚 = 0.6 − 0.4 ( )
𝑀2
M1/M2 is a ratio of the bending moments at the ends of the member. M1 is the
end moment that is smaller in absolute value, M2 is the larger, and the ratio is
positive for members bent in reverse curvature and negative for single-curvature
bending. Reverse curvature (a positive ratio) occurs when M1 and M2 are both
clockwise or both counterclockwise.
2. For transversely loaded members, Cm can be taken as 1.0. A more refined

procedure for transversely loaded members is provided in the Commentary
to Appendix 8 of the Specification. The factor Cm is given as
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Example 2
The member shown in Figure is part of a braced frame. An analysis consistent

with the effective length method was performed; therefore, the flexural rigidity,
EI, was unreduced. If A572 Grade 50 steel is used, is this member adequate? Kx
= Ky = 1.0.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
LRFD solution
1. Determine the applied axial load
𝑃𝑟 = 𝑃𝑢 = 𝑃𝑛𝑡 + 𝐵2 𝑃𝑙𝑡
Since the frame is braced, 𝑃𝑙𝑡 = 0
𝑃𝑟 = 𝑃𝑢 = 1.6𝑃𝐿 + 1.2𝑃𝐷 = 1.6(210) + 1.2(70) = 420 𝑘
2. Determining the column strength ∅𝑐 𝑃𝑛 from Table(4-2)
𝐾𝐿 = (1)(14) = 14
3. Selecting either beam-column formula to be used
𝑃𝑢 420
= = 0.613 > 0.2 , 𝑡ℎ𝑒 𝑓𝑜𝑙𝑙𝑜𝑤𝑖𝑛𝑔 𝑓𝑜𝑟𝑚𝑢𝑙𝑎 𝑖𝑠 𝑢𝑠𝑒𝑑.
∅𝑐 𝑃𝑛 685
+ ( + ) ≤ 1.0
4. Evaluating the flexural strength of the section ∅𝑏 𝑀𝑢𝑥
Referring to Table(3-2)
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝐿𝑏 = 14 > 𝐿𝑝 = 11.9 𝑎𝑛𝑑 𝑠𝑚𝑎𝑙𝑙𝑒𝑟 𝑡ℎ𝑎𝑛 𝐿𝑟
The section may fail in inelastic zone as well as local buckling in flange since the
section is noncompact as shown in figure
5. Calculating the inelastic LTB
Note , the term ∅𝑏 𝑀𝑝𝑥 in Table (3-2) refers to the local buckling in flange
moment for a noncompact section rather than the plastic moment
 Calculating the Cb
The smaller moment 𝑀1 = 1.6(36) + 1.2(11) = 70.8 𝑓𝑡 − 𝑘
The larger moment 𝑀2 = 1.6(41) + 1.2(14) = 82.4 𝑓𝑡 − 𝑘
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
12.5𝑀𝑚𝑎𝑥
𝐶𝑏 =
2.5𝑀𝑚𝑎𝑥 + 3𝑀𝐴 + 4𝑀𝐵 + 3𝑀𝐶
12.5(82.4)
= = 1.06
2.5(82.4) + 3(73.7) + 4(76.6) + 3(79.5)
 ∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )]
∅𝑏 𝑀𝑛 = 1.06[356 − 5.41(14 − 11.9)] = 365.31 < 356 ∴ ∅𝑏 𝑀𝑛

= 356 𝑘 − 𝑓𝑡
6. Calculating the applied moment
𝑀𝑟 = 𝑀𝑢 = 𝐵1 𝑀𝑛𝑡 + 𝐵2 𝑀𝑙𝑡
Since the frame is braced, 𝑀𝑙𝑡 = 0
 𝑀𝑛𝑡 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 82.4 𝑘 − 𝑓𝑡
𝐶𝑚
𝐵1 = ≥ 1.0
𝑃
1−𝛼 𝑟
𝑃𝑒𝑙
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀1 70.8
𝐶𝑚 = 0.6 − 0.4 ( ) = 0.6 − 0.4 (− ) = 0.9437
𝑀2 82.4
𝑃𝑒𝑙
𝜋𝐸𝐼
= , 𝑡ℎ𝑖𝑠 𝑓𝑜𝑚𝑢𝑙𝑎 𝑖𝑠 𝑑𝑒𝑡𝑒𝑟𝑚𝑖𝑛𝑒𝑑 𝑖𝑛 𝑡ℎ𝑒 𝑝𝑙𝑎𝑛𝑒 𝑜𝑓 𝑏𝑒𝑛𝑑𝑖𝑛𝑔 (𝑎𝑏𝑜𝑢𝑡 𝑥
(𝐾1 𝐿)2
− 𝑎𝑥𝑖𝑠)𝑓𝑜𝑟 𝑏𝑒𝑎𝑚 𝑛𝑜𝑡 𝑓𝑜𝑟 𝑐𝑜𝑙𝑢𝑚𝑛 𝑏𝑢𝑐𝑘𝑙𝑖𝑛𝑔 𝑎𝑏𝑜𝑢𝑡 𝑦
𝜋𝐸𝐼 𝜋 2 𝐸𝐼𝑥 𝜋 2 (29000)(533)

𝑃𝑒𝑙 = = = = 5405.13 𝑘𝑖𝑝
(𝐾1 𝐿)2 (𝐾𝑥 𝐿)2 (1.0𝑥14𝑥12)2
𝛼 = 1.0 𝑓𝑜𝑟 𝐿𝑅𝐹𝐷
𝐶𝑚 0.9437
𝐵1 = = = 1.0232 > 1.0 𝑜. 𝑘
𝑃𝑟 420
1−𝛼 1 − 1.0𝑥
𝑃𝑒𝑙 5405.13
𝑀𝑟 = 𝑀𝑢 = 𝐵1 𝑀𝑛𝑡 = 1.0232𝑥82.4 = 84.3 𝑓𝑡 − 𝑘
𝑃𝑢 8 𝑀𝑢𝑥 𝑀𝑢𝑦 8 84.3

+ ( + ) = 0.613 + ( + 0) = 0.823 < 1.0
∅𝑐 𝑃𝑛 9 ∅𝑏 𝑀𝑢𝑥 ∅𝑏 𝑀𝑢𝑦 9 356
The Section W12x65 satisfies the AISC specifications according to LRFD

method
H.W solve the preceding example using the ASD method.
Example 3
The member shown in Figure is a W12 × 65 of A242 steel. First-order analyses

were performed with reduced member stiffnesses. The approximate second-order
analysis method of AISC Appendix 8 can be used, making this a direct analysis
method. For LRFD, the analysis results for the controlling factored load
combination are Pnt = 300 kips, Mntx = 135 kips, and Mnty = 30 ft-kips. For ASD,
the analysis results for the controlling load combination are Pnt = 200 kips, Mntx
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
= 90 ft-kips, and Mnty = 20 ft-kips. Use Ky = 1.0, and investigate this member for
compliance with the AISC Specification.
First, determine the yield stress Fy. From Table 2-4 in Part 2 of the Manual, we
see that A242 steel is available in three different versions. From the dimensions
and properties table in Part 1 of the Manual, a W12 × 65 has a flange thickness
of tf = 0.605 in. This matches the thickness range corresponding to footnote l in
Table 2-4; therefore, Fy = 50 ksi.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
LRFD solution
1. Determining the column strength ∅𝑐 𝑃𝑛 from Table(4-1)
𝐾𝐿 = (1)(15) = 15
2. Selecting either beam-column formula to be used
𝑃𝑢 300
∅𝑐 𝑃𝑛 662
+ ( + ) ≤ 1.0
𝑀𝑢𝑥
3. Evaluating the strong axis moment
∅𝑏 𝑀𝑢𝑥
Referring to table(3-2)
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
4. Calculating the inelastic LTB
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
The smaller moment 𝑀1 = 0 𝑓𝑡 − 𝑘
The larger moment 𝑀2 = 135 𝑓𝑡 − 𝑘
In this case the bending moment diagram has triangular shape, in which
𝑀𝑚𝑎𝑥 𝑀𝑚𝑎𝑥 2𝑀𝑚𝑎𝑥

𝑀𝐴 = , 𝑀𝐵 = , 𝑀𝐶 =
3 2 3
12.5𝑀𝑚𝑎𝑥 12.5
𝐶𝑏 = = = 1.67
2.5𝑀𝑚𝑎𝑥 + 3𝑀𝐴 + 4𝑀𝐵 + 3𝑀𝐶 2.5 + 3 + 4 + 2𝑥3
3 2 3
 ∅𝑏 𝑀𝑛𝑥 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )]
∅𝑏 𝑀𝑛𝑥 = 1.67[356 − 5.41(15 − 11.9)] = 566.5 < 356 ∴ ∅𝑏 𝑀𝑛

= 356 𝑘 − 𝑓𝑡
𝑀𝑟𝑥 = 𝑀𝑢𝑥 = 𝐵1𝑥 𝑀𝑛𝑡𝑥 + 𝐵2𝑥 𝑀𝑙𝑡𝑥
Since the frame is braced, 𝑀𝑙𝑡𝑥 = 0
 𝑀𝑛𝑡𝑥 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 135 𝑘 − 𝑓𝑡
𝐶𝑚
𝐵1𝑥 = ≥ 1.0
𝑃
1 − 𝛼 𝑟𝑥
𝑃𝑒𝑙𝑥
𝑀1 0
𝐶𝑚 = 0.6 − 0.4 ( ) = 0.6 − 0.4 (− ) = 0.6
𝑀2 135
Since a modified flexural rigidity, EI*, was used in the frame analysis, it must
also
be used in the computation of Pe1.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
2 ∗ 2 2 (29000)(533)(0.8)
𝜋 𝐸𝐼 𝜋 𝐸𝐼𝑥 𝜋
𝑃𝑒𝑙𝑥 = = = = 3766.8 𝑘𝑖𝑝
(𝐾1 𝐿)2 (𝐾𝑥 𝐿)2 (1.0𝑥15𝑥12)2
𝐶𝑚 0.6
𝐵1𝑥 = = = 0.652 < 1.0 , ∴ 𝑢𝑠𝑒 𝐵1𝑥 = 1.0
𝑃 300
1 − 𝛼 𝑟𝑥 1 − 1.0𝑥
𝑃𝑒𝑙𝑥 3766.8
𝑀𝑟𝑥 = 𝑀𝑢𝑥 = 𝐵1𝑥 𝑀𝑛𝑡𝑥 = 1.0𝑥135 = 135 𝑓𝑡 − 𝑘

𝑀𝑢𝑦
6. Evaluating the strong axis moment
∅𝑏 𝑀𝑢𝑦
Table (3-4) gives the flexural strength for W-shape with Fy=50, referring to it
∅𝑏 𝑀𝑢𝑦 = 161 𝑘 − 𝑓𝑡
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Important note:- the member bent about minor axis will fail always in plastic
zone, unless the flange of it is non-compact, in this case local flange buckling will
happen.
𝑀𝑟𝑦 = 𝑀𝑢𝑦 = 𝐵1𝑦 𝑀𝑛𝑡𝑦 + 𝐵2𝑦 𝑀𝑙𝑡𝑦
Since the frame is braced, 𝑀𝑙𝑡𝑦 = 0
 𝑀𝑛𝑡𝑥 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 135 𝑘 − 𝑓𝑡
𝐶𝑚
𝐵1𝑥 = ≥ 1.0
𝑃
1 − 𝛼 𝑟𝑥
𝑃𝑒𝑙𝑥
𝑀1 0
𝐶𝑚 = 0.6 − 0.4 ( ) = 0.6 − 0.4 (− ) = 0.6
𝑀2 135
also
𝜋 2 𝐸𝐼 ∗ 𝜋 2 𝐸𝐼𝑦 𝜋 2 (29000)(174)(0.8)
𝑃𝑒𝑙𝑦 = = = = 1229.7 𝑘𝑖𝑝
(𝐾1 𝐿)2 (𝐾 𝐿)2 (1.0𝑥15𝑥12)2
𝑦
𝐶𝑚 0.6
𝐵1𝑦 = = = 0.794 < 1.0 , ∴ 𝑢𝑠𝑒 𝐵1𝑦 = 1.0
𝑃𝑟𝑦 300
1−𝛼 1 − 1.0𝑥
𝑃𝑒𝑙𝑦 1229.7
𝑀𝑟𝑦 = 𝑀𝑢𝑦 = 𝐵1𝑦 𝑀𝑛𝑡𝑦 = 1.0𝑥30 = 30 𝑓𝑡 − 𝑘
+ ( + ) ≤ 1.0
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
8 135 30
0.453 + ( + ) = 0.956 < 1.0
9 356 161
The section W12x65 is satisfactory according to LRFD method
H.W solve above example using ASD method.
5.7 MEMBERS IN UNBRACED FRAMES
In a beam–column whose ends are free to translate, the maximum primary

moment resulting from the side-sway is almost always at one end. The maximum
secondary moment from the side-sway is always at the end. As a consequence of
this condition, the maximum primary and secondary moments are usually
additive and there is no need for the factor Cm; in effect, Cm = 1.0. Even when
there is a reduction,
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
=========================================================
==
Example 4:-
A W12 × 65 of A992 steel, 15 feet long, is to be investigated for use as a column

in an unbraced frame. The axial load and end moments obtained from a first-order
analysis of the gravity loads (dead load and live load) are shown in Figure a. The
frame is symmetrical, and the gravity loads are symmetrically placed. Figure b
shows the wind load moments obtained from a first-order analysis. Both analyses
were performed with reduced stiffnesses of all members. All bending moments
are about the strong axis. If the moment amplification method is used, then we
can consider this to be the direct analysis method, and the effective length factor
Kx can be taken as 1.0. Use Ky = 1.0. Determine whether this member is in
compliance with the AISC Specification.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
LRFD SOLUTION
All the load combinations given in ASCE 7 involve dead load, and except for the
first one, all combinations also involve either live load or wind load or both. The
load combinations for this question can be summarized as;
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 1: 1.4𝐷
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 2: 1.2𝐷 + 1.6𝐿
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 3: 1.2𝐷 + (0.5𝐿 𝑜𝑟 0.5𝑊)
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 4: 1.2𝐷 + 1.0𝑊 + 0.5𝐿
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 6: 0.9𝐷 ± 1.0𝑊
The dead load is less than eight times the live load, so combination (1) can be
ruled out. Load combination (4) will be more critical than (3), so combination
(3) can be eliminated. Combination (5) can be eliminated because it will be less
critical than (2). Finally, combination (6) should be investigated for an
overturning effect. The combinations to be investigated are therefore
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 4: 1.2𝐷 + 1.0𝑊 + 0.5𝐿
𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 6: 0.9𝐷 ± 1.0𝑊
Combination (6) will be investigated first. We will consider compression to be

positive. For a wind direction that produces uplift,
0.9𝐷 – 1.0𝑊 = 0.9(85) – 1.0(56) = 20.5 𝑘𝑖𝑝𝑠
The positive result means that the net load is compressive, and we need not
consider this load combination further. Figure 6.18 shows the axial loads and
bending moments calculated for combinations (2) and (4).
𝐹𝑟𝑜𝑚 𝑡ℎ𝑒 𝑐𝑜𝑙𝑢𝑚𝑛 𝑙𝑜𝑎𝑑 𝑡𝑎𝑏𝑙𝑒𝑠 (4 − 2), 𝑤𝑖𝑡ℎ 𝐾𝐿 = 1.0(15) = 15 𝑓𝑡, ∅𝑐 𝑃𝑛

= 662 𝑘𝑖𝑝𝑠.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝐿𝑜𝑎𝑑 𝐶𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 2: 𝑃𝑛𝑡 = 454 𝑘𝑖𝑝𝑠, 𝑀𝑛𝑡 = 104.8 𝑓𝑡 − 𝑘𝑖𝑝𝑠, 𝑎𝑛𝑑 𝑀𝑙𝑡
= 0 (𝑏𝑒𝑐𝑎𝑢𝑠𝑒 𝑜𝑓 𝑠𝑦𝑚𝑚𝑒𝑡𝑟𝑦, 𝑡ℎ𝑒𝑟𝑒 𝑎𝑟𝑒 𝑛𝑜 𝑠𝑖𝑑𝑒𝑠𝑤𝑎𝑦 𝑚𝑜𝑚𝑒𝑛𝑡𝑠).
𝑇ℎ𝑒 𝑏𝑒𝑛𝑑𝑖𝑛𝑔 𝑓𝑎𝑐𝑡𝑜𝑟 𝑖𝑠
𝑀𝑟𝑥 = 𝑀𝑢𝑥 = 𝐵1𝑥 𝑀𝑛𝑡𝑥 + 𝐵2𝑥 𝑀𝑙𝑡𝑥
Since the frame is braced, 𝑀𝑙𝑡𝑥 = 0
 𝑀𝑛𝑡𝑥 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 104.8 𝑘 − 𝑓𝑡
𝐶𝑚
𝐵1𝑥 = ≥ 1.0
𝑃
1 − 𝛼 𝑟𝑥
𝑃𝑒𝑙𝑥
𝑀1 90
𝐶𝑚 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.2565
𝑀2 104.8
also
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
2 ∗ 2 2 (29000)(533)(0.8)
𝜋 𝐸𝐼 𝜋 𝐸𝐼𝑥 𝜋
𝑃𝑒𝑙𝑥 = = = = 3766.8 𝑘𝑖𝑝
(𝐾1 𝐿)2 (𝐾𝑥 𝐿)2 (1.0𝑥15𝑥12)2
𝐶𝑚 0.2565
𝐵1𝑥 = = = 0.292 < 1.0 , ∴ 𝑢𝑠𝑒 𝐵1𝑥 = 1.0
𝑃𝑟𝑥 454
1−𝛼 1 − 1.0𝑥
𝑃𝑒𝑙𝑥 3766.8
𝑀𝑟𝑥 = 𝑀𝑢𝑥 = 𝐵1𝑥 𝑀𝑛𝑡𝑥 = 1.0𝑥104.8 = 104.8 𝑓𝑡 − 𝑘

𝑀𝑢𝑥
Evaluating the strong axis moment
∅𝑏 𝑀𝑢𝑥
Referring to table(3-2)
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Calculating the inelastic LTB
The smaller moment 𝑀1 = 90.0 𝑓𝑡 − 𝑘
The larger moment 𝑀2 = 104.8 𝑓𝑡 − 𝑘

𝑀𝐴 = , 𝑀𝐵 = , 𝑀𝐶 =
3 2 3
12.5𝑀𝑚𝑎𝑥
𝐶𝑏 =
2.5𝑀𝑚𝑎𝑥 + 3𝑀𝐴 + 4𝑀𝐵 + 3𝑀𝐶
12.5(104.8)
= = 2.24
2.5(104.8) + 3𝑥41.3 + 4𝑥7.4 + 3𝑥56.1
 ∅𝑏 𝑀𝑛𝑥 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )]
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
∅𝑏 𝑀𝑛𝑥 = 2.24[356 − 5.41(15 − 11.9)] = 759.6 < 356 ∴ ∅𝑏 𝑀𝑛
= 356 𝑘 − 𝑓𝑡
𝑃𝑢 454
∅𝑐 𝑃𝑛 662
+ ( + ) ≤ 1.0
8 104.8
0.6858 + ( ) = 0.947 < 1.0 (𝑜. 𝑘)
9 356
𝐿𝑜𝑎𝑑 𝑐𝑜𝑚𝑏𝑖𝑛𝑎𝑡𝑖𝑜𝑛 4: 𝑃𝑛𝑡 = 212 𝑘𝑖𝑝𝑠, 𝑀𝑛𝑡 = 47.6 𝑘𝑖𝑝𝑠, 𝑃𝑙𝑡
= 56 𝑘𝑖𝑝𝑠, 𝑎𝑛𝑑 𝑀𝑙𝑡 = 132 𝑓𝑡𝑘𝑖𝑝𝑠.
For braced part
 𝑀𝑛𝑡 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 47.6 𝑘 − 𝑓𝑡
𝐶𝑚
𝐵1 = ≥ 1.0
𝑃
1−𝛼 𝑟
𝑃𝑒𝑙
𝑀1 40.5
𝐶𝑚 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.2597
𝑀2 47.6
𝑃𝑒𝑙
𝜋𝐸𝐼
= , 𝑡ℎ𝑖𝑠 𝑓𝑜𝑚𝑢𝑙𝑎 𝑖𝑠 𝑑𝑒𝑡𝑒𝑟𝑚𝑖𝑛𝑒𝑑 𝑖𝑛 𝑡ℎ𝑒 𝑝𝑙𝑎𝑛𝑒 𝑜𝑓 𝑏𝑒𝑛𝑑𝑖𝑛𝑔 (𝑎𝑏𝑜𝑢𝑡 𝑥
(𝐾1 𝐿)2
− 𝑎𝑥𝑖𝑠)𝑓𝑜𝑟 𝑏𝑒𝑎𝑚 𝑛𝑜𝑡 𝑓𝑜𝑟 𝑐𝑜𝑙𝑢𝑚𝑛 𝑏𝑢𝑐𝑘𝑙𝑖𝑛𝑔 𝑎𝑏𝑜𝑢𝑡 𝑦
𝑃𝑒𝑙 = 3767 𝑘𝑖𝑝
𝐶𝑚 0.2597
𝐵1 = = = 0.2751 < 1.0 , 𝑢𝑠𝑒 1.0
𝑃𝑟 212
1−𝛼 1 − 1.0𝑥
𝑃𝑒𝑙 3767
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
1.0
𝐵2 =
𝑃𝑠𝑡𝑜𝑟𝑦
1−𝛼
𝑃𝑒𝑙 𝑠𝑡𝑜𝑟𝑦
For the unbraced condition, the amplification factor for side-sway, B2, must be
computed. This requires a knowledge of the properties of all the columns in the
story, as well as H and ΔH, so that Pstory and Pe story can be computed. Since these
quantities are not available in this example, we will assume that the ratio of Pstory
to Pe story is the same as the ratio for the column under consideration. That is,
𝑃𝑠𝑡𝑜𝑟𝑦 212 + 56
= = 0.0711
𝑃𝑒𝑙 𝑠𝑡𝑜𝑟𝑦 3767
1.0
𝐵2 = = 1.077
1 − 1.0𝑥0.0711
𝑇ℎ𝑒 𝑎𝑚𝑝𝑙𝑖𝑓𝑖𝑒𝑑 𝑎𝑥𝑖𝑎𝑙 𝑙𝑜𝑎𝑑 𝑖𝑠
𝑃𝑟 = 𝑃𝑢 = 𝑃𝑛𝑡 + 𝐵2 𝑃𝑙𝑡 = 212 + 1.077(56) = 272.3 𝑘𝑖𝑝𝑠
𝑇ℎ𝑒 𝑡𝑜𝑡𝑎𝑙 𝑎𝑚𝑝𝑙𝑖𝑓𝑖𝑒𝑑 𝑚𝑜𝑚𝑒𝑛𝑡 𝑖𝑠
𝑀𝑟 = 𝑀𝑢 = 𝐵1 𝑀𝑛𝑡 + 𝐵2 𝑀𝑙𝑡 = 1.0(47.6) + 1.077(132)
= 189.8 𝑓𝑡 − 𝑘𝑖𝑝𝑠
Although the moments Mnt and Mlt are different, they are distributed similarly,
and Cb will be roughly the same; at any rate, they are large enough that ᶲbMp =
356 ft-kips will be the design strength regardless of which moment is considered.
𝑃𝑢 272.3
∅𝑐 𝑃𝑛 662
+ ( + ) ≤ 1.0
8 189.8
0.4113 + ( ) = 0.885 ≤ 1.0 𝑜. 𝑘
9 356
This member satisfies the AISC Specification requirements.

H.W:- repeat the example using the ASD method.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
5.8 DESIGN OF BEAM–COLUMNS
Because of the many variables in the interaction formulas, the design of beam–
columns is essentially a trial-and-error process. A procedure developed by
Aminmansour (2000) simplifies this process, especially the evaluation of trial
shapes.
Part 6 of the Manual, “Design of Members Subject to Combined Loading,”

contains tables based on design aids developed by Aminmansour. The procedure
can be explained as follows. If we initially assume that AISC Equation H1-1a
governs, then
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Example 5:-
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Select a W shape of A992 steel for the beam–column of Figure below. This
member is part of a braced frame and is subjected to the service-load axial force
and bending moments shown (the end shears are not shown). Bending is about
the strong axis, and Kx = Ky = 1.0. Lateral support is provided only at the ends.
Assume that B1 = 1.0.
Solution
LRFD method.
𝑃𝑛𝑡 = 𝑃𝑢 = 1.6 𝑃𝐿 + 1.2𝑃𝐷 = 1.6(147) + 1.2(54) = 300 𝑘
(There is no amplification of axial loads in members braced against sidesway.)

The factored moment at each end is
𝑀𝑛𝑡𝑥 = 1.6 𝑀𝐿 + 1.2𝑀𝐷 = 1.6(49) + 1.2(18) = 100 𝑘 − 𝑓𝑡
Since B1 = 1.0, the factored load bending moment is
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀𝑛𝑢𝑥 = 𝐵1 𝑀𝑛𝑡𝑥 = 100 𝑘 − 𝑓𝑡
The effective length for compression and the unbraced length for bending are
the same:
𝐾𝑙 = 𝐿𝑏 = 16′
The bending moment is uniform over the unbraced length, so Cb = 1.0. Try a
W10 shape.
From Table (6-1) 𝑝 = 1.89𝑥10−3 𝑎𝑛𝑑 𝑏𝑥 = 3.51𝑥10−3
Determine which interaction equation to use:
𝑝𝑃𝑟 = 𝑝𝑃𝑢 = 300(1.89𝑥10−3 ) = 0.567 > 0.2
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑝𝑃𝑟 + 𝑏𝑥 𝑀𝑟𝑥 + 𝑏𝑦 𝑀𝑟𝑦 = 𝑝𝑃𝑢 + 𝑏𝑥 𝑀𝑢𝑥 + 𝑏𝑦 𝑀𝑢𝑦 =0.567 + 100(3.51𝑥10−3 ) +
0 = 0.918 < 1.0 𝑂. 𝐾
To be sure that we have found the lightest W10, try the next lighter one, a W10
× 54, with
𝑝𝑃𝑟 = 𝑝𝑃𝑢 = 300(2.12𝑥10−3 ) = 0.636 > 0.2

0 = 1.033 > 1.0 𝑛𝑜𝑡 𝑂. 𝐾
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Note; - the calculations above shows that W10x60 is the best section to resist
the applied loading within the category of W10. In order to select the lightest
one section, searching in others categories with weight less than 60. For
example try W12x58
𝑝𝑃𝑟 = 𝑝𝑃𝑢 = 300(2.00𝑥10−3 ) = 0.60 > 0.2

0 = 0.913 < 1.0 𝑂. 𝐾
To be sure that we have found the lightest W12, try the next lighter one, a W12
× 53,
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑝𝑃𝑟 = 𝑝𝑃𝑢 = 300(2.21𝑥10−3 ) = 0.663 > 0.2

0 = 1.015 > 1.0 𝑛𝑜𝑡 𝑂. 𝐾
Note; - the calculations above shows that W12x58 is the best section to resist the
applied loading within the category of W12. In order to select the lightest one
section, searching in others categories with weight less than 58. For example try
W14x53.
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑝𝑃𝑟 = 𝑝𝑃𝑢 = 300(2.96𝑥10−3 ) = 0.888 > 0.2

0 = 1.239 > 1.0 𝑛𝑜𝑡 𝑂. 𝐾
There are no other possibilities in the deeper W-shape groups.

From preceding calculations, the following sections are adequate according to
LRFD methods;
W10x60 and W12x58, select the lightest one W12x58.
H.W/ repeat the preceding example using ASD method.
Adjustment for Cb Not Equal to 1.0
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
Example 6:-
A structural member in a braced frame must support the following service loads
and moments: an axial compressive dead load of 25 kips and a live load of 75
kips; a dead load moment of 12.5 ft-kips about the strong axis and a live load
moment of 37.5 ft-kips about the strong axis; a dead load moment of 5 ft-kips
about the weak axis and a live load moment of 15 ft-kips about the weak axis.
The moments occur at one end; the other end is pinned. The member length is 15
feet. The frame analysis was a first-order analysis with reduced member
stiffnesses, so the moment amplification method with Kx = 1.0 can be used. In
the direction perpendicular to the frame, Ky = 1.0. There are no transverse loads
on the member. Use A992 steel and select a W10 shape.
Solution
This example will be solved according to the ASD method, the LRFD method is
H.W
𝑃𝐷 = 25𝑘, 𝑃𝐿 = 75 𝑘, 𝑀𝑛𝑥𝐷 = 12.5 𝑓𝑡 − 𝑘, 𝑀𝑛𝑥𝐿 = 37.5 𝑓𝑡 − 𝑘, 𝑀𝑛𝑦𝐷

= 5 𝑓𝑡 − 𝑘, 𝑀𝑛𝑦𝐿 = 15 𝑓𝑡 − 𝑘
𝑃𝑎 = 𝑃𝐷 + 𝑃𝐿 = 25 + 75 = 100 𝑘𝑖𝑝
𝑀𝑛𝑡𝑥 = 𝑀𝑛𝑥𝐷 + 𝑀𝑛𝑥𝐿 = 12.5 + 37.5 = 50 𝑘𝑖𝑝 − 𝑓𝑡
𝑀𝑛𝑡𝑦 = 𝑀𝑛𝑦𝐷 + 𝑀𝑛𝑦𝐿 = 5 + 15 = 20 𝑘𝑖𝑝 − 𝑓𝑡
The effective length for compression and the unbraced length for bending are
the same:
KL = Lb = 15 ft, Try with W10x49
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀1 0.0
𝐶𝑚𝑥 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 50
𝜋𝐸𝐼 𝜋 2 (0.8)(29000)(341)
𝑃𝑒𝑙𝑥 = = = 2409.88 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝛼 = 1.6 𝑓𝑜𝑟 𝐴𝑆𝐷
𝐶𝑚𝑥 0.6
𝐵1𝑥 = = = 0.642 < 1.0 , 𝑢𝑠𝑒 1.0
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 2409.88
𝑀1 0.0
𝐶𝑚𝑦 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 20
𝜋𝐸𝐼 𝜋 2 (29000)(116)𝑥0.8
𝑃𝑒𝑙𝑦 = = = 819.78 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝐶𝑚𝑦 0.6
𝐵1𝑦 = = = 0.745 < 1.0 , ∴ 𝑢𝑠𝑒𝐵1𝑦 = 1.0
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 819.8
𝑀𝑎𝑥 = 𝐵1 𝑀𝑛𝑡𝑥 = 50 𝑘𝑖𝑝 − 𝑓𝑡
𝑀𝑎𝑦 = 𝐵1 𝑀𝑛𝑡𝑦 = 20 𝑘𝑖𝑝 − 𝑓𝑡
from Table (6-1)

𝑝 = 2.71 𝑥10−3 , 𝑏𝑥 = 5.19 𝑥10−3 , 𝑏𝑦 = 10.2𝑥10−3

𝑀𝐴 = , 𝑀𝐵 = , 𝑀𝐶 =
3 2 3
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
12.5𝑀𝑚𝑎𝑥 12.5
𝐶𝑏 = = = 1.67
2.5𝑀𝑚𝑎𝑥 + 3𝑀𝐴 + 4𝑀𝐵 + 3𝑀𝐶 2.5 + 3 + 4 + 2𝑥3
3 2 3
𝑏
Since 𝐶𝑏 > 1.0 ∴ 𝑠𝑒𝑙𝑒𝑐𝑡 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑠𝑡 ( 𝑥 , 𝑏𝑥 𝑜𝑓 𝐿𝑏 = 0) →
𝑐 𝑏
5.19 𝑥10−3
( , 4.78𝑥10−3 ) → (3.11 𝑥10−3 , 4.78𝑥10−3 ) ∴ 𝑏𝑥 = 4.78𝑥10−3
1.67
𝑝𝑃𝑎 = 100(2.71 𝑥10−3 ) = 0.271

𝑝𝑃𝑎 + 𝑏𝑥 𝑀𝑎𝑥 + 𝑏𝑦 𝑀𝑎𝑦 = 0.271 + 50(4.78𝑥10−3 ) + 20(10.2𝑥10−3 )
= 0.714 <≪ 1.0
This section is adequate to resist the applied loading but it is not economical
section, try to select smaller one, try with W10x49.
from Table (6-1)

𝑝 = 3.34 𝑥10−3 , 𝑏𝑥 = 6.54 𝑥10−3 , 𝑏𝑦 = 12.6 𝑥10−3
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀1 0.0
𝐶𝑚𝑥 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 50
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
2
𝜋𝐸𝐼 𝜋 (0.8)(29000)(272)
𝑃𝑒𝑙𝑥 = = = 1922.3 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝐶𝑚𝑥 0.6
𝐵1𝑥 = = = 0.654 < 1.0 , 𝑢𝑠𝑒 1.0
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 1922.3
𝑀1 0.0
𝐶𝑚𝑦 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 20
𝜋𝐸𝐼 𝜋 2 (29000)(93.4)𝑥0.8
𝑃𝑒𝑙𝑦 = = = 660.1 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝐶𝑚𝑦 0.6
𝐵1𝑦 = = = 0.792 < 1.0 , ∴ 𝑢𝑠𝑒𝐵1𝑦 = 1.0
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 660.1
𝑀𝑎𝑦 = 𝐵1 𝑀𝑛𝑡𝑦 = 20 𝑘𝑖𝑝 − 𝑓𝑡
𝑏
𝑐 𝑏
6.54 𝑥10−3
( , 5.90𝑥10−3 ) → (3.92 𝑥10−3 , 5.90𝑥10−3 ) ∴ 𝑏𝑥 = 5.90𝑥10−3
1.67
𝑝𝑃𝑎 = 100(3.34 𝑥10−3 ) = 0.334

𝑝𝑃𝑎 + 𝑏𝑥 𝑀𝑎𝑥 + 𝑏𝑦 𝑀𝑎𝑦 = 0.334 + 50(5.90𝑥10−3 ) + 20(12.6 𝑥10−3 )
= 0.881 < 1.0
Try the next smaller shape. Try W10 × 45,
from Table (6-1)
𝑝 = 4.53 𝑥10−3 , 𝑏𝑥 = 7.63 𝑥10−3 , 𝑏𝑦 = 17.6 𝑥10−3
--------------------------------------------------------------------------------------------------------------------------------------
----
==========================================================================================
===
𝑀1 0.0
𝐶𝑚𝑥 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 50
𝜋𝐸𝐼 𝜋 2 (0.8)(29000)(248)
𝑃𝑒𝑙𝑥 = = = 1752.65 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝐶𝑚𝑥 0.6
𝐵1𝑥 = = = 0.660 < 1.0 , 𝑢𝑠𝑒 1.0
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 1752.65
𝑀1 0.0
𝐶𝑚𝑦 = 0.6 − 0.4 ( ) = 0.6 − 0.4 ( ) = 0.6
𝑀2 20
𝜋𝐸𝐼 𝜋 2 (29000)(53.4)𝑥0.8
𝑃𝑒𝑙𝑦 = = = 377.4 𝑘𝑖𝑝,
(𝐾1 𝐿)2 (15𝑥12)2
𝐶𝑚𝑦 0.6
𝐵1𝑦 = = = 1.042 > 1.0 , ∴ 𝑢𝑠𝑒𝐵1𝑦 = 1.042
𝑃 100
1−𝛼 𝑟 1 − 1.6𝑥
𝑃𝑒𝑙 377.4
𝑀𝑎𝑦 = 𝐵1 𝑀𝑛𝑡𝑦 = (1.042)20 = 20.84 𝑘𝑖𝑝 − 𝑓𝑡
𝑏
𝑐 𝑏
7.63 𝑥10−3
( , 6.49𝑥10−3 ) → (4.569 𝑥10−3 , 6.49𝑥10−3 ) ∴ 𝑏𝑥 = 6.49𝑥10−3
1.67
𝑝𝑃𝑎 = 100(4.53 𝑥10−3 ) = 0.453

𝑝𝑃𝑎 + 𝑏𝑥 𝑀𝑎𝑥 + 𝑏𝑦 𝑀𝑎𝑦 = 0.453 + 50(6.49𝑥10−3 ) + 20(17.6 𝑥10−3 ) = 1.13
> 1.0
The section W10x45 is not safe
According to ASD method, Select W10x49
--------------------------------------------------------------------------------------------------------------------------------------
----

Assist. Prof. DR - Thaar S. Al-Gasham, Wasit University, Eng. College 136

Uploaded by

Copyright:

Available Formats

You might also like

Assist. Prof. DR - Thaar S. Al-Gasham, Wasit University, Eng. College 136

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Assist. Prof. DR - Thaar S. Al-Gasham, Wasit University, Eng. College 136

Uploaded by

Copyright:

Available Formats

Chapter Five---------------------------------------------------------------------------------------------------------------Beam-Column

Beam-columns are structural members which combine the beam function of

5-2 interaction equation according Of ASIC

1- The axial load calculation

From Table (4-1)

𝑙𝑏 = 17′ , 𝑡ℎ𝑒 𝑇𝑎𝑏𝑙𝑒 (3 − 10)𝑖𝑠 𝑢𝑠𝑒𝑓𝑢𝑙.

Or , we can calculated it by using the equations of moment strength as follows,

𝐿𝑃 = 8.97 𝑎𝑛𝑑𝐿𝑟 = 31.6 𝑓𝑜𝑟𝑚 𝑇𝑎𝑏𝑙𝑒 (3 − 2)

Since 𝐿𝑏 < 𝐿𝑏 < 𝐿𝑟 , the beam will fail in inelastic LTB(Zone2)

Cb=1.32 from Table (3-1)

∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )] ≤ ∅𝑏 𝑀𝑝𝑥

∅𝑏 𝑀𝑛 = 1.32[227 − 3.67(17 − 8.97)] = 260.7 > 227 ∴ 𝑢𝑠𝑒 227 𝑓𝑡 − 𝑘

The maximum moment due to a concentrated load is,

This member satisfies the ASIC specifications according to LRFD method.

1-The axial load calculation

 The effect length

The maximum moment due to a concentrated load is,

This member satisfies the ASIC specifications according to ASD method.

5.3 METHODS OF ANALYSIS FOR REQUIRED STRENGTH

The foregoing approach to the analysis of members, subjected to both bending

In addition to the secondary moments caused by member deformation (P-d

5.4 THE MOMENT AMPLIFICATION METHOD

The moment amplification method entails computing the maximum bending

The maximum moment in a beam–column therefore depends on the distribution

Here, always this reduction factor is taken as 1.0.

1. If there are no transverse loads acting on the member,

2. For transversely loaded members, Cm can be taken as 1.0. A more refined

The member shown in Figure is part of a braced frame. An analysis consistent

1. Determine the applied axial load

Since the frame is braced, 𝑃𝑙𝑡 = 0

𝑃𝑟 = 𝑃𝑢 = 1.6𝑃𝐿 + 1.2𝑃𝐷 = 1.6(210) + 1.2(70) = 420 𝑘

2. Determining the column strength ∅𝑐 𝑃𝑛 from Table(4-2)

3. Selecting either beam-column formula to be used

4. Evaluating the flexural strength of the section ∅𝑏 𝑀𝑢𝑥

𝐿𝑏 = 14 > 𝐿𝑝 = 11.9 𝑎𝑛𝑑 𝑠𝑚𝑎𝑙𝑙𝑒𝑟 𝑡ℎ𝑎𝑛 𝐿𝑟

5. Calculating the inelastic LTB

∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )] ≤ ∅𝑏 𝑀𝑝𝑥

The smaller moment 𝑀1 = 1.6(36) + 1.2(11) = 70.8 𝑓𝑡 − 𝑘

The larger moment 𝑀2 = 1.6(41) + 1.2(14) = 82.4 𝑓𝑡 − 𝑘

 ∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )]

∅𝑏 𝑀𝑛 = 1.06[356 − 5.41(14 − 11.9)] = 365.31 < 356 ∴ ∅𝑏 𝑀𝑛

6. Calculating the applied moment

Since the frame is braced, 𝑀𝑙𝑡 = 0

 𝑀𝑛𝑡 = 𝑡ℎ𝑒 𝑙𝑎𝑟𝑔𝑒𝑡 𝑚𝑜𝑚𝑒𝑛𝑡 𝑀2 = 82.4 𝑘 − 𝑓𝑡

𝜋𝐸𝐼 𝜋 2 𝐸𝐼𝑥 𝜋 2 (29000)(533)

𝛼 = 1.0 𝑓𝑜𝑟 𝐿𝑅𝐹𝐷

𝑀𝑟 = 𝑀𝑢 = 𝐵1 𝑀𝑛𝑡 = 1.0232𝑥82.4 = 84.3 𝑓𝑡 − 𝑘

𝑃𝑢 8 𝑀𝑢𝑥 𝑀𝑢𝑦 8 84.3

The Section W12x65 satisfies the AISC specifications according to LRFD

H.W solve the preceding example using the ASD method.

The member shown in Figure is a W12 × 65 of A242 steel. First-order analyses

1. Determining the column strength ∅𝑐 𝑃𝑛 from Table(4-1)

2. Selecting either beam-column formula to be used

𝐿𝑏 = 15 > 𝐿𝑝 = 11.9 𝑎𝑛𝑑 𝑠𝑚𝑎𝑙𝑙𝑒𝑟 𝑡ℎ𝑎𝑛 𝐿𝑟

4. Calculating the inelastic LTB

∅𝑏 𝑀𝑛 = 𝐶𝑏 [∅𝑏 𝑀𝑝𝑥 − 𝐵𝐹(𝐿𝑏 − 𝐿𝑝 )] ≤ ∅𝑏 𝑀𝑝𝑥

The larger moment 𝑀2 = 135 𝑓𝑡 − 𝑘
