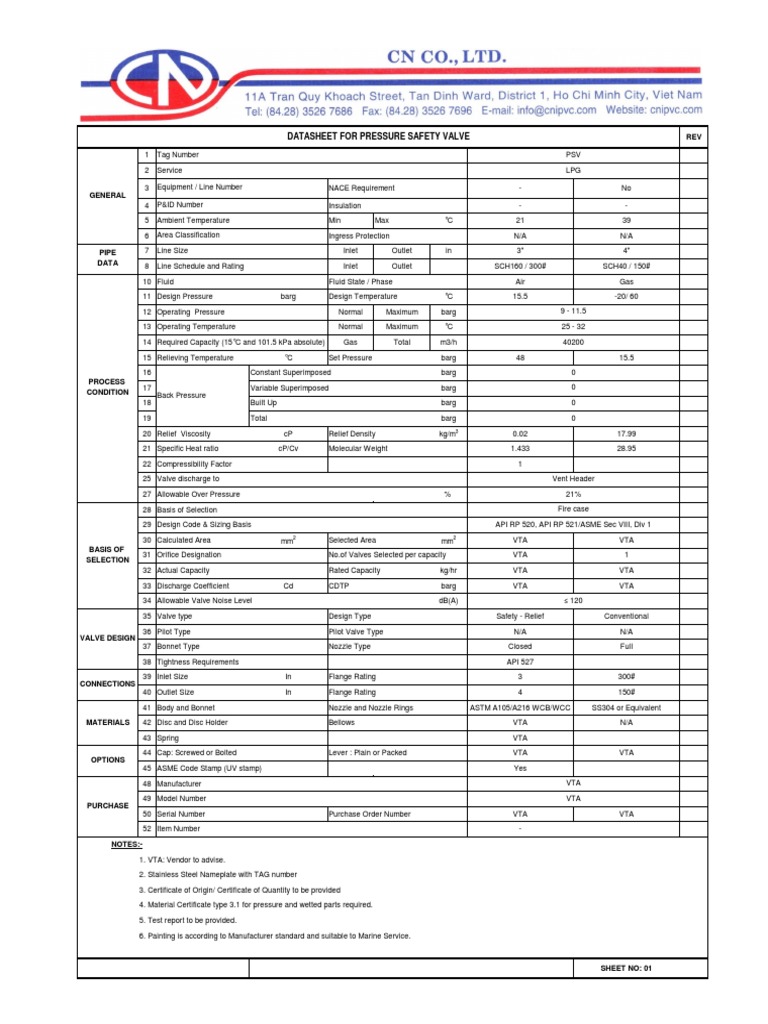

DATASHEET FOR PRESSURE SAFETY VALVE REV

1 Tag Number PSV

2 Service LPG

3 Equipment / Line Number NACE Requirement - No

GENERAL
4 P&ID Number Insulation - -
5 Ambient Temperature Min Max °C 21 39
6 Area Classification Ingress Protection N/A N/A

PIPE 7 Line Size Inlet Outlet in 3" 4"

DATA 8 Line Schedule and Rating Inlet Outlet SCH160 / 300# SCH40 / 150#
10 Fluid Fluid State / Phase Air Gas
11 Design Pressure barg Design Temperature °C 15.5 -20/ 60
12 Operating Pressure Normal Maximum barg 9 - 11.5

13 Operating Temperature Normal Maximum °C 25 - 32

14 Required Capacity (15°C and 101.5 kPa absolute) Gas Total m3/h 40200

15 Relieving Temperature °C Set Pressure barg 48 15.5

16 Constant Superimposed barg 0
PROCESS
17 Variable Superimposed barg 0
CONDITION Back Pressure
18 Built Up barg 0

19 Total barg 0
3
20 Relief Viscosity cP Relief Density kg/m 0.02 17.99
21 Specific Heat ratio cP/Cv Molecular Weight 1.433 28.95
22 Compressibility Factor 1
25 Valve discharge to Vent Header

27 Allowable Over Pressure % 21%

28 Basis of Selection Fire case

29 Design Code & Sizing Basis API RP 520, API RP 521/ASME Sec VIII, Div 1

30 Calculated Area mm2 Selected Area mm2 VTA VTA

BASIS OF
31 Orifice Designation No.of Valves Selected per capacity VTA 1
SELECTION
32 Actual Capacity Rated Capacity kg/hr VTA VTA
33 Discharge Coefficient Cd CDTP barg VTA VTA
34 Allowable Valve Noise Level dB(A) ≤ 120

35 Valve type Design Type Safety - Relief Conventional

36 Pilot Type Pilot Valve Type N/A N/A
VALVE DESIGN
37 Bonnet Type Nozzle Type Closed Full
38 Tightness Requirements API 527
39 Inlet Size In Flange Rating 3 300#
CONNECTIONS
40 Outlet Size In Flange Rating 4 150#
41 Body and Bonnet Nozzle and Nozzle Rings ASTM A105/A216 WCB/WCC SS304 or Equivalent
MATERIALS 42 Disc and Disc Holder Bellows VTA N/A
43 Spring VTA
44 Cap: Screwed or Bolted Lever : Plain or Packed VTA VTA
OPTIONS
45 ASME Code Stamp (UV stamp) Yes
48 Manufacturer VTA

49 Model Number VTA

PURCHASE
50 Serial Number Purchase Order Number VTA VTA
52 Item Number -
NOTES:-
1. VTA: Vendor to advise.
2. Stainless Steel Nameplate with TAG number
3. Certificate of Origin/ Certificate of Quantity to be provided
4. Material Certificate type 3.1 for pressure and wetted parts required.
5. Test report to be provided.
6. Painting is according to Manufacturer standard and suitable to Marine Service.

SHEET NO: 01
