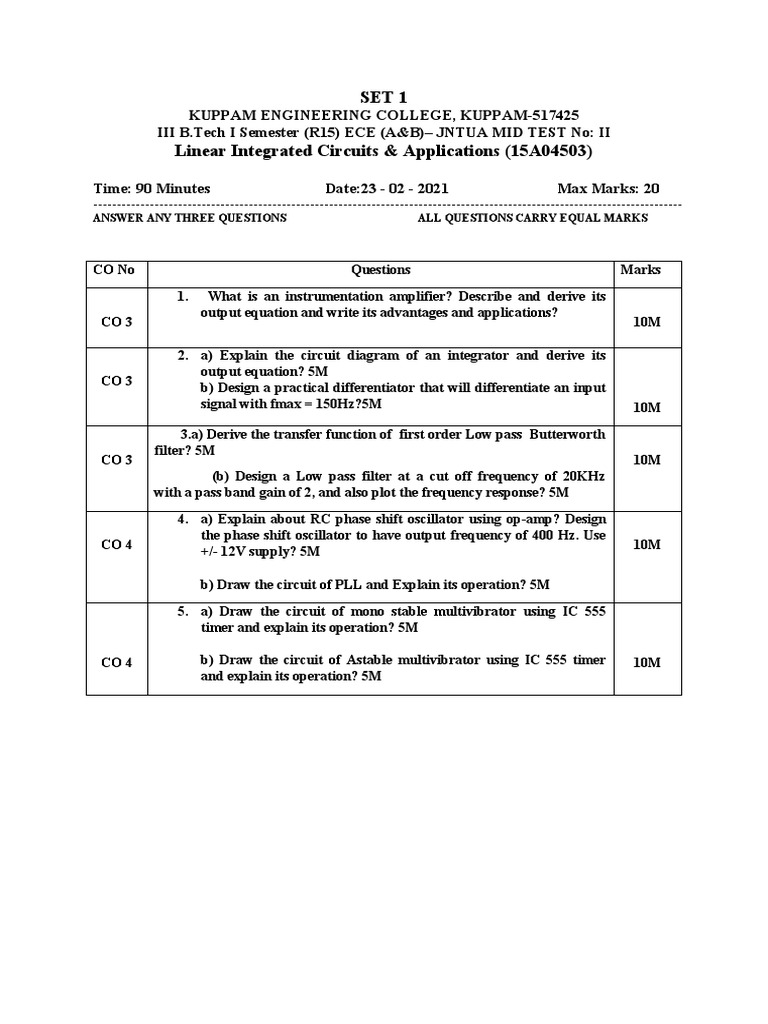

SET 1

KUPPAM ENGINEERING COLLEGE, KUPPAM-517425

III B.Tech I Semester (R15) ECE (A&B)– JNTUA MID TEST No: II
Linear Integrated Circuits & Applications (15A04503)

Time: 90 Minutes Date:23 - 02 - 2021 Max Marks: 20

-----------------------------------------------------------------------------------------------------------------------------
ANSWER ANY THREE QUESTIONS ALL QUESTIONS CARRY EQUAL MARKS

CO No Questions Marks
1. What is an instrumentation amplifier? Describe and derive its
output equation and write its advantages and applications?
CO 3 10M

2. a) Explain the circuit diagram of an integrator and derive its

output equation? 5M
CO 3 b) Design a practical differentiator that will differentiate an input
signal with fmax = 150Hz?5M 10M
3.a) Derive the transfer function of first order Low pass Butterworth
filter? 5M
CO 3 10M
(b) Design a Low pass filter at a cut off frequency of 20KHz
with a pass band gain of 2, and also plot the frequency response? 5M
4. a) Explain about RC phase shift oscillator using op-amp? Design
the phase shift oscillator to have output frequency of 400 Hz. Use
CO 4 +/- 12V supply? 5M 10M

b) Draw the circuit of PLL and Explain its operation? 5M

5. a) Draw the circuit of mono stable multivibrator using IC 555
timer and explain its operation? 5M

CO 4 b) Draw the circuit of Astable multivibrator using IC 555 timer 10M

and explain its operation? 5M
 SET 2
KUPPAM ENGINEERING COLLEGE, KUPPAM-517425
III B.Tech I Semester (R15) ECE (A&B) – JNTUA MID TEST No: II
Linear Integrated Circuits & Applications (15A04503)

Time: 90 Minutes Date: 23 - 02 - 2021 Max Marks: 20

-----------------------------------------------------------------------------------------------------------------------------
ANSWER ANY THREE QUESTIONS ALL QUESTIONS CARRY EQUAL MARKS

CO No Questions Marks
1) a) Describe the circuit of V-I converter and I-V converter? 5M
CO 3 b) Explain the circuit diagram of an integrator and derive its 10M
output equation? 5M
2) a) Explain the circuit diagram of a differentiator and derive its
output equation? 5M
CO 3 b) Design a practical differentiator that will differentiate an input 10M
signal with fmax = 150Hz? 5M
3.a) Derive the transfer function of first order butterworth high pass
filter? 5M
CO 3 10M
(b) Design a high pass filter with a cut off frequency of 10 kHz
with a pass band gain of 1.5 and also plot the frequency response for the
designed filter? 5M
4 a) Explain about Wien bridge oscillator using op-amp? Design the
Wien bridge oscillator to have output frequency of 10 kHz.? 5M
CO 4 10M
b) Draw the circuit and derive the expression for triangular wave
generator? 5M
5 a) Draw the circuit of Astable multivibrator using IC 555 timer
and explain its operation? 5M
CO 4 10M
b) Draw the circuit of PLL and Explain its operation? 5M
 SET 1
KUPPAM ENGINEERING COLLEGE, KUPPAM-517425
III B.Tech I Semester (R15) ECE(A&B) – JNTUA OBJECTIVE MID TEST No: II
Linear Integrated Circuits & Applications (15A04503)
Time: 20 Minutes Date: 23 - 02 - 2021 Max Marks: 10
Name: H.T. No: Signature of the Invigilator:
-----------------------------------------------------------------------------------------------------------------------------
ANSWER ALL THE QUESTIONS ALL QUESTIONS CARRY EQUAL MARKS

CO No Questions Marks

CO 3 1. Linear applications of op-amp uses _________ feedback [ ]

a) Positive b) Negative c) Both a & b d) None
½

CO 3 2. Non linear applications of op-amp uses _________ feedback [ ]

a) Positive b) Negative c) Both a & b d) None
½

CO 3 3. V-I converter is also called as ____________ [ ]

a) VCCS b) CCVS c) VVCS d) VCVS
½

CO 3 4. I-V converter is also called as ____________ [ ]

a) VCCS b) CCVS c) VVCS d) VCVS ½

CO 3 5. If we give square wave as a input to integrator then o/p is ---

[ ]
a) Square wave b) Saw tooth wave ½

c) Triangular wave d) Sine wave

CO 3 6. If we give sine wave as a input to integrator then o/p is [ ]

a) Square wave b) Spikes ½
c) Triangular wave d) Co-Sine wave

CO 3 7. A basic ________ amplifier is formed by three op-amps and seven

resistors. [ ]
½
a) instrumentation b) isolation c) log d) antilog

CO 3 8. An electrical filter is a _________[ ]

a) Phase-selective circuit b) Frequency-selective circuit
½
c) Filter-selective circuit d) None of the mentioned
CO 3 9. A narrow band-reject filter is commonly called as [ ]
a) Notch filter b) Band step filter
½
c) Delay filter d) All of the mentioned
CO 3 10. The circuit in which the output voltage waveform is the integral
of the input voltage waveform is [ ]
½
a) Integrator b) Differentiator
 c) Phase shift oscillator d) Square wave generator

CO 4 11. Oscillators uses ____________ feedback [ ]

a) Negative b) Positive
½
c)Both a & b d) None
CO 4 12. What will be the phase shift of feedback circuit in RC phase shift
oscillator? [ ]
½
a) 360  phase shift
o
b) 180o phase shift
c) 90  phase shift\
o
d) 60o phase shift
CO 4 13. In Wien bridge oscillator feedback network is_______ [ ]
a) Lead- lag network b) Lag – lag network
½
c)Lead-lead network d) None
CO 4 14. What will be the phase shift of feedback circuit in Wien bridge
oscillator? [ ]
½
a) 360  phase shift
o
b) 0o phase shift
c) 90  phase shift\
o
d) 60o phase shift
CO 4 15. The amplifier gain condition in RC phase shift oscillator is [ ]
a) |A| > 26 b) |A| > 27 c) |A| > 28 d) |A| > 29
½

CO 4 16. The amplifier gain condition in Wien bridge oscillator is [ ]

a) |A| > 3 b) |A| > 2 c) |A| > 4 d) |A| > 5
½

CO 4 17. Astable multivibrator is also known as a [ ]

a) One-shot multivibrator b) Free-running multivibrator ½

c) Bistablemultivibrator d)Monostable multivibrator

CO 4 18. Monostable multivibrator is also known as a [ ]
a) One-shot multivibrator b) Free-running multivibrator ½

c) Bistablemultivibrator d)Monostable multivibrator

CO 4 19. Schmitt trigger is also called as ________ generator [ ]
a) Square wave b) Triangular ½

c) Saw tooth d) Sine wave

CO 4 20. IC 565 is called as --------------- [ ]
a) Dual opamp b) Timer c) PLL d) Op-amp ½
