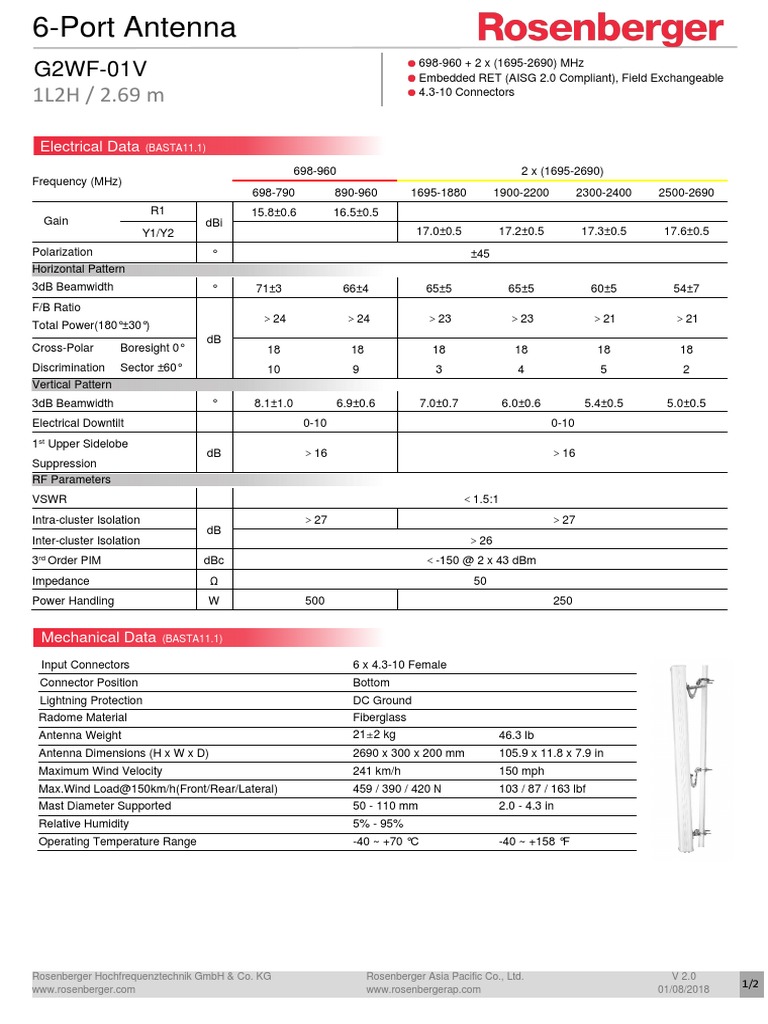

6-Port Antenna

698-960 + 2 x (1695-2690) MHz

G2WF-01V Embedded RET (AISG 2.0 Compliant), Field Exchangeable
1L2H / 2.69 m 4.3-10 Connectors

Electrical Data (BASTA11.1)

698-960 2 x (1695-2690)
Frequency (MHz)
698-790 890-960 1695-1880 1900-2200 2300-2400 2500-2690
R1 15.8±0.6 16.5±0.5
Gain dBi
Y1/Y2 17.0±0.5 17.2±0.5 17.3±0.5 17.6±0.5
Polarization ° ±45
Horizontal Pattern
3dB Beamwidth ° 71±3 66±4 65±5 65±5 60±5 54±7
F/B Ratio
＞24 ＞24 ＞23 ＞23 ＞21 ＞21
Total Power(180°±30°)
dB
Cross-Polar Boresight 0° 18 18 18 18 18 18
Discrimination Sector ±60° 10 9 3 4 5 2
Vertical Pattern
3dB Beamwidth ° 8.1±1.0 6.9±0.6 7.0±0.7 6.0±0.6 5.4±0.5 5.0±0.5
Electrical Downtilt 0-10 0-10
1st Upper Sidelobe
dB ＞16 ＞16
Suppression
RF Parameters
VSWR ＜1.5:1
Intra-cluster Isolation ＞27 ＞27
dB
Inter-cluster Isolation ＞26
3rd Order PIM dBc ＜-150 @ 2 x 43 dBm
Impedance Ω 50
Power Handling W 500 250

Mechanical Data (BASTA11.1)

Input Connectors 6 x 4.3-10 Female

Connector Position Bottom
Lightning Protection DC Ground
Radome Material Fiberglass
Antenna Weight 21±2 kg 46.3 lb
Antenna Dimensions (H x W x D) 2690 x 300 x 200 mm 105.9 x 11.8 x 7.9 in
Maximum Wind Velocity 241 km/h 150 mph
Max.Wind Load@150km/h(Front/Rear/Lateral) 459 / 390 / 420 N 103 / 87 / 163 lbf
Mast Diameter Supported 50 - 110 mm 2.0 - 4.3 in
Relative Humidity 5% - 95%
Operating Temperature Range -40 ~ +70 °C -40 ~ +158 °F

Rosenberger Hochfrequenztechnik GmbH & Co. KG Rosenberger Asia Pacific Co., Ltd. V 2.0
www.rosenberger.com www.rosenbergerap.com 01/08/2018
1/2
6-Port Antenna
698-960 + 2 x (1695-2690) MHz
G2WF-01V Embedded RET (AISG 2.0 Compliant), Field Exchangeable
1L2H / 2.69 m 4.3-10 Connectors

Layout

3 R2
Array Connector Frequency (MHz) Sub Unit # RET Type ICU Serial*
R1 1-2 698-960 1 MRET RB.....XXYYxxxxx-MM
Y1 3-4 1695-2690 2 MRET RB…..XXYYxxxxx-MM
Y2 5-6 1695-2690 3 MRET RB…..XXYYxxxxx-MM
*Remark: XX – Year, YY – Week , xxxxx – Serial Number

Pattern

698-960 1695-2690

Accessories(Azimuth & Vertical Adjustable)

Item Model Weight (kg) Mechanical Tilt Range (°)
Mounting Kit 85L-1 4.1 0-10

Compliance
— Our quality assurance system and our environmental management system apply to the entire company
and are certified according to EN ISO 9001, EN ISO 14001 and OHSAS 18001
— Our products are compliant to the EU Directive RoHS (RoHS 2011/65/EU) as well as to other environmentally relevant
regulations (e.g. REACH)
