1/8

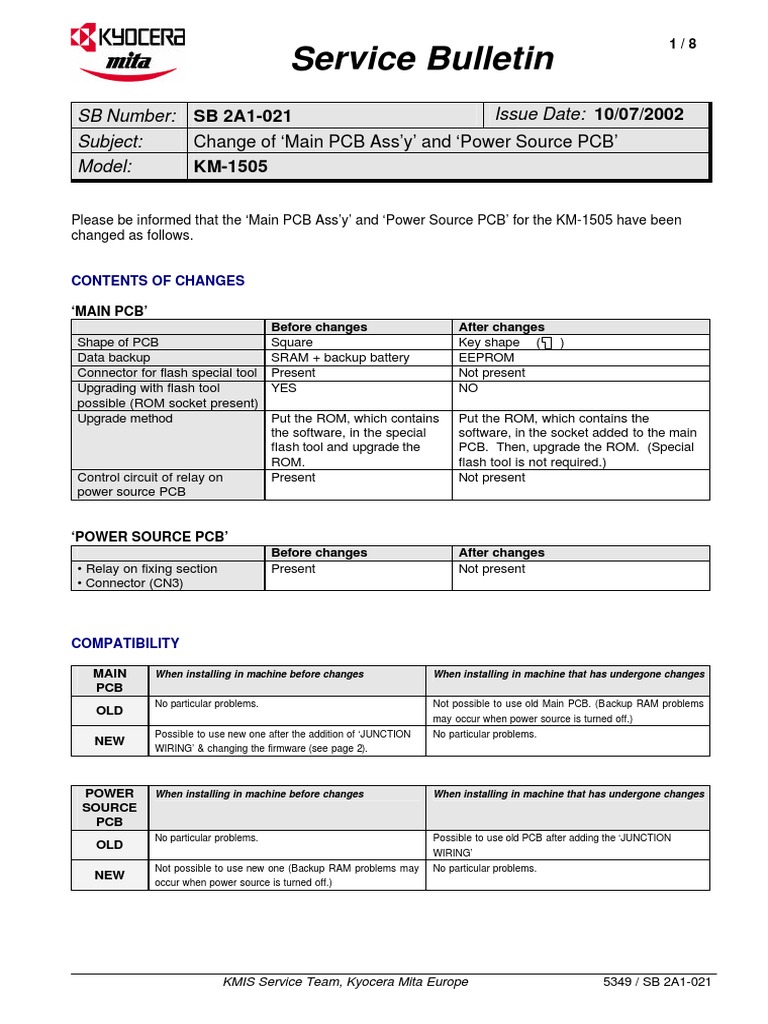

Service Bulletin
SB Number: SB 2A1-021 Issue Date: 10/07/2002
Subject: Change of ‘Main PCB Ass’y’ and ‘Power Source PCB’
Model: KM-1505

Please be informed that the ‘Main PCB Ass’y’ and ‘Power Source PCB’ for the KM-1505 have been
changed as follows.

CONTENTS OF CHANGES

‘MAIN PCB’
Before changes After changes
Shape of PCB Square Key shape ( )
Data backup SRAM + backup battery EEPROM
Connector for flash special tool Present Not present
Upgrading with flash tool YES NO
possible (ROM socket present)
Upgrade method Put the ROM, which contains Put the ROM, which contains the
the software, in the special software, in the socket added to the main
flash tool and upgrade the PCB. Then, upgrade the ROM. (Special
ROM. flash tool is not required.)
Control circuit of relay on Present Not present
power source PCB

‘POWER SOURCE PCB’

Before changes After changes
• Relay on fixing section Present Not present
• Connector (CN3)

COMPATIBILITY

MAIN When installing in machine before changes When installing in machine that has undergone changes
PCB
No particular problems. Not possible to use old Main PCB. (Backup RAM problems
OLD
may occur when power source is turned off.)
Possible to use new one after the addition of ‘JUNCTION No particular problems.
NEW
WIRING’ & changing the firmware (see page 2).

POWER When installing in machine before changes When installing in machine that has undergone changes
SOURCE
PCB
No particular problems. Possible to use old PCB after adding the ‘JUNCTION
OLD
WIRING’
Not possible to use new one (Backup RAM problems may No particular problems.
NEW
occur when power source is turned off.)

KMIS Service Team, Kyocera Mita Europe 5349 / SB 2A1-021

 Service Bulletin 2/8

Firmware

Firmware
2BT68016H Exclusive firmware for the old main PCB
2BT68030A Exclusive firmware for the new main PCB

Note: Different firmware should be used for old and new main PCB. If the combination is not correct, fixing
heater may not turn on.

Field Measure
Please refer to the attached leaflet (page 5 and later) when replacing Main PCB or Power Source PCB.
Please note as well that the procedure for firmware upgrade on the new main PCB is different than for the
old main PCB.

Affected Machine Serial Numbers:

KM-1505: 4027053 and later

(except for Riyadh House est.)

See page 3 for schematic drawing of old and new main PCB and Power Source PCB.

See page 4 for Parts Table

See page 5 and later for procedures when replacing old main PCB and old Power source PCB with
the new ones.

KMIS Service Team, Kyocera Mita Europe 5349 / SB 2A1-021

 3/8
Service Bulletin

BEFORE CHANGE

POWER SOURCE PCB MAIN PCB

Relay
DC power
DCsource
電源

24V

CN3 Control Relay

Fixing heater

AFTER CHANGE
POWER SOURCE PCB MAIN PCB

DC power
source

Relay is
discontinued

CN3 is discontinued.

Relay control circuit is discontinued

OLD ‘POWER SOURCE PCB’ (before change) + NEW ‘MAIN PCB’ (after change)

POWER SOURCE PCB MAIN PCB

DC
DC 電源
power
source

24V

CN3

Fixing heater
JUNCTION WIRING added. Connects to earth part on ‘MAIN PCB’

KMIS Service Team, Kyocera Mita Europe 5349 / SB 2A1-021

 4/8
Service Bulletin
Parts Table

Part No. Part No. Q’ty Interchange-

No. Description Remarks
OLD NEW old-new ability
1 2BT01010 2BT01030 MAIN PCB ASS'Y B 1 1 X X

2 2A128062 2BT28040 POWER SOURCE PCB (200) B 1 1 X X 230V spec. *

3 --- 2BT69700 SET, MAIN PCB ASS'Y B (2BT) - 1 - O

4 --- 2BT01030 + MAIN PCB ASS'Y B - 1 - X

5 --- 2BT68020 + JUNCTION WIRING, FIXING RELAY - 1 - X

6 --- M2108750 + SPACER, KGLS-6RF (KITAGAWA) - 1 - X

7 2BT68016 2BT68030 + IC B, ROM MAIN PCB 1 1 X X

8 --- 2BT69730 SET, POWER SOURCE PCB 230 (2BT) - 1 - O 230V spec.*

9 --- 2A193021 + PARTS, POWER SOURCE ASS'Y 230 (SP) - 1 - X

10 --- 2BT68020 + JUNCTION WIRING, FIXING RELAY - 1 - X

* If the ‘POWER SOURCE PCB’ is required, please order Part No.8.

ROM Seal No. Checksum ROM speed

No. 8 OLD Main 2BT68016H 6EA1 100 ns Exclusive software for old main PCB
No. 8 NEW Main 2BT68030A FCFC 100 ns Exclusive software for new main PCB

KMIS Service Team, Kyocera Mita Europe 5349 / SB 2A1-021

 2BT69700 : SET, MAIN PCB ASS'Y B(2BT)

CONTENTS

(1) MAIN PCB ASS'Y (x1) (2) JUNCTION WIRING, FIXING RELAY (x1)

(3) SPACER (x1)

(4) Master ROM [2BT6803xx] (x1)

If the shape of detached main PCB is oblong, the following work is required or changed in
case of replacement.

1. Connection of junction wiring/attachment of spacer

2. Change of upgrading method of firmware on main PCB

1. Connection of junction wiring/attachment of spacer

MAIN PCB

These are surplus connectors.

9P, 8P, 11P, 12P (4 pieces)
Nothing is attached.

Spacer is attached here

• Fix the round edge of junction wiring with

the screw to the lower right on main PCB.

Leave the yellow wire disconnected.

(Originally, the wire is connected.)

Detach the connector linked to a blue and a yellow wire under the main
PCB. Then, connect the blue wire to the junction wiring (yellow).

2BT69710A - 1/2
2. Change of upgrading method of firmware on main PCB

1. Turn the main switch off and disconnect the power plug.
2. Detach the rear cover.
3. Remove the shield PCB.
4. Put the master ROM in the socket of main PCB.
5. Attach the jumper on main PCB to the position of ”WRITE”
(FIG B).
6. Insert the power plug and turn the main switch on. LED
(green) on the main PCB flashes and upgrading of the
master ROM starts.
7. When flashing, LED (green) remains lit. After approximately 30
to 40 seconds, upgrading of the master ROM is complete.
8. Turn the main switch off and disconnect the power plug.
9. Attach the jumper on main PCB so that the jumper pin is set Jumper
LED
to the normal position (FIG A).
10. Remove the master ROM.

Socket

Jumper (Normal position) Jumper (“Write” position)

(Short-circuit “2” and ”3”) (Short-circuit “1” and ”2”)

FIG A FIG B

2BT69710A - 2/2
 2BT69720 : SET, POWER SOURCE PCB 120(2BT)
2BT69730 : SET, POWER SOURCE PCB 230(2BT)

CONTENTS

(1) POWER SOURCE ASS'Y (x1) (2) JUNCTION WIRING, FIXING RELAY (x1)

If “2BT280x” is printed on the detached POWER SOURCE ASS’Y, the following work is
required in case of replacement.

1.Connection of connector for relay control

2.Connection of junction wiring

1. Connection of connector for relay control

• Remove the below tie-up band (a) from the front.

(View when toner container is detached from the front of machine)

(View when POWER SOURCE ASS'Y is detached)

(a)

• Connect the detached connector with CN3 on PCB.

CN3

2BT69740A - 1/2
2. Connection of junction wiring

MAIN PCB

• Fix the round edge of junction wiring with the

screw to the lower right on main PCB.

Leave the yellow wire disconnected.

(Originally, the wire is connected.)

Detach the connector linked with a blue and a yellow wire under the main
PCB. Then, connect the blue wire and junction wiring (yellow).

2BT69740A - 2/2
