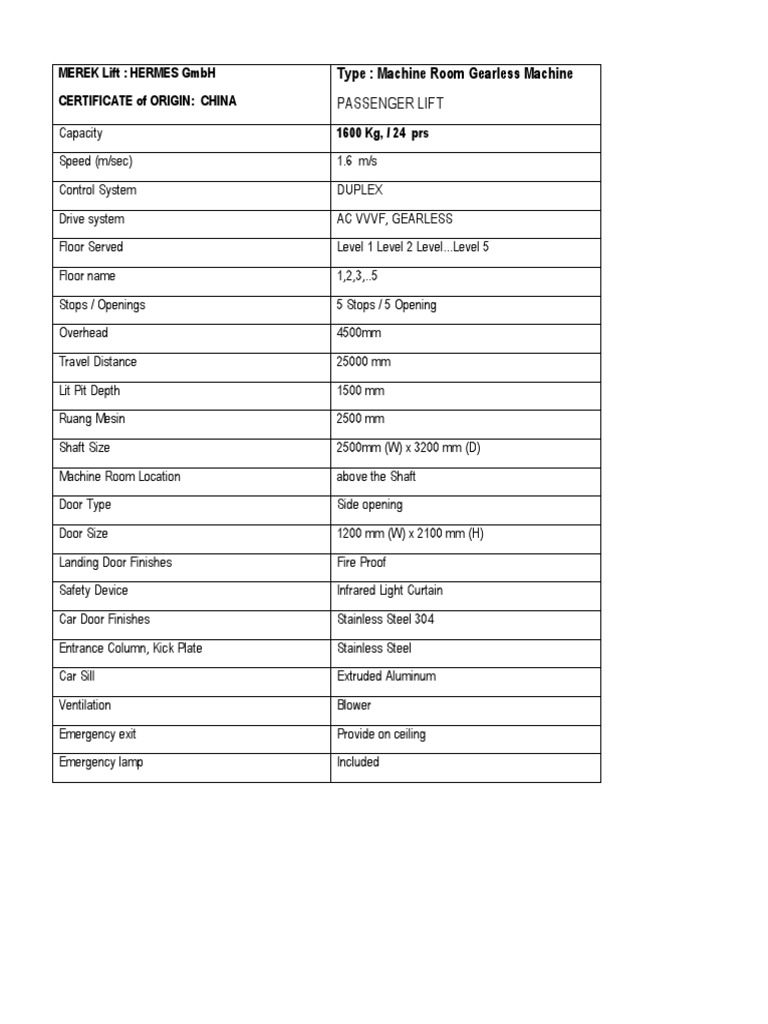

MEREK Lift : HERMES GmbH Type : Machine Room Gearless Machine

CERTIFICATE of ORIGIN: CHINA PASSENGER LIFT

Capacity 1600 Kg, / 24 prs
Speed (m/sec) 1.6 m/s

Control System DUPLEX

Drive system AC VVVF, GEARLESS

Floor Served Level 1 Level 2 Level...Level 5

Floor name 1,2,3,..5

Stops / Openings 5 Stops / 5 Opening

Overhead 4500mm

Travel Distance 25000 mm

Lit Pit Depth 1500 mm
Ruang Mesin 2500 mm

Shaft Size 2500mm (W) x 3200 mm (D)

Machine Room Location above the Shaft
Door Type Side opening

Door Size 1200 mm (W) x 2100 mm (H)

Landing Door Finishes Fire Proof

Safety Device Infrared Light Curtain

Car Door Finishes Stainless Steel 304

Entrance Column, Kick Plate Stainless Steel

Car Sill Extruded Aluminum

Ventilation Blower
Emergency exit Provide on ceiling

Emergency lamp Included

Car

Car Size 1500 mm x2400 mm x 2400 mm

Cabin Finishes Stainless Steel 304

Flooring Granit
Handrails Stainless Steel 304 Flat type

Ceiling HERMES Standard

Car allowances 300 kg

Jamb Narrow Jamb Stainless Steel

Car Operation Panel

Faceplate Hairline Stainless Steel 304

Buttons Standard Buttons Type

Floor & Direction Display Included

Overload Indicator Included
Alarm Button Included

Door Close & Open Buttons Included

Landing Operation Panel

Faceplate Hairline Stainless Steel 304

Buttons Standard buttons Type

Floor & Direction Display Included

Sleep Mode Function Included

Power Voltage 380 V, 3 Phase, 50 Hz Motor Power 11 KW

Lighting Voltage 220 V, 1 Phase, 50 Hz

Automatic Rescue Device Included, nearest floor on power failure

Earthquake Censor Included

Stablizer Included

Fire alarm Included

Arrival Gong Setiap lantai
ADDITIONAL FEATURES
- Emergency Car Lighting c/w Charger
- Interphone system dan emergency paging system
- Overload protection device
- Arrival Gong
- Auxiliary Car Operating Panel
- Single phasing protection
- Manhole (car) switch
- Pit switch
- Maintenance switch (didalam dan diluar kereta)
- Nuisance call cancellation (untuk menghapus panggilan semu, berdasarkan proteksi dari beban

- Non Reserve phase sequence protection

- Lampu diatas dan dibawah car lift berikut kawat pengaman dan stop kontak.
- Emergency alarm
- Rope ditandai untuk tanda dimana car berada.
- Automatic charger.
- Electronik Cells
- Attendance Service
- Door photo electric
- Emergency stop switch
-
 Standard Function

X Attendant Service X Automatic Parking

Automatically / Manually Control Fan and

X X Car-Call Cancelled
Lighting in Car

X Car Alarm Ring X Call Cancelled When Direction Reversed

X Close Door Repeatedly X Car Location Adjusted Automatically

X Contact adhered Protection X Door Open Local Floor

X Door Protective Device X Down Collective Operation

X Emergency illumination in car X Encoder Fault Protection

X Fault Information Recorded X Final Terminal Protection

X Floor Distance Data Adjusted Automatically X Hoistway Parameter Self- Learning

X Interphone X Lattice Display Screen

X Level for self-helping X Load Weighing Device

X Motor parameter self-learning X Non-Stop With Full Load

X Open/Close Automatically X Open/Close Button

X Over current and Over Load Protection X Over Load Protection

X Over Speed Protection (Up & Down Direction) X Over Voltage Protection

X Parking Shutdown X Random Floor Number Setting

Re-running Automatically When Elevator is Re-

X X Remote Monitor Interface
powered

X Roll Display Of Running Direction

X Running Time Protection X Running Timer and Counter

Top of Car Inspection Machine Room

X Service Floor Setting X
Emergency Inspection
X Adjustable Open Door Time X Anti-Reverse Protection
