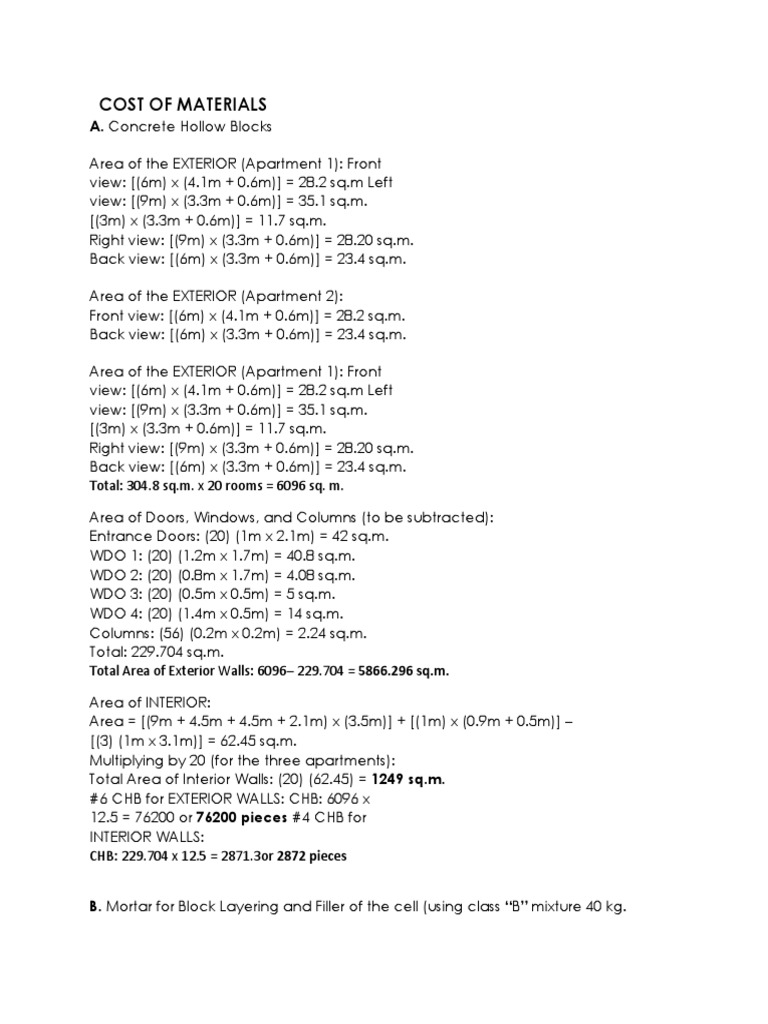

Cost of Materials: A. Concrete Hollow Blocks
Cost of Materials: A. Concrete Hollow Blocks
Area of INTERIOR:
Area = [(9m + 4.5m + 4.5m + 2.1m) x (3.5m)] + [(1m) x (0.9m + 0.5m)] –
[(3) (1m x 3.1m)] = 62.45 sq.m.
Multiplying by 20 (for the three apartments):
Total Area of Interior Walls: (20) (62.45) = 1249 sq.m.
#6 CHB for EXTERIOR WALLS: CHB: 6096 x
12.5 = 76200 or 76200 pieces #4 CHB for
INTERIOR WALLS:
CHB: 229.704 x 12.5 = 2871.3or 2872 pieces
B. Mortar for Block Layering and Filler of the cell (using class “B” mixture 40 kg.
cement):
For the Exterior:
Cement: 6096 x 1.013 = 6175.258 or 6176 bags
Sand: 6096 x 0.08438 = 514.38 or 515 cu.m.
For the Interior:
Cement: 229.704 x 0.525 = 120.5946 or 146 bags
Sand: 229.704 x 0.04375 = 10.049 cu.m.
D. Footing
Exterior:
Length of footing: 40m + [(4) (8m)] + [(5) (2.5m + 2.5m +1m)] = 102m Using
class “B” mixture 40 kg. cement, for a 15 x 40 cm footing, multiply:
Interior:
Length of footing: (5) [2.35m + 7m + 2.4m + (2) (2.5m)] = 83.75m Using
class “B” mixture 40 kg. cement, for a 10 x 35 cm footing, multiply:
F. Rectangular Column
Total length of the 56 columns: (4 x 3.36m) + (24 x 2.5m) = 73.44 meters
Using class “A” mixture 40 kg. cement along 20 x 20 cm, multiply:
H. Architectural Design
Total volume: (3) [(3.069 cu.m. + 5.0555 cu.m. + 5.325 cu.m.) + (6.02 cu.m.)] Total volume: 64.469
cu.m.
• Using class “B” mixture 40 kg. cement, multiply: Cement:
64.469 x 12 = 773.63 or 774 bags Sand: 64.469 x 1.0 =
64.47 cu.m.
I. Steel Reinforcement for CHB work
Total area of the fences (exterior and interior): 5866.296 + 1249 = 7155.30 cu.m.
J.
Reinforcement in Columns
No. of steel bars: [(4 x 4 x 5.78) + (24 x 4 x 6.7)] / 6 = 123 steel bars
Using 25 cm. length per tie, multiply: 1520 x 0.25 = 380 meters
K
Reinforcement in Footings (12mm steel bars)
No. of steel bars: 948 / 7 = 135 pieces of 12mm x 5.00m steel bar
Using 25 cm. length per tie, multiply: 1540 x 0.25 = 385 meters
L.
Reinforcement in Beams
Total length of beams: 100.5 m
Number of stirrups using a 6.00m long steel bars: 602 / 6 = 100 pieces
Using 25 cm. length per stirrup, multiply: 2018 x 0.25 = 4832 meters
M.
Roof frame
N.
Roof
Corrugated G.I. Sheets
Using 0.551m x 2.44m Corrugated G.I. sheet: [(5 x 12.05) / (0.551 x 2.44)] (3)
Rivets
Order: 30 kg of rivets
G.I. Washers
Lead Washers
The number of rivets is equal the number of lead washers = 1800 pieces
