    R

    Mfg. & Exporter of : Control Panel, Drives, Instruments,


    Protection &Mesurement Devices, Industrial Automation

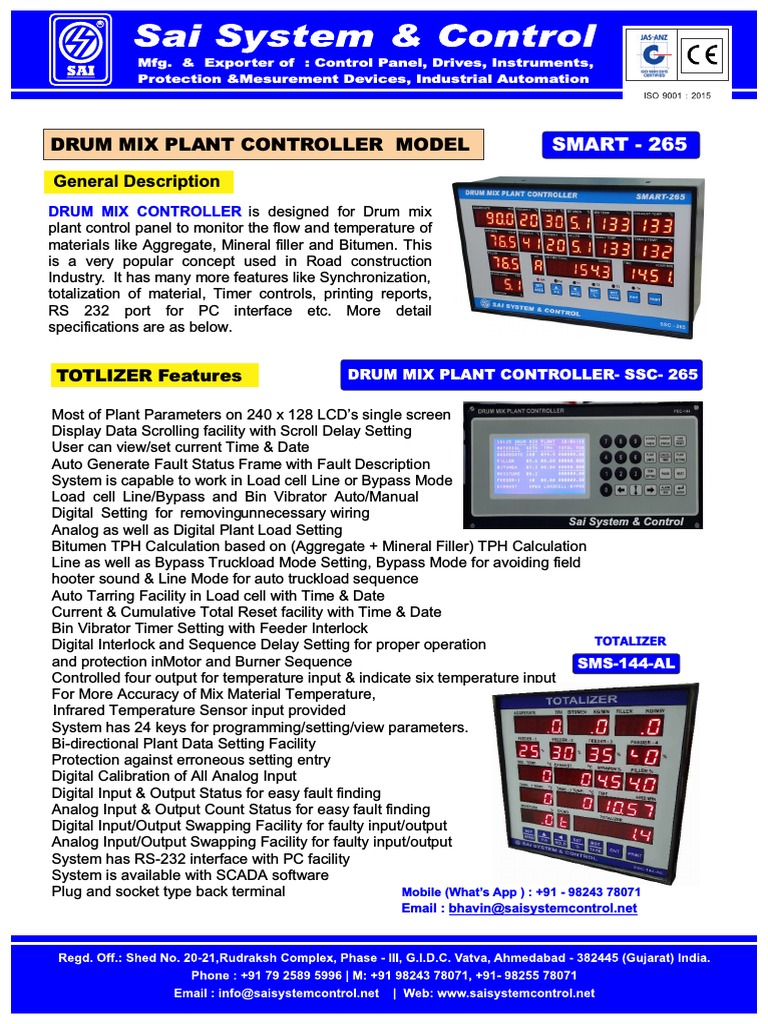

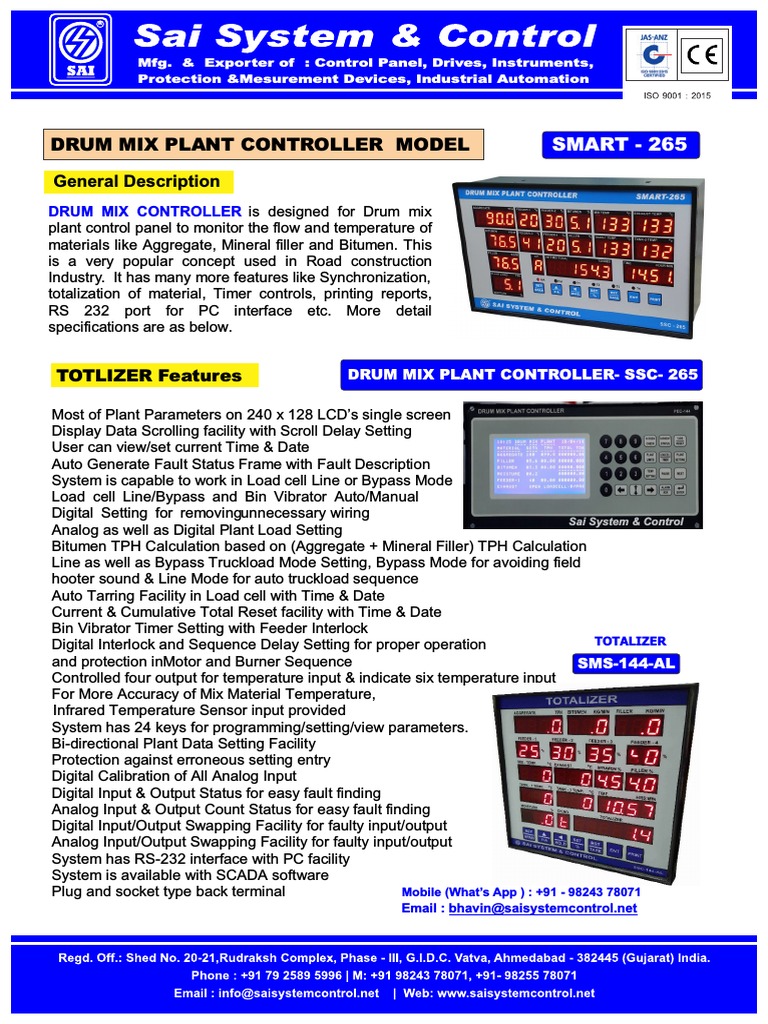

    DRUM MIX PLANT CONTROLLER MODEL SMART - 265


    General Description
    DRUM MIX CONTROLLER is designed for Drum mix
    plant control panel to monitor the flow and temperature of
    materials like Aggregate, Mineral filler and Bitumen. This
    is a very popular concept used in Road construction
    Industry. It has many more features like Synchronization,
    totalization of material, Timer controls, printing reports,
    RS 232 port for PC interface etc. More detail
    specifications are as below.

    TOTLIZER Features DRUM MIX PLANT CONTROLLER- SSC- 265

    Most of Plant Parameters on 240 x 128 LCD’s single screen


    Display Data Scrolling facility with Scroll Delay Setting
    User can view/set current Time & Date
    Auto Generate Fault Status Frame with Fault Description
    System is capable to work in Load cell Line or Bypass Mode
    Load cell Line/Bypass and Bin Vibrator Auto/Manual
    Digital Setting for removingunnecessary wiring
    Sai System & Control
    Analog as well as Digital Plant Load Setting
    Bitumen TPH Calculation based on (Aggregate + Mineral Filler) TPH Calculation
    Line as well as Bypass Truckload Mode Setting, Bypass Mode for avoiding field
    hooter sound & Line Mode for auto truckload sequence
    Auto Tarring Facility in Load cell with Time & Date
    Current & Cumulative Total Reset facility with Time & Date
    Bin Vibrator Timer Setting with Feeder Interlock
    Digital Interlock and Sequence Delay Setting for proper operation TOTALIZER
    and protection inMotor and Burner Sequence SMS-144-AL
    Controlled four output for temperature input & indicate six temperature input
    For More Accuracy of Mix Material Temperature,
    Infrared Temperature Sensor input provided
    System has 24 keys for programming/setting/view parameters.
    Bi-directional Plant Data Setting Facility
    Protection against erroneous setting entry
    Digital Calibration of All Analog Input
    Digital Input & Output Status for easy fault finding
    Analog Input & Output Count Status for easy fault finding
    Digital Input/Output Swapping Facility for faulty input/output
    Analog Input/Output Swapping Facility for faulty input/output
    System has RS-232 interface with PC facility
    System is available with SCADA software
    Plug and socket type back terminal Mobile (What’s App ) : +91 - 98243 78071
    Email : bhavin@saisystemcontrol.net
    R

    Mfg. & Exporter of : Control Panel, Drives, Instruments,


    Protection &Mesurement Devices, Industrial Automation

    CONTROL PANEL SPARES FOR ASPHALT HOT MIX PLANT MACHINERY

    - SPEED CONTROL RELAY


    - FIELD SUPPLY UNIT
    - GOB HOPPER TIMER
    SaiSystem&Control - TEMPERATURE CONTROL
    - SIGNAL CONDITIONER
    SaiSystem&Contr
    ol
    - LOAD CELL AMPLIFIER
    - MASTER CONTROL BOX
    - S.M.P.S.
    SaiSystem&
    Control
    SaiSystem&
    Control SaiSystem
    &Control - PID CONTROLLER
    - LEVEL CONTROLLER
    - FIELD OUT PUT CARD
    - SYNCHRONIZED CARD

    DIGITAL INSTRUMENTS, TEMPERATURE SCANNER, CONTROLS CARD

    MASTER CONTROL CARD TEMPERATURE SCANNER


    EC-CARD SMS-SCAN-192 DTS-192
    SAI SYSTEM & CONTROL

    SAI SYSTEM & CONTROL

    SAI SYSTEM & CONTROL


    SAI SYSTEM
    & CONTROL

    SAI SYSTEM & CONTROL

    DUAL TEMP. GOB


    CONTROLLER HOPPER TIMER

    - TEMPERATURE CONTROLLER
    - DUAL TEMPERATURES CONTROLLER
    - HOPPER TIMER
    - COUNTER & FLOW TOTALIZER
    - MIMIC WITH TOTALIZER UNIT
    - DIGITAL TEMPERATURE SACNNER

    Mobile (What’s App) : +91 - 98243 78071


    Email : bhavin@saisystemcontrol.net
