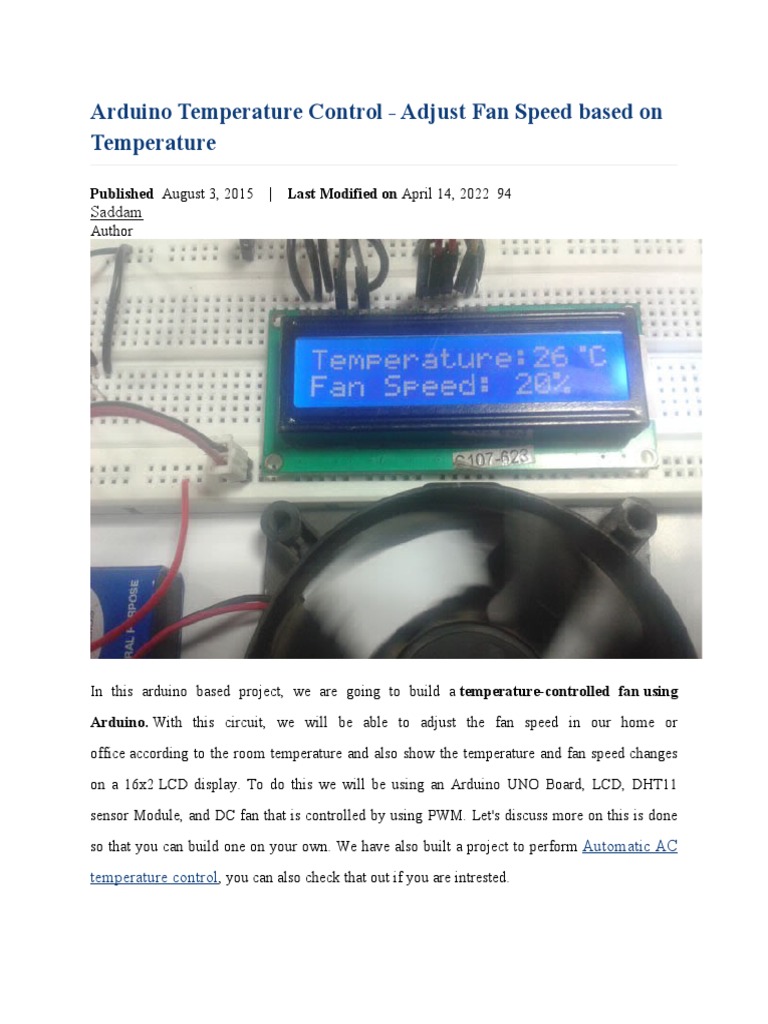

Arduino Temperature Control

Arduino Temperature Control - Adjust Fan Speed based on
Temperature
Published August 3, 2015 | Last Modified on April 14, 2022 94

Saddam
Author
In this arduino based project, we are going to build a temperature-controlled fan using
Arduino. With this circuit, we will be able to adjust the fan speed in our home or
office according to the room temperature and also show the temperature and fan speed changes
on a 16x2 LCD display. To do this we will be using an Arduino UNO Board, LCD, DHT11
sensor Module, and DC fan that is controlled by using PWM. Let's discuss more on this is done
so that you can build one on your own. We have also built a project to perform Automatic AC
temperature control, you can also check that out if you are intrested.

Components Required
The following are the materials required to perform a temperature-based fan speed control
using Arduino. Most of the components should be easily available in your local hardware shop
1. Arduino UNO
2. DHT11 sensor
3. DC Fan
4. 2n2222 transistor
5. 9 volt battery
6. 16x2 LCD
7. 1K resistor
8. Connecting wires
Arduino Fan Speed Control using Temperature Sesnor

This project consists of three sections. One senses the temperature by using humidity and
temperature sensor namely DHT11. The second section reads the dht11 sensor module’s
output and extracts temperature value into a suitable number in Celsius scale and control
the fan speed by using PWM. And last part of system shows humidity and temperature on LCD
and Fan driver.

Here in this project, we have used a sensor module namely DHT11 that already has discuss our
previous project namely “Humidity and Temperature Measurement using Arduino”. Here
we have only used this DHT sensor for sensing temperature, and then programmed our arduino
according to the requirements.
Working on this project is very simple. We have created PWM at pwm pin of arduino and
applied it at base terminal of the transistor. Then transistor creates a voltage according to the
PWM input.
Fan speed and PWM values and duty cycles values are showing in given table
Temperature Duty Cycle PWM Value Fan Speed

Less 26 0% 0 Off
26 20 % 51 20%
27 40% 102 40%
28 60% 153 60%
29 80% 204 80%
Greater 29 100% 255 100%
What is PWM? PWM is a technique by using we can control the voltage or power. To
understand it more simply, if you are applying 5 volt for driving a motor then motor will moving
with some speed, now if we reduces applied voltage by 2 means we apply 3 volts to motor then
motor speed also decreases. This concept is used in the project to control the voltage using
PWM. (To understand more about PWM, check this circuit: 1 Watt LED Dimmer)
The main game of PWM is digital pulse with some duty cycle and this duty cycle is responsible
for controlling the speed or voltage.
Suppose we have a pule with duty cycle 50% that means it will give half of voltage that we
apply.
Formula for duty cycle given below:
Duty Cycle= Ton/T
Where T= total time or Ton+Toff
And Ton= On time of pulse (means 1 )

And Toff= Off time of pulse (means 0)

Arduino Temperature Controlled Fan Circuit Diagram
Connections of this temperature controlled fan circuit is very simple, here a liquid crystal
display is used for displaying temperature and Fan speed Status. LCD is directly connected to
Arduino in 4-bit mode (Check this tutorial for more details: LCD Interfacing with Arduino
Uno). Pins of LCD namely RS, EN, D4, D5, D6 and D7 are connected to Arduino digital pin
number 7, 6, 5, 4, 3 and 2. And a DHT11 sensor module is also connected to digital pin 12 of
Arduino. Digital pin 9 is used for controlling fan speed through the transistor.

If you are looking for something simple and more cost-effective you can check out
the temperature controlled LED using LM35 and Temperature controlled Automatic AC
switch projects, both of them are very easy to built and does not need a microcontroller.

Arduino Code for temperature-controlled fan

First, we include the library for LCD and DHT sensor and then define pin for lcd, dht sensor and
for fan.
Then initialize all the things in setup loop. And in loop by using dht function reads DHT sensor
and then using some dht functions we extract temperature and display these on LCD.
After this we compare the temperature with pre define temperature digit and then generate PWM
according to the temperature value.

For generating PWM we have used “analogWrite(pin, PWM value)” fuction in 8 bit. Mean if
PWM value is equivalent of analog value. So if we need to generate 20% of duty cycle then we
pass 255/5 value as PWM in “analogWrite” Function.
Code
#include<dht.h> // Including library for dht
#include<LiquidCrystal.h>
LiquidCrystal lcd(7, 6, 5, 4, 3, 2);
#define dht_dpin 12
dht DHT;
#define pwm 9
byte degree[8] =
{
0b00011,
0b00011,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000
};
void setup()
{
lcd.begin(16, 2);
lcd.createChar(1, degree);
lcd.clear();
lcd.print(" Fan Speed ");
lcd.setCursor(0,1);
lcd.print(" Controlling ");
delay(2000);
analogWrite(pwm, 255);
lcd.clear();
lcd.print("Circuit Digest ");
delay(2000);
}
void loop()
{
DHT.read11(dht_dpin);
int temp=DHT.temperature;
lcd.setCursor(0,0);
lcd.print("Temperature:");
lcd.print(temp); // Printing temperature on LCD
lcd.write(1);
lcd.print("C");
lcd.setCursor(0,1);
if(temp <26 )
{
analogWrite(9,0);
lcd.print("Fan OFF ");
delay(100);
}

else if(temp==26)
{
lcd.print("Fan Speed: 20% ");
delay(100);
}

else if(temp==27)
{
delay(100);
}

else if(temp==28)
{
delay(100);
}

else if(temp==29)
{
delay(100);
}
else if(temp>29)
{
delay(100);
}
delay(3000);
}
