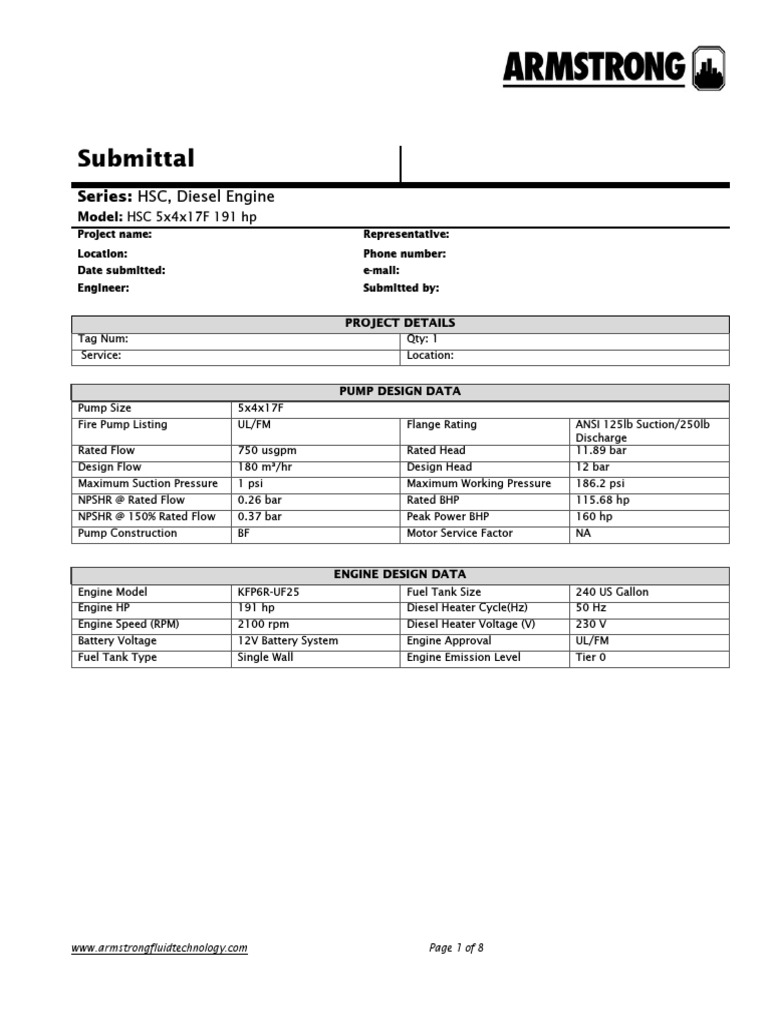

Submittal

Series: HSC, Diesel Engine

Model: HSC 5x4x17F 191 hp
Project name: Representative:
Location: Phone number:
Date submitted: e-mail:
Engineer: Submitted by:

PROJECT DETAILS
Tag Num: Qty: 1
Service: Location:

PUMP DESIGN DATA

Pump Size 5x4x17F
Fire Pump Listing UL/FM Flange Rating ANSI 125lb Suction/250lb
Discharge
Rated Flow 750 usgpm Rated Head 11.89 bar
Design Flow 180 m³/hr Design Head 12 bar
Maximum Suction Pressure 1 psi Maximum Working Pressure 186.2 psi
NPSHR @ Rated Flow 0.26 bar Rated BHP 115.68 hp
NPSHR @ 150% Rated Flow 0.37 bar Peak Power BHP 160 hp
Pump Construction BF Motor Service Factor NA

ENGINE DESIGN DATA

Engine Model KFP6R-UF25 Fuel Tank Size 240 US Gallon
Engine HP 191 hp Diesel Heater Cycle(Hz) 50 Hz
Engine Speed (RPM) 2100 rpm Diesel Heater Voltage (V) 230 V
Battery Voltage 12V Battery System Engine Approval UL/FM
Fuel Tank Type Single Wall Engine Emission Level Tier 0

www.armstrongfluidtechnology.com Page 1 of 8
 DIMENSIONAL DATA (in, lb) NOT for CONSTRUCTION
Pump Weight Driver Weight Total Weight
960 lb 1940 lb 2915 lb [1322.22 kg]

www.armstrongfluidtechnology.com Page 2 of 8
 ----Duty Points—-
Design Flow: 180 m³/hr @ 12 bar
Series HSC Rated Flow: 750 usgpm @ 11.89 bar
NPSHR @ Rated flow: 0.26 bar
5x4x17F @ 2100 rpm rpm NPSHR @ 150% Rated Flow: 0.37 bar
20
*PT666-2-0
----Pump Data----
Impeller: 17.301 in
100% 150% Rated BHP: 115.68 hp
15 Peak Power: 160 hp
Head (bar)

Closed Valve Pressure: 185.2 psi

429 mm*
439 mm Approved Listings: UL/FM

10 ---Diesel Engine Data---

Supplier: Kirloskar
Model: KFP6R-UF25
Size: 191 hp
5 300 mm Site Elevation: 1300 m
Ambient Temperature: 98.00 °F
Engine Derated Factor: 0.86
Engine Derated Power: 164 hp
0 NPSHr
---Operating Data----
150
Rated Flow: 750 usgpm
Diesel Speed: 2100 rpm
125 UL: 89-186 psi
FM: 88-185 psi
Power
Power (hp)

100 ---Sample Data Points----

Pt, [Flow], [Head], [Power], [NPSHr];#,
[(m³/hr)], [(bar)], [(hp)], [(bar)];[1], [0],
75
[11.95], [41.81], [0.12];[2], [48.5],
[11.99], [56.76], [0.15];[3], [97], [11.77],
50 [73.97], [0.18];[4], [145.49], [11.29],
[90.53], [0.23];[5], [193.99], [10.54],
[104.38], [0.28];[6], [242.49], [9.51],
25 [114.34], [0.35];[7], [290.99], [8.19],
[120.11], [0.44];[8], [339.48], [6.57],
[122.22], [0.55]
0

80

70 Eff

60
Eff (%)

50

40

30

20

10

0 50 100 150 200 250 300 350 400

Water, spgr=1.000 Flow (m³/hr)

ACCESSORIES
Exhaust system (Silencer and Flexible connection)
FM Approved Cooling Loop installed on engine per NFPA20
Fuel system (Fuel Tank with flame arrestor and fittings)

www.armstrongfluidtechnology.com Page 3 of 8
 (Tank sized for 1Gal. per HP + 10% extra for sump and expansion per NFPA20)
Battery system (cables, rack and batteries)

Diesel Fuel Tank

LIST OF MATERIALS
ITEM DESCRIPTION ITEM DESCRIPTION
1* FLAME ARRESTER 8* CHECK VALVE
2 VENT PIPE 9* MANUAL VALVE (NOTE 1)
3* FILL CAP 10* DRAIN PLUG – 1” NPT (NOTE 2)
4 FILL PIPE 11* FUEL TANK
5 FUEL LEVEL SWITCH 12* TANK SUPPORT
6* LEVEL GAUGE 13* TANK WHISTLE
7 FUEL LINE 14 1¼" VENT PIPE

* Supplied by Pump manufacturer

www.armstrongfluidtechnology.com Page 4 of 8
NOTES:
1. Manual valve must be locked open or central station supervised.
2. A 1” drain valve must be used instead of drain plug when not subject to freezing.
3. Tank size as per NFPA20 2016 Section 11.4.1.3.
4. 1¼" and 2" pipe leg supplied by others.
5. Diesel fuel supplied by others.
6. Tank is designed, fabricated, tested and labeled per UL-142 and ULC-S601-07.

www.armstrongfluidtechnology.com Page 5 of 8
www.armstrongfluidtechnology.com Page 6 of 8
 DIMENSIONAL DATA (in) NOT for CONSTRUCTION
A B C D
5.125 in 12.11 in 33.5 in 38 in

Flexible Connector

www.armstrongfluidtechnology.com Page 7 of 8
www.armstrongfluidtechnology.com Page 8 of 8
 Pump Diesel

HSC Includes: Gauges and ARV

www.armstrongfluidtechnology.com Page 1 of 3
www.armstrongfluidtechnology.com Page 2 of 3
www.armstrongfluidtechnology.com Page 3 of 3
 Submittal
Product: NFPA - Fire Pump Controller
Model: GPD-12-220
Project name: Representative:
Location: Phone number:
Date submitted: e-mail:
Engineer: Submitted by:

Controller Details
Manufacturer Tornatech
Model Number GPD-12-220
Control Panel Type Diesel
Power Rating 230/1/50
Approvals UL/FM

The submittal drawings for Tornatech controller model # GPD-12-220 can be found on their web page, see the
link below:

https://www.tornatech.com/

www.armstrongfluidtechnology.com Page 1 of 1
 Submittal
Product: NFPA - Accessories
Model: Accessories - Flow Meters
Project name: Representative:
Location: Phone number:
Date submitted: e-mail:
Engineer: Submitted by:

FLOW METER CONSTRUCTION AND SPECIFICATION

Material Machined 1026 carbon steel
Valves ¼" brass ball
Weld Fitting --
Flange Option 150# ANSI B 16.5, 300# ANSI B 16.5
Identification Tag Aluminum
Construction Aluminum body
Temperature Rating 180°F (80°C)
Pressure Rating 500 psig (3450 kpa)
Weight 20 lb

Venturi Flow Meter

www.armstrongfluidtechnology.com Page 1 of 1
 Submittal
Product: NFPA - Accessories
Model: Accessories - MRV and WC
Project name: Representative:
Location: Phone number:
Date submitted: e-mail:
Engineer: Submitted by:

DESIGN DATA- MRV and WASTE CONES

MRV Size 4 inch Angle (std) WC Size 4 inch x 6 inch
Part Number_MRV D975050-210 Part Number_WC D251681-064

DIMENSIONAL DATA- MRV and WASTE CONES

A(inch) B(inch) C(inch) D(inch)
13 7.9 5.3 12

www.armstrongfluidtechnology.com Page 1 of 1
