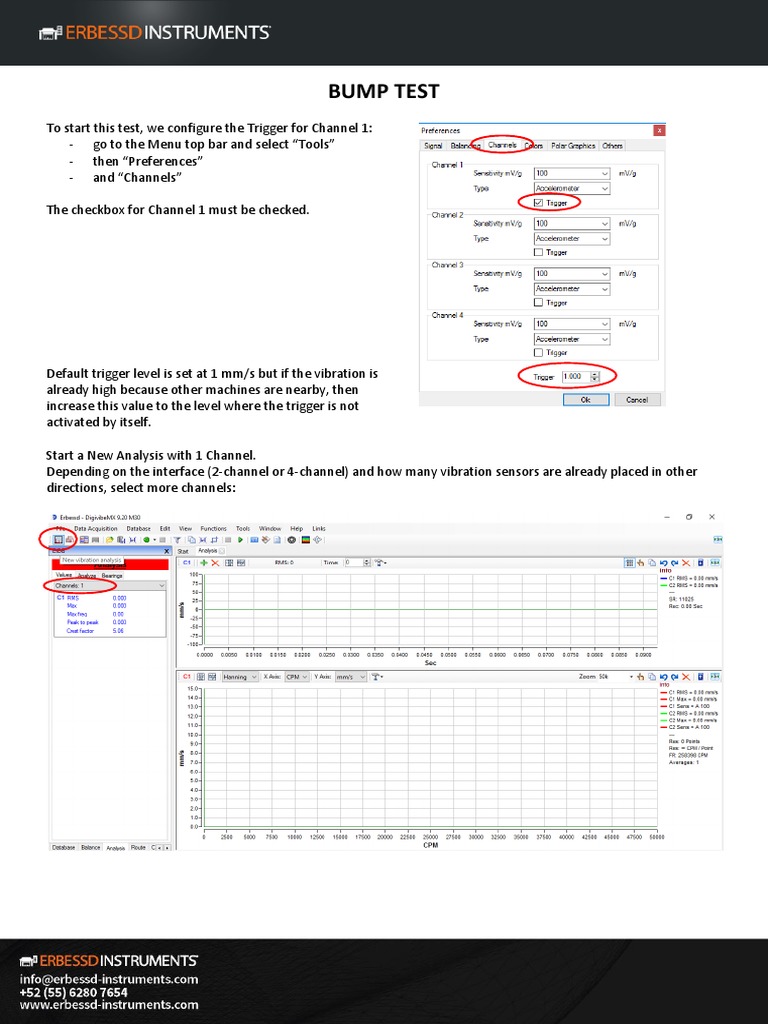

To start this test, we configure the Trigger for Channel 1:
- go to the Menu top bar and select “Tools” - then “Preferences” - and “Channels”
The checkbox for Channel 1 must be checked.
Default trigger level is set at 1 mm/s but if the vibration is
already high because other machines are nearby, then increase this value to the level where the trigger is not activated by itself.
Start a New Analysis with 1 Channel.
Depending on the interface (2-channel or 4-channel) and how many vibration sensors are already placed in other directions, select more channels: Select the time for the recording (in this example 5 seconds) and select the trigger recording mode with the right opening-menu arrow next to the recording button :
You are now ready.
Click on the trigger recording button and you can see that the function is working and waiting the bump because: - the left column shows measurements of small vibrations where the sensor is placed - the graphics in time-domain and FFT are updating - the decreasing counter (showing how many seconds are left to finish the recording) is inactive With a rubber hammer, hit the structure in a rapid movement and let the vibration atenuate until it stops:
On the time domain graph, zoom-in the interesting zone:
The structure resonant frequency (right click on FFT graph for markers) is at 1332.53 CPM:
