GHB90

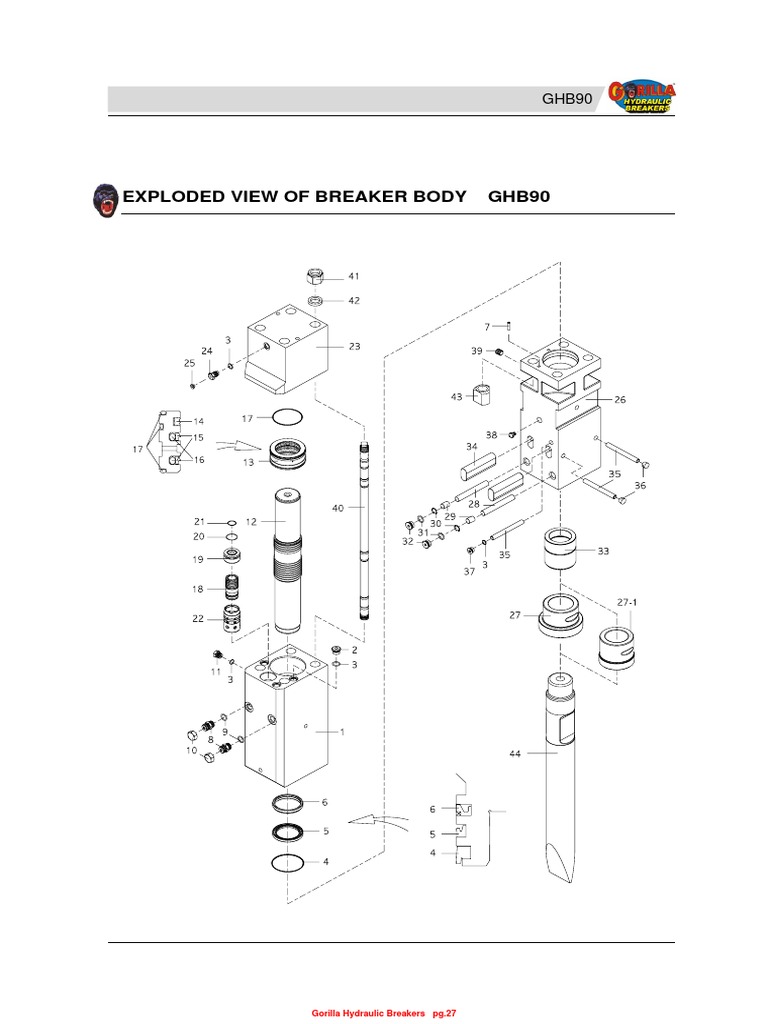

EXPLODED VIEW OF BREAKER BODY GHB90

Gorilla Hydraulic Breakers pg.27

 GHB90

PARTS LIST ~ GHB90

NO. PART NO. PART NAME Q’TY REMARKS
04T11000 CYLINDER ASS’Y NO. 1~11
1 04T11010 CYLINDER 1
2 BS11014 SOCKET PLUG 3 M20×P2.0
3 OP13007 O-RING 6 1BP-18
4 SD12019 DUST SEAL 1
5 SU12049 U-PACKING 1
6 SB12034 BUFFER SEAL 1
7 22E11070 DOWEL PIN 1
8 EM14041 MALE ADAPTER 2 PF 3/4̋×PF 3/4̋
9 OP13010 O-RING 2 1BP-24
10 EU14049 UNION CAP 2 PF 3/4̋
11 EV14039 AIR CHECK VALVE 1 PF 1/2̋
12 04T12010 PISTON 1
04T13000 SEAL RETAINER ASS’Y NO. 13~17
13 04T13010 SEAL RETAINER 1
14 SG12005 GAS SEAL 1
15 SS12064 STEP SEAL 2
16 OA13056 O-RING 2
17 OG13045 O-RING 4 1BG-115
04T15000 VALVE ASS’Y NO. 18~22
18 04T15020 VALVE 1
19 04T15030 VALVE PLUG 1
20 OG13034 O-RING 1 1BG-45
21 OG13031 O-RING 1 1BG-30
22 04T15040 VALVE SLEEVE 1
04T16000 BACK HEAD ASS’Y NO. 23~25
23 04T16010 BACK HEAD 1
24 EV14036 BACK HEAD CHARGING VALVE 1 PF 1/2̋
25 EV14037 CHARGING VALVE PLUG 1 M10×P1.0
04T17000 FRONT HEAD ASS’Y NO. 26~39
26 04T17010 FRONT HEAD 1
27 04T17020 LOWER BUSH 1
27-1 04T17130 LOWER BUSH(BOX) 1
28 04T17030 LOWER BUSH PIN 2

Gorilla Hydraulic Breakers pg.28

 GHB90

NO. PART NO. PART NAME Q’TY REMARKS

29 ER14007 RUBBER PLUG(L) 2 ∅ 23×14L
30 EN14033 SNAP RING 2 H-20
31 OP13008 O-RING 2 1BP-20
32 BS11020 SOCKET PLUG 2 M22×P1.5
33 04T17060 UPPER BUSH 1
34 04T17070 TOOL RETAINER 2
35 04T17080 STOP PIN 3
36 ER14001 RUBBER PLUG(S) 3 ∅ 18×14L
37 BS11022 SOCKET PLUG 1 M20×P2.0
38 EG14031 GREASE NIPPLE 1 PT 1/4̋
39 EH14032 HOLLOW PLUG 1 PT 1/4̋
04T18000 TIE ROD ASS’Y NO. 40~43
40 04T18010 TIE ROD 4
41 04T18020 HEX NUT 4
42 04T18030 WASHER 4
43 04T18040 ROUND NUT 4
44 04T19010 TOOL (WEDGE) 1 OPTION
04T19020 TOOL (MOIL POINT) 1 OPTION
04T19030 TOOL (BLUNT) 1 OPTION
04T19040 TOOL (CONE) 1 OPTION
04T19050 TOOL (PILE HAMMER) 1 OPTION
04T30000 SEAL KIT ASS’Y

Gorilla Hydraulic Breakers pg.29

 GHB90

EXPLODED VIEW OF SIDE PLATE BRACKET ~ GHB90

PARTS LIST
NO. PART NO. PART NAME Q’TY REMARKS
1 04T21010 FRAME(LH) 1
2 04T21020 FRAME(RH) 1
04T21100 SIDE BOLT ASS’Y NO. 3~5
3 BH11035 SIDE BOLT 6 M30×P2.0, 280L
4 BH11052 CAP NUT 6 M30×P2.0
5 BH11070 SPRING WASHER 6 FOR M30
6 BH11036 HEX BOLT 10 M20×P2.5, 90L
7 BH11057 HEX NUT 20 M20×P2.5
8 BH11067 SPRING WASHER 10 FOR M20
OPTION OIL HIGH PRESSURE HOSE 2 19×210×1700(5/5)
OPTION OIL HOSE PLUG 2 PF 3/4̋

Gorilla Hydraulic Breakers pg.30

 GHB90

EXPLODED VIEW OF BOX TYPE BRACKET ~ GHB90

Gorilla Hydraulic Breakers pg.31

 GHB90

PARTS LIST FOR BOX TYPE BRACKET ~ GHB90

NO. PART NO. PART NAME Q’TY REMARKS
1 04T22010 FRAME 1
2 04T22020 COVER PLATE 1
3 BH11036 HEX BOLT 12 M20×P2.5, 90L
4 BH11073 HEX BOLT 4 M20×P2.5, 60L
5 BH11057 HEX NUT 28 M20×P2.5
6 BH11067 SPRING WASHER 16 FOR M20
7 04T22100 GUIDE PLATE 1
8 BS11077 SOCKET BOLT 2 M16×P2.0, 25L
9 04T22410 MC COVER (A) 1
10 04T22420 MC COVER (B) 1
11 BS11002 SOCKET BOLT 8 M14×P1.5, 35L
12 BL11076 LOCKING WASHER 8 FOR M14
13 04T22210 BOTTOM DAMPER 1
14 04T22220 UPPER DAMPER 1
15 04T22230 LOWER PLATE 1 1
16 04T22280 LOWER PLATE 3 1
17 04T22240 LOWER PLATE 2 2
18 04T22250 UPPER PLATE 1 2
19 04T22260 UPPER PLATE 2 1
20 04T22270 CUSHION DAMPER 2 ∅ 80×30L
21 EC14022 COVER DAMPER 2 210×60×16.5T
22 ER14014 RUBBER CAP (3) 6 ∅ 46×32L
23 ER14063 RUBBER CAP (T3) 2 85×56×14.5L
24 ER14025 RUBBER CAP (G1) 1 ∅ 39×7L
25 EH14028 HOSE GUIDE 2 3/4̋
OPTION OIL HIGH PRESSURE HOSE 2 19×210×1700(5/5)
OPTION OIL HOSE PLUG 2 PF 3/4̋

Gorilla Hydraulic Breakers pg.32

 GHB90

EXPLODED VIEW OF SIDE TYPE BRACKET ~ GHB90

PARTS LIST
NO. PART NO. PART NAME Q’TY REMARKS
1 04T23030 FRAME 1
2 04T23040 SET PLATE 2
3 04T23050 GUIDE PLATE 2
04T23100 SIDE BOLT ASS’Y NO. 4~6
4 BH11035 SIDE BOLT 6 M30×P2.0, 280L
5 BH11052 CAP NUT 6 M30×P2.0
6 BH11070 SPRING WASHER 6 FOR M30
04T23200 BRACKET PIN ASS’Y NO. 7~11
7 04T23210 PIN 2 OPTION
8 04T23230 DISTANCE BUSH 2 OPTION
9 04T23220 STOP RING 2 OPTION
10 BH11034 HEX BOLT(M12×P1.75, 90L) 2 OPTION
11 BH11056 HEX NUT(M12×P1.75) 4 OPTION
OPTION OIL HIGH PRESSURE HOSE 2 19×210×1700(5/5)
OPTION OIL HOSE PLUG 2 PF 3/4̋

Gorilla Hydraulic Breakers pg.33

 GHB90

EXPLODED VIEW OF UNI RAM BRACKET ~ GHB90

PARTS LIST
NO. PART NO. PART NAME Q’TY REMARKS
1 04T25010 FRAME(LH) 1
2 04T25020 FRAME(RH) 1
SIDE BOLT ASS’Y NO. 3~5
3 BH11035 SIDE BOLT 6 M30×P2.0, 280L
4 BH11052 CAP NUT 6 M30×P2.0
5 BH11070 SPRING WASHER 6 FOR M30
OIL HIGH PRESSURE HOSE 2 19×210×1700(5/5)
OIL HOSE PLUG 2 PF 3/4̋

Gorilla Hydraulic Breakers pg.34
