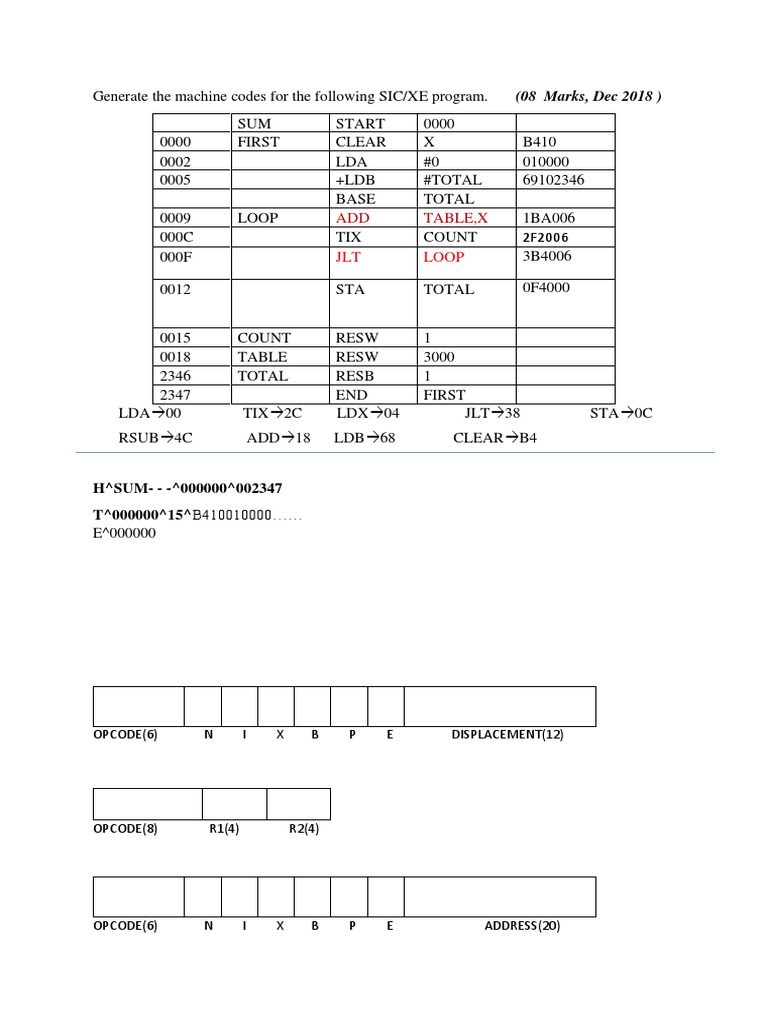

Generate the machine codes for the following SIC/XE program.

(08 Marks, Dec 2018 )

SUM START 0000
0000 FIRST CLEAR X B410
0002 LDA #0 010000
0005 +LDB #TOTAL 69102346
BASE TOTAL
0009 LOOP ADD TABLE,X 1BA006
000C TIX COUNT 2F2006
000F JLT LOOP 3B4006

0012 STA TOTAL 0F4000

0015 COUNT RESW 1

0018 TABLE RESW 3000
2346 TOTAL RESB 1
2347 END FIRST
LDA→00 TIX→2C LDX→04 JLT→38 STA→0C
RSUB→4C ADD→18 LDB→68 CLEAR→B4

H^SUM- - -^000000^002347
T^000000^15^B410010000……
E^000000

OPCODE(6) N I X B P E DISPLACEMENT(12)

OPCODE(8) R1(4) R2(4)

OPCODE(6) N I X B P E ADDRESS(20)
 Clear X
1011 0100 0001 0000

B410

LDA #0

000000 0 1 0 0 0 0 0000 0000 0000

OPCODE(6) N I X B P E DISPLACEMENT(12)

010000

+LDB #TOTAL

0110 10 0 1 0 0 0 1 0000 0010 0011 0100 0110

OPCODE(6) N I X B P E ADDRESS(20)

LDB=68 0110 10
TOTAL 02346
OBJECT CODE=69102346
ADD TABLE,X
ADD=18 TABLE=0018 PC=000C

0001 10 1 1 1 0 1 0 0000 0000 0110

OPCODE(6) N I X B P E DISPLACEMENT(12)

OBJECT CODE=1BA006
TA=PC+DISP
0018=000C+DISP
DISP=0018-000C= 006

TIX COUNT
TIX=2C , COUNT=0015, DIRECT , PC=000F

0010 11 1 1 0 0 1 0 0000 0000 0110

OPCODE(6) N I X B P E DISPLACEMENT(12)

TA=(PC)+DISP
DISP=0015-000F= 006
Object code=2F2006
JLT LOOP
 JLT= 38 TA=0009 pc=0012

0011 10 1 1 0 1 0 0 0000 0000 0110

OPCODE(6) N I X B P E DISPLACEMENT(12)

3B4006 FFFFFFFFFFE65
TA=(B)+Disp
0018-0012=disp

STA TOTAL
STA= 0C TA=2346 pc=0015 B=2346

0000 11 1 1 0 1 0 0 0000 0000 0000

OPCODE(6) N I X B P E DISPLACEMENT(12)

0F4000
TA=B +DISP
2346-2346=DISP=000
