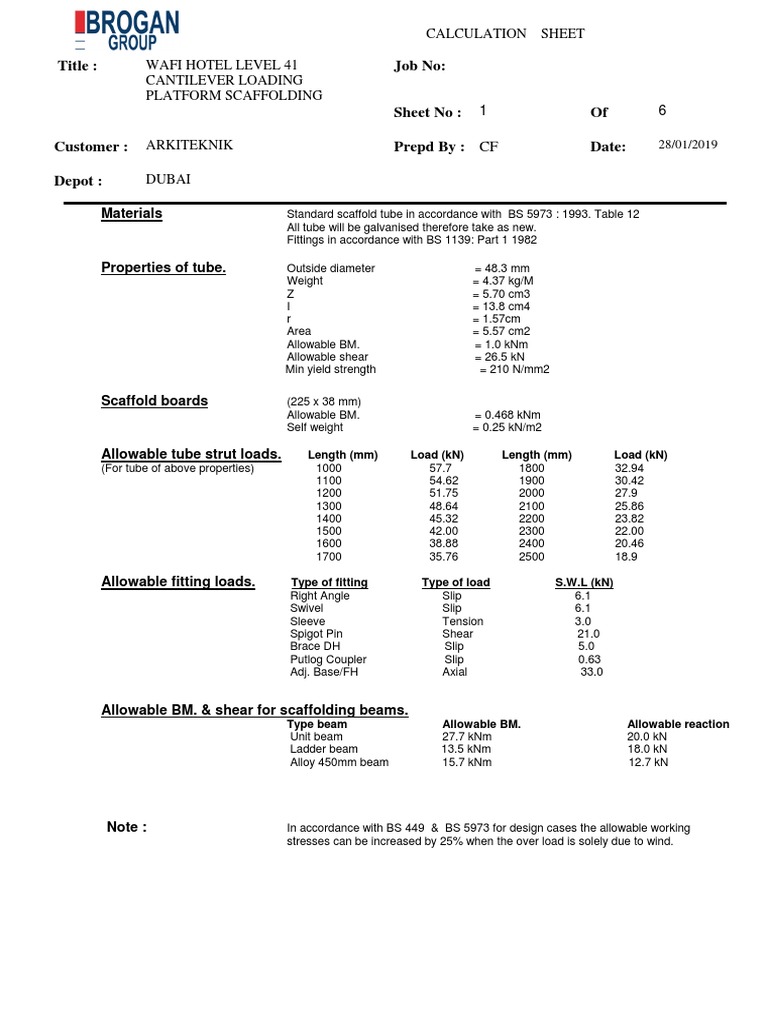

CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 1 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI

Materials Standard scaffold tube in accordance with BS 5973 : 1993. Table 12

All tube will be galvanised therefore take as new.
Fittings in accordance with BS 1139: Part 1 1982

Properties of tube. Outside diameter = 48.3 mm

Weight = 4.37 kg/M
Z = 5.70 cm3
I = 13.8 cm4
r = 1.57cm
Area = 5.57 cm2
Allowable BM. = 1.0 kNm
Allowable shear = 26.5 kN
Min yield strength = 210 N/mm2

Scaffold boards (225 x 38 mm)

Allowable BM. = 0.468 kNm
Self weight = 0.25 kN/m2

Allowable tube strut loads. Length (mm) Load (kN) Length (mm) Load (kN)
(For tube of above properties) 1000 57.7 1800 32.94
1100 54.62 1900 30.42
1200 51.75 2000 27.9
1300 48.64 2100 25.86
1400 45.32 2200 23.82
1500 42.00 2300 22.00
1600 38.88 2400 20.46
1700 35.76 2500 18.9

Allowable fitting loads. Type of fitting Type of load S.W.L (kN)

Right Angle Slip 6.1
Swivel Slip 6.1
Sleeve Tension 3.0
Spigot Pin Shear 21.0
Brace DH Slip 5.0
Putlog Coupler Slip 0.63
Adj. Base/FH Axial 33.0

Allowable BM. & shear for scaffolding beams.

Type beam Allowable BM. Allowable reaction
Unit beam 27.7 kNm 20.0 kN
Ladder beam 13.5 kNm 18.0 kN
Alloy 450mm beam 15.7 kNm 12.7 kN

Note : In accordance with BS 449 & BS 5973 for design cases the allowable working
stresses can be increased by 25% when the over load is solely due to wind.
 CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 2 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI
 CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 3 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI
 CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 4 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI

These calculations are to be read in conjunction with Brogan Group Drawing

BG-DWG-2019-022, erected with cuplok, unit beam , tube & fittings.

DESIGN CRITERIA ( LOADING PLATFORM )

Live load = 800kg = 7.8kN consider 8.0kN

Board Weight = 0.25kN/m²
Tube & Fitting Weight = 0.10kN/m²
Unit beam spacing = 0.90m c/c
Factor of Safety = 100%
Transom Spacing = 0.40 c/c
Total load weight = 8.0kN x 2 = 16kN/ 4-wheel trolley = 4.0kN

Checking Point Load on Boards…

= 4.0kN/m x 0.40m = 0.40kNm < 0.468 kNm - OK

4
Allowable BM on Board = 0.468kNm

Checking Point Load on Tube Transom…

= 4.0kN x 0.90m = 0.90kNm < 1.0 kNm - OK

4
Allowable BM on Tube = 1.0kNm

Checking Unit beam

Total load weight on unit beam = (0.25kN/m² + 0.20kN/m²) x 0.90m x 1.50% = 0.60kN/m²
Point load = 4.0kN @ 6.72m
= 4.0kN @ 5.72m

Max BM = 23.9kN.m < 27.7kN.m – OK

Allowable UNIT BEAM BM = 27.7kNm

Max Reaction = 16.5kN < 20.0 kN – OK

Allowable UNIT BEAM REACTION = 20.0 kN

 CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 5 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI
 CALCULATION SHEET

Title : WAFI HOTEL LEVEL 41 Job No:

CANTILEVER LOADING
PLATFORM SCAFFOLDING
Sheet No : 6 Of 6

Customer : ARKITEKNIK Prepd By : CF Date: 28/01/2019

Depot : DUBAI
