Reference:

OPS 0158

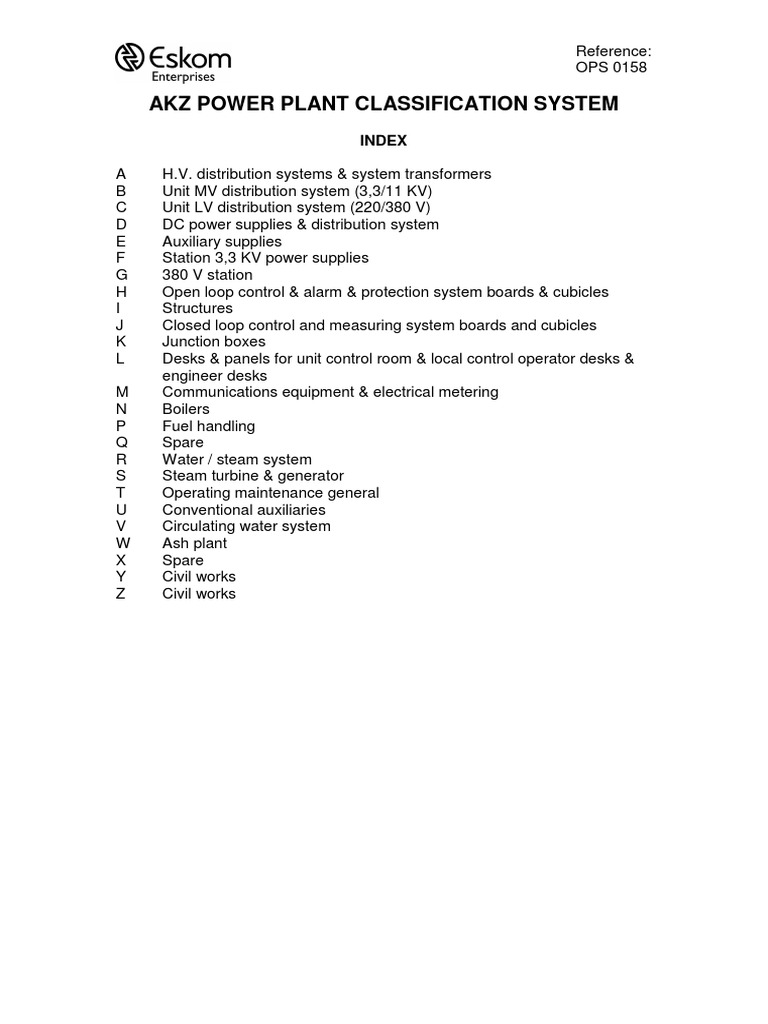

AKZ POWER PLANT CLASSIFICATION SYSTEM

INDEX

A H.V. distribution systems & system transformers

B Unit MV distribution system (3,3/11 KV)
C Unit LV distribution system (220/380 V)
D DC power supplies & distribution system
E Auxiliary supplies
F Station 3,3 KV power supplies
G 380 V station
H Open loop control & alarm & protection system boards & cubicles
I Structures
J Closed loop control and measuring system boards and cubicles
K Junction boxes
L Desks & panels for unit control room & local control operator desks &
engineer desks
M Communications equipment & electrical metering
N Boilers
P Fuel handling
Q Spare
R Water / steam system
S Steam turbine & generator
T Operating maintenance general
U Conventional auxiliaries
V Circulating water system
W Ash plant
X Spare
Y Civil works
Z Civil works
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

UNIT

01 Unit 1
02 Unit 2
03 Unit 3
04 Unit 4
05 Unit 5
06 Unit 6

STATION

10 West
15 North East
20 East
25 North West
30 South
35 South East
40 North
45 South West
50 Station: For items which are only partly divisible under 10 - 40
51 Water treatment plant ancillary equipment
60 LV & MV distribution system for coal plant
61 Ash plant equipment
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

A H.V. DISTRIBUTION SYSTEM & SYSTEM TRANSFORMER

AA 275/800 KV Busbar
AB Line & earth links
AC Current voltage transformers
AD Bus section breaker
AE Feeder breaker
AF Gen 275/400 breaker
AG Busbar links
AH Current transformers
AJ 275/800 KV line traps
AK Lighting / surge arresters
AL Busbar earth links
AM Metering
AN Generator reverse power
AP Generator breaker
AQ Line links
AR Generator Busbar earthing resistor
AS Bus coupler breaker
AT Generator transformer and H.V. breaker
AU Air breaker compressors
AV Feeders
AW Earthing resistors
AX Spare
AY Unit isolators & earthing switch
AZ General H.V. yard

B UNIT MV DISTRIBUTION SYSTEM (3,3 / 11 KV)

BA 11 KV Unit board A
BB 11 KV Unit board B
BC Station & Unit service transformers
BD 3,3 KV Service board A
BE 3,3 KV Service board B
BF Spare
BG 3,3 KV Service board C
BH 3,3 KV Service board D
BJ 3,3 KV Unit diesel generator board
BK Spare
BL Unit diesel generator & related equipment
BM Station diesel generator & related equipment
BN Spare
BP Spare
BQ Coal stockyard sub-station
BR Earthing resistors
BS Spare
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

BT Unit transformers
BU Spare
BV Spare
BW Spare
BX Spare
BY Spare
BZ Spare

C UNIT LV DISTRIBUTION SYSTEM (220/380 V)

CA 380 V Unit board A

CB 380 V Unit board B
CC 380 V Welding plugs/ socket outlets
CD Spare
CE 380 V Unit lighting board
CF 380 V Unit lighting board (essential-supply)
CG 380 V Unit diesel generator board
CH 380 V Ash bunker board C (Tutuka)
380 V Miscellaneous distribution board (Lethabo)
CJ 380 V CW Unit board A
CK 380 V CW Unit board B
CL 380 V Precipitator board A
CM 380 V Precipitator board B
CN 380 V Fuel oil plant board A
CP 380 V Fuel oil plant board B
CQ 380 V Ash bunker board A 1,3,5 Unit
CR 380 V Ash bunker board A 2,4,6 Unit
CS 380 V Unit standby board
CT 380 V Dust handling board (1A-6A) (Lethabo)
CU 380 V Dust handling board (1B-6B) (Lethabo)
CV 380 V Unit coarse Ash board A (Tutuka)
CW 380 V Unit coarse Ash board B (Tutuka)
CX Miscellaneous 380 V unit lighting sub-boards
CY 380 V Unit diesel generator control panel/boards (3,3 KV beaker
Tutuka)
CZ Uninterruptable power supply (Lethabo)

D DC POWER SUPPLIES & DISTRIBUTION SYSTEM

DA 220 V DC station board 1

DB 220 V DC station board 2
DC 220 V Station & unit uninterruptable fuse boxes
DD Spare
DE 220 V DC station battery/charger 1/batteries (Lethabo)
DF 220 V DC station battery/charger 2/batteries (Lethabo)
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

DG 220 V DC sub station battery/charger/battery tripping units
DH Miscellaneous DC distribution board & station control DC
supplies
DJ 220 V DC unit board A
DK 220 V DC unit board B
DL 220 V DC unit board C
DM 24/48 V DC unit board A
DN 24/48 V DC unit board B
DP 220 V Unit battery/charger
DQ 24 V Unit battery/charger A1+
DR 24 V Unit battery/charger A2-
DS 24 V Unit battery/charger B1+
DT 24 V Unit battery/charger B2-

E AUXILIARY SUPPLIES

EA Miscellaneous 11 KV boards
EB Miscellaneous 11 KV boards
EC Miscellaneous 11 KV boards
ED Miscellaneous 11 KV boards
EE Miscellaneous 11 KV boards
EF Miscellaneous 11 KV boards
EG Miscellaneous 11 KV boards
EH Miscellaneous 11 KV boards
EJ Miscellaneous 11 KV boards
EK 88 KV – 132 KV Breaker
EL 88 KV – 132 KV Line isolator (including 11 KV Tutuka)
EM Spare
EN Spare
EP Distribution boxes (hoppers/heaters/precipitators)
ER Station earthing resistor
ES Mini-subs
ET Station transformers, Neutral earthing compensator, earthing
EU 24-48 V Power supply unit and battery outside plant control
station sub-station supply
EV 11 KV Station dam pump house
EW Spare
EX Spare
EY H.T. sets (precipitators, station & unit diesel generator sets) etc
EZ Inverter/uninterruptable power supply general (unit)

F STATION 3,3 KV POWER SUPPLIES

FA Miscellaneous 3,3 KV boards

FB Miscellaneous 3,3 KV boards
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

FC Miscellaneous 3,3 KV boards
FD Miscellaneous 3,3 KV boards
FE Miscellaneous 3,3 KV boards
FF Miscellaneous 3,3 KV boards
FG Miscellaneous 3,3 KV boards
FH Miscellaneous 3,3 KV boards
FJ Miscellaneous 3,3 KV boards
FK Miscellaneous 3,3 KV boards
FM Spare
FN Spare
FP Spare
FQ Spare
FR Spare
FS Spare
FT Spare
FU Spare
FV Spare
FW Spare
FX Spare
FY Spare
FZ Spare

G 380 V STATION

GA Miscellaneous 380 V boards

GB Miscellaneous 380 V boards
GC Miscellaneous 380 V boards
GD Miscellaneous 380 V boards
GE Miscellaneous 380 V boards
GF Miscellaneous 380 V boards
GG Miscellaneous 380 V boards
GH Miscellaneous 380 V boards
GJ Miscellaneous 380 V boards
GK Miscellaneous 380 V boards
GL Miscellaneous 380 V boards
GM Miscellaneous 380 V boards
GN Miscellaneous 380 V boards
GP Miscellaneous 380 V boards
GQ Miscellaneous 380 V boards
GR Miscellaneous 380 V boards
GS Miscellaneous 380 V boards
GT 380/380 dyn. 11 Transformers
GU Miscellaneous 380 V boards
GV Miscellaneous 380 V boards
GW Spare
GX 380 V Miscellaneous station lighting sub-boards
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

GY Miscellaneous 380 V boards
GZ Miscellaneous 380 V boards

H OPEN LOOP CONTROL, ALARM & PROTECTION SYSTEM

BOARDS & SUBICLES

HA Interlock logic
HB Sequence control
HC Contact conversion
HD Drive control
HE Alarm system, stops computer
HF Local alarm panels
HG Generator relay panels/ HV relay panel
HH Hydrastep
HI Automatic voltage regulator & generator excitation
HJ Master clock and other clocks
HK Generator breaker
HL Interface (computer & burner)
HM Metering & measurement
HN Unit station bus-zone protection/ service transformer differential
panels
HP Turbine & boiler feed pump turbine & feed pump protection
HQ Coal plant PLC cubicles
HR Fire protection alarm cubicle
HS Sootblower control
HT Fuel oil heating control panels
HU Computer, binary inputs & analogue inputs & station alarm
input/output printers
HV Boiler flame monitor/Peabody oil burner common cubicle
HW Water plant
HX Boiler H.P. auxiliary (bypass safety)
HY Ash plant (including precipitator programmable logic control
cubicles)
HZ Boiler fuel auxiliary, local burner control

I STRUCTURES

IA Water plant structures

IB Fire station/ medical centre
IC Chimneys (Lethabo)
ID Fuel plant structures
IE Turbine house structures
IF Boiler house structures
IG Auxiliary structures
IH H.V. yard structures
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

II Workshop structures
IJ Lighting masts
IK L.P. services structures
IL Security structures
IM Stores
IN Outside plant control room structure (Lethabo)
IO Laboratory structures
IP Recreation centres
IQ Churches
IR Training centre
IS Administrative structure
IT Schools
IU Consulting room
IV Canteens
IW Accommodation white
IX Accommodation coloured
IY Accommodation black
IZ Change rooms & toilets (if separate)

J CLOSED LOOP CONTROL AND MEASURING SYSTEM BOARDS &

CUBICLES

JA Auxiliary analog control

JB Boiler control
JC Summator (analog)
JD 220 V AC power distribution
JE Auxiliary analog control contactor cubicles
JF Boiler analog control contactor cubicles
JG Generator
JH HP bypass control cubicle
JJ Programmable logic control (Interlocking)
JK Spare
JL Limit valve monitor
JM Measurements/ Data acquisition and peripherals
JN Spare
JP Turbine and boiler feed pump turbine protection
JQ Spare
JR Spare
JS Spare
JT Electro hydraulic governer & turbine supervisory equipment
JU Turbine and boiler feed pump local cubicles
JV Spare
JW Water plant
JX Spare
JY Computer standard peripherals
JZ Spare
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

K JUNCTION BOXES

KA Boiler auxiliaries
KB Boiler plant
KC Feed heating/ condensate/ feedwater

KD Welding plugs/ socket outlets (Tutuka)

KE Electrical – unit supply
KF Fire detection and alarm system (Lethabo)
KG Generator and transformer
KH H.V. yard
KI Ash stacker
KJ Outside plant control system
KK Coal handling plant
KL Lighting
KM Communications
KN Water treatment plant (Local control stations)
KO Cranes
KP Water treatment plant (Local solenoid operated valve panels)
KQ Water treatment (Local control and instrumentation metering
panels)
KR Dust handling plant (Lethabo) LP services junction boxes
(Tutuka)
KS Sootblowers
KT Main turbine
KU Boiler feed pump turbine
KV Cooling water plant
KW Water plant
KX Station electrical
KY Ash plant/ dust handling plant
KZ Water supply

L DESKS & PANELS FOR UNIT CONTROL ROOM & LOCAL

CONTROL OPERATOR DESKS & ENGINEER DESKS

LA Desk
LB Panel excluding grids
LC Panel grid 1
LD Panel grid 2
LE Panel grid 3
LF Local control station (control panels for fire pumps)
LG Disc storage unit & disc drive all types (Lethabo)
LH Electric mimic panel (live & dead)
LJ Electric operator desk
LK Station recorder panels
LL Manual syncronization & voltage selector panels
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

LM Printers
LN Station plant control panel
LP Station plant mimic
LQ Key cabinets (station/ units/ outside plants)
LR Outside plant control system (control desk Lethabo) storage
cabinets (Tutuka) temperature & humidity record (Lethabo)
LS Outside plant control system (Auxiliary plant panels)
LT Local control stations coal outside plant control station
LU Local control station ash plant (Lethabo) unit computer
uninterruptable power supply & coarse ash junction boxes &
local control station (Tutuka)
LV Outside plant control station control desk fuel oil (Tutuka) local
control station low pressure services/ cooling plant (Lethabo)
LW Local control station fuel oil plant unit & stations (Lethabo)
LX Local control station dust handling plant (Lethabo)
LY Local control station/ mimic panels/ control desks (ash stacker)
LZ Unit control room audible alarm

M COMMUNICATIONS EQUIPMENT & ELECTRICAL METERING

MA MV/HV alarm system

MB Communication equipment cabinet (Lethabo)
MC Access control system (Door monitor turnstiles etc.)
MD Spare
ME Electrical metering (Communications)
MG Spare
MH Telephone hooters/ boxes (Tutuka)
MJ Spare
MK Spare
ML Intermediate distribution frame supply
MM Scald equipment cabinet (Lethabo) radio transformer cubicle
(Ash stacking sub-station/ sub-station east-Tutuka)
MN Scald intermediate distribution frame
MP Power supplies
MQ Wire communications, telemetry cabinets
MR Radio communications
MS MV/HV supervisory
MT Telephone distribution frame
MU Station uninterruptable power supply
MV 220 V Distribution boards (Tutuka) 220 V AC metering
distribution board (Lethabo)
MW Station distribution frame
MX Main distribution frame
MY Unit distribution frame
MZ Intermediate distribution frame (Tutuka)
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

N BOILERS

NA High pressure system

NB Circulating system / auxiliary start-up lines
NC Drains and vents
ND Spare
NE Reheat
NF Second reheat
NG Air supply
NH Flue gas, air heaters
NJ Separately-heated air heater
NK Lighting-up equipment
NL Oil firing equipment
NM Coal firing equipment (mill air vapour, dust extraction – Tutuka)
NN Gas firing equipment
NP Coarse ash return (under burners)
NQ Flue gas cleaning
NR Flue gas extraction
NS Secondary air system
NT Fly ash return (electrostatic precipitators)
NU Ash and slag removal & transport
NV Heating surface cleaning
NW Spray water
NX Cost collection (Lethabo)
NY Spare
NZ Auxiliary boiler (donkey boiler)

P FUEL HANDLING

PA Coal unloading & storage

PB Coal preparation & transport
PC Coal conveyor belts (terrace coal conveyor plant Tutuka)
PD Fuel oil storage
PE Fuel oil supply / metering
PF Trace heating panel-fuel plant up to unit (Tutuka) boiler including
(Lethabo)
PG Gas (Lethabo gas/trace heating panel on units – Tutuka)
PH Coal hoppers
PI Coal transfer house
PJ Dust extraction & filtering
PK Gates (on coal chutes)
PL Winches & hoists
PM Coal and oil metering/sampling
PN Coal crushers
PP Coal plant magnet separation equipment
PQ Coal stockyard sub-station
PR Reversible belt conveyor
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

PS Coal silos
PT Coal belt tripper
PU Spare
PV Coal feeder
PW Wash/spray/sluice water
PX Coal chain conveyor
PY Coal bucket conveyor
PZ Coal stacker reclaimer

R WATER/ STEAM SYSTEM

RA Initial steam line, HP bypass

RB Hot reheat line, LP bypass
RC Cold reheat line
RD Spare for second reheat
RE Spare for second reheat
RF HP extractions
RG Spare
RH LP extractions
RJ Spare
RK Drain from start-up flush tank
RL Feedwater transfer (HP)
RM Main condensate (Tutuka)
RN Auxiliary condensate transfer/drain (LP feedwater)
RP Auxiliary condensate transfer/drain (HP feedwater)
RQ Auxiliary steam equipment
RR Spare
RS Spare
RT Piping drains (not including in other groups)
RU Drain and return systems
RV Spare
RW Bled steam turbine condensate transfer
RX Spare
RY Spare
RZ Metering

S STEAM TURBINE & GENERATOR

SA Turbine casing
SB Turbine bearing
SC Oil system
SD Condensate system
SE Governing and protection equipment
SF Bypass
SG Glad steam system
SH Drain system
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

SJ Control fluid system
SK Compressed air system
SL Push button on turbine/generator end (Tutuka)
SM Gearing
SN Turbine
SO Shared equipment for turbine and generator
SP Generator (stator, rotor/cooling system)
SQ generator bearings
SR Exciter (including cooling system)
SS Water supply (direct water cooling including secondary cooling
circuit)
ST Hydrogen supply
SU Sealing oil system
SV Condenser cleaning equipment (Lethabo)
SW CO2 system (Lethabo)
SX Spare
SY Spare

T OPERATING MAINTENANCE GENERATOR

TA Outage
TB Training
TC General
TD Unit start up

U CONVERNTIONAL AUXILIARIES

UA Filtration plant
UB Boiler feedwater make-up demineralisation plant
UC condensate polishing/generation plant
UD Resin transfer system
UE Chemical storage and dilution equipment
UF Condensate chemical conditioning & unit sampling system
UG Demineralisation reticulation
UH Effluent recover and re-use, sludge disposal
UJ Cranes & hoists
UK Potable reticulation
UL Turbine lubrication oil storage & regeneration
UM Diesel fuel supply for standby equipment
UN Effluent concentration plant
UP Evaporator plant
UQ Sewerage plant general
UR General service water system
US Control and service air system/air conditioning & ventilation
UT Lifts
UU Extinguishing system (not water)
UV Vacuum cleaning system
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

UW Used oil collection and storage
UX Fire detection and alarm system
UY Fire water system
UZ Sampling system

V COOLING WATER SYSTEM

VA Raw water supply

VB Process & potable water treatment & cooling water clarification
plant
VC Station cooling water system, excl. concentrated circulation
water
VD Unit auxiliary cooling water system, boiler/turbine (inhibited
demineralised water)
VF Secondary cooling water system (Turbine)
VG Spare
VH Flue gas supply to water treatment plant for cooling water
recarbonation)
VJ Unit sampling cooling
VK Spare
VL Hoists/cranes in cooling water pump house
VM Metering
VN Spare
VP Spare
VQ Spare
VR Dirty water dam
VS Spare
VT Cooling towers
VU Spare
VV Spare
VW Spare
VX Spare
VY Spare
VZ Cooling water plant general

W ASH PLANT

WA Conveyor-in-pit ash dump, ash unloading & storage (Lethabo)

WB Ash preparation & transport
WC conveyor belt – mixed ash
WD Drag ling scraper – coarse ash
WE Conveyor belts – coarse ahs
WF Conveyor belts – fly ash
WG Pneumatic ash transport
WH Ash hopper
WI Ash transfer house
WJ Dust extraction & filtering
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

WK Gates on ash chutes
WL Winches & hoists
WM Ash metering
WN Ash crushers (clinker)
WO Ash scraper link conveyor
WP Fly ash air slide
WQ Fly ash aeration devices
WR Compressed air
WS Ash silos/bunkers
WT Ash belt tripper
WU Ash conditioner
WV Ash feeder
WW Wash/spray/sluice water/ash water supply
WX Fly ash mechanical conveyor
WY Fly ash bucket conveyor
WZ Ash stacker

Y CIVIL WORKS

YA Transformer yards
YB Switchgear buildings
YC Radio repeater structures
YD Dust suppression structures
YE Ash plant structures & civil works
YF Coal plant structures & civil works
YG Pump stations
YH Spare
YJ H2 plant structures
YK Spare
YL Spare
YM Diesel generator structure
YN LP distribution pump house, LP gas
YP Spare
YQ Sewage plant structures
YR Spare
YS Fire & foam station, fire control pump house
YT Auxiliary boiler
YU Spare
YV Spare
YW Spare
YX Spare
YY Cable tunnels
YZ Dog kennels

Z CIVIL WORKS

ZA Production equipment (general)

 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

ZB Recreation buildings & facilities
ZC Main air conditioning plant
ZD Dams & reservoirs
ZE Beacons, boreholes & inspection shafts
ZF Mobile equipment
ZG Service stations, post office, shops etc
ZH Township electrical system
ZI office furniture and equipment
ZM First aid service
ZO Gardens and sport fields
ZR Roads, drains and airstrips
ZS Domestic furniture and equipment
ZT Township water supply
ZV Interdenominational church halls
ZX Stores
ZY Fencing
ZZ Earth mats / earth boxes

GROUP DESIGNATION ORDINAL SECTION C4

(NB: FOR JUCNTION BOXES SEE SECTION UNDER JUNCTION BOXES)

A Analytical measurement (chemical analysis, PH valve,

conductivity)
B Breakers, switchgear, contactors, fused switches, tap changers
C Control, closed loop and regulating, sub-distribution and
penetration (kiosks, junction boxes etc)
D Drives, prime mover and driven machinery (pumps, fans,
compressors, diesel engines, motor generator sets, agitators,
not actuators)
E Measurement of electrical quantities
F Flow and quantity rate measurement
G Pressure elements (tanks, pipe work, filters, inline mixer)
H Pipe hangers
I Ladders, scaffolding
J Indicators & gauges (on control panels, desks, mimics)
transformer tap indicator)
K Protection device & earthing switch & isolators, bushings, VT’s
and CT’s, earthing resistors
L Level measurement
M Special measurement (TV monitors, flame monitors, humidity
measurement, etc)
N Telephones/call lamps/booths/hooters (Tutuka) safety showers
& eye baths (Lethabo)
P Pressure measurement, including differential pressure
Q Portable electrical appliances hoists/lifts and test equipment
(Tutuka)
R Radiation
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

S Valves, positioning devices with actuator, also manually
operated, complete with position measurement
T Temperature measurement & AC/DC power supplies
U Signal processing from interlock or automatic systems
V Fire fighting & first aid equipment trace heating element box
(Tutuka)
W Electrical power devices (i.e. heaters, 3 points) non rotating
power distribution, humidifier
X Workshop machines and lifting equipment winches/ hoists/
crawls (Lethabo)
Y Speed and rotation measurement
Z Expansion eccentricity, thrusts and vibration measurement

JUNCTION BOXES FOLLOW A DIFFERENT CODING FOR ODRINDAL

SECTION C4 AS FOLLOWS

A Analog-control associated
B Binary-drive associated
C Binary-contacts
F Termination
H 220V DC
L Low voltage 60V
M Analog measurement
P Power distribution
S Supervisory
T Cold junction boxes

ALPHA/NUMERIC CODES FOR STATION HV & LV EQUIPMENT

Alpha/Numeric Title
00EA 11 kV Black quarters board A (Lethabo)
10EA 11 kV Effluent plant board A (Tutuka)
20EA 11 kV Sub-station east board A
30EA 11 kV Sub-station south board A
40EA 11 kV Sub-station north board A
50EA 11 kV Station board a
60EA 11 kV Coal & ash plant board A

00EB 11 kV Black quarters board B (Lethabo)

10EB 11 kV Effluent plant board B (Tutuka)
20EB 11 kV Sub-station east board B
30EB 11 kV Sub-station south board B
40EB 11 kV Sub-station north board B
50EB 11 kV Station board 2
60EB 11 kV Coal & ash plant board B
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

00EC )
10EC 3,3 kV Effluent plant board A (Tutuka)
20EC 11 kV Ash stacking board A (Tutuka)
30EC )
40EC )
50EC 11 kV Single quarters board A
60EC 11 kV Ash conveyor boards 1

00ED )
10ED 3,3 kV Effluent plant board B (Tutuka)
20ED 11 kV Ash stacking board B (Tutuka)
30ED )
40ED )
50ED 11 kV Single quarters board B
60ED 11 kV Ash conveyor board 2

00ET )
10ET )
20ET )
30ET )
40ET )
50ET )
60ET )

00FA )
10FA )
20FA )
30FA 3,3 kV Incline conveyor board A (Lethabo)
40FA 3,3 kV Station transformer socket outlets
50FA 3,3 kV Station services board A (1)
60FA 3,3 kV Coal & Ash plant board 1A (A-Tutuka)

00FB )
10FB )
20FB )
30FB 3,3 kV Incline conveyor board B
40FB 3,3 kV Generator & unit transformers socket outlets
Units 1&2
50FB 3,3 kV Station services board B (2 Tutuka)
60FB 3,3 kV Coal & Ash plant board 1B (B-Tutuka)

00FC )
10FC )
20FC 3,3 kV Overland ash conveyor board A (Tutuka)
30FC )
40FC 3,3 kV Generator & unit transformers socket outlets
Units 3 & 4
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

50FC 3,3 kV Station diesel generator board (Lethabo)
60FC 3,3 kV Coal & Ash plant board 2A (A-Tutuka)
3,3 kV Ash conveyor board 1A (Lethabo)

00FD )
10FD )
20FD 3,3 kV Overland ash conveyor board B (Tutuka)
30FD )
40FD 3,3 kV Generator & unit transformers socket outlets
Units 5 & 6
50FD 3,3 kV Effluent concentration plant board A (Lethabo)
60FD 3,3 kV Coal & Ash silos board 2B (Tutuka)
3,3 kV Ash conveyor board 1B (Lethabo)

00FE )
10FE )
20FE )
30FE )
40FE )
50FE 3,3 kV Effluent concentration plant board B (Lethabo)
60FE 3,3 kV Ash conveyor board 2A (Lethabo)

00FF )
10FF )
20FF )
30FF )
40FF )
50FF 3,3 kV Station generator board (Lethabo)
60FF 3,3 kV Ash conveyor board 2B (Lethabo)

00FG )
10FG )
20FG )
30FG )
40FG )
50FG )
60FG 3,3 kV Ash conveyor board 3A (Lethabo)

00FH )
10FH )
20FH )
30FH )
40FH )
50FH )
60FH 3,3 kV Ash conveyor board 3B (Lethabo)
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

00FJ )
10FJ )
20FJ )
30FJ )
40FJ )
50FJ 11 kV Coal stockyard substation board (CS-SS-6)
(Lethabo)
60FJ 3,3 kV Ash conveyor board 4A (Lethabo) board 4
3,3 kV Ash conveyor board 4B (Tutuka)

00GA )
10GA )
20GA 380V Sub-station & cooling water pump house east
board A
30GA 380V Sub-station south board A
40GA 380V Admin block board A
50GA 380V Fire control pump house board A (1 Tutuka)
51GA 380V Raw water pump house board A (Lethabo)
60GA 380V Incline conveyor board 1A
61GA 380V Station dam pump house board

00GB )
10GB )
20GB 380V Sub-station & cooling water pump house east
board B
30GB 380V Sub-station south board B
40GB 380V Admin block board B
50GB 380V Fire control pump house board B (2 Tutuka)
51GB 380V Raw water pump house board B (Lethabo)
60GB 380V Incline conveyor board 1B
61GB 380V Station dam pump house board 4 (Lethabo)

00EE )
10EE )
20EE 3,3 kV Ash stacking board A (Tutuka)
30EE )
40EE )
50EE 11 kV Single quarters ring main unit
60EE 11 kV Ash conveyor boards 3

00EF )
10EF )
20EF 3,3 kV Ash stacking board B (Tutuka)
30EF )
40EF )
50EF 3,3 kV Station diesel Gen board (Tutuka)
60EF 11 kV Station dam pump house board (Lethabo)
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

00EG )
10EG )
20EG )
30EG )
40EG )
50EG 11 kV Effluent concentration plant board A (Lethabo)
60EG 11 kV Ash conveyor O/H lines

00EH )
10EH )
20EH )
30EH )
40EH )
50EH 11 kV Effluent concentration plant board B (Lethabo)
60EH 11 kV Coal stockyard sub-station & camps

00GC )
10GC )
20GC 380V Water plant east board A
30GC 380V Fuel oil common plant brd A Units 1-3 (Lethabo)
380V Fuel oil common plant brd 1A Units 1-3 (Tutuka)
40GC 380V Administration block computer board
50GC 380V Water plant board 1A
51GC 380V Access control board (Lethabo)
60GC 380V Incline conveyor board 2A
61GC 380V Ash stacker board 2 (Lethabo)

00GD )
10GD )
20GD 380V Water plant east board B
30GD 380V Fuel oil common plant brd B Units 4-6 (Lethabo)
380V Fuel oil common plant brd B Units 4-6 (Tutuka)
40GD 380V Electrical workshop board
50GD 380V Water plant board 1B
51GD 380V Effluent concentration plant board A (Lethabo)
60GD 380V Incline conveyor board 2B
61GD 380V Tripper carriage board 2 (Lethabo)

00GE )
10GE )
20GE 380V Sluice water board A (Tutuka)
380V Sluice dam pump house board (Lethabo)
30GE 380V Workshop board A
40GE 380V Station crane board 2
50GE 380V Water plant board 2A
51GE 380V Effluent concentration plant board B (Lethabo)
60GE 380V Incline conveyor board 3A
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

00GF )
10GF )
20GF Sluice water board B (Tutuka)
30GF 380V Workshop board B
40GF 380V Maintenance workshop board (Maintenance repair
gang)
50GF 380V Water plant board 2AB
51GF 380V Sewage treatment plant board 2 (Lethabo)
60GF 380V Incline conveyor board 3B

00GG )
10GG 380V Demineralisation distribution board (Tutuka)
20GG 380V Overland ash conveyor board A (Tutuka)
30GG 380V Platers welders workshop board (Tutuka)
40GG 400 kV Yard 380V board 1 (Tutuka)
50GG 380V Board A in 275 kV yard (Lethabo)
380V LP services board 1A (Tutuka)
60GG 380V Coal & ash silos board A (Tutuka)
380V Ash plant west board A (Lethabo)

00GH )
10GH 380V Trace heating distribution board (Tutuka)
20GH 380V Overland ash conveyor board B (Tutuka)
30GH 380V Recarbonation system board 1(Tutuka)
40GH 380V Board 2 in 400 kV yard (Tutuka)
50GH 380V Board B in 275 kV yard (Lethabo)
380V LP services board 1B (Tutuka)
60GH 380V Coal & ash silos board B (Tutuka)
380V Ash plant west board B (Lethabo)

00GJ )
10GJ 380V Effluent plant board A (Tutuka)
20GJ 380V Ash stacking board A (Tutuka)
30GJ 380V Central maintenance services board A (Lethabo)
40GJ 380V Canteen board
50GJ 380V Dist. board A (Lethabo)
380V Dist. Board (Tutuka)
60GJ 380V Fuel oil common plant board A Units 1-3 (Lethabo)
380V Fuel oil common plant board 2A Units 1-3 (Tutuka)

00GK )
10GK 380V Effluent plant board B (Tutuka)
20GK 380V Ash stacking board B (Tutuka)
30GK 380V Central maintenance services board B (Lethabo)
40GK )
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

50GK 380V Dist. board B (Lethabo)
60GK 380V Fuel oil common plant board B Units 4-6 (Lethabo)
380V Fuel oil common plant board 2B Units 4-6 (Tutuka)

00GL )
10GL )
20GL 380V Water pollution board 1 (Tutuka)
30GL )
40GL )
50GL 380V Cooling water pump house west board A
60GL 380V Coal & ash silo board 2A

00GM )
10GM )
20GM )
30GM )
40GM )
50GM 380V Cooling water pump house west board B
60GM 380V Coal & ash silo board 2B

00GN )
10GN )
20GN )
30GN )
40GN )
50GN 380V Lab test equipment board
60GN 380V Ash conveyor board 1A (Lethabo)
380V Ash dump station south board (Tutuka)

00GP )
10GP )
20GP )
30GP )
40GP )
50GP 380V Station crane board 1
60GP 380V Ash conveyor board 1B (Lethabo)
380V Ash dump station north board (Tutuka)
00GQ )
10GQ )
20GQ )
30GQ )
40GQ )
50GQ 380V Transformer oil purification plant board (Tutuka)
380V Station services board 1 (Lethabo)
60GQ 380V Ash conveyor board 2A (Lethabo)
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

00GR )
10GR )
20GR )
30GR 380V Circulating water recarbonation system board 2
(Tutuka)
40GR )
50GR 380V Station services board B (Lethabo)
380V Access control building board 1 (Tutuka)
60GR 380V Ash conveyor board 2B(Lethabo)

00GQ )
10GQ )
20GQ )
30GQ )
40GQ )
50GQ 380V Transformer oil purification plant board (Tutuka)
380V Station services board 1 (Lethabo)
60GQ 380V Ash conveyor board 2A (Lethabo)

00GS )
10GS )
20GS )
30GS )
40GS 380V DC uninterrupted power supply & batteries
(Lethabo)
50GS 380V Station essential board
60GS 380V Ash conveyor board 3A (Lethabo)

00GT )
10GT )
20GT )
30GT )
40GT )
50GT 380V Turbine Lubrication oil plant board (Lethabo)
60GT 380V Ash conveyor board 3A (Lethabo)

00GU )
10GU )
20GU )
30GU )
40GU )
50GU 380V Sewage plant board
60GU 380V Coal & ash plant east board A (Lethabo)

00GV )
10GV )
20GV )
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

30GV )
40GV )
50GV 380V Auxiliary boiler board
60GV 380V Coal & ash plant east board B (Lethabo)

00GW )
10GW )
20GW )
30GW )
40GW )
50GW 380V Hydrogen generating plant & lighting boards
60GW 380V Ash conveyor board 4A (Lethabo)

00GX 80V Shot blast board

10GX )
20GX )
30GX )
40GX )
50GX 380V Miscellaneous station lighting board
60GX 380V Ash conveyor board 4A (Lethabo)

00GY 80V Canteen board

10GY )
20GY )
30GY )
40GY )
50GY 380V Water plant essential board
60GY 380V Ash dam pump house board A (Lethabo)

00GZ )
10GZ )
20GZ )
30GZ )
40GZ )
50GZ 380V Hydrogen generating plant board (Lethabo)
380V Radio & phone building board (Tutuka)
60GZ 380V Ash dam pump house board B (Lethabo)

ALPHA/NUMERIC CODES FOR STATION HV & LV EQUIPMENT

Alpha/Numeric Title
00HF Alarm panels in outside plant control station
01HF Unit 1 alarm panels
02HF Unit 2 alarm panels
03HF Unit 3 alarm panels
04HF Unit 4 alarm panels
05HF Unit 5 alarm panels
 Reference:
OPS 0158

AKZ POWER PLANT CLASSIFICATION SYSTEM

06HF Unit 6 alarm panels
10HF Alarm panels in LP pump house west
20HF Alarm panels in sub-station east bulk oil plant east
30HF Alarm panels in sub-station south
40HF Alarm panels in sub-station north
50HF Alarm panels in station board room
60HF Alarm panels in ash conveyor system

00HJ Master & slave clocks in station control and

Outside plant control room
01HJ Slave clocks in Unit 1 control room
02HJ Slave clocks in Unit 2 control room
03HJ Slave clocks in Unit 3 control room
04HJ Slave clocks in Unit 4 control room
05HJ Slave clocks in Unit 5 control room
06HJ Slave clocks in Unit 6 control room
10HJ Slave clock in water treatment control room
20HJ )
30HJ )
40HJ Slave clocks in administration building
50HJ )
60HJ )

00HM Measurement panels in HV yard voltage selection

and station boards
01HM Measurement panels in unit 1
02HM Measurement panels in unit 2
03HM Measurement panels in unit 3
04HM Measurement panels in unit 4
05HM Measurement panels in unit 5
06HM Measurement panels in unit 6
10HM Measurement panels for station services boards
20HM Measurement panel for sub-station east
30HM Measurement panel for sub-station south
40HM Measurement panel for sub-station north
50HM )
60HM )

00KV )
10KV )
20KV )
30KV )
40KV )
50KV 380V Auxiliary boiler board
60KV )

10WX Fly ash mechanical conveyors (area 1)

20WX Fly ash mechanical conveyors (area 2)
