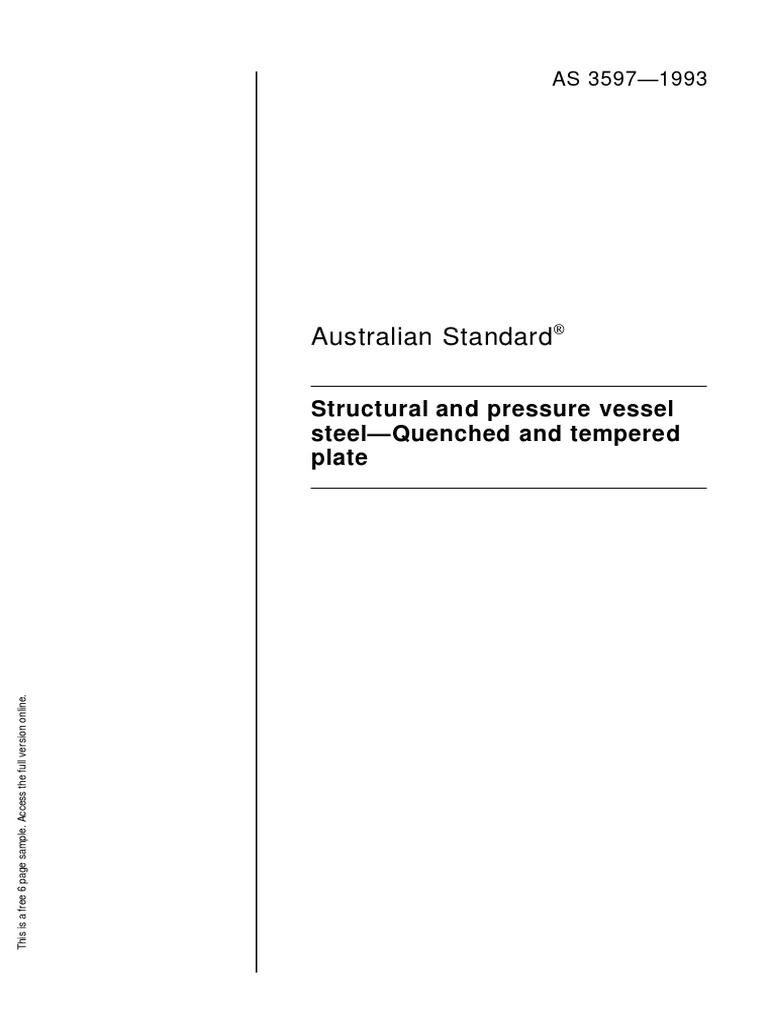

AS 3597—1993

Australian Standard

Structural and pressure vessel

steel—Quenched and tempered
plate
This is a free 6 page sample. Access the full version online.
 This Australian Standard was prepared by Committee BD/23, Structural Steel. It was
approved on behalf of the Council of Standards Australia on 14 May 1993 and
published on 12 July 1993.

The following interests are represented on Committee BD/23:

Australian Chamber of Commerce and Industry
Australian Institute of Steel Construction
AUSTROADS
Bureau of Steel Manufacturers of Australia
Institute of Steel Service Centres of Australia
Metal Trades Industry Association of Australia
Railways of Australia Committee
Steel Reinforcement Institute of Australia
University of Queensland
University of Sydney

Review of Australian Standards. To keep abreast of progress in industry, Australi an Standards are subject
to periodic review and are kept up to date by the issue of amendments or new editi ons as necessary. It is
important therefore that Standards users ensure that they are in possession of the latest editi on, and any
amendments thereto.
Full detail s of all Australi an Standards and related publications wil l be found in the Standards Australia
Catalogue of Publi cati ons; this informati on is supplemented each month by the magazine ‘The Australi an
Standard’, which subscribing members receive, and which gives detail s of new publications, new edit ions
and amendments, and of withdrawn Standards.
This is a free 6 page sample. Access the full version online.

Suggesti ons for improvements to Australi an Standards, addressed to the head offi ce of Standards Australia,
are welcomed. Noti fi cati on of any inaccuracy or ambiguity found in an Australi an Standard should be made
without delay in order that the matter may be investigated and appropriate action taken.

This Standard was issued in draft form for comment as DR 92023.

 AS 3597—1993

Australian Standard

Structural and pressure vessel

steel—Quenched and tempered
plate

First publi shed as AS 3597—1993.

This is a free 6 page sample. Access the full version online.

PUBLISHED BY STANDARDS AUSTRALIA

(STANDARDS ASSOCIATION OF AUSTRALIA)
1 THE CRESCENT, HOMEBUSH, NSW 2140
ISBN 0 7262 8299 5
 AS 3597—1993 2

PREFACE

This Standard was prepared by the Standards Australia Committee on Structural Steel. It is
intended to cover the technical aspects of supply of intermediate and high-strength quenched
and tempered steel plates for structural and pressure vessel applications.
This Standard is presented in the same general format as AS 3678, Structural steel — Hot-
rolled plates, floorplates and slabs and AS 1548, Steel plates for boilers and pressure vessels
to facilitate its use. Similarly, the supply conditions and dimensional requirements are
compatible with these Standards.
It introduces new Grades 500, 600, 700 and 700PV, which are high-strength, low-alloy steels
with good weldability, formability and low-temperature toughness.
Grades 500, 600 and 700 are intended for use in structural applications and are mechanically
tested on a batch basis in line with ASTM A 514, Specification for high-yield-strength,
quenched and tempered steel plate, suitable for welding. Grade 700PV is intended for use in
unfired pressure vessels and each plate is mechanically tested in line with ASTM A 517,
Specification for pressure vessel plates, alloy steel, high-strength, quenched and tempered.
Thus the only significant differences between Grades 500, 600, 700 and 700PV are the nature
and frequency of mechanical tests. The mechanical properties of each Grade are developed
by quenching and tempering after plate rolling.
The unification of these Grades into one Standard is to provide maximum availability for
users and to reduce costs. Grade 700 can be used in lieu of Grade 700PV if the results of
additional testing are satisfactory (see Appendix E).
This is a free 6 page sample. Access the full version online.

 Copyri ght STANDARDS AUSTRALIA

Users of Standards are reminded that copyri ght subsists in all Standards Australi a publi cati ons and soft ware. Except where the
Copyri ght Act all ows and except where provided for below no publications or software produced by Standards Austr alia may be
reproduced, stored in a retr ieval system in any form or transmitt ed by any means without prior permission in writ ing from
Standards Australi a. Permission may be condit ional on an appropriate royalty payment. Requests for permission and information on
commercial soft ware royalti es should be dir ected to the head off ice of Standards Australi a.
Standards Austr alia will permit up to 10 percent of the technical content pages of a Standard to be copied for use exclusively
in-house by purchasers of the Standard wit hout payment of a royalty or advice to Standards Austr alia.
Standards Austr alia wil l also permit the inclusion of its copyright material in computer soft ware programs for no royalty
payment provided such programs are used exclusively in-house by the creators of the programs.
Care should be taken to ensure that material used is fr om the curr ent edit ion of the Standard and that it is updated whenever the
Standard is amended or revised. The number and date of the Standard should therefore be clearly identif ied.
The use of materi al in print form or in computer software programs to be used commercially, with or without payment, or in
commercial contracts is subject to the payment of a royalty. This policy may be vari ed by Standards Austr alia at any ti me.
 3 AS 3597—1993

CONTENTS
Page
1 SCOPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 REFERENCED DOCUMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 DESIGNATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 CHEMICAL COMPOSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5 ROOM TEMPERATURE TENSILE TESTING . . . . . . . . . . . . . . . . . . . . . . . . 5
6 CHARPY IMPACT TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7 DROPWEIGHT TEST FOR NIL DUCTILITY TRANSITION TEMPERATURE . 8
8 FREEDOM FROM DEFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
9 MANUFACTURING TOLERANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
10 HEAT TREATMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
11 TEST CERTIFICATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
12 ROUNDING OF NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

APPENDICES
A LIST OF REFERENCED DOCUMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
B ELEVATED TEMPERATURE TESTING OF GRADES 700 AND 700PV . . . . . 12
C PURCHASING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
D INFLUENCE OF FABRICATION AND HEAT TREATMENT ON
MECHANICAL PROPERTIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
E USE OF GRADE 700 IN LIEU OF GRADE 700PV . . . . . . . . . . . . . . . . . . . . . 17
This is a free 6 page sample. Access the full version online.
 AS 3597— 1996 4

STANDARDS AUSTRALIA

Australian Standard
Structural and pressure vessel steel— Quenched and tempered plate

1 SCOPE This Standard specifies technical requirements for the production and supply
of intermediate and high-strength quenched and tempered low-alloy steel plates from a
minimum thickness of 5 mm to a maximum thickness of 110 mm. It is intended for use in
fusion welded structures and pressure vessels.

2 REFERENCED DOCUMENTS The documents referred to in this Standard are listed

in Appendix A.

3 DESIGNATION
3.1 General The steel is supplied in four grades and shall be designated as follows:
(a) Grades 500, 600 and 700—where the mechanical testing shall be carried out at a
frequency required for fusion welded structures.
(b) Grade 700PV—where the mechanical testing shall be carried out at a frequency required
for fusion welded boilers and pressure vessels.
3.2 Steelmaking process The steel shall be made by either the basic oxygen process or
an electric process.
NOTE: The basic oxygen process means the process of making steel in a basic converter blown with
commercially pure oxygen.
4 CHEMICAL COMPOSITION
4.1 General The method of sampling for chemical analysis shall be in accordance with
AS 1213. Chemical composition shall be determined by the procedures given in AS 1050
or AS K1, or by other procedures which achieve the same, or better, degree of accuracy.
4.2 Cast analysis A chemical analysis of the liquid steel shall be made to determine the
proportions of the specified elements. In cases where it is impracticable to obtain samples
from the liquid steel, analysis on test samples taken in accordance with AS 1213 may be
reported as cast analysis.
The cast analysis of the steel shall conform to the limits specified in Table 1 for the
appropriate Grade. Test certificates reporting cast analysis shall indicate values for those
elements necessary to establish compliance with the appropriate Grade, plus any other
This is a free 6 page sample. Access the full version online.

element intentionally added to the steel.

4.3 Product analysis The chemical analysis of the finished product is not a mandatory
requirement of this Standard. When the steel is subjected to a product analysis, the analysis
shall conform to the limits given in Table 1.

TABLE 1
CHEMICAL COMPOSITION—GRADES 500, 600, 700 AND 700PV

Type Cast or product analysis, % (maximum)

of
analysis C Si Mn P S Cr Mo B CE

Cast 0.21 0.50 1.50 0.025 0.010 1.20 0.40 0.005 0.60
Product 0.24 0.55 1.60 0.030 0.015 1.30 0.50 0.006 —

COPYRIGHT
