3-Phase Power Calculation
3-Phase Power Calculation
3-Phase Power Calculation

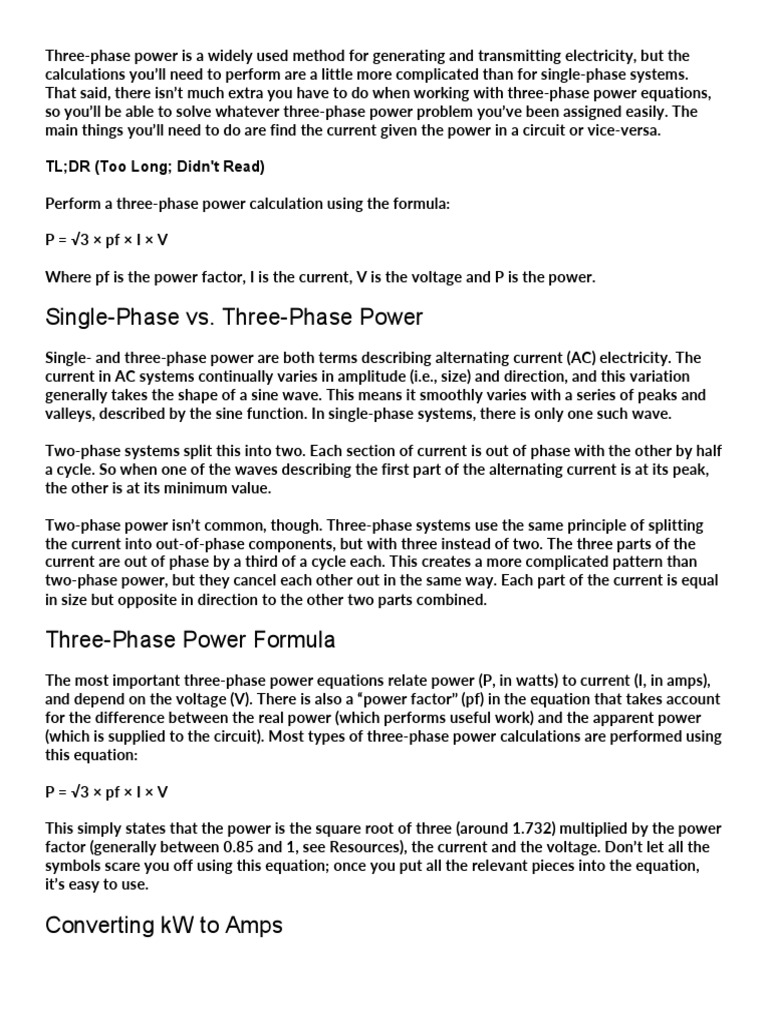

calculations you’ll need to perform are a little more complicated than for single-phase systems.
That said, there isn’t much extra you have to do when working with three-phase power equations,
so you’ll be able to solve whatever three-phase power problem you’ve been assigned easily. The
main things you’ll need to do are find the current given the power in a circuit or vice-versa.
P = √3 × pf × I × V
Where pf is the power factor, I is the current, V is the voltage and P is the power.
Two-phase systems split this into two. Each section of current is out of phase with the other by half
a cycle. So when one of the waves describing the first part of the alternating current is at its peak,
the other is at its minimum value.
Two-phase power isn’t common, though. Three-phase systems use the same principle of splitting
the current into out-of-phase components, but with three instead of two. The three parts of the
current are out of phase by a third of a cycle each. This creates a more complicated pattern than
two-phase power, but they cancel each other out in the same way. Each part of the current is equal
in size but opposite in direction to the other two parts combined.
P = √3 × pf × I × V
This simply states that the power is the square root of three (around 1.732) multiplied by the power
factor (generally between 0.85 and 1, see Resources), the current and the voltage. Don’t let all the
symbols scare you off using this equation; once you put all the relevant pieces into the equation,
it’s easy to use.
Converting kW to Amps
Let’s say you have a voltage, a total power in kilowatts (kW) and a power factor, and you want to
know the current (in amps, A) in the circuit. Re-arranging the power calculation formula above
gives:
I = P / (√3 × pf × V)
If your power is in kilowatts (i.e., thousands of watts) it’s best to either convert it to watts (by
multiplying by 1,000) or keep it in kilowatts make sure your voltage is in kilovolts (kV = volts ÷
1,000). For example, if you have a 0.85 power factor, 1.5 kW of power and a voltage of 230 V,
simply quote your power as 1,500 W and calculate:
I = P / (√3 × pf × V)
= 4.43 A
Equivalently, we could have worked with kV (noting that 230 V = 0.23 kV), and found the same:
I = P / (√3 × pf × V)
= 4.43 A
Converting Amps to kW
For the reverse process, use the form of the equation given above:
P = √3 × pf × I × V
Simply multiply your known values together to find the answer. For example, with I = 50 A, V = 250
V and pf = 0.9, this gives:
P = √3 × pf × I × V
= √3 × 0.9 × 50 A × 250 V
= 19,486 W
Since this is a big number, convert to kW using (value in watts) / 1000 = (value in kilowatts).
