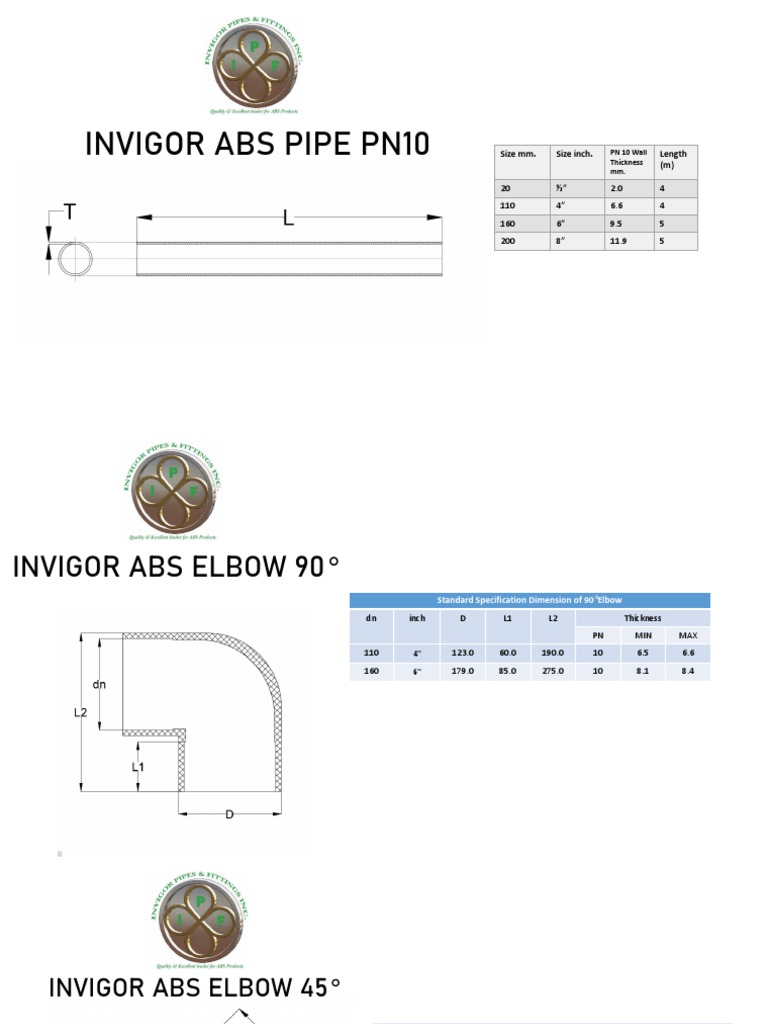

    INVIGOR ABS PIPE PN10 Size mm. Size inch.

    PN 10 Wall
    Thickness
    Length
    (m)
    mm.

    20 ½” 2.0 4
    110 4” 6.6 4
    160 6” 9.5 5
    200 8” 11.9 5
    INVIGOR ABS ELBOW 90°
    Standard Specification Dimension of 90°Elbow
    dn inch D L1 L2 Thickness
    PN MIN MAX
    110 4" 123.0 60.0 190.0 10 6.5 6.6
    160 6" 179.0 85.0 275.0 10 8.1 8.4
    INVIGOR ABS ELBOW 45°
    Standard Specification Dimension of 45°Elbow
    dn inch D L1 L2 Thickness
    PN MIN MAX
    110 4" 123.6 60.0 190.2 10 6.5 6.6
    160 6" 176.6 75.0 253.4 10 8.1 8.4
    INVIGOR ABS TEE
    Standard Specification Dimension of Tee

    dn inch D L1 L2 L3 Thickness
    PN MIN MAX
    110 4" 123.4 60.0 185.0 245.0 10 6.5 6.6
    160 6" 179.0 85.0 265.0 350.0 10 8.1 8.4
    INVIGOR ABS FLANGE
    Standard Specification Dimension of Flange
    dn inch D1 D2 D3 D4 L1 L2 L3 N-φ Thickness
    PN MIN MAX
    110 4" 125.6 212 180 101 60 67 24 8-18 10 6.5 6.6

    160 6" 176.0 280 240 150 75 80 29 8-22 10 8.1 8.4

    200 8" 224.0 340 295 180 105 125 35 8-22 10 11.9 12.1
    INVIGOR ABS COUPLING
    Standard Specification Dimension of Coupling
    dn inch D L1 L2 Thickness
    PN MIN MAX
    160 6" 176.6 75.0 160.0 10 8.1 8.4
    200 8" 224.0 105.0 220.0 10 11.9 12.1
    Standard Specification Dimension of Reducer Bushing
    dn inch D D1 L1 L2 Thickness

    PN MIN MAX

    20 ¾"-½" 25 16.0 17.0 21.0 10 2.1 2.2

    25 1"-¾" 32 21.0 21.0 22.0 10 3.2 3.3

    32 1¼"-1" 40 27.0 22.0 27.0 10 3.6 3.8

    .
    40 1½"-1¼" 50 32.0 27.0 32.0 10 4.7 4.9

    INVIGOR ABS BUSHING RED 50 2"-1½" 63 43.0 32.0 38.0 10 6.2 6.4

    63 2½"-2" 75 57.0 38.0 44.0 10 5.7 5.9

    75 3“-2½" 90 69.0 44.0 50.0 10 7.2 7.5

    90 4"-3" 110 79.0 50.0 60.0 10 9.4 9.7

    110 5"-4" 125 99.0 60.0 70.0 10 6.5 6.7

    110 5"-4" 140 99.0 67.5 70.0 10 14.6 14.8


    125 6"-5" 160 113.0 70.0 75.0 10 17.3 17.5
    140 6"-5" 160 126.0 70.0 75.0 10 9.5 9.7
    160 8" -6" 200 144.0 75.0 105.0 10 19.8 20.0
    160 8" -6" 225 152.0 75.0 117.5 6 30.7 31.0
    200 10"-8" 250 180.0 105.0 130.0 10 24.7 25.0
    225 10"-8" 280 203.0 117.5 145.0 6 27.2 27.5
    250 12"-10" 315 225.0 130.0 162.5 10 32.2 32.5
    280 12"-10" 315 252.0 145.0 162.5 6 17.3 17.5
    315 14“-12" 355 284.0 162.5 182.5 6 19.8 20.0
    315 16“-12" 400 284.0 162.5 205.0 6 42.1 42.5
    355 16“-14" 400 320.0 182.5 205.0 6 22.3 22.5

    400 450 360.0 205.0 6 24.7 25.0


    18”-16"
    INVIGOR ABS FLANGE
    Standard Specification Dimension of Flange
    dn inch D1 D2 D3 D4 L1 L2 L3 N-φ Thickness
    PN MIN MAX
    90 3" 103.4 192 160 81 50 55 20 4-18 10 5.6 5.8

    110 4" 125.6 212 180 101 60 67 24 8-18 10 6.5 6.6

    160 6" 176.0 280 240 150 75 80 29 8-22 10 8.1 8.4

    200 8" 224.0 340 295 180 105 125 35 8-22 10 11.9 12.1
    INVIGOR ABS BALL VALVE
    INVIGOR ABS BLIND FLANGE

    Size T (mm) OD (mm) C (mm) N–eΦ

    6” 12.00 275.00 240.00 8 x 23mm


    8” 12.00 340.00 298.00 8 x 23mm
