Date: 18-08-2022 Note No.

By: SLS Sheet No.

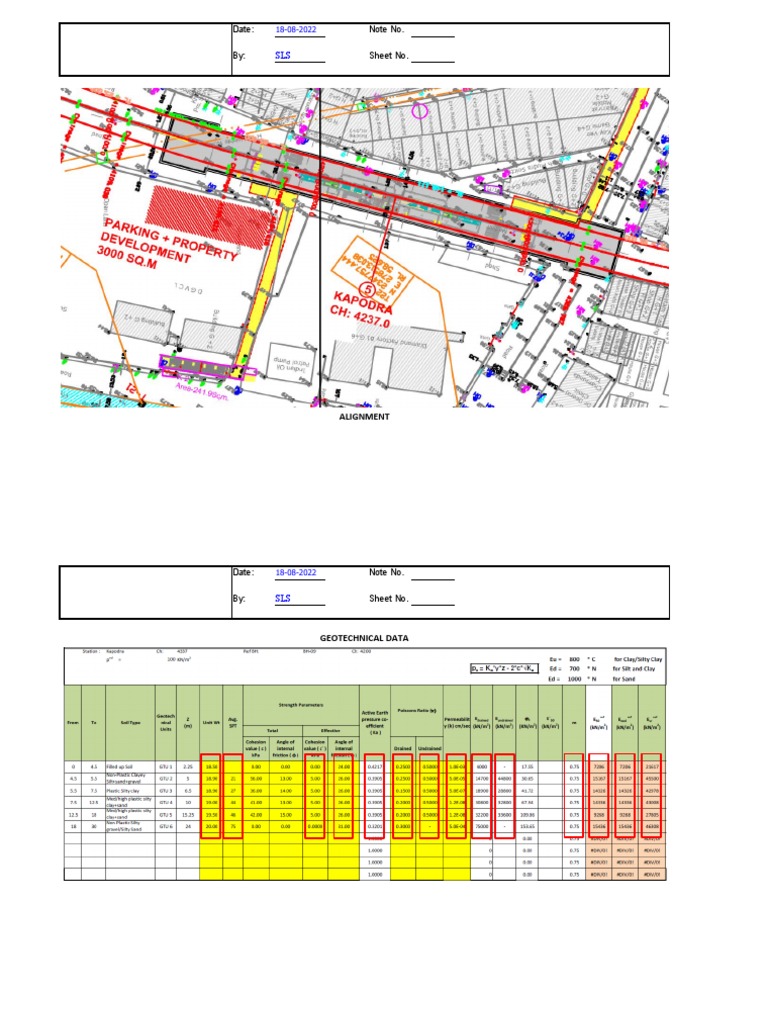

ALIGNMENT
Date: 18-08-2022 Note No.

By: SLS Sheet No.

GEOTECHNICAL DATA
 Date: 18-08-2022 Note No.

By: SLS Sheet No.

LEVELS OF SOIL LAYERS

SOIL LAYER MATERIAL TOP LEVEL (M) BOTTOM LEVEL (M) LAYER THICKNESS
BOREHOLE_1
Filled up soil 213.40 208.90 4.50
Non-plastic clayey silt+sand+gravel 208.90 207.90 1.00
Plastic silty clay 207.90 205.90 2.00
Med/high plastic silty clay+sand 205.90 200.90 5.00
Med/high plastic silty clay+sand 200.90 195.40 5.50
Non plastic silty gravel/silty sand 195.40 183.40 12.00
X= 0
HEAD = 209.40
 Date: 18-08-2022 Note No.

By: SLS Sheet No.

MATERIAL PROPERTIES OF SOIL

STRATA
PARAMETER NAME UNIT
1 2 3 4 5 6
GENERAL

Non-plastic clayey Med/high plastic Med/high plastic Non plastic silty

IDENTIFICATION Filled up soil Plastic silty clay -
silt+sand+gravel silty clay+sand silty clay+sand gravel/silty sand

MATERIAL MODEL MODEL HARDENING SOIL HARDENING SOIL HARDENING SOIL HARDENING SOIL HARDENING SOIL HARDENING SOIL -
DRAINAGE TYPE (TYPE OF MATERIAL
TYPE DRAINED DRAINED DRAINED DRAINED DRAINED DRAINED -
BEHAVIOUR)
COMMENTS FILL MATERIAL -
SOIL UNIT WEIGHT ABOVE PHREATIC LEVEL ϒunsat 16 15 15 16 16 16 kN/m3
SOIL UNIT WEIGHT BELOW PHREATIC LEVEL ϒsat 18.5 18.9 18.9 19 19.5 20 kN/m3
DILATANCY CUT-OFF NO NO NO NO NO NO -
INITIAL VOID RATIO einit 0.5 0.5 0.5 0.5 0.5 0.5 -
MINIMUM VOID RATIO emin 0 0 0 0 0 0 -
MAXIMUM VOID RATIO emax 999 999 999 999 999 999 -
DAMPING PARAMETER α Rayleigh α 0 0 0 0 0 0 -
DAMPING PARAMETER β Rayleigh β 0 0 0 0 0 0 -
PARAMETER
STANDARD PENETRATION TEST VALUE N 21 27 44 46 75 -
MODIFIED COMPRESSION INDEX λ* - - - - - - -
MODIFIED SWELLING INDEX ĸ* - - - - - - -
DRAINED YOUNG'S MODULUS E 4000 14700 18900 30800 32200 75000 kN/m2
UNDRAINED YOUNG'S MODULUS EU 44800 28800 32800 33600 kN/m2
YOUNG'S MODULUS AT REFERENCE LEVEL E' 0 37333 22080 26240 26880 0 kN/m2
UNDRAINED POISSON'S RATIO vU 0.5 0.5 0.5 0.5 0.5 -
EFFECTIVE POISSON'S RATIO v' (nu) 0.25 0.25 0.15 0.2 0.2 0.3 -
SECANT STIFFNESS IN STANDARD DRAINED
E50ref 7206 15167 14326 14336 9268 15436 kN/m2
TRIAXIAL TEST
TANGENT STIFFNESS FOR PRIMARY
OEDOMETER LOADING OR CONSTRAINED Eoedref 7206 15167 14326 14336 9268 15436 kN/m2
MODULUS
UNLOADING/RELOADING STIFFNESS Eurref 21618 45501 42978 43008 27804 46308 kN/m2
POWER FOR STRESS-LEVEL DEPENDENCY OF
m 0.75 0.75 0.75 0.75 0.75 0.75 -
STIFFNESS
USE ALTERNATIVES NO NO NO NO NO NO -
COMPRESSION INDEX CC 0.04788 0.02275 0.02408 0.02407 0.03722 0.02235 -
 Date: 18-08-2022 Note No.

By: SLS Sheet No.

MATERIAL PROPERTIES OF SOIL

STRATA
PARAMETER NAME UNIT
1 2 3 4 5 6
SWELLING INDEX OR RELOADING INDEX CS 1.44E-02 5.63E-03 5.96E-03 5.96E-03 9.22E-03 5.53E-03 -
INITIAL VOID RATIO einit 0.5 0.5 0.5 0.5 0.5 0.5 -
EFFECTIVE COHESION (CONSTANT) cref' 0 5 5 5 5 0 kN/m2
MINOR EFFECTIVE PRINCIPAL STRESS
UNDRAINED SHEAR STRENGTH AT REFERENCE
su,ref - - - - - - kN/m2
LEVEL
FRICTION ANGLE (PHI) FOR UNDRAINED TYPE ϕu (phi) - - - - - - °
EFFECTIVE FRICTION ANGLE (PHI) ϕ' 24 26 26 26 26 31 °
DILATANCY ANGLE (PSI) Ψ (psi) 0 0 0 0 0.00 0 °
SHEAR STRAIN AT WHICH GS = 0.722G0 ϒ0.7 - - - - - - -
SHEAR MODULUS AT VERY SMALL STRAINS G0ref - - - - - - kN/m3
POISSON'S RATIO (NU) FOR UNLOADING-
vur' 0.2 0.2 0.2 0.2 0.2 0.2 -
RELOADING
SHEAR MODULUS G 0 14933 9600 10933 11200.00 0 kN/m2
Eoed - - - - - - kN/m3
SHEAR WAVE VELOCITY vs - - - - - - m/s
COMPRESSION WAVE VELOCITY vp - - - - - - m/s
YOUNG'S MODULUS INCREMENT Einc' 0 0 0 0 0 0 kN/m3
REFERENCE STRESS FOR STIFFNESS pref 100 100 100 100 100 100 kN/m2
K0-VALUE FOR NORMAL CONSOLIDATION K0nc 0.5933 0.5616 0.5616 0.5616 0.5616 0.485 -
COHESION INCREMENT cinc' 0 0 0 0 0 0 kN/m2/m
REFERENCE LEVEL yref 0 0 0 0 0 0 m
UNDRAINED SHEAR STRENGTH INCREMENT su,inc 0 0 0 0 0 0 kN/m2
FAILURE RATIO qf / qa Rf 0.9 0.9 0.9 0.9 0.9 0.9 -
TENSION CUT-OFF YES YES YES YES YES YES -
TENSILE STRENGTH σt 0 0 0 0 0 0 kN/m2
UNDRAINED BEHAVIOUR STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD -
Skempton-B 0.9866 0.9866 0.9866 0.9866 0.9866 0.9866 -
vu 0.495 0.495 0.495 0.495 0.495 0.495 -
kw,ref/n 885700 1864000 1761000 1762000 1139000 1897000 kN/m2
COEFFICIENT OF CONSOLIDATION Cv, ref - - - - - - m2/day
 Date: 18-08-2022 Note No.

By: SLS Sheet No.

MATERIAL PROPERTIES OF SOIL

STRATA
PARAMETER NAME UNIT
1 2 3 4 5 6
GROUNDWATER
DATA SET USDA USDA USDA USDA USDA USDA -
MODEL VAN GENUCHTEN VAN GENUCHTEN VAN GENUCHTEN VAN GENUCHTEN VAN GENUCHTEN VAN GENUCHTEN -
TYPE SANDY CLAY CLAY LOAM SILTY CLAY SILTY CLAY SILTY CLAY SILT -
< 2 μm 42 34 48 48 48 6 %
2 μm - 50 μm 5 34 45 45 45 87 %
50 μm - 2 mm 53 32 7 7 7 7 %
PERMEABILITY IN HORIZONTAL DIRECTION kx 0.001 0.00005 0.0000005 0.000000012 0.000000012 0.0005 m/day
PERMEABILITY IN VERTICAL DIRECTION ky 0.001 0.00005 0.0000005 0.000000012 0.000000012 0.0005 m/day
UNSATURATED PRESSURE HEAD -Ψunsat 10000 10000 10000 10000 10000 10000 m
INITIAL VOID RATIO einit 0.5 0.5 0.5 0.5 0.5 0.5 -
SURFACE AREA OF SOIL PARTICLES PER UNIT
SS 0.000011290 0.000005364 0.000005679 0.000005675 0.000008778 0.000005271 1/m
VOLUME OF SOIL
PERMEABILITY CHANGE INDEX ck 1000000000000000 1000000000000000 1000000000000000 1000000000000000 1000000000000000 1000000000000000 -
INTERFACES
STIFFNESS TYPE STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD
INTERFACE STRENGTH TYPE TYPE MANUAL MANUAL MANUAL MANUAL MANUAL MANUAL -
STRENGTH REDUCTION FACTOR INTER. Rinter 0.67 0.67 0.67 0.67 0.67 0.67 -
CONSIDER GAP CLOSURE YES YES YES YES YES YES -
δinter 0 0 0 0 0 0 -
CROSS PERMEABILITY IMPERMEABLE IMPERMEABLE IMPERMEABLE IMPERMEABLE IMPERMEABLE IMPERMEABLE -
DRAINAGE CONDUCTIVITY dk 0 0 0 0 0 0 m3/day/m
INITIAL
K0 DETERMINATION AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC -
K0,X = K0,Z YES YES YES YES YES YES -
LATERAL EARTH PRESSURE COEFFICIENT
K0,X 0.5933 0.5616 0.5616 0.5616 0.5616 0.485 -
(ALONG X)
LATERAL EARTH PRESSURE COEFFICIENT
K0,Z 0.5933 0.5616 0.5616 0.5616 0.5616 0.485 -
(ALONG Z)
OVER-CONSOLIDATION RATIO OCR 1 1 1 1 1 1 -
PRE-OVERBURDEN PRESSURE POP 0 0 0 0 0 0 kN/m2
 Date: 18-08-2022 Note No.

By: SLS Sheet No.

MATERIAL PROPERTIES OF SOIL

STRATA
PARAMETER NAME UNIT
1 2 3 4 5 6
Note: Rinter for clay = 0.5 As per Butler (1975), for cohesive soil,
Rinter for sand = 0.67

Effective stiffness in case of Undrained B drainage type is defined in terms of effective modulus value of soil which is taken as:

E' = EU(1+ν)/(1+νU)
