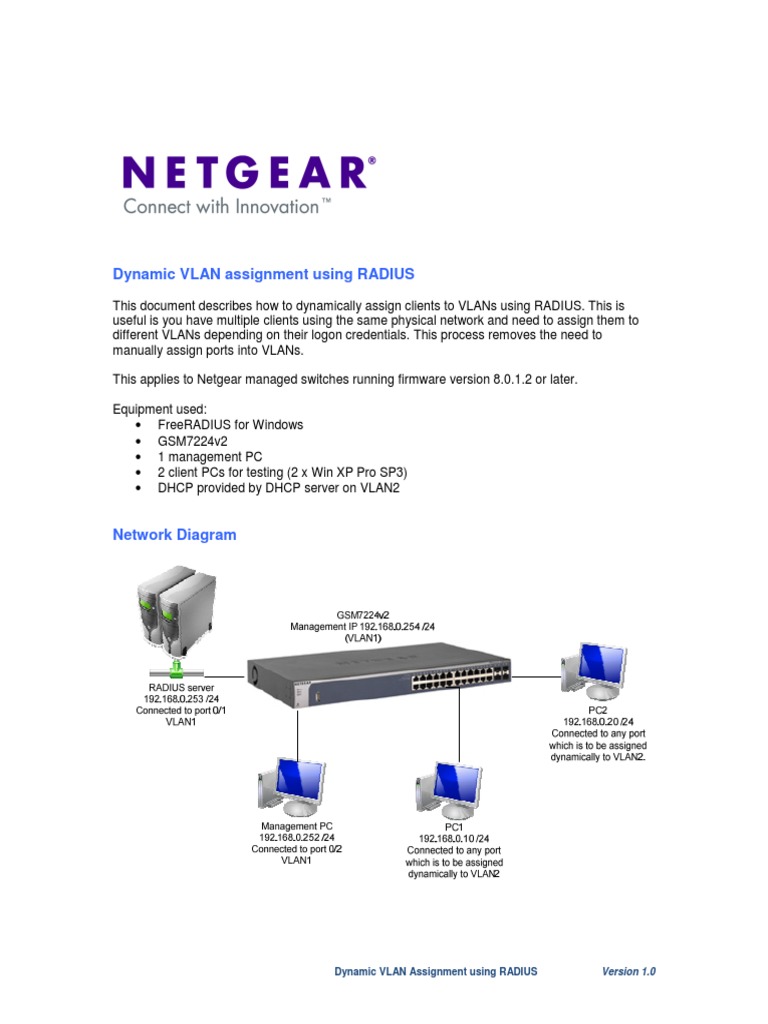

Dynamic VLAN assignment using RADIUS

This document describes how to dynamically assign clients to VLANs using RADIUS. This is
useful is you have multiple clients using the same physical network and need to assign them to
different VLANs depending on their logon credentials. This process removes the need to
manually assign ports into VLANs.

This applies to Netgear managed switches running firmware version 8.0.1.2 or later.

Equipment used:
• FreeRADIUS for Windows
• GSM7224v2
• 1 management PC
• 2 client PCs for testing (2 x Win XP Pro SP3)
• DHCP provided by DHCP server on VLAN2

Network Diagram

Dynamic VLAN Assignment using RADIUS Version 1.0

Switch Configuration

The starting configuration for the switch is to have all ports in VLAN1 with a management IP
address on the switch of 192.168.0.254.

• Go to Switching ->
VLAN -> Basic ->
VLAN Configuration
• Add VLAN2 with the
settings as shown
on the left
• Press Add

• Go to Security ->
Port Authentication
-> Advanced -> Port
Authentication
• Select Ports 0/1 and
0/2
• Set the Control
Mode for these 2
ports to Force
Authorized
• Press Apply
• This is done so that
the RADIUS server
and the
management PC do
not have get locked
out from the switch

• Go to Security ->
Port Authentication -
> Advanced ->
802.1X
Configuration
• Set Administrative
Mode and VLAN
Assignment Mode to
Enable
• Press Apply

Dynamic VLAN Assignment using RADIUS Version 1.0

 • Go to Security ->
Management
Security ->
Authentication List
-> Dot1x
Authentication List
• Select the option for
dot1xList and
choose Radius for
the first Field
• Press Apply

• Go to Security ->
Management
Security -> RADIUS
-> Server
Configuration
• Add Radius Server
IP Address as
192.168.0.253
• Set Secret
Configured to Yes
• Set Secret to
123456
• Press Add

Dynamic VLAN Assignment using RADIUS Version 1.0

RADIUS Server Configuration

Download and install FreeRADIUS for Windows. Once installed, the icon will appear in the
system tray.

Right click on the FreeRADIUS icon and choose Edit Radius Clients.conf – in this file we need to
add an entry for our RADIUS client, the GSM7224v2. To do this, add the following code and save
the file:

client 192.168.0.253/24 {
secret = 1232456
shortname = gsm7224v2
}

Next, right click on the FreeRADIUS icon and choose Edit Users – in this file we need to add
some users together with what VLAN we want these users to be assigned to. To do this, add the
following code and save the file:

user1 User-Password == "password1"

Tunnel-Type = "VLAN",
Tunnel-Medium-Type = "IEEE-802",
Tunnel-Private-Group-Id = "2"

user2 User-Password == "password2"

Tunnel-Type = "VLAN",
Tunnel-Medium-Type = "IEEE-802",
Tunnel-Private-Group-Id = "2"

Finally, restart FreeRADIUS by right clicking on the icon and choosing Restart Service.

Dynamic VLAN Assignment using RADIUS Version 1.0

Client configuration

Since we are using FreeRADIUS, the network cards on client PC1 and client PC2 need to be
configured for MD5. To do this right click on the Local Area Connection and choose Properties.
Go to the Authentication tab and choose MD5 as shown:

Note: If you do not see the Authentication tab, it will be because the Wired AutoConfig service in
Windows has not started. Start it in services.msc

Dynamic VLAN Assignment using RADIUS Version 1.0

Testing

Connect PC1 and PC2 to any port on the switch other than ports 0/1 and 0/2. Once connected,
Windows will prompt for credentials. For credentials, use:

PC1
Username: user1
Password: password1

PC2
Username: user2
Password: password2

Once successfully authenticated, PC1 and PC2 will become members of VLAN2 even though the
ports to which they are connected were originally members of VLAN1.

To test, verify the following:

1: PC1 can successfully ping PC2.

2: PC1 and PC2 cannot ping the management PC

Notes

To assist with any troubleshooting, check the FreeRADIUS logs in

C:\FreeRADIUS.net\var\log\radius\radius.log

The RADIUS statistics on the GSM7224v2 are also helpful – these can be found under Security
-> Management Security -> RADIUS -> Server Configuration -> Statistics

Dynamic VLAN Assignment using RADIUS Version 1.0
