    9.

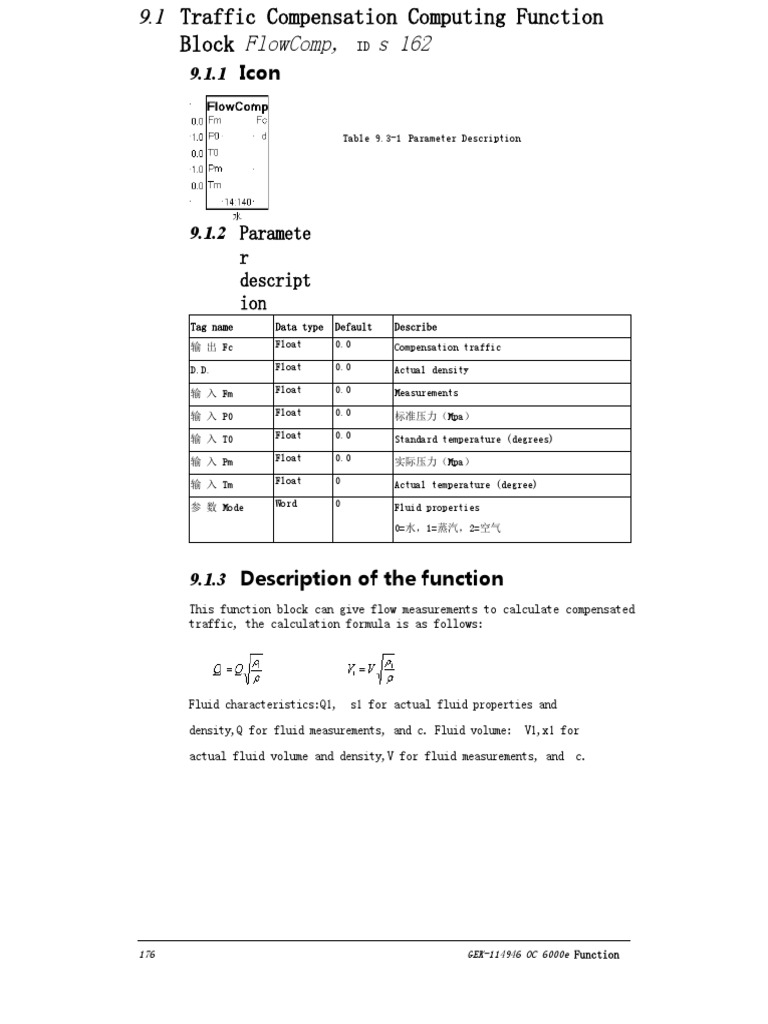

    1 Traffic Compensation Computing Function


    Block FlowComp, ID s 162
    9.1.1 Icon

    Table 9.3-1 Parameter Description

    9.1.2 Paramete
    r
    descript
    ion
    Tag name Data type Default Describe
    输 出 Fc Float 0.0 Compensation traffic

    D.D. Float 0.0 Actual density

    输 入 Fm Float 0.0 Measurements

    输 入 P0 Float 0.0 标准压力（Mpa）

    输 入 T0 Float 0.0 Standard temperature (degrees)

    输 入 Pm Float 0.0 实际压力（Mpa）

    输 入 Tm Float 0 Actual temperature (degree)

    参 数 Mode Word 0 Fluid properties


    0=水，1=蒸汽，2=空气

    9.1.3 Description of the function


    This function block can give flow measurements to calculate compensated
    traffic, the calculation formula is as follows:

    Fluid characteristics:Q1, s1 for actual fluid properties and

    density,Q for fluid measurements, and c. Fluid volume: V1,x1 for

    actual fluid volume and density,V for fluid measurements, and c.

    176 GEK-114946 OC 6000e Function
