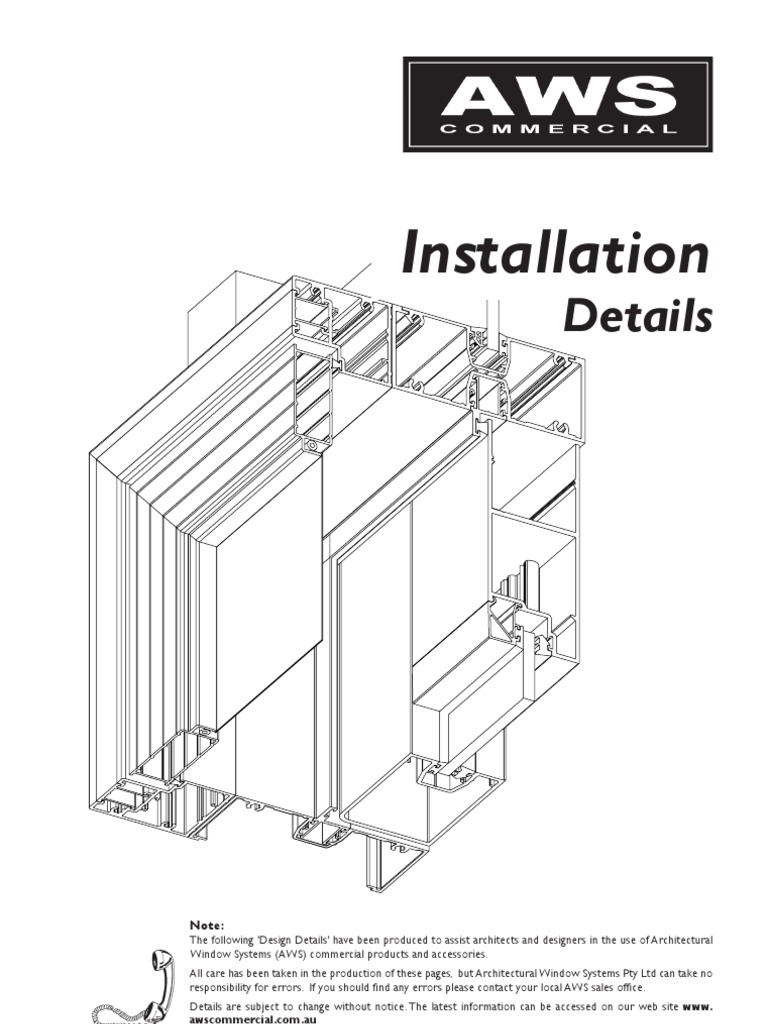

AWSCommercial Installation
AWSCommercial Installation
Details
Note:
The following 'Design Details' have been produced to assist architects and designers in the use of Architectural Window Systems (AWS) commercial products and accessories. All care has been taken in the production of these pages, but Architectural Window Systems Pty Ltd can take no responsibility for errors. If you should find any errors please contact your local AWS sales office. Details are subject to change without notice. The latest information can be accessed on our web site www. awscommercial.com.au
INDEX INSTALLATION
DATE MAR 08 REPLACES MAR 07 SCALE
Page 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 110. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Contents Installation Details. Shopfront Framing typical shopfront framing installation. Nailing fin adaptors. 410 Bi-fold door without sub-sill. 410 Bi-fold door with sub-sill. 411 Bi-fold door - Head. 411 Bi-fold door - Head. 411 Bi-fold door - Sill alternatives. 411 Bi-fold door - Sill alternatives. 411 Bi-fold door - Flydoor vertical section. 411 Bi-fold door - Flydoor alternative sills. 411 Bi-fold door - Flydoor horizontal section. 411 Bi-fold door - Flydoor horizontal section. 102mm sub-sill. 102mm sub-sill. Nailing fin sub-sill. Nailing fin sub-sill. 102mm sub-head and two piece sub-jamb. 150mm sub-sill. 102mm sub-sill 150mm sub-sill. 150mm sub-head and two piece sub-jamb. Building-in lugs. Windows snap couplers. Windows snap couplers. Nailing fin frame external closer. Nailing fin frame external closer. Internal perimeter trims. Internal perimeter trims. Flydoor adaptor.
110.0
Double-hung Window
Check measure diagonals during installation Building-in lugs at approx. 450mm maximum centres On double-hung windows ensure jambs are plumb and straight.
3. 4.
Transom windows
5.
6. 7.
8. 9.
10. On brick veneer construction there should be at least a 12mm gap between timber header and aluminium frame. 11. Aluminium windows and frames are not designed to support eaves linings.
Important Note: If you install windows out of square or without sufficient shims the opening sashes won't perform satisfactorily.
www.awscommercial.com.au
110.1
Concrete slab/beam over. Cement render. 33 Continuous caulking. Extruded aluminium subhead Fixings @ 450mm maximum centres. Frame size Co-extruded Santoprene bulb seal. Typical shopfront frame. Roll-in wedge. Apply continuous run of caulking before fitting wedge. Extruded aluminium sub-sill. Floor finish
20
Frame size
Note: It is recommended that the installer apply coat of waterproof membrane to concrete rebate before fitting sub-sill and caulking. Basically untreated concrete is not necessarily waterproof.
Continuous caulking. 115 Shim sub-sill level and fix to slab @ 450mm max. cts. Fix jamb to slab @ 450mm m a x i m u m c e n t re s . F i t 150mm lengths of filler and shim before driving screws home. Use aluminium angle trims, depending on the wall finishes.
3 min.
Frame size
Alternative jamb fixing using custom extruded aluminium fixing lug, lugs 75mm wide and fixed @ 450mm max. cts.
Cement render
www.awscommercial.com.au
110.2
20
Suits any of the 102mm frames including: Series 400 CentreGLAZE Series 406 FrontGLAZE Series 426 FrontGLAZE Series 407 FACELINE Series 702 SlideMASTER Series 704 SlideMASTER Series 410 FoldMASTER Series 411 ViewMASTER
The location of the nailing fin aligns with the dedicated nailing fin frames on Series 400, 452, 453, 462, 463, 464, 466 and 467 frames.
We have an 80mm nailing fin adaptor for the Series 80 offset narrow frame.
www.awscommercial.com.au
110.3
Slab/beam over Cement render Aluminium angle trim. Fix head to slab @ 450mm max. cts. Make sure head is shimmed correctly. 6
Important Note: As bi-fold doors open out make sure there are no external obstructions.
Frame size
Flat cover fitted after the sill fixings. Fix to slab @ 450mm max. cts. Shim under sill making sure frame is square and level. CAD file: DWG or DXF AWS_Install_1 Continuous caulking.
Sill drainage holes drain water into tubular sump then out on the front face. 120 110
www.awscommercial.com.au
110.4
By recessing the floor slab (including the floor finish) 69mm you can get a flush finish as detailed
Bricks Cement render Fix head to lintel @ 400mm max. cts. Make sure head is shimmed correctly.
Important Note: As bi-fold doors open out make sure there are no external obstructions.
Frame size
Flat cover fitted after the sill fixings. Fix to sub-sill adaptor with 10# s.s. self tapping screws. Fix to sub-sill to slab and shim to making sure frame is square and level. Continuous caulking.
www.awscommercial.com.au
By recessing the floor slab (including the floor finish) 82mm you can get a flush finish as detailed
20
110.5
Seal head to lintels inside and out. M8 Bolts secure head to lintel @ 600mm max. cts. with additional bolts to support panels in the folded open position. One bolt per panel @ 100mm cts., refer typical layout example below. It's important to take care when packing the head and make sure the head remains square after tightening the fixings.
A BB B
B A
www.awscommercial.com.au
110.6
M8 Bolts secure head to 'C' beam @ 600mm max. cts. with additional bolts to support panels in the folded open position. One bolt per panel @ 100mm cts., refer typical layout example below. It's important to take care when packing the head and make sure the head re m a i n s s q u a re a f t e r tightening the fixings.
A BB B
B A
www.awscommercial.com.au
110.7
Water Resistance: Recessed sill shown on this page has no water resistance.
This recessed sill can be fabricated and shipped with the main frame. Cut 120mm x 35mm recess in floor finish to accept this sill.
35
120
81502
Water Resistance: Ramp sill shown on this page has no water resistance.
Raised ramp floor guide. Ramp screwed to floor with stainless steel screws in plugs.
34
81626 All AWS sills cater for 5mm plus and minus adjustment to cater for building settlement.
www.awscommercial.com.au
110.8
35
81628
25
Water Resistance: Weather resisting sill shown left has been tested to resist 200Pa water.
81625
8mm dia. Drainage holes @ 600mm max. cts. Fit nylon grommets 94421 onto visible front holes.
35
81542
27
35
81625
20
80518
8mm Drainage holes @ 600mm max. cts. 20 x 6 sub-sill drainage slots @ 400mm max. cts. Co-extruded Santoprene cover flap 94055P.
112
40
Water Resistance: Fitting sub-sill under external opening bi-fold doors will increase the water resistance to 300Pa.
www.awscommercial.com.au
110.9
H = O/A Height
M8 Bolts secure head to lintel @ 600mm max. cts. with additional bolts to support panels in the folded open position. One bolt per panel @ 100mm cts., refer typical layout example below. It's important to take care when packing the head and make sure the head remains square after tightening the fixings. Seal head to lintels on the outside.
If you want to tuck the internal wall lining into flydoor head as drawn take care when positioning the framing in the wall. Maximum screen frame height 3000mm.
Shim and fix flyscreen sill to floor @ 600mm max. cts. Recess the sill into the floor slab as drawn.
211 www.awscommercial.com.au
110.10
39
20
H = O/A Height
10mm Shims under flyscreen sill. Fix both sub-sill and flyscreen sill to floor finish.
87
213
Recessing the Bi-fold sill and flyscreen sill into the floor finish is possible but pleas note there is no water resistance.
H = O/A Height
29
10
225 www.awscommercial.com.au
110.11
40
20
36
44
20
Galvanised building-in lug used to secure flyscreen frame to wall, fit lugs @ 450mm max. cts. This detail shows how the internal wall lining could be tucked into the flyscreen frame.
Jamb extender used to extend the jamb to align with flydoor jamb. Jamb cavity closer fitted to allow main frame fixing. Pack to prevent main frame dishing. Fix jamb to cavity closer @ 450mm max. cts. before fitting the Bi-fold jamb adaptor 81624. Span-on Bi-fold jamb adaptor. 81647
23
The maximum flyscreen width varies depending on the Flyscreen frame height. If the Flyscreen frame height <= 2450mm then the maximum flyscreen width would be 3050mm. If the Flyscreen frame height > 2450mm and <= 3000mm then the maximum flyscreen width would be 2400mm.
W = O/A Width
Flyscreen stile runs up to magnetic strip in the jamb closer. This page shows the flyscreen frame fitted behind 3L door combination, make sure the flyscreen does not exceed the absolute maximum flyscreen width. Single opening flyscreen can be fitted to other Bi-fold door that open to one side only as long as you don't exceed the absolute maximum single screen width.
Alternative 26mm step in the brick skins removes the need for jamb extender.
Important Note: The flyscreen frame can only be fixed to the 44mm jambs as shown left and is not suitable for retro fitting. This page shows the flyscreen frame fitted behind 3L door combination.
110.12
26
23
Jamb extender used to extend the jamb to align with flydoor jamb. Jamb cavity closer fitted to allow main frame fixing. Pack to prevent main frame dishing. Fix jamb to cavity closer @ 450mm max. cts. before fitting the Bi-fold jamb adaptor. Snap-on Bi-fold jamb adaptor. Flydoor stile location when screen is open.
23
The maximum single flyscreen width varies depending on the Flyscreen frame height. If the Flyscreen frame height <= 2450mm then the maximum single flyscreen width would be 3050mm or 6100mm on a double if the screens met in the middle. If the Flyscreen frame height > 2450mm and <= 3000mm then the maximum single flyscreen width would be 2400mm or 4800mm on a double if the screens met in the middle.
W = O/A Width
Important Note: This page shows the flyscreen frame fitted behind 3L 1R door combination with the screen door meeting at French meeting stiles. This is only possible if the door leaves are not too wide and the screen does not exceed the maximum width. On other four panel combinations 4L, 4R and 2L2R the screen door would meet in the middle. Flyscreens can be fitted to other door combinations as long as they don't exceed the absolute maximum double screen width.
23
www.awscommercial.com.au
110.13
102mm Sub-sill
Suit any of the 102mm frames including: Series 400 CentreGLAZE Series 406 FrontGLAZE Series 407 FACELINE Series 702 SlideMASTER 102mm sub-sill fitted with custom injection moulded nylon end caps as shown on following page. Fix sub-sill to structure @ 450mm maximum centres.
www.awscommercial.com.au
110.14
We have a stop-end that wraps around the junction of 102mm sub-sill and sub-jamb.
www.awscommercial.com.au
110.15
Is the standard sub-sill under commercial windows. Important Note: Overall frame height includes the nailing fin sub-sill and is measured to the external lower edge, refer 'Q'.
Frame spacer.
Nailing-fin sub-sill.
End caps sealed into sub-sill. 20 x 6mm drainage slots @ 400mm max. cts. Drainage slots covered with PVC cover flap. Sub-sill will accept sill flap. For the latest accessories refer our web site: www.awscommercial.com.au
110.16
The stop-ends on this sub-sill nest into the jambs and are flush with the overall width. This means that they won't clash with reveal linings. Nailing fin sub-sill can be fitted with PVC sill flap to close off the gap between frame and structure.
Sub-sill screwed to sill with stainless steel self tapping screws before installation. The nailing fin sub-sill is designed to be factory fitted to AWS commercial frames and windows.
www.awscommercial.com.au
110.17
102mm Sub-head
Fix the sub-head to structure @ 450mm max. centres. Seal to structure on the inner line to match up with the sub-sill caulking.
102mm Sub-jamb
Fix the sub-jamb base to structure @ 450mm max. centres. Seal to structure on the inner line to match up with the sub-sill caulking.
After fitting the commercial frame apply the inner sub-jamb closer trim.
www.awscommercial.com.au
110.18
150mm Sub-sill
Suit any of the 150mm frames including: Series 606 FrontGLAZE Series 607 FACELINE Series 702 SlideMASTER
A feature with the AWS 150mm sub-sills is the central support leg.This leg also has the drainage slots to allow water escape to the outside. Drainage slots @ 400mm centres. CAD file: DWG or DXF AWS_Install_2 Fix sub-sill to structure @ 450mm maximum centres.
Injection moulded nylon sub-sill end caps. Seal sub-sill to structure in this area.
Drainage slots @ 400mm centres. For the latest accessories refer our web site: www.awscommercial.com.au
110.19
102mm Sub-sill
Suits any of the 102mm frames including: Series 704 SlideMASTER Drainage slots @ 400mm centres. External drainage slots covered with co-extruded Santoprene anti blow-back flap. Fix sub-sill to structure @ 450mm maximum centres.
102mm
CAD file: DWG or DXF AWS_Install_2 For the latest accessories refer our web site: www.awscommercial.com.au
110.20
150mm Sub-sill
A feature with the AWS 150mm sub-sills is the central support leg. This leg also has the drainage slots to allow water to escape.
150mm Drainage slots @ 400mm centres. External drainage slots are covered with co-extruded Santoprene anti blow-back flap. Fix sub-sill to structure @ 450mm maximum centres.
Injection moulded nylon sub-sill end caps. Seal sub-sill to structure in this area. CAD file: DWG or DXF AWS_Install_2 For the latest accessories refer our web site: www.awscommercial.com.au
AWS COMMERCIAL ARCHITECTURAL INFORMATION DETAILS SUBJECT TO CHANGE WITHOUT NOTICE
110.21
150mm Sub-head
Will accept any 150mm commercial frame. Fix the sub-head to structure @ 450mm max. centres. Seal to structure on the inner line to match up with the sub-sill caulking.
150mm Sub-jamb
Will accept any 150mm commercial frame. Fix the sub-jamb base to structure @ 450mm max. centres. Seal to structure on the inner line to match up with the sub-sill caulking.
www.awscommercial.com.au
110.22
Adjustable galvanised steel building-in lug, suitable for cavity brick construction. Position lugs @ 450mm maximum centres, may be reduced in high wind load areas.
Lug suits: 30mm and 44mm nailing fin jambs on Series 400 CentreGLAZE (illustrated right). Series 462 Sliding window. Series 463 Double-hung window. Series 464 Double-hung window. Series 466 Awning window. Series 467 Awning window.
Adjustable extruded aluminium building-in lug, suitable when fitting 102mm shopfront into existing openings. Position lugs @ 450mm maximum centres, this may reduce in higher wind load areas.
Lug suits: 400 CentreGLAZE open back frames including the commercial windows. 406 FrontGLAZE 102mm open back frames. 407 FACELINE 102mm open back frames. 410 FoldMASTER jambs and head. 701 SlideMASTER jambs and head. 702 SlideMASTER 102mm jambs and head. 704 SlideMASTER 102mm jambs and head. For the latest accessories refer our web site: www.awscommercial.com.au
110.23
102mm Coupler
This coupler is designed to join any 102mm window - typical windows shown below: Series 601 Magnum Sliding window. Series 602 Magnum Sliding window. Series 613 Magnum Double-hung window. Series 610 ClearVENT sashless double-hung window. Series 616 Magnum Awning window. to any of the 102mm AWS shopfront frames: Series 400 CentreGLAZE shopfront. Series 406 FrontGLAZE shopfront. Series 407 FACELINE shopfront. Series 410 FoldMASTER bi-fold doors. Series 701 SlideMASTER sliding windows. Series 702 SlideMASTER sliding doors. Series 704 SlideMASTER sliding doors.
150mm Coupler
This coupler is designed to join any 102mm window - typical windows shown below: Series 601 Magnum Sliding window. Series 602 Magnum Sliding window. Series 613 Magnum Double-hung window. Series 610 ClearVENT sashless double-hung window. Series 616 Magnum Awning window. to any of the 150mm AWS shopfront frames: Series 606 FrontGLAZE shopfront. Series 607 FACELINE shopfront. Series 702 SlideMASTER sliding doors. Series 704 SlideMASTER sliding doors.
CAD file: DWG or DXF AWS_Install_2 For the latest accessories refer our web site: www.awscommercial.com.au
110.24
102mm Coupler
This snap fit coupler is designed to join 102mm residential windows to 102mm commercial framing.
Internal view of Series 613 Magnum double-hung window clipped to Series 400 CentreGLAZE shopfront framing.
External view of Series 613 Magnum double-hung window clipped to Series 400 CentreGLAZE shopfront framing.
www.awscommercial.com.au
110.25
Can be fitted to any of the nailing fin frame sections. This trim would be useful when frames are being installed into stud walls with external wall cladding. For the latest accessories refer our web site: www.awscommercial.com.au
110.26
Series 462 sliding window head illustrated. Closer can also be used on other products that will accept the nailing fin frame: Series 463 Commercial double-hung window. Series 464 ClearVENT window. Series 466 Commercial awnings & casements. Series 467 Commercial awnings & casements. Series 400 CentreGLAZE. The closer can be fitted to head, sill and or jambs.
Optional internal nailing fin frame filler used to allow extra reveal fixings as shown on previous page. Internal filler would stop on top of and be sealed to the nailing fin sub-sill stop end.
www.awscommercial.com.au
110.27
Dimension 'X'
The dimension 'X' varies depending on the wall and cladding thickness and the framing thickness. The table below is a guide to what the dimension should be with a couple of typical wall and cladding thicknesses: Frame Wall 102mm 100 102mm 100 102mm 90 102mm 90 102mm 75 102mm 75 102mm 64 102mm 64 80mm 64 80mm 64 Serrated angle trim Cladding 10 13 10 13 10 13 10 13 10 13 dim 'X' 11.50 8.50 6.50 3.50 - 0.50 2.50 - 6.50 - 3.50 4.30 1.30
The main trim varies depending on the wall thickness. Typical 102mm frame installed into 90mm stud wall with 10mm Gyprock lining both sides.
The 80mm narrow framing can also be used as shown left into 64mm metal stud wall with 10mm Gyprock lining both sides.
www.awscommercial.com.au
110.28
Note: The fixing screw is not tightened until the serrated angle trim is fitted. Serrated angle trim. The details on this page show 90mm stud wall with 10mm Gyprock linings.
Note: This is an internal trimming system. Not recommended for external walls.
www.awscommercial.com.au
110.29
The 80mm gap between flydoor and main glass door suits most door furniture.
32
Mitred corners fitted with aluminium gusset. 8# Csk. head s.s. self tapping screws.
80
www.awscommercial.com.au
110.30
