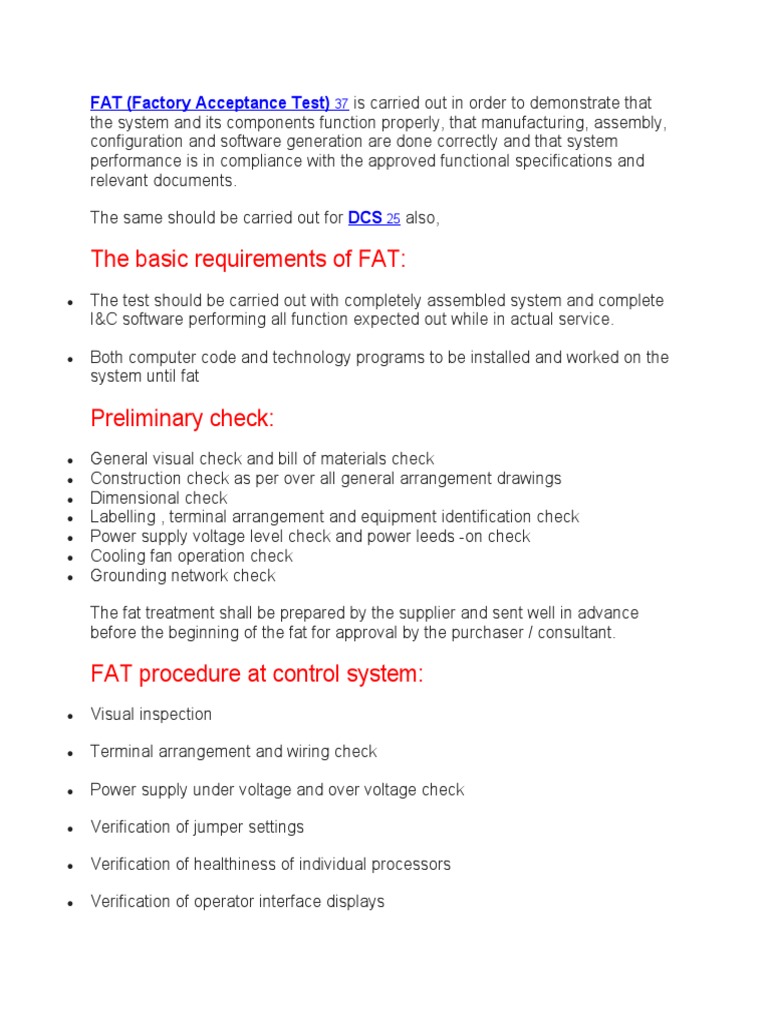

FAT (Factory Acceptance Test)
FAT (Factory Acceptance Test)
Both computer code and technology programs to be installed and worked on the
system until fat
Preliminary check:
General visual check and bill of materials check
Construction check as per over all general arrangement drawings
Dimensional check
Labelling , terminal arrangement and equipment identification check
Power supply voltage level check and power leeds -on check
Cooling fan operation check
Grounding network check
The fat treatment shall be prepared by the supplier and sent well in advance
before the beginning of the fat for approval by the purchaser / consultant.
System diagnostics
Pressure switches 9
Calibration test / Hydro test / Contact rating test / Accuracy test / Repeatability
Calibration test / Hydro test / Leak test / Over range test / Accuracy test /
Repeatability test.
Calibration test / Hydro test / Contact rating test / Leak test / Accuracy test /
Repeatability test.
Thermometers
Temperature switch
Thermocouple assembly
Calibration / Material test, Insulation test (> 500 at 500 V, DC) as per ISA, Hydro
static test (1.5 times max. pr.), Bore concentricity: + 5% of wall thickness.
Thermo wells
Level Gauges
Hydrostatic test / Material test / Seat leakage test / Ball check test.
Flow Switch
Material test / Hydro static test (1.5 times max. pr.) / function test.
Flow glasses
Calibration test / Material test / Hydrostatic test (1.5 times max. pr.)
Flow element
100% Radiography test / Hydro test / Calibration test, IBR Certificate. Calibration
test for flow element shall be witnessed by Purchaser/Consultant.
Position transmitters
Solenoid valves
Hydro test / Seat leakage test / CV test / Coil insulation test
Junction Boxes
Local Panels
Visual inspection, wiring & continuity check, h.v. and i.r. tests on panels,
checking of bill of materials, functional tests.
