2021/06/22 Troubleshooting Faults With Service Codes (KFNR7970-00)

SMCS - 7320 i08511551 

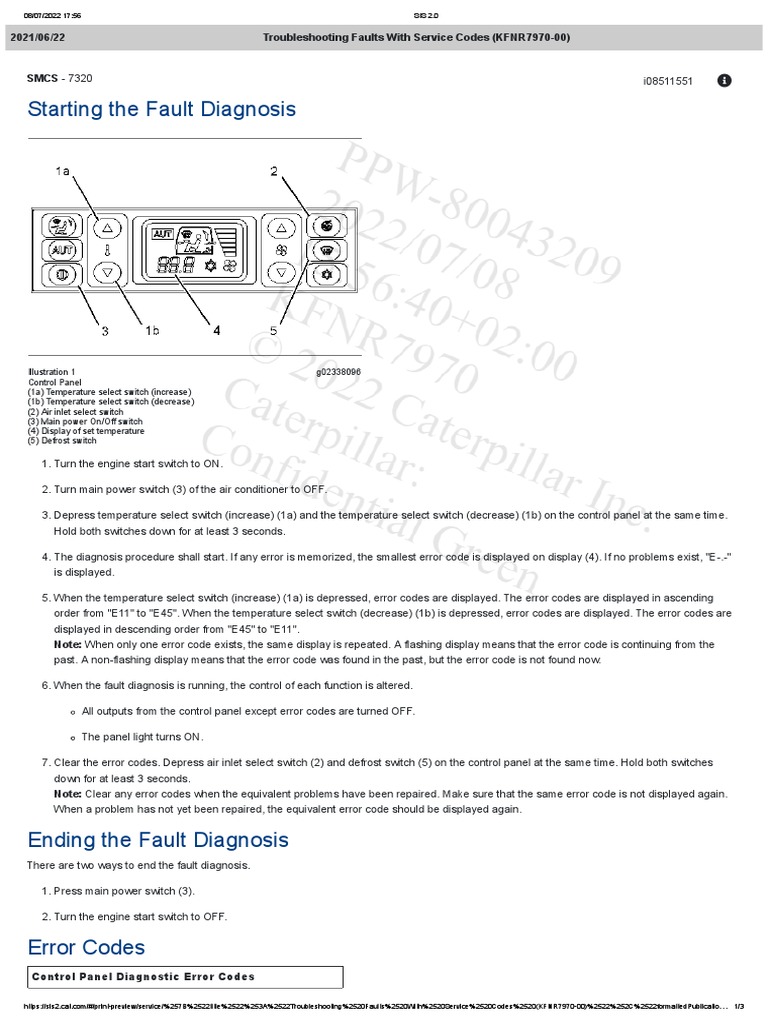

Starting the Fault Diagnosis

Illustration 1 g02338096
Control Panel
(1a) Temperature
select switch (increase)

(1b) Temperature select switch (decrease)

(2) Air inlet select switch

(3) Main power On/Off switch

(4) Display of set temperature

(5) Defrost switch

1. Turn the engine start switch to ON.

2. Turn main power switch (3) of the air conditioner to OFF.

3. Depress temperature select switch (increase) (1a) and the temperature select switch (decrease) (1b) on the control panel at the same time.
Hold both switches down for at least 3 seconds.

4. The diagnosis procedure shall start. If any error is memorized, the smallest error code is displayed on display (4). If no problems exist, "E-.-"
is displayed.

5. When the temperature select switch (increase) (1a) is depressed, error codes are displayed. The error codes are displayed in ascending
order from "E11" to "E45". When the temperature select switch (decrease) (1b) is depressed, error codes are displayed. The error codes are
displayed in descending order from "E45" to "E11".
Note: When only one error code exists, the same display is repeated. A flashing display means that the error code is continuing from the
past. A non-flashing display means that the error code was found in the past, but the error code is not found now.

6. When the fault diagnosis is running, the control of each function is altered.

All outputs from the control panel except error codes are turned OFF.

The panel light turns ON.

7. Clear the error codes. Depress air inlet select switch (2) and defrost switch (5) on the control panel at the same time. Hold both switches
down for at least 3 seconds.
Note: Clear any error codes when the equivalent problems have been repaired. Make sure that the same error code is not displayed again.
When a problem has not yet been repaired, the equivalent error code should be displayed again.

Ending the Fault Diagnosis

There are two ways to end the fault diagnosis.

1. Press main power switch (3).

2. Turn the engine start switch to OFF.

Error Codes
Control Panel Diagnostic Error Codes

https://sis2.cat.com/#/print-preview/service/%257B%2522title%2522%253A%2522Troubleshooting%2520Faults%2520With%2520Service%2520Codes%2520(KFNR7970-00)%2522%252C%2522formattedPublicatio… 1/3
08/07/2022 17:56 SIS 2.0

Code  Problem Area  Problem

"E11"  Intake air temperature sensor  Open circuit
"E12"  Intake air temperature sensor  Short circuit
"E13"  Ambient air temperature sensor  Open circuit
"E14"  Ambient air temperature sensor  Short circuit
"E15"  Water temperature sensor  Open circuit
"E16"  Water temperature sensor  Short circuit
"E21"  Evaporator sensor  Open circuit
"E22"  Evaporator sensor  Short circuit
"E33"  Air outlet motor  Open/Short circuit(1)
"E34"  Air blend motor  Open/Short circuit (2)
"E35"  Air inlet motor  Open/Short circuit (3)
"E43"  Damper for air outlet  No movement
"E44"  Damper for air blend  No movement
"E45"  Damper for air inlet  No movement
"E51"  Refrigerant Pressure  High/Low error (4)

Table 1
(1)
(2) Refer to Air Conditioning E43 - Air Outlet Damper Error 
(3) Refer to Air Conditioning E44 - Air Blend Damper Error 
(4) Refer to Air Conditioning E45 - Air Inlet Damper Error 
Refer to Refrigerant System - Charge 
or Refrigerant Leakage - Test 

Inspecting a Wiring Harness

Electrical problems are often caused by faulty electrical wires that have either an open circuit or a short circuit. The following procedures explain
the test for an open circuit or a short circuit:

Reference: Refer to Schematic, Air Conditioning Electrical System 

for the correct electrical schematic.

Test for an open circuit.

1. Turn the battery disconnect switch key and the key start switch to the OFF position.
Note: A separate electrical wire must be used to perform an open circuit test. Any harness wire can be used.

2. Install a jumper (connecting wire) between the two electrical wires at one end of the harness.

3. Use a multimeter to check for continuity across the two electrical wires at the other end of the harness.

4. Turn the multimeter dial to the 200 ohm range and measure the electrical resistance.

Note: If there is continuity between the electrical wires, the multimeter will have a reading of less than 5 ohms. If there is not continuity, the
electrical wire is faulty. The electrical wire should be replaced with another wire of the same gauge.

Test for a short circuit.

1. Turn the battery disconnect switch key and the key start switch to the OFF position.

2. Disconnect the electrical wire.

3. Turn the multimeter dial to the 200 ohm range and measure the electrical resistance.

4. Use one multimeter probe to contact the connector of the faulty electrical wire.

5. Use the other probe from the multimeter to check for continuity across all other electrical wires in the same harness.

6. If there is continuity between any of the electrical wires, the multimeter will have a reading of less than 5 ohms.

Note: If there is not continuity, the electrical wire is faulty. The electrical wire should be replaced with another wire of the same gauge.
