3.

30
3.30

13.20
2.60

3.30

2.10
2.20

3.30
Top View Isometric View
1:100m 1:100m

1.8
3 . 5 3
1
3.30
1.83

Cable Car Design

3.30
1.83

13.20
1:200m
3.30
1.83

Section 1204. Enclosure of Vertical Openings.

(a) Elevator Enclosures. Walls and partitions enclosing elevators and escalators shall be of not less than the fire-resistive
3.30

construction required under the Types of Construction. Enclosing Walls of elevator shafts may consist of wire glass set in metal
1.83

frames on the entrance side only. Elevator shafts extending through more than two storeys shall be equipped with an
approved means of adequate ventilation to and through the main roof of the building: Provided, that in those buildings
housing Groups F and G Occupancies equipped with automatic fire extinguishing systems throughout, enclosures shall not be
2.60 2.20 required for escalators: Provided, further that the top of the escalator opening at each storey shall be provided with a draft
curtain. Such draft curtain shall enclose the perimeter of the unenclosed opening and shall extend from the ceiling downward
at least 300 millimeters on all sides. Automatic sprinkles shall be provided around the perimeter of the opening and within a
600 millimeters of the draft curtain. The distance between the sprinkles shall not exceed 1.80 meters center-to-center.

Single car elevators are common lifts used in small to medium sized commercial applications. Best used for smaller structures,

Front View Right SIde View a single car elevator system can come in a variety of car sizes to meet desired human, furniture, and equipment loads. Single
car elevator banks are generally used in buildings without high peak daily traffic or volume demands.

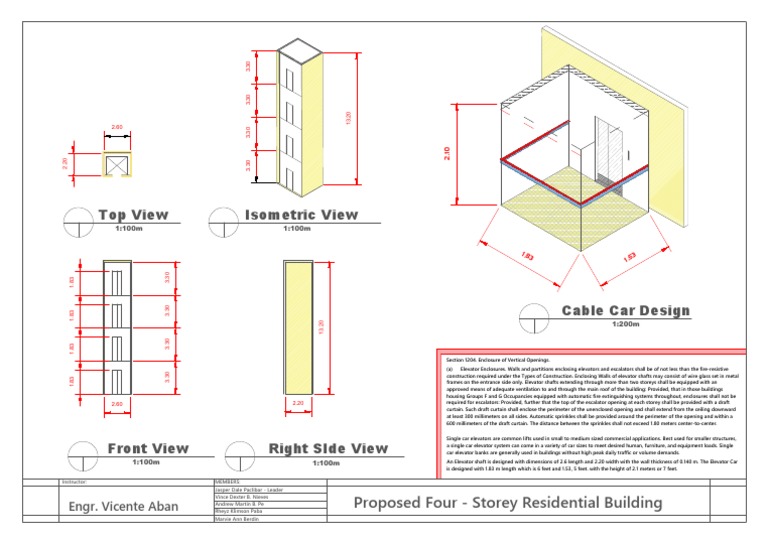

1:100m 1:100m An Elevator shaft is designed with dimensions of 2.6 length and 2.20 width with the wall thickness of 0.140 m. The Elevator Car
is designed with 1.83 m length which is 6 feet and 1.53, 5 feet. with the height of 2.1 meters or 7 feet.

Instructor: MEMBERS:
Jasper Dale Paclibar - Leader
Vince Dexter B. Nieves

Engr. Vicente Aban Andrew Martin B. Pe

Rheyz Klimson Paba
Proposed Four - Storey Residential Building
Marvie Ann Berdin
