ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

?
2

3
4
5

120
150

250 °C
300
°F
0
10

TRANS
OIL
TEMP

9
Misc

V06071

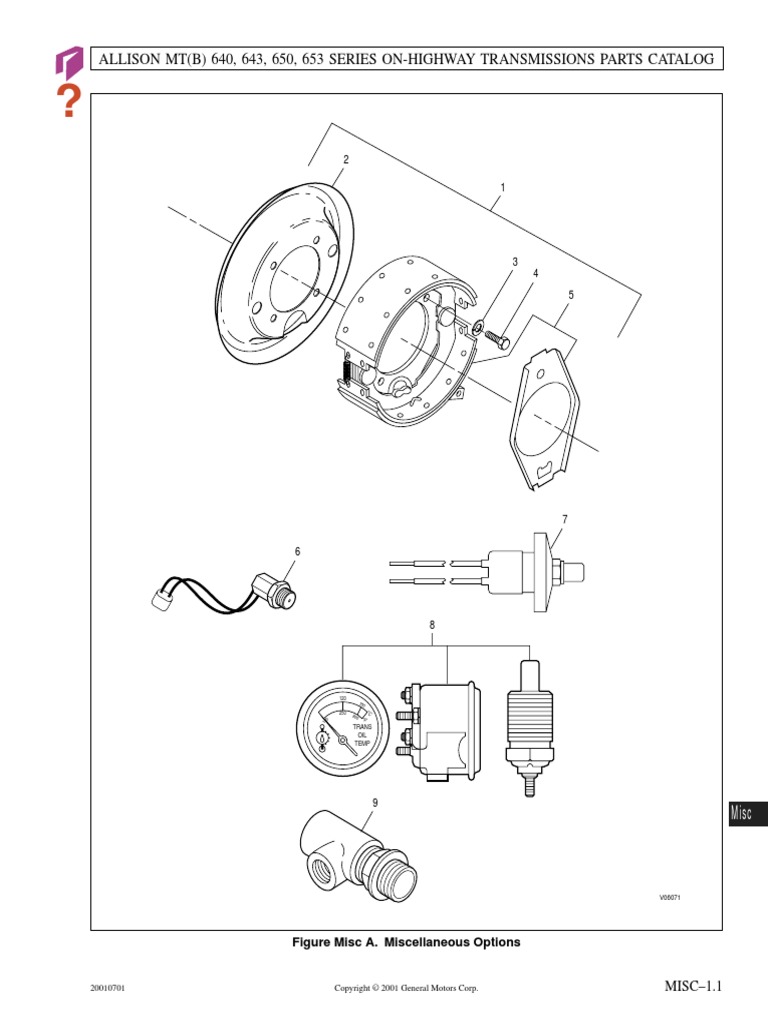

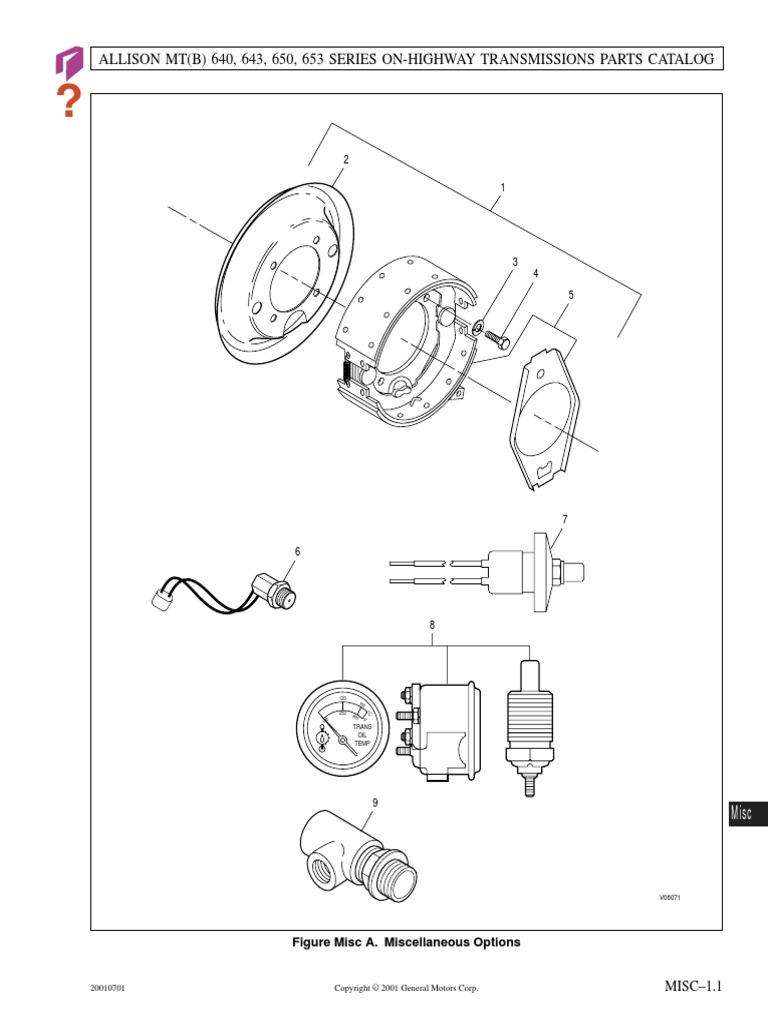

Figure Misc A. Miscellaneous Options

20010701 Copyright © 2001 General Motors Corp. MISC–1.1

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? 1

7
2

3 8
4 9
5
16 6 12
17
13
19 10
18 14
11
15

24

25

20 21
26
22
23 31

;;;;;;;;
32

;;;;;;;;
;;;;;;;;
29
;;;;;;;;
;;;;;;;;
;;;;;;;;
30
27

Misc
28
;;;;;;;;
;;;;;;;;
;;;;;;;; V06072

Figure Misc B. Miscellaneous Options

MISC–1.2 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

?
;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;
;;;;;;;;;;;;;
;;;
;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;;;;;;;;;;;
1

;;;;;;;;;;;;;
;;;;;;;;;;;;;
11
12
;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;
10
9

;;;;;;;;;;;;;
;;;
;;;
SEE FIG. 23
SPECIAL PARTS
2

;;;;;;;;
4
6

;;;;;;;;
;;;;;;;;
8

;;;;;;;;
;;;;;;;;
;;;;;;;;
;;;;;;;;
Misc

;;;;;;;;
7

Figure Misc C. Miscellaneous Options

;;;;;;;; V06073

20010701 Copyright © 2001 General Motors Corp. MISC–1.3

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

3
2 4
5

7
8

Misc

V06085

Figure Misc D. Miscellaneous Options

MISC–1.4 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP A
Miscellaneous Options, Figure Misc A
Parking Brake
REF PART
NO. NOMENCLATURE NO. REQ
1 Parking Brake Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6834195 ** 1
2 Shield, Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6772107 1
3 Lockwasher, 5⁄8 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115553 4
4 Bolt, 5⁄8-11 x 1.380 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6772110 4
5 Brake Assembly, Timken 12 x 4 inch . . . . . . . . . . . . . . . . . . . . . . . 6772106 1
6–9 Not Used In This Group.

GROUP B
Miscellaneous Options, Figure Misc A
Neutral Start Switch
1–5 Not Used In This Group.
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511976 1
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511977 1
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511978 1
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511979 1
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511980 1
6 Switch, Neutral Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29511981 1
7 Switch, Pressure, 3–6 psi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049150 1
7 Switch, Pressure, 6–9 psi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29522443 1
8–9 Not Used In This Group.
NI Service Kit, Reverse Switch. Kit Contains 29536590 Instruction Sheet
No. 288, Two 12048074 Socket Terminals, Two 12048086 Wire
Seals, 12052634 Metri-pack 150 Series Secondary Lock, And
12052641 2-Way Metri-pack Series 150 Connector, Used To
Connect 29503665 Reverse Switch To The Vehicle Wiring. . . . . . 29536589 1

GROUP C
Miscellaneous Options, Figure Misc A
Oil Temperature Gauge Kit
1–7 Not Used In This Group.
8 Gauge Kit, Oil Temperature. Kit Contains 8992253 Temperature
Gauge, 8993105 Temperature Sender Assembly,
8985150 Wiring Harness, 131282 Bulb, 9428754 Nut, Two
134530 Nuts, 6880750 Decal, and 6880752 Instruction Sheet.
NOTE: On All MT 600 Models, Also Order 6882099 Tee
Adapter Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6880751 1 Misc
9 Fitting, Tee Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6882099 1

** Not Serviced As An Assembly — Order Detail Parts.

NI — Not Illustrated.

20010701 Copyright © 2001 General Motors Corp. MISC–2.1

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP D
Miscellaneous Options, Figure Misc B
Remote Mount Assembly
REF PART
NO. NOMENCLATURE NO. REQ
1 Remote Mount Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2646534 ** 1
2 Bolt, 3⁄8-24 x 1 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9409035 2
3 Locktab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2646650 ### 2
4 Retainer, Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29525010 ### 1
5 Shim, 0.025 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2646648 ### AR
5 Shim, 0.005 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2646649 ### AR
6 Flange Assembly, Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2646532 ### 1
7 Not Used In This Group.
8 Bolt, 5⁄16-18 x 11⁄4 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179820 6
9 Lockwasher, 5⁄16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103320 6
10 Spacer, Converter Pump Front. Used With 23015866 Bearing
Retainer Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23015865 ### 1
11 Seal, Oil, Converter Pump Front. Used With 23015866 Bearing
Retainer Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23015867 ### 1
12 Retainer, Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29525009 ### 1
13 Bearing Assembly, Single-Row Ball . . . . . . . . . . . . . . . . . . . . . . . . 3351582 ### 1
14 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3351581 ### 1
15 Spacer, Bearing, 2.174 ID x 21⁄2 OD x 1.123 inch . . . . . . . . . . . . . 29525011 ### 1
16 Bolt, 1⁄4-20 x 1⁄2 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454812 ### 2
17 Lockwasher, 1⁄4 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103319 2
18 Cover, Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354658 ### 1
19 Cover, Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354656 ### 1
20 Pin, Cotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103405 ### 1
21 Cover, Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354659 ### 1
22 Lockwasher, 1⁄4 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103319 2
23 Bolt, 1⁄4-20 x 1⁄2 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454812 ### 2
24 Bearing Assembly, Single-Row Ball . . . . . . . . . . . . . . . . . . . . . . . . 3351582 ### 1
25 Shaft, Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354657 ### 1
26 Bolt, 3⁄8-24 x 3⁄4 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9409131 6
27 Plate, Input Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354745 ### 1
28 Adapter, Drive Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5148012 ### 1
29 Plate, Wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354629 ### 1
30 Bolt, 1⁄2-13 x 1 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9409258 6
31 Lockwasher, 3⁄8 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103321 12
32 Bolt, 3⁄8-16 x 11⁄8 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179840 12

Misc

** Not Serviced As An Assembly — Order Detail Parts.

### Purchase From GM Sliedrecht Service Department.

MISC–2.2 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP E
Miscellaneous Options, Figure Misc B
Remote Mount Assembly
Same As Group D, Except For Parts Listed Below.

REF PART
NO. NOMENCLATURE NO. REQ
1 Remote Mount Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354744 ** 1
6 Not Used In This Group.
7 Flange Assembly, Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3354660 1

GROUP F
Miscellaneous Options, Figure Misc C
Shipping Plugs
1 Plug Assembly, Shipping, Oil Pan Fill Tube Flange . . . . . . . . . . . . . . . 29537417 1
2–12 Not Used In This Group.

GROUP G
Miscellaneous Options, Figure Misc C
Engine Adaptations
DDA 8.2 Liter
1 Not Used In This Group.
2 Flexplate Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23013496 1
3 Ring, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23013497 1
4 Bolt, M10 x 1.5 x 15 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049056 6
5 Lockwasher, M10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11500192 12
6 Bolt, M10 x 1.5 x 35 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11500725 12
7 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8920162 @@ 8
8 Plate, Wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8922125 @@ 1
9–12 Not Used In This Group.

GROUP H
Miscellaneous Options, Figure Misc C
12V, 24V Modulator Assemblies
1–8 Not Used In This Group.
9 Modulator, 24V Electric. See SPI 27-TR-94. . . . . . . . . . . . . . . . . . . . . . 29508037 1
10 O-ring, 17.12 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8658110 1
11 Modulator, 12V Electric. See SPI 27-TR-94. . . . . . . . . . . . . . . . . . . . . . 29508036 1
12 O-ring, 17.12 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8658110 1
Misc

. ** Not Serviced As An Assembly — Order Detail Parts.

@@ Supplied By Engine Manufacturer.

20010701 Copyright © 2001 General Motors Corp. MISC–2.3

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP J
Miscellaneous Options, Figure Misc D
Engine Adaptations
Mercedes OM900
REF PART
NO. NOMENCLATURE NO. REQ
1 Transmission Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537321 1
2 Nut, 3⁄8-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23014107 6
3 Flexring Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537322 1
4 Bolt, M10 x 1.5 x 15 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049056 6
5 Flexplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537325 1
6 Ring Assembly, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . 29537323 1
7 Ring, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537324 * 1
8 Nut, Clinch, M10 x 1.5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 29525649 6
9 Plate, Wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537326 1

Misc

* Serviced Only As An Assembly — Not Available As A Detail Part.

MISC–2.4 Copyright © 2001 General Motors Corp. 20010701
