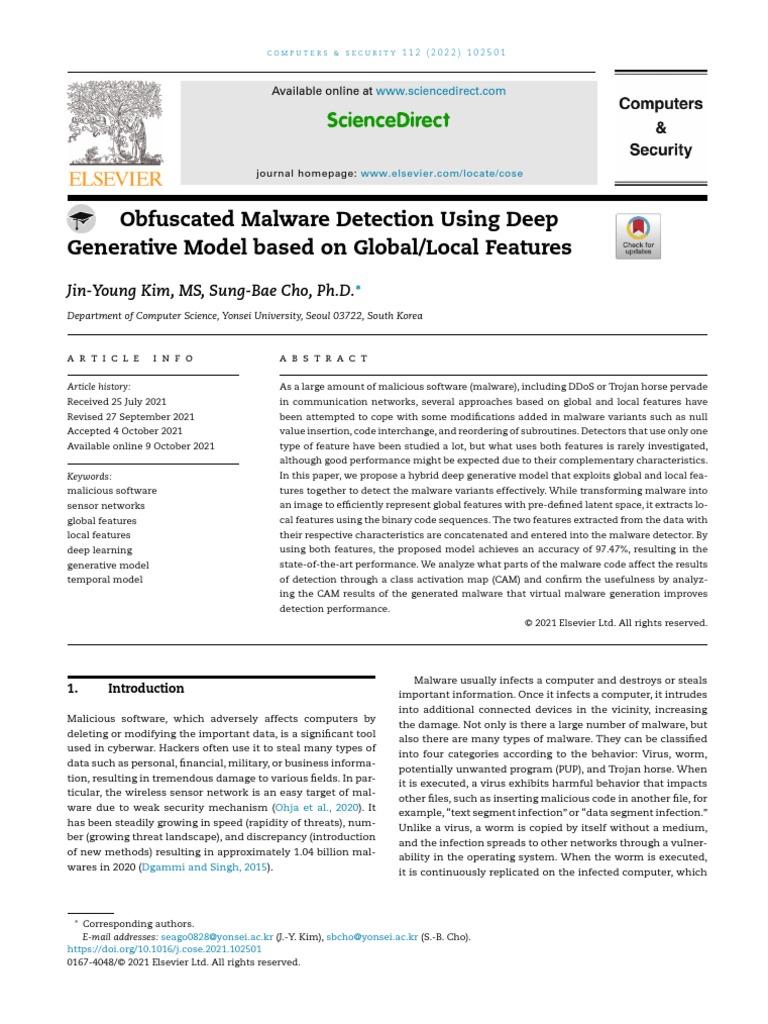

Obfuscated Malware Detection Using Deep

Generative Model based on Global/Local Features

Jin-Young Kim, MS, Sung-Bae Cho, Ph.D. ∗

Department of Computer Science, Yonsei University, Seoul 03722, South Korea

a r t i c l e i n f o a b s t r a c t

Article history: As a large amount of malicious software (malware), including DDoS or Trojan horse pervade
Received 25 July 2021 in communication networks, several approaches based on global and local features have
Revised 27 September 2021 been attempted to cope with some modifications added in malware variants such as null
Accepted 4 October 2021 value insertion, code interchange, and reordering of subroutines. Detectors that use only one
Available online 9 October 2021 type of feature have been studied a lot, but what uses both features is rarely investigated,
although good performance might be expected due to their complementary characteristics.
Keywords: In this paper, we propose a hybrid deep generative model that exploits global and local fea-
malicious software tures together to detect the malware variants effectively. While transforming malware into
sensor networks an image to efficiently represent global features with pre-defined latent space, it extracts lo-
global features cal features using the binary code sequences. The two features extracted from the data with
local features their respective characteristics are concatenated and entered into the malware detector. By
deep learning using both features, the proposed model achieves an accuracy of 97.47%, resulting in the
generative model state-of-the-art performance. We analyze what parts of the malware code affect the results
temporal model of detection through a class activation map (CAM) and confirm the usefulness by analyz-
ing the CAM results of the generated malware that virtual malware generation improves
detection performance.
© 2021 Elsevier Ltd. All rights reserved.

Malware usually infects a computer and destroys or steals

1. Introduction important information. Once it infects a computer, it intrudes
into additional connected devices in the vicinity, increasing
Malicious software, which adversely affects computers by
the damage. Not only is there a large number of malware, but
deleting or modifying the important data, is a significant tool
also there are many types of malware. They can be classified
used in cyberwar. Hackers often use it to steal many types of
into four categories according to the behavior: Virus, worm,
data such as personal, financial, military, or business informa-
potentially unwanted program (PUP), and Trojan horse. When
tion, resulting in tremendous damage to various fields. In par-
it is executed, a virus exhibits harmful behavior that impacts
ticular, the wireless sensor network is an easy target of mal-
other files, such as inserting malicious code in another file, for
ware due to weak security mechanism (Ohja et al., 2020). It
example, “text segment infection” or “data segment infection.”
has been steadily growing in speed (rapidity of threats), num-
Unlike a virus, a worm is copied by itself without a medium,
ber (growing threat landscape), and discrepancy (introduction
and the infection spreads to other networks through a vulner-
of new methods) resulting in approximately 1.04 billion mal-
ability in the operating system. When the worm is executed,
wares in 2020 (Dgammi and Singh, 2015).
it is continuously replicated on the infected computer, which

∗
Corresponding authors.
E-mail addresses: seago0828@yonsei.ac.kr (J.-Y. Kim), sbcho@yonsei.ac.kr (S.-B. Cho).
https://doi.org/10.1016/j.cose.2021.102501
0167-4048/© 2021 Elsevier Ltd. All rights reserved.
2 computers & security 112 (2022) 102501
adversely affects the memory and CPU of the computer. PUP is
installed with the user’s unintended consent. It may consist of
code that can weaken computer’s security or invade privacy. A
Trojan horse misleads the original intention of the user by per-
forming a hidden function after the attacker has confused the
target for the intended purpose. It is well known that wireless
sensor network (WSN) is vulnerable to the malware because it
can spread in entire sensor network through neighboring sen-
sor nodes when a single node gets compromised by malware
(Acrali et al., 2019; Biswal and Swain, 2019; Ohja et al., 2020).
The data used in this paper were collected in the Kaggle
Microsoft Malware Classification Challenge. Rinnen et al. sum-
marized existing studies that used the same data (Ronen et al.,
2018). Ramnit (R), Kelihos version 3 (K3), Simda (S), and Kelihos
version1 (K1) belong to a botnet that can be used to steal data,
allow the attacker to access the computer and its connec-
tion, and perform distributed denial-of-service (DDos). Vundo
(V), Simda (S), Tracur (T), and Gatak (G) can belong to Trojan
horse malware that misleads the true intentions of user. De-
spite they seem to be normal software, they will cause damage
to the computer by executing malicious behavior when run-
ning. Lollipop (L) is an adware that produces profits for the de-
veloper by automatically showing advertisements on the user
computer.
Malware developers typically produce it with some modi-
fications such as null value insertion, code exchange, or reor-
ganization of subroutines to prevent its detection by vaccine
systems (You and Yim, 2010). The top image in Fig. 1 shows
examples of null value insertion and the bottom image shows
reorganization of subroutines. For the detection of such mal-
ware, detectors have been studied focusing on two main fea-
tures: global and local features. Malware has a global feature
that represents the overall characteristics of malware, such
as the developer’s signature. However, the malware detection
method based on this is vulnerable to local changes such as
null value insertion shown in Fig. 1.The approach of detecting
malware based on local features at the contrary is vulnerable
to global transformations such as the reorganization of sub-
routines depicted in Fig. 1. Since malware developers typically
produce it with both of them to prevent its detection by vac-
cine systems, it is necessary to detect malware while consid-
ering the global and local characteristics simultaneously. Re-
cently, many studies have been conducted to detect malware
using both features. However, they have the disadvantage that
they do not consider characteristics for each feature because
they model both features with one model.
To overcome these limitations, we propose a novel method
to generate modified malware and train the detector using
generated image-level data and code-level information simul-
taneously. To train the detector, we pre-define the latent space
where the characteristics of the data are embedded to gener-
ate more sophisticated malware with representation learning
based on variational autoencoder (VAE). The encoder learns to
project data to a specific latent space according to the features.
The decoder reconstructs the latent variable present in the la-
tent space by the encoder. They interact with each other and
learn to define data representation. We exploit the decoder
and encoder for the generative model to produce the com-
petitive new data and to confirm that the generator creates
appropriate data, respectively. After the generation phase, the
encoder can extract the features of malware effectively. The
trained encoder allows to construct a detector which is robust
to the modification. In this method, the code-level informa-
tion of the malware is lost, so we use a model that extracts the
features of the code sequence and delivers it to the detector.
Then, the two characteristics of malware are combined and
used to classify the malware. We can represent malware data
as assembly code, binary code, or a malware image. Malware
images are described in detail later. The main contributions of
this paper are as follows.
• A novel method is proposed for detecting malware by us-
ing global and local features to overcome the limitations of
the existing approaches and achieves state-of-the-art per-
formance compared with the conventional methods.
• We focus on malware deformability and construct a deep
generative model that can solve the obfuscation problem.
It generates the virtual malware directly and improves the
performance of the detector by making the detector being
robust to modification.
• The effect of generated malwares is verified by analyzing
the what parts of the malware code affect the results of de-
tection through a class activation map (CAM) and we con-
firm the usefulness that virtual malware generation im-
proves detection performance.
The rest of this paper is organized as follows. Section 2 in-
troduces several related works for malware detection and dis-
cusses the limitations. In Section 3, we propose and explain
our method to detect malware variants as well as solve the
limitations. The performance of our method is verified in
Section 4 with several experiments. Lastly, we present the con-
clusions and future works in Section 5.
2. Related Work
Several researchers have studied on the malware since the
harmful impact caused has increased, resulting in the neces-
sity of detecting various malware effectively. The approaches
to detect malware are divided into three types: global feature
modeling, local feature modeling and hybrid feature model-
ing. Several novel features which are based on hex dump or
collected from disassembled files are proposed by Ahamdi
et al. to show distinctive characteristics of different mal-
ware groups (Agmadi et al., 2016). Drew et al. applied a high-
throughput method for gene sequence classification to mal-
ware detection (Drew et al., 2016). Narayanan et al. analyzed
the performance of machine learning and pattern recognition
algorithms for malware classification by visualizing the mal-
ware as Nataraj did (Nataraj et al., 2011; Narayanan, 2016).
Function call graph (FCG) representation was proposed by
Hassen and Chan by using clustering method (Hassen and
Chan, 2017). Hassen et al. presented a new feature based on
control statement shingling (Hassen et al., 2017). Norton and
Qi proposed a visualization tool for the performance of adver-
sarial samples (Norton and Qi, 2017). A theoretical framework
was proposed by Wang et al. to decrease a gap of many recent
studies (Wang et al., 2016).
 computers & security 112 (2022) 102501
In a study in the global feature modeling, Nataraj et al.
proposed a malware classifier using a novel preprocessing
method that converts the binary code to malware image
(Drew et al. 2016). The malware images shown in Fig. 1 are
the results of this preprocessing method. Dahl et al. classi-
fied malware with neural networks using random projections
(Dahl et al., 2013). This preprocessing method was also used by
Garcia et al. who detected malware with random forest (RF)
(Garcia et al., 2016). Wang et al. proposed a detector which
is robust to some modifications by randomly nullifying fea-
tures of malware (Wang et al., 2017). However, there was a risk
of cancelation of significant characteristics, since they elim-
inated features randomly. Kim et al. proposed a generative
model which produces the virtual malware for a detector to
be robust to some obfuscations (Kim et al., 2018). Kim and
Cho pre-defined the latent space and constructed a hybrid
generative deep learning model with the global features only
(Kim and Cho, 2018).
Global feature modeling makes it difficult to detect mal-
ware with obfuscation on local, which can be overcome by
local feature modeling. Christodorescu et al. made templates
for the behavior of malware and compared them with a given
malware (Christodorescum et al., 2005). It can capture the be-
havior of malware directly, but the performance strongly de-
pends on the number of templates. Akritidis et al. defined
the general characteristics of malware (Akritidis et al., 2005).
Berlin et al. and Ye et al. used the Windows API and Windows
Audit Log for detecting malware using log data (Berlin et al.,
2015; Ye et al., 2017). To solve the problems that previous works
had (such as vulnerable to modifications), Jordaney et al. pro-
posed a Transcend, which is a sustainable malware classifier
(Jordaney et al., 2017). Lin et al. proposed a fast detector to
overcome the high time complexity (Lin et al., 2018). Those
studies tried detecting malware by defining and analyzing the
local characteristics of them.
Methods to construct advanced detector which considers
both characteristics of malware have been studied. Yuan et al.
proposed a method to utilize more than 200 features for An-
droid malware detection (Yuan et al., 2014). Su et al. extracted
five types of global features and built the deep learning model
to learn features from Android apps. The learned features are
used to detect unknown Android malwares (Su et al., 2016). Ye
et al. constructed AiDroid which extracted heterogeneous in-
formation of malware (Ye et al., 2018). Wang et al. trained the
deep autoencoder based on convolutional neural networks to
represent the characteristics of malware in unsupervised way
(Wang et al., 2019). Kim et al. modelled many kinds of features
such as permissions, environmental information, Dalvik Op-
code, etc. using multimodal neural network. However, in this
approach, each kind of features were modeled just with one-
hot encoding (Kim et al., 2019).
The related studies on malware detection are summarized
in Table 1. They include various methods to ex-tract features
and detect malware with extracted characteristics or analyzed
logs. In this paper, we propose a novel method that generates
virtual malware from the pre-defined latent space for being
robust to obfuscations. Besides, since the code-level informa-
tion of malware is lost in this method, we extend the model
that processes time series modeling in parallel.
3
The related studies on malware detection are summarized
in Table 1. They include various methods to extract features
and detect malware with extracted characteristics or analyzed
logs. In this paper, we propose a novel method that generates
virtual malware from the pre-defined latent space for being
robust to obfuscations. Besides, since the code-level informa-
tion of malware is lost in this method, we extend the model
that processes time series modeling in parallel.
3. The Proposed Method
The entire process, as shown in Fig. 2, is divided into three
phases: 1) global feature modeling (image-level feature extrac-
tion); 2) local feature modeling (code-level feature extraction);
and 3) malware detection.
The first and second parts are described in Fig. 2(a) and 2(b),
respectively. The encoder E is used in the third phase. When
going from 1 to 3, we use transfer learning (Arnold et al., 2007).
This method allows more effective training tasks by reusing a
similar model that solves the similar tasks on a different do-
main. It can be regarded as passing down the capacity to the
other. For the global feature modeling, the malware codes in
binary format are pre-processed as malware images to be used
in the proposed model. To robustly cope with malware obfus-
cation, process of defining the latent space where the char-
acteristics of malware are embedded and generating a mal-
ware image is performed. As shown in Fig. 2(a), the charac-
teristics of malware images are extracted into the pre-defined
latent space by autoencoder consisting of the encoder E and
the decoder D. The virtual malware is generated from the pre-
defined latent space and strengthens the feature extractor f i .
On the other hand, as illustrated in Fig. 2(b), for the local fea-
ture modeling, the malware codes are pre-processed as the
sequence of binary codes. Finally, extracted features are con-
catenated and used as input of detector.
3. 1. Global Feature Modeling
3.1.1. Defining Latent Space
Autoencoders composed of an encoder and decoder have
usually been used to learn the data representation and are
used in various fields (Hosseini-Asl et al., 2016; Han et al.,
2016; Zeng et al., 2017; Guo et al., 2018; Nicolau and McDer-
mott, 2018; Zhang et al., 2018c). The VAE is one of the methods
to learning complex distributions (Kingma and Welling, 2013).
The basic process of an autoencoder is
z ∼ Enc(x ) = Q (zx ), (1)
x ∼ Dec(z ) = P(xz ), (2)
where z is a latent variable and x is a data value. We project
data x to latent variable z with an encoder Q, and reconstruct
z to x with a decoder P. This technique can learn a data repre-
sentation, but compressed data is hidden to us, i.e., the mean-
ing of the latent variable value is unknown to us. To con-
firm which characteristics of data are compressed and recon-
structed, we compress and reconstruct the data value xi with
4 computers & security 112 (2022) 102501

Table 1 – The summary of the related works.

Category Input Pros Cons

Feature Engineering Binary malware code Make data easy to Loss some information
detect malicious feature of malware
Global Feature Modeling Malware images, Analyze the entire Be vulnerable to local
developers’ signature characteristics of transformation
malware
Local Feature Modeling Dalvik code, API call Cope with the Be difficult to detect the
sequences obfuscation of malware comprehensive features
of the malware
Hybrid Feature Hybrid of above features Consider the both of Construct relatively
Modeling characteristics of complex model
malware

Fig. 1 – Example of obfuscation of malware. (Top) Modification by null value insertion and (Bottom) reordering of subroutines.

i-feature into a corresponding space Q(zi xi ). The changed au-
toencoder process is
zi ∼ Enc(xi ) = Q (zi xi ),
xi ∼ Dec(zi ) = P(xi zi ),
where xi and zi represent x and z including i-feature. When
the encoder learns, it is regularized by putting a prior over the
distribution P(z ). Typically, z ∼ N (0, I ) is chosen, but we choose
zi ∼ N (μi , I ) for dealing with a specific characteristic. The final
objective function is sum of the VAE loss and the prior regu-
larity, as in
L = Ezi ∼Q (zi xi ) [log P(xi zi )] + DKL [Q(zi | xi  P(zi )]
= LVAE + L prior
where DKL is the Kullback-Leibler divergence to compute the
distance between the distribution of encoded data Q(zi xi ) and
the prior distribution P(zi ). As a result of this training process,
the data of each feature are projected to the corresponding
latent space. Trained VAE is also reused in the process of gen-
erating malware, which is treated in more detail in the next
(3) section. Deconvolution layers are used to increase the dimen-
sion of latent variables to that of the data (Zeiler and Fer-
gus, 2013). We place a dropout layer, leaky ReLU activation
(4) layer, and batch normalization layer after every layer except
the last (Ioffe and Szegedy, 2015). The details of proposed VAE
used in this study for experiments of generation is following:
• Encoder: Input(128,256) - Conv2D 5∗ 5@16 (128,256,16) -
Conv2D 5∗ 5@32 (64,128,32) - Conv2D 5∗ 5@32 (64,128,32)
- Conv2D 5∗ 5@64 (32,64,64) - Conv2D 5∗ 5@64 (32,64,64) -
Conv2D 5∗ 5@128 (16,32,128) - Conv2D 5∗ 5@128 (16,32,128)
– Flatten (65536) – Dense (540) – Dense (270), Dense (270)
• Decoder: Sampling (270) – Dense (65536) – Reshape
(5)
(16,32,128) – deConv2D 2∗ 2@128 (32,64,128) – Conv2D
5∗ 5@64 (32,64,64) – Conv2D 5∗ 5@64 (32,64,64) – deConv2D
2∗ 2@64 (64,128,64) – Conv2D 5∗ 5@32 (64,128,32) – Conv2D
5∗ 5@32 (64,128,32) – deConv2D 2∗ 2@32 (128,256,32) –
Conv2D 5∗ 5@16 (128,256,16) – Conv2D 5∗ 5@1 (128,256,1)
 computers & security 112 (2022) 102501 5

Fig. 3 – Results of malware detection as a box plot. We repeat the experiments in ten times to validate the performance in
fair.

Fig. 4 – Results of malware detection as a box plot. We repeat the experiments in ten times to validate the performance in
fair. CNN (Image) and LSTM (Code) models use only single-feature and CNN+LSTM (Image+Code) model uses both global
and local features, but not pre-trained latent space.

3.1.2. Generating Data
To cope with the obfuscations of malware, we propose a gen-
erative model that produces virtual malware for the detector
to be robust to modification. GAN has been attractive model in
data generation and is used in various fields (Goodfellow et al.,
2014; Zhang et al., 2018a; Zhang et al., 2018b; Creswell and
Bharath, 2018; Arjovsky et al., 2017). The learning process of
GAN is to train G, which produces data, and D, which distin-
guishes the generated data with the real data, at the same
time. Eq. (6) shows the loss function of a GAN. pdata is the dis-
tribution of the actual data. G(z ) is created from a distribution
pz by the G, and it is classified with the actual data by the D.
The D is trained to maximize V(D, G ) as D(x) is to 1 and D(G(z ) )
is to 0, and G is trained to minimize V(D, G ) as D(G(z ) ) of the
second term is to 1.1
Because there is a disadvantage of the original GAN in that
the produced data are incomplete because of the unstable
training process of the G, we pre-train G with the proposed
VAE decoder. The goal of the learning process of G is in (7)
from (6); it is equivalent to (8), but is related to D. Therefore,
we change (8) to (9), using only G. In this study, to pre-train G
with (9), we reuse the proposed VAE, which includes the en-
coder and decoder, and then transfer the decoder into G. The
result is | pdata − pVAE
G | ≤ | pdata − pG |, so that it can reach the
goal of GAN ( pdata ≈ pG ) stably.
min log (1 − D(G(z ) ) ) (7)
G
⇔ D (G (z ) ) ≈ 1 (8)

min max V (D, G ) = min max Ex∼pdata (x ) [logD(x )]

G D G D
⇔ G(z ) ≈ x ∈ χ , where χ is real dataset (9)
+Ez∼pz (z ) [log (1 − D(G(z ) ) )] (6)

From a game theory point of view, when the discriminator

and the generator reach the Nash equilibrium, the GAN con-
1
We detach index i for general representation. verges to the optimal saddle point. In this discussion, let pG be
6 computers & security 112 (2022) 102501

Fig. 5 – Confusion matrices of (a) CNN (image), (b) LSTM (code), (c) CNN+LSTM (image+code), and (d) ours for malware
detection. Label indices are matched with ‘Ramnit’, ‘Lollipop’, ‘Kelihos ver. 3’, ‘Vundo’, ‘Simda’, ‘Tracur’, ‘Kelihos ver. 1’,
‘Ofuscation. ACY’, and ‘Gatak’ in order.

Fig. 6 – Examples of generated malware images

the distribution of data produced from the G. We show that if and D∗ , respectively.
G(z ) ≈ x, i.e., pdata ≈ pG , the GAN reaches the Nash equilibrium.
We define J(D, G ) = ∫x pdata (x )D(x )dx + ∫z pz (z )(1 − D(G(z ) ))dz J ( D ∗ , G ∗ ) ≤ J ( D ∗ , G )∀ G (10)
and K(D, G ) = ∫x pdata (x )(1 − D(x ) )dx+ ∫z D(G(z ) )dz. We train the
G and D to minimize J(D, G ) and K(D, G ), respectively, and we
define the Nash equilibrium of the GAN as a state that satis- K(D∗ , G∗ ) ≤ K(D, G∗ )∀D (11)
fies (10) and (11) where the two inequalities hold for any G and
Theorem 1. If pdata ≈ pG almost everywhere, then the Nash
D at the same time. We denote the fully trained G and D as G∗
equilibrium of the GAN is reached.
 computers & security 112 (2022) 102501
We need to prove the following two lemmas before proving
Theorem 1.
Lemma 1. J(D∗ , G ) can reach a minimum when pdata (x ) ≤ pG (x)
for almost every x.
Lemma 2. K(D, G∗ ) can reach a minimum when pdata (x ) ≥
pG∗ (x) for almost every x.
The proofs of Lemmas 1 and 2 were discussed by Kim
et al. (Kim et al., 2018). We assume that pdata ≈ pG . From
Lemma 1 and 2, if pdata ≈ pG , then J(D, G ) and K(D, G ) reach
minima. It means that the GAN reaches the Nash equilib-
rium and converges to optimal saddle points. By Theorem 1,
GAN converges when pd ≈ pg. Therefore, the proposed GAN
can reach the Nash equilibrium and converge to optimal sad-
dle points. By Theorem 1, the GAN converges when pd ≈
pg, and it is done to some extent by the modified VAE, i.e.,
| pd − pVAE
g | ≤ | pd − pg|, because the one goal of the modified
VAE is P(x|Q(zx )) ≈ x. Therefore, the proposed method is use-
ful to initialize the weight of the generative model.
In this study, the GAN framework is based on the Wasser-
stein GAN, whose objective function is (12). It defines the dif-
ference of distributions as Wasserstein distance, not Jensen-
Shannon as used in the vanilla GAN (Arjovsky et al., 2017;
Gulrajani et al., 2017). To verify that the data, which is pro-
duced from the latent space representing the i-feature, has
the i-feature, the encoder projects it back to the latent space
and the distance between the distribution of encoded data
Q(zi G(zi ) ) and the prior distribution N (μi , I ) is computed. The
objective function is (13).

max V (D, G ) = max Ex∼pdata (x ) [D(x )] − Ez∼pz (z ) [D(G(z ) )]

max V (D, G ) = max Ex∼pdata (x ) [D(x )] − Ez∼pz (z ) [D(G(z ) )]
−DKL [Q (zi G(zi ) )||N (μi , I )]]
The reason to use a GAN is to generate modified data
so as to be robust deformations of malware. Because a GAN
produces data with a randomly sampled from a distribution,
e.g. Gaussian distribution, new data have some modifications
compared to the real data, which expands the range of de-
tectable malware. Therefore, the encoder and D are robust to
modification (Radford et al., 2015), and we can train D with
more data.
The details of the constructed model used in this study for
the generation experiments are as follows. As in VAE, we place
a dropout layer, leaky ReLU activation layer, and batch normal-
ization layer after every layer except the last layer. The details
of constructed model used in this paper for experiments of
generation are following:
• Generator: Sampling (270) – Dense (65536) – Reshape
(16,32,128) – deConv2D 2∗ 2@128 (32,64,128) – Conv2D
5∗ 5@64 (32,64,64) – Conv2D 5∗ 5@64 (32,64,64) – deConv2D
2∗ 2@64 (64,128,64) – Conv2D 5∗ 5@32 (64,128,32) – Conv2D
5∗ 5@32 (64,128,32) – deConv2D 2∗ 2@32 (128,256,32) –
Conv2D 5∗ 5@16 (128,256,16) – Conv2D 5∗ 5@1 (128,256,1)
• Discriminator: Input(128,256) - Conv2D 5∗ 5@16 (128,256,16)
- Conv2D 5∗ 5@32 (6∗ 4,128,32) - Conv2D 5∗ 5@32 (64,128,32)
7
- Conv2D 5∗ 5@64 (32,64,64) - Conv2D 5∗ 5@64 (32,64,64) -
Conv2D 5∗ 5@128 (16,32,128) – Flatten (65536) – Dense (270)
– Dense (18) – Dense (1)
3.2. Local Feature Modeling
To solve the problem of previous works that miss the local fea-
tures, we propose a way to build a model that extracts the se-
quence features of malware code and passes them to the de-
tector. The malware codes are pre-processed as the sequence
of binary code to represent the local features. We construct
the model with 1D convolutional neural network (1D CNN)
to extract features of adjacent regions in the sequence using
Eq. (14) and long-short term memory (LSTM) to process tem-
poral features using Eq. (15) thorough (19) (Kim et al., 2016).

yli, j = σ  Ff =1 wl−1 · xl−1 + bl−1 (14)
f, j i+ f −1 j
where σ represents activation function, yli, j is l th layer’s output
in ith timestep and jth feature-map, F means the number of
feature-map, w is weight of l th layer, and x means the input.

p
it = σi wi pt + whi ht−1 + wci ◦ ct−1 + bi (15)

p
ft = σ f w f pt + whf ht−1 + wcf ◦ ct−1 + b f (16)

p
ot = σo wo pt + who ht−1 + wco ◦ ct−1 + bo (17)
(12)

p
ct = ft ◦ ct−1 + it ◦ wc pt + whc ht−1 + bc (18)
ht = ot ◦ σ (ct ) (19)
(13)
where it , ft , ot represent output of the input, forget, and output
gates, respectively, b is bias term, and ◦ operation means the
elementwise product.
3.3. Malware Detection with Transfer Learning
In the previous sub-process, we train the VAE with mixture
of multivariate Gaussian distribution for defining the latent
space and generating data for expanding the range of knowl-
edge space. Finally, we construct a detector with all the pre-
trained models by using transfer learning [38]. The encoder is
reused for detector so that the capacity of it is inherited. We
add a new fully-connected-layer to the detector and train it.
In the previous sub-process, we train the VAE with mixture
of multivariate Gaussian distribution for defining the latent
space and generating data for expanding the range of knowl-
edge space. Finally, we construct a detector with all the pre-
trained models by using transfer learning (Arnold et al., 2007).
The encoder is reused for detector so that the capacity of it is
inherited. We add a new fully-connected-layer to the detector
and train it.
The proposed detector can effectively extract the features
of malware by pre-defining the latent space while projecting
8 computers & security 112 (2022) 102501

wares for each type is described in Table 2. The number of train

Algorithm 1 – Obfuscated Malware Detector
and test datasets were 9,780 and 1,088, respectively.
Learning algorithm for the detector To convert the code into an image, we changed the num-
Input: Dataset T = {(xI1 , xT1 y1 ), . . . , (xIn , xTn , yn )} ber of hexadecimal values in one row. If k is the length of the
Output: Detector C
binary code, R is the size of the transformed row, and C is the
Initialize decoder P, encoder Q, and discriminator D
size of the transformed column, then the method for calculat-
for epochsVAE × batch do
Sample {(xIi , yi )}m a batch from T ing the transformed row and column size is given by
i=1
Sample {zi }mi=1
from the corresponding yi √
16k/ log 2+1
LVAE = −Ez ∼Q(z xI ) [logP(xIi |zi )]+DKL [Q(zi |xIi )||P(zi )] C = 2log ; R = 16k/C (20)
i i i
1 ∂L
θQ ← θ Q − m im=1 ∂VAEθQ ( x i , y i )
I

1 ∂ L All the models are trained with Adam optimizer, and

θP ← θ P − m im=1 ∂VAEθP ( x i , y i )
I

end for
the weights are initialized with a method proposed by Glo-
Generate G ← Q rot and Bengio (Kingma and Ba, 2014; Glorot and Bengio,
for epochsGAN ∗ batch do 2009).
Sample {(xII , yi )}mi=1
a batch from T
LGAN = 4.2. Detection Results
−ExI ∼p ( xI )
[logD(xIi )]+Ez ∼pz (z ) [log D(G(zi ) )]+DKL [Q(zi G(zi ) )||N (μi , I )]
i dat ai i i i i
1 m ∂ LGAN The performance of the proposed model is compared with
θD ← θ D − m i=1 ∂ θD (xi , yi )
I

1 m ∂ LGAN other conventional machine learning algorithms, such as a

θG ← θ G −
m i=1 ∂ θG ( x I
i
, yi )
θQ ← θ Q − 1 m ∂ LGAN quadratic discriminant analysis (QDA), support vector ma-
m i=1 ∂ θQ (xi , yi )
I

end for
Transfer Q to detector C
for epochsDet ect or ∗ batch do
Sample {(xIi , xTi , yi )}m
i=1
a batch from T
Lc = crossentropy(C(xIi , xTi ), yi )
1 m ∂ LC
θC ← θ C − m i=1 ∂ θC (xIi , xTi , , yi )
end for
Return C;
the characteristics to the corresponding area of latent space.
The extracted features of malware image and binary code se-
quence are concatenated and used to classify malware. The
algorithm for the whole process is shown in Algorithm 1.
4. Experiment
4.1. Dataset and Experimental Settings
To verify the performance of producing and detecting mal-
ware, we used the dataset from the Kaggle Microsoft Malware
Classification Challenge. Ramnit, Kelihos ver. 3, Simda, and
Kelihos ver. 1 can be classified as a botnet that can be used
to perform DDos attacks, steal data, and allow the attacker to
access the computer and its connection. V, S, T, and G are a
Trojan horse that confuses the true intentions of user. Despite
they seem to be normal software, they will cause damage to
the computer by executing malicious code if run. Lollipop (L)
is an adware that produces profits for the developer by show-
ing advertisements in the user’s computer. Obfuscator. ACY
(O.ACY) is a combination of some methods.
The program data written in binary and assembly code are
given, and we used only the former. We converted the values
in hexadecimal to decimal numbers, which were normalized
into values of 0 to 1. The malware code is converted to an im-
age as Nataraj did, called a malware image. Then, since the
malware images were too large to use it in our model, the im-
ages were reduced to 128 × 128 pixels. The number of mal-
chine (SVM) with a polynomial kernel (Poly), linear discrim-
inant analysis (LDA), AdaBoost (AB), naïve Bayes (NB), k-
nearest-neighbors (k-NN), decision trees (DT), RF, and SVM
with radial basis function (RBF) kernel which are provided in
the scikit-learn library (sklearn). We also compare the per-
formance of the proposed model with deep neural networks
consisting of a convolutional neural network (CNN) for mal-
ware images and long short-term memory (LSTM) for the
sequence of raw code. The 10-fold cross validation is con-
ducted for the statistically meaningful results and they are
described in Fig. 3. The averaged accuracy is 97.47%, which
is better than other conventional methods. This is higher
than the performance of the previous research (Kim et al.,
2017, 2018; Kim and Cho, 2018, ), 95.74%, 96.97%, and 96.39%,
respectively.
We also verify our hybrid method with others on a sin-
gle feature. We compare the detection results as shown in
Fig. 4. CNN model uses only features of malware image (global
feature). Otherwise, LSTM model has only characteristics of
a sequence of raw malicious code (local feature). The hybrid
model (CNN+LSTM) has better performance than CNN and
LSTM models, but it is lower than that of ours, which means
the pre-trained method is useful in detecting malware. We an-
alyze the statistical significance of differences in performance
by each method through t-test. As shown in Table 1, all the
p-values are less than 0.05, which means there is a differ-
ence statistically. Besides, we calculate the F1-scores for each
malware type as shown in Table 3. The proposed method has
the best performance on all the malware types except ‘Gatak’,
but there is little difference. The detailed results are shown in
Fig. 5 as the confusion matrix. The averages shown in Table 4
differ from those in Table 3 because we do not consider the
number data in each class when we calculate the averages in
Table 4.
4.3. Effects of Generating Malware
The generated malware images with the actual images are il-
lustrated in Fig. 6. They look highly similar to the real images.
However, the image cannot be returned to the code because
 computers & security 112 (2022) 102501 9

Table 2 – Summary of malware data used in this study. The data are split for training and test at ratio of 9:1.

Malware type # training # test Description

Ramnit 1387 153 Worm
Lollipop 2249 229 Adware
Kelihos ver. 3 2620 322 Backdoor
Vundo 435 40 Trojan
Simda 35 7 Backdoor
Tracur 688 63 TrojanDownloader
Kelihos ver. 1 358 40 Backdoor
Obfuscator. ACY 1110 118 Obfuscated malware
Gatak 898 115 Backdoor

Table 3 – Numeric results of experiments. Since p-values are less than 0.05, there is a statistical significance of differences
in the performance by each model.

Image Code Image+Code The Proposed

Accuracy 94.49% 94.20% 95.86% 97.47%
Std. dev. 1.01 × 10−2 1.06 × 10−2 0.69 × 10−2 1.10 × 10−2
p-value 0.43 × 10−2 0.54 × 10−2 0.96 × 10−2 -

Table 4 – F1-scores of CNN (Image), LSTM (Code), CNN+LSTM (Image+Code), and the proposed method for different malware
types.

Type Image Code Image+Code The Proposed

Ramnit 0.9279 0.8693 0.6705 0.9742
Lollipop 0.9494 0.9742 0.9578 0.9806
Kelihos ver. 3 0.9984 0.9969 0.9969 1.0000
Vundo 0.9630 0.9351 0.9000 0.9877
Simda 0.4444 0.4444 0.2500 0.5455
Tracur 0.8870 0.8955 0.9043 0.9344
Kelihos ver. 1 0.9620 0.9367 0.9620 0.9750
Obfuscator. ACY 0.9250 0.9333 0.9191 0.9623
Gatak 0.8485 0.8560 0.9487 0.9464
Average 0.8817 0.8713 0.8677 0.9229

the size of image was reduced. We leave this issue of reducing
of the image size to future work. We find data which has sim-
ilar form to the produced data in the dataset with the struc-
tural similarity index measure (SSIM). The values of std. dev.
and SSIM of the malware including real and produced data
are 0.3308 and 0.1019, but those of only actual data are 0.3224
and 0.1068, respectively. This shows that the produced data
increase the variety of the malware. We performed an F-test
to check the statistical meaning of the difference in standard
deviation, resulting in a p-value of 0.0342
The malware image is roughly divided into subsections of
text and data (Nataraj et al., 2011). Among the methods of cre-
ating malware are text-segment infections and data-segment
infections, which add malicious code to text or data subsec-
tions. We showed our model to detect malware created in
these ways using the class activation map (CAM), which is a
method to find features that affect the results of the model
(Zhou et al., 2016). Fig. 7 illustrates the results of applying CAM
to the malware images. The brighter feature is important. The
malware images in the first and second rows are the results of
detection by features in the text and the data subsection, re-
spectively. The last row is the results of the CAM of the gener-
ated malware, which shows that the detector is strengthened
by generating key features in the text and the data subsec-
tions.
5. Conclusions
In this paper, we address the important problems caused by
malware. There are some modifications in newly generated
malware such as null value insertion. Other malware hides
their malicious behavior before execution. However, previous
research lacked to detect malware using all of these local and
global characteristics of malware. We propose a novel method
to generate the virtual malware to expand the range of knowl-
edge space as well as to detect malware with local and global
features; the malware images and the sequence of raw mali-
cious code. The proposed method achieves 97.47% of accuracy,
which is the highest performance compared with the conven-
tional models.
In the future, we will generate the sequence of malware
code as well as the malware images. After this process, we
will analyze the generated code and compare it with the real
10 computers & security 112 (2022) 102501

Fig. 2 – Architecture of the proposed method. Our method is composed of three modules: (a) extracting feature of malware
images through the encoder E, and generating malware from the pre-defined latent space, (b) handling the temporal feature,
and (c) detecting malware by exploiting previous models. Feature extractor of malware image and binary code sequence f i
and ft process each kind of data and pass them to the detector.

data. A complete system for detecting malware will be con-

structed and used for the real world. In particular, as a lot of
Declaration of Competing Interest
Android apps are installed on smartphones, we want to ana-
The authors declare that they have no known competing fi-
lyze various characteristics of Android malware and research
nancial interests or personal relationships that could have ap-
detectors based on this.
peared to influence the work reported in this paper.
 computers & security 112 (2022) 102501
Fig. 7 – Visualization of class activation map. The brighter feature (pixel) is important. The images in the first and the second
row are for real malware.
Acknowledgement
This work was supported by an IITP grant funded by the Ko-
rean government (MSIT) (No. 2020-0- 01361, Artificial Intelli-
gence Graduate School Program (Yonsei University)) and Air
Force Defense Research Sciences Program funded by Air Force
Office of Scientific Research.
R E F E R E N C E
Acrali D, Rajarajan M, Komninos N, Zarpelao BB. Modelling the
Spread of Botnet Malware in IoT-Based Wireless Sensor
Networks. Security and Communication Networks
2019;2019:1–13.
Ahmadi M, Ulyanov D, Semenov S, Trofimov M, Giacinto G. Novel
Feature Extraction, Selection and Fusion for Effective Malware
Family Classification. In: Proc. of the ACM Conf. on Data and
Application Security and Privacy; 2016. p. 183–94.
Akritidis P, Anagnostakis K, Markatos EP. Efficient Content-based
Detection of Zero-day Worms. IEEE. Int. Conf.
Communications 2005;2:837–43.
Arjovsky M, Chintala S, Bottou L. Wasserstein generative
adversarial networks. In: Int. Conf. on Machine Learning; 2017.
p. 214–23.
Arnold A, Nallapati R, Cohen W. A Comparative Study of Methods
for Transductive Transfer Learning. In: IEEE Int. Conf. on Data
Mining; 2007. p. 77–82.
Berlin K, David S, Joshua S. Malicious Behavior Detection using
Windows Audit Logs. Artificial Intelligence and Security
2015:35–44.
Biswal SR, Swain SK. Model for Study of Malware Propagation
Dynamics in Wireless Sensor Network. In: Int. Conf. on Trends
in Electronics and Informatics; 2019. p. 647–53.
Christodorescum S M, Jha SASeshia, Song D, Bryant RE.
Semantics-Aware Malware Detection. Security and Privacy
2005:32–46.
11
Creswell A, Bharath AA. Inverting the Generator of a Generative
Adversarial Network. IEEE Trans. on Neural Networks and
Learning Systems 2018 to be published.
Dahl GE, Stokes JW, Deng L, Yu D. Large-scale Malware
Classification using Random Projections and Neural
Networks. In: IEEE Int. Conf. on In Acoustics, Speech and
Signal Processing; 2013. p. 3422–6.
Dhammi A, Singh M. Behavior Analysis of Malware Using
Machine Learning. In: IEEE Int. Conf. on Contemporary
Computing; 2015. p. 481–6.
Drew J, Moore T, Hahsler M. “Polymorphic Malware Detection
using Sequence Classification Methods,” Security and Privacy
Workshops, pp. 81-87, 2016.
Garcia FCC, Muga II, Felix P. “Random Forest for Malware
Classification,” arXiv preprint arXiv: 1609.07770, 2016.
Glorot X, Bengio Y. Understanding the Difficulty of Training Deep
Feedforward Neural Networks. In: Int. Conf. on Artificial
Intelligence and Statistics; 2009. p. 249–56.
Goodfellow I, Pouget-Abadie J, Mirze M, Xu B, Warde-Farley D,
Ozair S, Courville A, Bengio Y. Generative Adversarial Nets.
Advances in Neural Information Processing Systems
2014:2672–80.
Gulrajani I, Ahmed F, Arjovsky M, Dumoulin V, Courville AC.
Improved Training of Wasserstein Gans. Advances in Neural
Information Processing Systems 2017:5767–77.
Guo Y, Jiao L, Wang S, Wang S, Liu F. Fuzzy Sparse Autoencoder
Framework for Single Image Per Person Face Recognition. IEEE
Trans. on Cybernetics 2018;48(8):2402–15.
Han J, Zhang D, Wen S, Guo L, Liu T, Li X. Two-stage Learning to
Predict Human Eye Fixations via SDAEs. IEEE Trans. on
Cybernetics 2016;46(2):487–98.
Hassen M, Carvalho MM, Chan PK. Malware Classification Using
Static Analysis based Features. In: IEEE Symposium Series on
Computational Intelligence; 2017. p. 1–7.
Hassen M, Chan PK. Scalable Function Call Graph-based Malware
Classification. In: Proc. of the ACM Conf. on Data and
Application Security and Privacy; 2017. p. 239–48.
Hosseini-Asl E, Zurada JM, Nasraoui O. Deep Learning of
Part-Based on Representation of Data Using Sparse
12 computers & security 112 (2022) 102501
Autoencoders with Nonnegativity Constraints. IEEE Trans. on
Neural Networks and Learning Systems 2016;27(12):2486–98.
loffe S, Szegedy C. “Batch Normalization: Accelerating Deep
Network Training by Reducing Internal Covariate Shift,” arXiv
preprint arXiv: 1502.03167, 2015.
Jordaney R, Sharad K, Dash SK, Wang Z, Papini D, Nouretdinov I,
Cavallaro L. Transcend: Detecting Concept Drift in Malware
Classification Models. In: Security Symposium; 2017. p. 625–42.
Kim Y, Jernite Y, Sontag D, Rush AM. Character-Aware Neural
Language Models. In: AAAI Conf. on Artificial Intelligence;
2016. p. 2741–9.
J Y, Kim JY, Bu SJ, Cho S-B. Malware Detection Using Deep
Transferred Generative Adversarial Networks. In: Int. Conf. on
Neural Information Processing; 2017. p. 556–64.
Kim JY, Bu SJ, Cho SB. Zero-day Malware Detection using
Transferred Generative Adversarial Networks based on Deep
Autoencoders. Information Sciences 2018;460-461:83–102.
Kim JY, Cho SB. Detecting Intrusive Malware with a Hybrid
Generative Deep Learning Model. In: Int. Conf. on Intelligent
Data Engineering and Automated Learning; 2018. p. 499–507.
Kim T, Kang B, Rho M, Sezer S, Im EG. A Multimodal Deep
Learning Method for Android Malware Detection Using
Various Features. IEEE Trans. on Information Forensics and
Security 2019;14(3):773–88.
Kingma DP, Ba J. “Adam: A Method for Stochastic Optimization,”
arXiv preprint arXiv: 1412.6980, 2014.
Kingma DP, Welling M. “Auto-encoding Variational Bayes,” arXiv
preprint arXiv:1312.6114, 2013.
Lin CH, Pao HK, Liao JW. Efficient Dynamic Malware Analysis
using Virtual Time Control Mechanics. Computer & Security
2018;73:359–73.
Narayanan BN, Djaneye-Boundjou O, Kebede TM. Performance
Analysis of Machine Learning and Pattern Recognition
Algorithms for Malware Classification. In: Aerospace and
Electronics Conf. and Ohio Innovation Summit; 2016.
p. 338–42.
Nataraj L, Karthikeyanm S, Jacob G, Manjunath BS. Malware
Images: Visualization and Automatic Classification. Proc. of
the Int. Symposium for Cyber Security, 2011.
Nicolau M, McDermott J. Learning Neural Representations for
Network Anomaly Detection. IEEE Trans. On Cybernetics
2018;99:1–14.
Norton AP, Qi Y. Adversarial-Playground: A Visualization Suite
Showing How Adversarial Examples Fool Deep Learning.
Visualization for Cyber Security 2017:1–4.
Ojha RP, Srivastava PK, Sanyal G, Gupta N, “Improved Model for
the Stability Analysis of Wireless Sensor Network Against
Malware Attacks,” Wireless Personal Communications, pp.
1-24, 2020.
Radford A, Metz L, Chintala S. “Unsupervised representation
learning with deep convolutional generative adversarial
networks,” arXiv preprint arXiv:1511.06434, 2015.
Ronen R, Radu M, Feuerstein C, Yon-Tov E, Ahmadi M. “Microsoft
Malware Classification Challenge,” arXiv preprint arXiv:
1802.10135, 2018.
Su X, Zhang D, Li W, Zhao K. A Deep Learning Approach to
Android Malware Feature Learning and Detection. IEEE
TrustCom, BigDataSEISPA 2016:244–51.
Wang B, Gao J, Qi Y. “A Theoretical Framework for Robustness of
(Deep) Classifiers under Adversarial Noise,” arXiv preprint
arXiv: 1612.00334, 2016.
Wang Q, Guo W, Zhang K, Alexander G, Ororbia II, Xinyu X,
Giles CLee, Xue L. Adversary Resistant Deep Neural Networks
with an Application to Malware Detection. In: Int. Conf.
Knowledge Discovery and Data Mining; 2017. p. 1145–53.
Wang W, Zhao M, Wang J. Effiective Android Malware Detection
with a Hybrid Model based on Deep Autoencoder and
Convolutional Neural Network. Journal of Ambient
Intelligence and Humanized Computing 2019;10(8):3035–43.
Ye Y, Chen L, Hou S, Hardy W, Li X. DeepAM: A Heterogeneous
Deep Learning Framework for Intelligent Malware Detection.
Knowledge and Information Systems 2017:1–21.
Ye Y, Hou S, Chen L, Lei J, Wan W, Wang J, Xiong Q, Shao F.
“AiDroid: When Heterogeneous Information Network Marries
Deep Neural Network for Real-time Android Malware
Detection,” arXiv preprint arXiv: 1811.01027, 2018.
You I, Yim K. Malware Obfuscation Techniques: A Brief survey. In:
IEEE Int. Conf. on Broadband, Wireless Computing,
Communication and Applications; 2010. p. 297–300.
Yuan Z, Lu Y, Wang Z, Xue Y, Droidsec ”. Deep Learning in
Android Malware Detection. ACM Conf. on Special Interest
Group on Data Communication 2014:371–2.
Zeiler MD, Fergus R. Visualizing and Understanding
Convolutional Networks. In: European Conference on
Computer Vision; 2013. p. 818–33.
Zeng K, Yu J, Wang R, Li C, Tao D. Coupled Deep Autoencoder for
Single Image Super-resolution. IEEE Trans. on Cybernetics
2017;47(1):27–37.
Zhang S, Ji R, Hu J, Lu X, Li X. Face Sketch Synthesis by
Multidomain Adversarial Learning. IEEE Trans. on Neural
Networks and Learning Systems 2018a to be published.
Zhang J, Peng Y, Yuan M. SCH-GAN: Semi-Supercised
Cross-Modal Hashing by Generative Adversarial Network. IEEE
Trans. on Cybernetics 2018b to be published.
Zhang B, Xiong D, Su J, Qin Y. Alignment-Supervised
Bidimensional Attention-Based Recursive Autoencoders for
Bilingual Phrase Representation. IEEE Trans. on Cybernetics
2018c to be published.
Zhou B, Khosla A, Lapedriza A, Oliva A, Torralba A. Learning Deep
Features for Discriminative Localization. In: Proc. of the IEEE
Conf. on Computer Vision and Pattern Recognition; 2016.
p. 2921–9.
J.-Y. Kim received a BS degree in mathemat-
ics from Yonsei University, Seoul, South Ko-
rea, in 2018. He is currently pursuing an MS
degree at the Department of Computer Sci-
ence, Yonsei University. His current research
interests include neural networks, artificial
intelligence, and controllable representation
learning.
S.-B. Cho received a BS degree in computer
science from Yonsei University, Seoul, Korea
and an MS degree and PhD in computer sci-
ence from Korea Advanced Institute of Sci-
ence and Technology (KAIST), Daejeon, Ko-
rea. He was an invited researcher in the Hu-
man Information Processing Research Lab-
oratories at the Advanced Telecommunica-
tions Research (ATR) Institute, Kyoto, Japan
from 1993 to 1995, and a visiting scholar
at the University of New South Wales, Can-
berra, Australia in 1998. He was also a vis-
iting professor at the University of British
Columbia, Vancouver, Canada from 2005 to 2006. Since 1995, he
has been a professor in the Department of Computer Science, Yon-
sei University. His research interests include neural networks, pat-
tern recognition, intelligent man-machine interfaces, evolution-
ary computation, and artificial life. Dr. Cho was awarded outstand-
ing paper prizes from the IEEE Korea Section in 1989 and 1992, and
another from the Korea Information Science Society in 1990. He
 computers & security 112 (2022) 102501 13

was also the recipient of the Richard E. Merwin prize from the IEEE
Computer Society in 1993. He was listed in Who’s Who in Pattern
Recognition from the International Association for Pattern Recog-
nition in 1994, and received best paper awards at the International
Conference on Soft Computing in 1996 and 1998. In addition, he re-
ceived the best paper award at the World Automation Congress in
1998, and was listed in Marquis Who’s Who in Science and Engi-
neering in 2000 and Marquis Who’s Who in the World in 2001. He
is a Senior Member of IEEE and a Member of the Korea Information
Science Society, INNS, the IEEE Computa.
