Sensors
Sensors

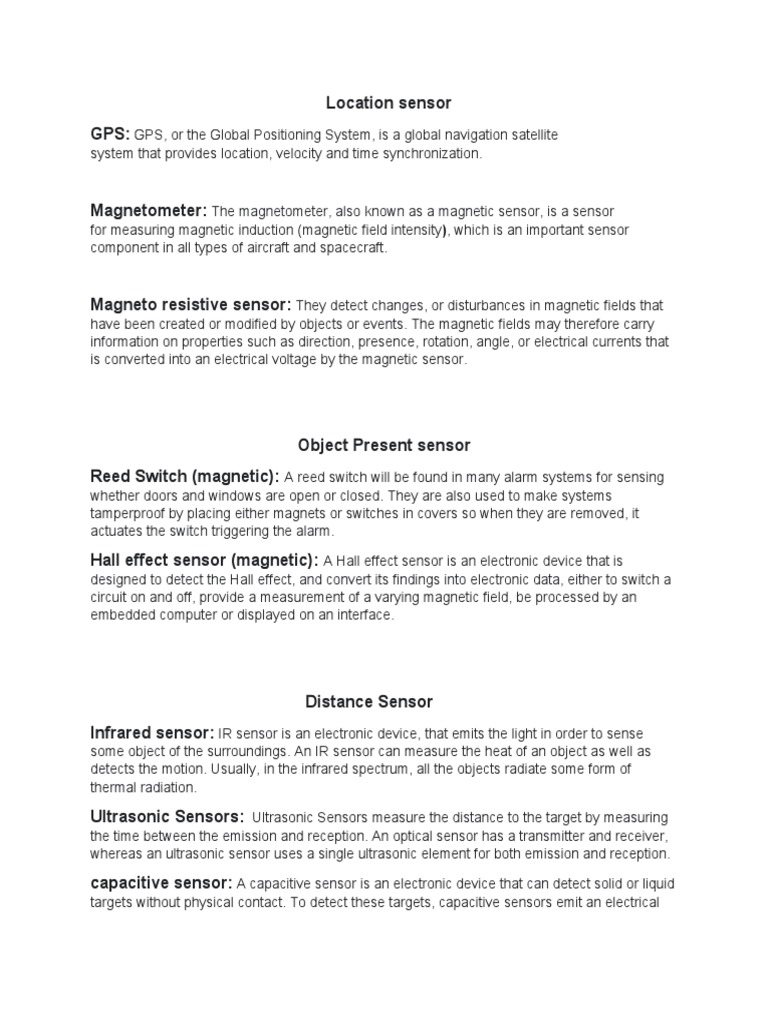

Hall effect sensor (magnetic): A Hall effect sensor is an electronic device that is
designed to detect the Hall effect, and convert its findings into electronic data, either to switch a
circuit on and off, provide a measurement of a varying magnetic field, be processed by an
embedded computer or displayed on an interface.
Distance Sensor
Infrared sensor: IR sensor is an electronic device, that emits the light in order to sense
some object of the surroundings. An IR sensor can measure the heat of an object as well as
detects the motion. Usually, in the infrared spectrum, all the objects radiate some form of
thermal radiation.
capacitive sensor: A capacitive sensor is an electronic device that can detect solid or liquid
targets without physical contact. To detect these targets, capacitive sensors emit an electrical
field from the sensing end of the sensor. Any target that can disrupt this electrical field can be
detected by a capacitive sensor.
Magnetic linear encoder sensor: A magnetic linear encoder system uses a magnetic
sensor readhead and a magnetic scale to produce TTL or analog output for channels A and B.
As the magnetic sensor passes along the magnetic scale, the sensor detects the change in
magnetic field and outputs a signal.
Optical linear encoder sensor: Optical linear encoder uses light beams or lasers as a
signal. To improve the quality and direction of light pulses additional elements are also installed
into design (lens, scanning reticles, etc.) To do this, transparent (clearance) or opaque areas
are placed on the scale as marks.
Orientation Sensor
Rotary potentiometer: A rotary potentiometer is an adjustable electrical resistor that can
be moved by means of a rotary motion. This allows control processes to be implemented in
various electrical or electronic systems, for example for volume control in multimedia devices.
Magnetic rotary position sensor: It is a 10-bit rotary position sensor (previously known
as encoder) for absolute angular measurement over a full turn of 360° based on contactless
magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-
pole magnet rotates above or below the sensor IC.
Optical rotary encoder: An optical rotary encoder is a type of motion sensing device
that uses light shone through a coded disk to track the movement of a shaft. The encoder
provides feedback based on the interruption of light.
Mercury tilt switch sensor: Mercury tilt switches use a drop of mercury in the tube. The
sensor is positioned with respect to gravity forces so that the mercury moves away from the
contacts when the switch is open. A change in the orientation of the sensor causes the bead to
roll in the tube, touching both the contacts and closing the switch.
Pendulum tilt switch sensor: At a specific angle of the pendulum, the reed switch is
activated. By changing the position of the sensor on the object, the switching angle can
be changed.
Gyroscope sensor A gyroscope sensor is a device that is used to measure and maintain
the orientation and angular velocity of an object. This sensor is also known by various names
such as Angular Rate Sensor or Angular Velocity Sensors.
Vibration sensor
Pin spring vibration sensor: It consists of small and thin pin in the center of a coil spring.
The spring is anchored at its base and the other end is free to vibrate. If the vibration reaches
sufficient amplitude, the spring touches the pin and completes the circuit between the two leads
of the device.
Force sensor
strain gauge sensor: A strain gauge is a type of electrical sensor. Its primary use is to
measure force or strain. The resistance of a strain gauge changes when force is applied, and
this change will give a different electrical output. Strain gauges use this method to measure
pressure, force, weight and tension.
plastic film force sensor: A force sensitive resistor (FSR) is a material which changes its
resistance when a force or pressure is applied. Conductive film is an example of such force
resistance material. In other words, force sensitive resistor it's a sensor that allow you to detect
physical pressure, squeezing and weight.
Differential pressure sensor: The differential pressure sensor measures the pressure drop
between two points in the flow pattern and is used at two different points in the exhaust
manifold. At one point it reports the charge status of the particle filter and monitors its function.
Turbine sensor: A turbine speed sensor, also termed an input speed sensor, is used
for measuring the performance of the turbine by evaluating transmission performance and other
components of the turbine. It also detects the rotation speed of the turbine, which shows the
input revolution of the transaxle.
Thermal mass liquid flow rate sensor: Thermal mass flow sensors are most often
used for the regulation of low gas flows. They operate either by introducing a known amount of
heat into the flowing stream and measuring an associated temperature change or by
maintaining a probe at a constant temperature and measuring the energy required to do so.
Gas concentration sensor
Semiconductor gas sensor: Gas sensors are devices that can detect the presence and
concentration of various hazardous gases and vapors, such as toxic or explosive gases, volatile
organic compounds (VOCs), humidity, and odors. When semiconductor particles (typically
tin dioxide) are heated in air at high temperature, oxygen is adsorbed on the particle
surface by capturing free electrons. The depletion layer thus formed is largely
dependent on the radius of semiconductor particles used.
O2 sensor: The O2 sensor lets the computer know if the fuel mix is burning rich (not enough
oxygen) or lean (too much oxygen). Knowing the ratio of fuel to air allows your vehicle's engine
to make any necessary changes to ensure that your car runs like it should
Humidity sensor: The humidity sensor is a device that senses, measures, and reports the
relative humidity (RH) of air or determines the amount of water vapor present in gas mixture
(air) or pure gas.
Light sensor
Photoresistor sensor: A photocell or photoresistor is a sensor that changes its resistance
when light shines on it. The resistance generated varies depending on the light striking at his
surface. A high intensity of light incident on the surface will cause a lower resistance, whereas a
lower intensity of light will cause higher resistance.
NTC thermistor: NTC thermistors are resistors with a negative temperature coefficient,
which means that the resistance decreases with increasing temperature. They are primarily
used as resistive temperature sensors and current-limiting devices.
PTC thermistor: These are used to protect electrical circuits from overcurrent. These
Thermistors are used for motor winding protection. These resistors play a key role in sensing
liquid levels. Switched PTC-type thermistors are mainly used as resettable fuses & over-current
limiters in different circuits.
Microphonic sensor
Carbon microphone: It consists of two metal plates separated by granules of carbon. One
plate is very thin and faces toward the speaking person, acting as a diaphragm. Sound waves
striking the diaphragm cause it to vibrate, exerting a varying pressure on the granules, which in
turn changes the electrical resistance between the plates.
Moving coil microphone: A magnet within the microphone in turn produces a magnetic
field around the coil, and the coil movement in this field enables the current to flow. In this way,
the dynamic microphones produce sound, only in the reverse direction. They have a simple
design with a smaller number of moving parts.
