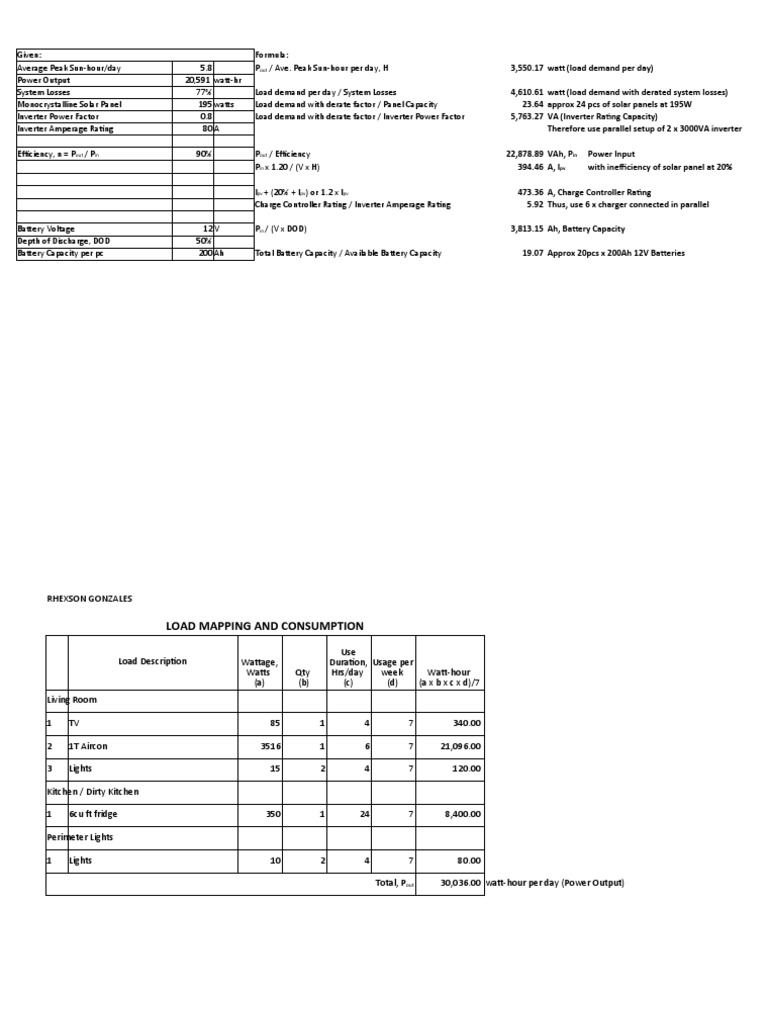

Given:
Average Peak Sun-hour/day
Power Output
System Losses
Monocrystalline Solar Panel
Inverter Power Factor
Inverter Amperage Rating
Efficiency, n = Pout / Pin
Battery Voltage
Depth of Discharge, DOD
Battery Capacity per pc
Formula:
5.8 Pout / Ave. Peak Sun-hour per day, H 3,550.17 watt (load demand per day)
20,591 watt-hr
77% Load demand per day / System Losses 4,610.61 watt (load demand with derated system losses)
195 watts Load demand with derate factor / Panel Capacity 23.64 approx 24 pcs of solar panels at 195W
0.8 Load demand with derate factor / Inverter Power Factor 5,763.27 VA (Inverter Rating Capacity)
80 A Therefore use parallel setup of 2 x 3000VA inverter
90% Pout / Efficiency 22,878.89 VAh, Pin Power Input
Pin x 1.20 / (V x H) 394.46 A, Ipv with inefficiency of solar panel at 20%
Ipv + (20% + Ipv) or 1.2 x Ipv 473.36 A, Charge Controller Rating
Charge Controller Rating / Inverter Amperage Rating 5.92 Thus, use 6 x charger connected in parallel
12 V Pin / (V x DOD) 3,813.15 Ah, Battery Capacity
50%
200 Ah Total Battery Capacity / Available Battery Capacity 19.07 Approx 20pcs x 200Ah 12V Batteries
RHEXSON GONZALES

LOAD MAPPING AND CONSUMPTION

Use
Load Description Wattage, Duration, Usage per
Watts Qty Hrs/day week Watt-hour
(a) (b) (c) (d) (a x b x c x d)/7
Living Room

1 TV 85 1 4 7 340.00

2 1T Aircon 3516 1 6 7 21,096.00

3 Lights 15 2 4 7 120.00

Kitchen / Dirty Kitchen

1 6cu ft fridge 350 1 24 7 8,400.00

Perimeter Lights

1 Lights 10 2 4 7 80.00

Total, Pout 30,036.00 watt-hour per day (Power Output)
