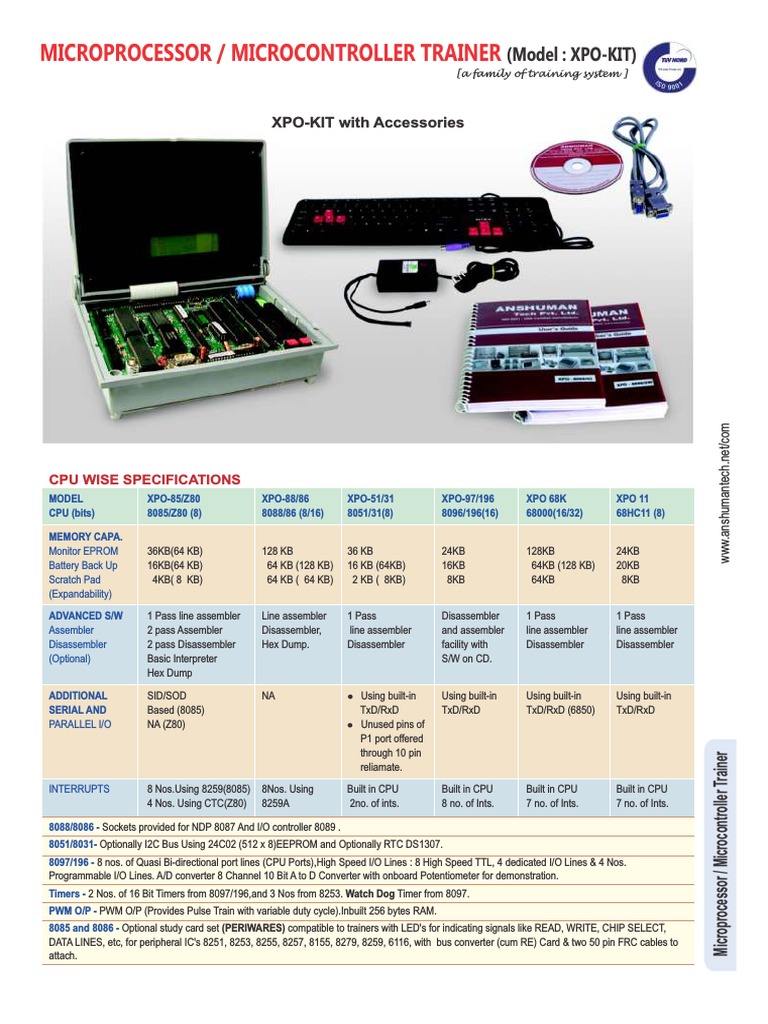

MICROPROCESSOR / MICROCONTROLLER TRAINER (Model : XPO-KIT)

[a family of training system ]

XPO-KIT with Accessories

www.anshumantech.net/com
CPU WISE SPECIFICATIONS
MODEL XPO-85/Z80 XPO-88/86 XPO-51/31 XPO-97/196 XPO 68K XPO 11
CPU (bits) 8085/Z80 (8) 8088/86 (8/16) 8051/31(8) 8096/196(16) 68000(16/32) 68HC11 (8)

MEMORY CAPA.
Monitor EPROM 36KB(64 KB) 128 KB 36 KB 24KB 128KB 24KB
Battery Back Up 16KB(64 KB) 64 KB (128 KB) 16 KB (64KB) 16KB 64KB (128 KB) 20KB
Scratch Pad 4KB( 8 KB) 64 KB ( 64 KB) 2 KB ( 8KB) 8KB 64KB 8KB
(Expandability)

ADVANCED S/W 1 Pass line assembler Line assembler 1 Pass Disassembler 1 Pass 1 Pass
Assembler 2 pass Assembler Disassembler, line assembler and assembler line assembler line assembler
Disassembler 2 pass Disassembler Hex Dump. Disassembler facility with Disassembler Disassembler
(Optional) Basic Interpreter S/W on CD.
Hex Dump

ADDITIONAL SID/SOD NA  Using built-in Using built-in Using built-in Using built-in
SERIAL AND Based (8085) TxD/RxD TxD/RxD TxD/RxD (6850) TxD/RxD
PARALLEL I/O NA (Z80)  Unused pins of
P1 port offered
through 10 pin
Microprocessor / Microcontroller Trainer

reliamate.

INTERRUPTS 8 Nos.Using 8259(8085) 8Nos. Using Built in CPU Built in CPU Built in CPU Built in CPU
4 Nos. Using CTC(Z80) 8259A 2no. of ints. 8 no. of Ints. 7 no. of Ints. 7 no. of Ints.

8088/8086 - Sockets provided for NDP 8087 And I/O controller 8089 .
8051/8031- Optionally I2C Bus Using 24C02 (512 x 8)EEPROM and Optionally RTC DS1307.
8097/196 - 8 nos. of Quasi Bi-directional port lines (CPU Ports),High Speed I/O Lines : 8 High Speed TTL, 4 dedicated I/O Lines & 4 Nos.
Programmable I/O Lines. A/D converter 8 Channel 10 Bit A to D Converter with onboard Potentiometer for demonstration.
Timers - 2 Nos. of 16 Bit Timers from 8097/196,and 3 Nos from 8253. Watch Dog Timer from 8097.
PWM O/P - PWM O/P (Provides Pulse Train with variable duty cycle).Inbuilt 256 bytes RAM.
8085 and 8086 - Optional study card set (PERIWARES) compatible to trainers with LED's for indicating signals like READ, WRITE, CHIP SELECT,
DATA LINES, etc, for peripheral IC's 8251, 8253, 8255, 8257, 8155, 8279, 8259, 6116, with bus converter (cum RE) Card & two 50 pin FRC cables to
attach.
 CPU CARD:

8085 Z80 8086

8051 68K 68HC11

TECHNICAL SPECIFICATIONS
User Manual 1) Student Workbook 2) Instructor Guide and Technical Reference 3) Optionally Lab Exercise Book common for 85,
86 & 51.
Speed 20 MHz crystal operated multi-output clock source to operate various resources on Mother Board like CPU, Baud rate,
T/C etc.
Parallel I/O 48 I/O lines using two 8255 through 2 Nos. of 26 pin FRC header, printer I/F.
Serial I/O RS-232c serial interface using 8251 and RS232 driver IC through 9 Pin male D connector.
Timer counter 3 Nos. T/C using 8253 pins brought out on 6 pin reliamate.
Display(Choose one option) 16 X 2 LCD (Backlit) 16 X 2 Jumbo LCD (Backlit) 20 X 4 LCD (Backlit) 40 X 2 LCD (Backlit)
Key Board (Optional) Single chip micro- controller 89C2051 to support 101Keys PC AT / PS2 Keyboard and LCD
System Bus 50 Pin FRC buffered Bus to connect periware cards as well as to facilitate ROM Emulation of 8 bit/16
bit system memory using external ROM emulation card cum converter card.
Battery Backup Rechargeable NiCd battery (3.6/60maH) provided to supply power to battery backup
memory and Optional RTC 58167.
Onboard Features  External Loud Speaker (8ohm/0.5W) interface for experiments on frequency synthesis.
 Reset and Single Step/Interrupt push button.
 EP socket for experiments with Cassette recorder interface.
 Programmable Wait state generator Real Time Clock IC 58167 (Optional)
 11 Nos. fault links to teach troubleshooting skills by introducing faults in the circuit.
 PALs-All glue logic like Memory I/O decoders are implemented using 4(5) nos. of EEPROM PALs 16V8
Power Supply (SMPS) Select one of 2 options I) 5V /2.5 Amp SMPS with RCA plug. (Only for Kit)
(Optional) II) 5V /2.5 Amp SMPS with RCA plug +12 V/ 850 mA , -12V/250 mA with 4 pin reliamate SMPS.
Microprocessor / Microcontroller Trainer

Mechanical Aesthetically designed Injection molded plastic enclosure of size 215(L)X165(W) X 75(H) mm.
Details Weight = 900 gm.(1.5 Kg with manuals)
Cables & CD : 9 Pin Female to 9 Pin Female RS-232c Cable, 26 Pin FRC IO Cable, Centronics Interface cable (26 pin FRC to 36 pin
Centronics female), USB to RS232 Cable (optional), Sample program & Software on CD .
SALIENT FEATURES
Fault Links:  Ergonomical injection molded Plastic enclosure.
 Shorts 2 Pins of Address Bus.  Disables 7 Segment Scanning.  Use of standard PC 101/PS2 Keyboard for programming.
 Shorts 2 Pins of Data Bus.  Disables 7 Segment Data.  Emphasis on Hardware troubleshooting through on board short links.
 Shorts Address pin to Data Bus.  Permanent Reset State.  Exhaustive Didactic Courseware.
 Increasing Battery Discharge.  Stops 20MHz Clock.
 Critical & delicate ICs are protected under acrylic cover from below.
 Disables RD/ & WR/ into BBK RAM  Disables Baud Rate Clock.
 All in one Logical IO® Monitor design Supports both serial IO & Keyboard
 Permanent Wait State.
display console IO.
Application Board (Optional): Note : 1] Compatible with XPO KIT as well as XPO EST. Uses 24 or less IO port pins, connects using 26 pins
FRC cable & some of these need auxilary power supply (4 Pin) +12V SMPS. 2] All ECUs may not be capable of driving following Application boards
in totality on account of their memory, IO, resource limitation.
TLLC
Traffic light of 2 intersections
cum logic study card with 24
tags and 24 LED's.Optionally
following Opto-coupler, Relay,
Buzzer.
STDC MOTOR
Stepper motor and 12V DC
Motor Interface card with motors
mounted to illustrate speed,
direction control. Optional:
1) RPM measurement.
2) LM35 temperature Sensor
0-12V)
AD-DA-I
Temperature Controller with
MINI OVEN with 8 bit ADC- 8 bit
DAC cum Instrumentation
Opamp study card.
AD-DA-II
8 bit 8 channel ADC & 8 bit DAC
(0-5V), Digital gain amplifier with
built in L/S interface Electret
micro- phone with preamplifier,
light sensor, analog bar graph,
voice sampling & replay.
AD-DA-III
12 bit ADC either dual slope
7109 OR SAR 574 or SPI 3301,
12 Bit DAC: Either parallel R-2R
CMOS DAC or SPI 4921,
onboard voltage simulation pot,
LM 35 temperature sensor (0-
5V), buffered S/H amplifier, 16
differential channel MUX &
variable gain instru. OPMP.
SCAN TECH
Scanning Techniques illustrating
8X8 LED Matrix, 4X4 Keypad 7
segment 8 digit red LED display
study card.
Optional :
1. Opto Relay
2. GLCD
IOOC
Opto-isolated 24 Vdc 12 Input
and 10 Output IO card with 2
relay output card.
TLLC+Thumbwheel
Traffic light of 2 intersections
cum logic study card with 24
tags and 24 LED's. Optionally
following - Thumb- Wheel
Switch Module, Opto-coupler,
Relay, Buzzer.
TLLC+ Elevator
Traffic light of 2 intersections cum
logic study card with 24 tags and
24 LED's. Optionally following -
Elevator SAP consisting of 3
floors, Floor request keys, child
Microprocessor / Microcontroller Trainer
protection lock, Opto-coupler,
Relay, Buzzer.
LCD IO Adaptor
Adaptor PCB mountable on 26-
pin FRC IO box connector to
facilate attachment of external
LCD {Graphic/text}module or
additional 8255/8155 IC.
 Bus based Application Board (optional) : Note : 1) VCRO CARD applicable for XPO-KIT & not EST. 2) Connects using 50 pin FRC cable,
needs converter card to match pinout of XPO-KIT 50 pin BUS with periware control bus [50pin] 3) Draws Vcc from 50 pin BUS for their working.
Periwares Study Card Set Optional for Kit 85/86/51 Kit.
8257
It consists of buffers, switches &
debounce circuits for software
single stepping of every access.
It is provided with one 8 bit I/O
port. It displays the data
transferred (DMA Read) from
memory to the port on the LEDS.
8279
It consists of buffers, switches
and debounce circuit for
software single stepping of
every access to the 8279 card
and LEDs to display status.
Switch S1 is used to enable
Single stepping or to keep CPU
in free running mode.
8259
It consists of buffers, switches
& debounce circuits for software
single stepping of every access,
2 nos of 8259 with tags for
applying Interrupts, Vcc tags,
Leds to display status.
Memory IO
It consists of buffers, switches
& debounce circuits for software
single stepping of every access,
1 no 6116 (RAM) with tags for
applying Interrupts, Vcc tags,
Leds to display status.
Microprocessor / Microcontroller Trainer
VCRO CARD
VGA monitor(64X32) /
Oscilloscope (18 X 8) interface
card to use them as console out
device for the kit in place of
LCD/7seg. Use 20MHz CRO
with Z Input (1.25MHz Band
width) & Ext. Triggering facility.
8155
It consists of buffers, switches,
debounce ckts for software
Single Stepping, one 8155 with
tags for all I/O ports, VCC &
GND tags, LEDs to display
status.
8255
It consists of buffers, switches,
debounce ckts for software
Single Stepping, one 8255 with
tags for all I/O ports, VCC &
GND tags, LEDs to display
status.
8253
It consists of buffers, switches,
debounce circuits for software
Single Stepping, one 8253 with
tags for all the counters, VCC &
GND tags, LEDs to display
status.
8251
It consists of buffers, switches,
debounce circuits for software
Single Stepping, one 8251 with
tags for all the required input
output pins, Vcc & Ground tags,
LEDs to display status
ROM Emulation cum converter Card
2 No. 28 pin DIP connectors for 8 bit/16 bit ROM connection of target
uc, two 50 pin FRC cables to attach for periware.
