Wire ropes are made of twisted strands of metal wire in a helical pattern. Larger diameter wire ropes consist of multiple strands of laid rope in a cable laid pattern. Steel wire ropes are widely used in applications like cranes, elevators, mining, and construction. A sheave is a pulley with grooves that grips wire ropes, allowing rotation to move the ropes. When designing wire ropes, factors considered include bending stress, bending load, extension under load, factor of safety, and acceleration load. Elevator capacity is calculated based on inside platform area.
Wire ropes are made of twisted strands of metal wire in a helical pattern. Larger diameter wire ropes consist of multiple strands of laid rope in a cable laid pattern. Steel wire ropes are widely used in applications like cranes, elevators, mining, and construction. A sheave is a pulley with grooves that grips wire ropes, allowing rotation to move the ropes. When designing wire ropes, factors considered include bending stress, bending load, extension under load, factor of safety, and acceleration load. Elevator capacity is calculated based on inside platform area.
Wire ropes are made of twisted strands of metal wire in a helical pattern. Larger diameter wire ropes consist of multiple strands of laid rope in a cable laid pattern. Steel wire ropes are widely used in applications like cranes, elevators, mining, and construction. A sheave is a pulley with grooves that grips wire ropes, allowing rotation to move the ropes. When designing wire ropes, factors considered include bending stress, bending load, extension under load, factor of safety, and acceleration load. Elevator capacity is calculated based on inside platform area.

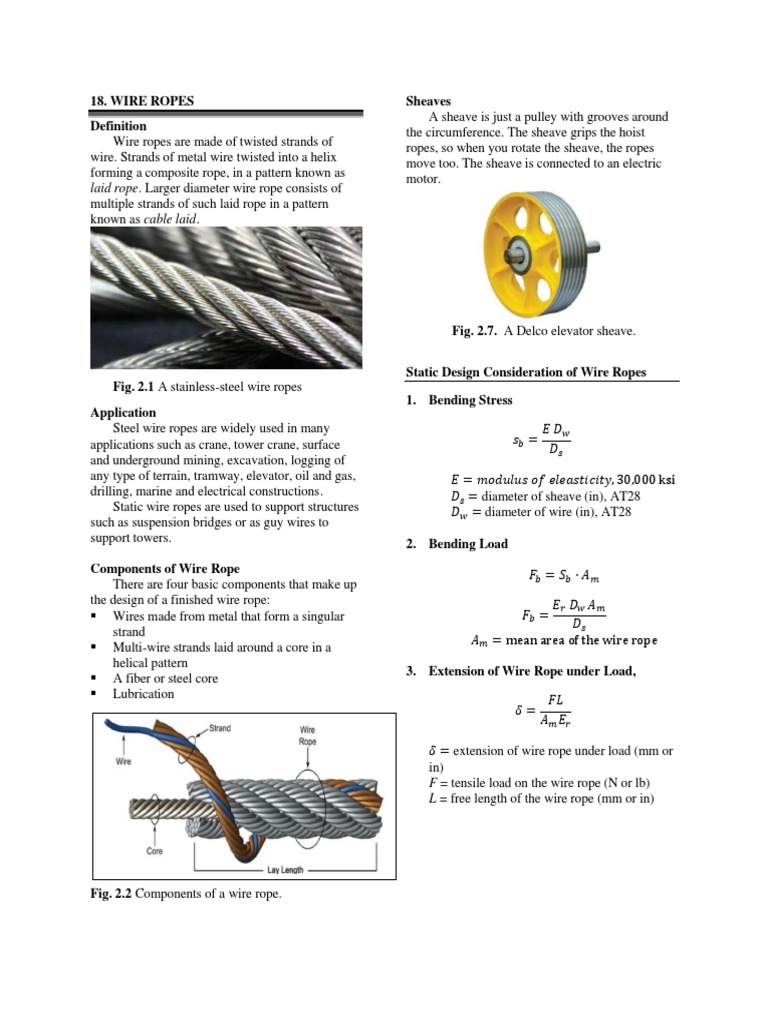

A sheave is just a pulley with grooves around Definition the circumference. The sheave grips the hoist Wire ropes are made of twisted strands of ropes, so when you rotate the sheave, the ropes wire. Strands of metal wire twisted into a helix move too. The sheave is connected to an electric forming a composite rope, in a pattern known as motor. laid rope. Larger diameter wire rope consists of multiple strands of such laid rope in a pattern known as cable laid.
Fig. 2.7. A Delco elevator sheave.
Static Design Consideration of Wire Ropes
Fig. 2.1 A stainless-steel wire ropes 1. Bending Stress Application Steel wire ropes are widely used in many 𝐸 𝐷𝑤 applications such as crane, tower crane, surface 𝑠𝑏 = 𝐷𝑠 and underground mining, excavation, logging of any type of terrain, tramway, elevator, oil and gas, 𝐸 = 𝑚𝑜𝑑𝑢𝑙𝑢𝑠 𝑜𝑓 𝑒𝑙𝑒𝑎𝑠𝑡𝑖𝑐𝑖𝑡𝑦, 30,000 ksi drilling, marine and electrical constructions. 𝐷𝑠 = diameter of sheave (in), AT28 Static wire ropes are used to support structures 𝐷𝑤 = diameter of wire (in), AT28 such as suspension bridges or as guy wires to support towers. 2. Bending Load Components of Wire Rope 𝐹𝑏 = 𝑆𝑏 · 𝐴𝑚 There are four basic components that make up the design of a finished wire rope: 𝐸𝑟 𝐷𝑤 𝐴𝑚 ▪ Wires made from metal that form a singular 𝐹𝑏 = 𝐷𝑠 strand 𝐴𝑚 = mean area of the wire rope ▪ Multi-wire strands laid around a core in a helical pattern 3. Extension of Wire Rope under Load, ▪ A fiber or steel core ▪ Lubrication 𝐹𝐿 𝛿= 𝐴𝑚 𝐸𝑟
𝛿 = extension of wire rope under load (mm or
in) F = tensile load on the wire rope (N or lb) L = free length of the wire rope (mm or in)
Fig. 2.2 Components of a wire rope.
4. Factor of Safety or Design Factor A. Tension with Bending Load 𝐹𝑢 − 𝐹𝑏 𝑁= . 𝐹𝑡 Where: 𝐹𝑢 = breaking strength (N or lb) 𝐹𝑏 = equivalent bending load (N or lb) 𝐹𝑡 = tensile load (N or lb)
B. Pure Tension Load
𝐹𝑢 𝑁= . 𝐹𝑡
5. Acceleration Load This is the inertia load when a body is accelerating,
Fa = W(a/g).
6. Elevator Capacities (PSME Code, 2003 Ed,
p. 95) 1. For an elevator having an inside net platform, area of not more than (50 ft2) 4.65 m2, 𝑊 = 35.10𝐴2 + 326.224𝐴, where W is maximum rated load in kg and A is the floor area in m2. 2. For an elevator having an inside net platform area of more than 4.65 m2, 𝑊 = 2.458𝐴2 + 611.36𝐴 − 621.4 where W is in kg and A is in m2. ILLUSTRATIVE EXAMPLES
1. A hoist lifts a 3000-kg load a height of 8 m in a
time of 20 s. Compute the power output. A. 11.8 hp B. 10.58 hp C. 12.43 hp D. 15.78 hp ANS: D
2. A steel rope is 0.035-in in diameter. Find the
value of the bending stress when the blade is passing around a pulley of 25-in. in diameter. A. 36 ksi B. 54 ksi C. 42 ksi D. 66 ksi ANS: C
3. A 1/2" diameter 6×19 galvanized wire rope is
used with tensile load of 2.65 tons, breaking strength of 13.3 tons, and bending load of 2 tons. Find the factor of safety. A. 5.55 B. 4.26 C. 7.13 D. 6.42 ANS: B
4. What is the maximum rated capacity in kg of an
elevator having a 2.0 m2 floor area? A. 900 kg B. 600 kg C. 793 kg D. 825 kg ANS: C
