05–2442

DIAGNOSTICS – PUSH BUTTON START SYSTEM 05J2B–01

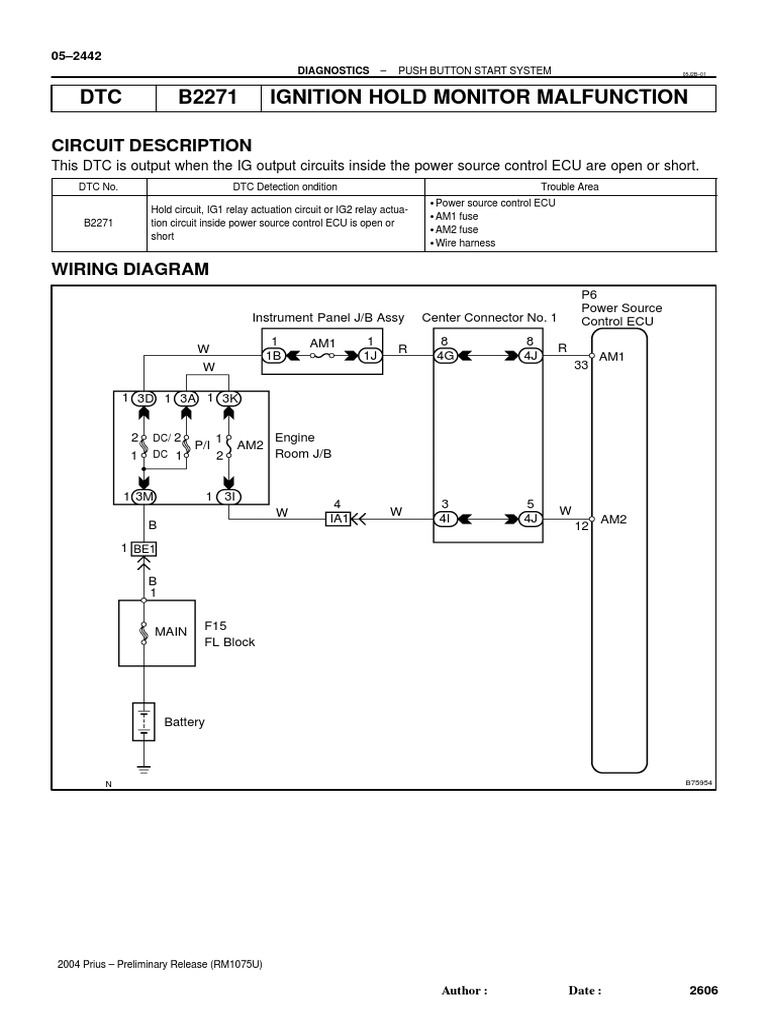

DTC B2271 IGNITION HOLD MONITOR MALFUNCTION

CIRCUIT DESCRIPTION
This DTC is output when the IG output circuits inside the power source control ECU are open or short.
DTC No. DTC Detection ondition Trouble Area

Power source control ECU
Hold circuit, IG1 relay actuation circuit or IG2 relay actua-

AM1 fuse
B2271 tion circuit inside power source control ECU is open or

AM2 fuse
short

Wire harness

WIRING DIAGRAM
P6
Power Source
Instrument Panel J/B Assy Center Connector No. 1 Control ECU
1 AM1 1 8 8
W R R
1B 1J 4G 4J AM1
W 33

1 3D 1 3A 1 3K

2 DC/ 2 1 Engine
P/I AM2
1 DC 1 2 Room J/B

1 3M 1 3I
4 3 5
W W W
IA1 4I 4J AM2
B 12
1 BE1

B
1

MAIN F15
FL Block

Battery

B75954

2004 Prius – Preliminary Release (RM1075U)

Author: Date: 2606

 05–2443
DIAGNOSTICS – PUSH BUTTON START SYSTEM

INSPECTION PROCEDURE
1 CHECK DTCS

(a) Delete the DTC (see page 05–2438).

(b) Check for DTCs again.
OK: No DTC is output.
NG Go to step 2

OK

END

2 INSPECT FUSE (AM1, AM2)

(a) Remove the AM1 fuse from the instrument panel J/B assy.
(b) Remove the AM2 fuse from the engine room J/B.
(c) Measure the resistance.
Standard: Below 1 Ω
NG REPLACE FUSE

OK

3 CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU – BODY GROUND)

Wire Harness Side (a) Disconnect the P6 ECU connector.

(b) Measure the voltage of the wire harness side connector.
P6 Standard:
Power Source Control ECU AM2
Tester Connection Specified Condition
P6–33 (AM1) –
10 to 14 V
Body ground
P6–12 (AM2) –
10 to 14 V
Body ground

AM1 B79748

NG REPAIR OR REPLACE HARNESS AND

CONNECTOR

OK

REPLACE POWER SOURCE CONTROL ECU

2004 Prius – Preliminary Release (RM1075U)

Author: Date: 2607
