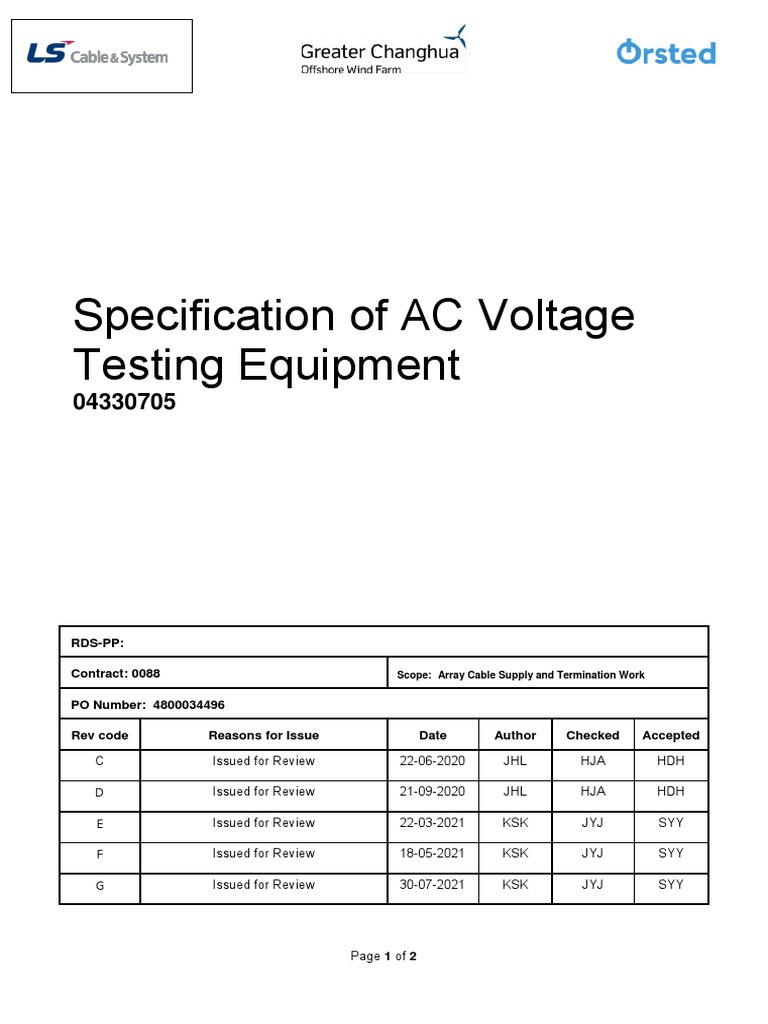

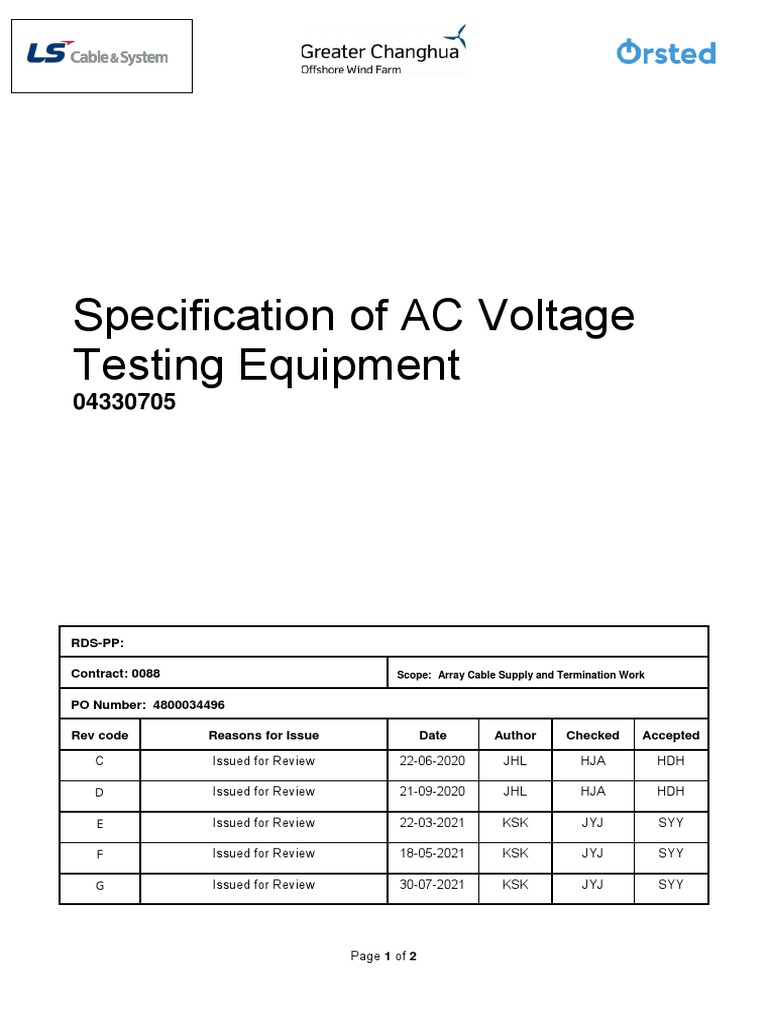

Specification of AC Voltage

Testing Equipment
04330705

RDS-PP:

Contract: 0088 Scope: Array Cable Supply and Termination Work

PO Number: 4800034496

Rev code Reasons for Issue Date Author Checked Accepted

C Issued for Review 22-06-2020 JHL HJA HDH

D Issued for Review 21-09-2020 JHL HJA HDH

E Issued for Review 22-03-2021 KSK JYJ SYY

F Issued for Review 18-05-2021 KSK JYJ SYY

G Issued for Review 30-07-2021 KSK JYJ SYY

Page 1 of 2
 Project Name: [CHW01 & CHW02 Offshore Array Cable Supply and Termination Work]
Document Title: [Specification of AC Voltage Testing Equipment]
Document Number: [04330705]
Document Revision: [G]

Operator: [Ørsted Wind Power]

Document Type: [Specification]

Originator: [LS Cable & System]

Contractor Document Number: [LSC-18053-LD-022-1]

Contractor Revision No: [G]

Change Log

Revision Location Brief description of change

A - Issued for Review
B - Issued for Review
C - Issued for Review
D - Updated Appendix-2.
E Appendix-2 Content addition and picture change & add to Calibration Certificate
Add abbreviation and add technical data at Sieyuan Solution
F Appendix-2
document
Comment applied in document (fuel and equipment operation) and
G Appendix-2
added abbreviation

Page 2 of 2
 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 1 of 62
Termination Work

Document Title

Specification of AC
Voltage Testing Equipment

Project Name

CHW01 & CHW02 Offshore Array Cable

Supply and Termination Work

G 30/07/2021 Issued for Review KSK JYJ SYY

F 18/05/2021 Issued for Review KSK JYJ SYY

G 22/03/2021 Issued for Review KSK JYJ SYY

D 21/09/2020 Issued for Review JHL HJA HDH

C 22/06/2020 Issued for Review JHL HJA HDH

Prepared By Checked By Approved By Approved By

Rev.
Date Descriptions
No.
LS Cable & System Ltd. Employer
© LS Cable & System Ltd. All rights reserved (2021)
 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 2 of 62
Termination Work

Table of Contents
1. Introduction .......................................................................................................................................... 3
2. Abbreviations ....................................................................................................................................... 3
Appendix-1 Highvolt Solution(This is just an extract from HighVolt spec)............................................... 4
Appendix-2 Sieyuan Solution .................................................................................................................. 7
Appendix-3 Calibration Certificate (The HVAC Test Equipment) ........................................................... 45

© LS Cable & System Ltd. All rights reserved (2021)

 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 3 of 62
Termination Work

1. Introduction

The purpose of the document is to describe AC voltage test of the insulation of the Array Cable power
cores from the Pfisterer joint on the OSS to the Connection Units in the Foundations.

The work has been assigned the Key Subcontractor, Winsome Engineering Consultant CO., Ltd. which is
to be performed at the CHW01&02 WTG & OSS platforms offshore work.

2. Abbreviations
Abbreviations Definitions
HV High Voltage
VF Variable Frequency
AC Alternating Current
MV Mid Voltage
DC Direct Current
DUT Device Under Test
VFC Voltage Frequency Converter
RMS Root Mean Square

© LS Cable & System Ltd. All rights reserved (2021)

 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 4 of 62
Termination Work

Appendix-1 Highvolt Solution

(This is just an extract from HighVolt spec)
(Total 2 Pages)

© LS Cable & System Ltd. All rights reserved (2021)

AKZ: 581 588-10
Titel: Cable Test System for Off-Shore Array Cable up to Um=72,5 kV
Seite: 5 / 11
Datum: 06.11.2018

3. Basic Layouts

3.1. Test Voltage 80 kV, 7 µF Load and Maximum Payload 5 t

This basic layout is covering the following technical parameters of Table 4:

Table 4: Technical Parameters and Overview of Transportation Units

Test Parameter Unit Value
Test Voltage kV 80
Test Capacitance µF 7
Tested Cable Length ** km 28
ID Transport Unit Weight [t] Footprint [ft]
1 Control and Feeding Unit (Container) 3.5 10 x 5 x 8
2 Reactor 1 5 8x5x8
3 Reactor 2 5 8x5x6
Collection Point
Connection Point
4 Cable (80 m) <2 10 x 5 x 8
Protection Fences
Installation Material / Spare Parts
** without anticipation of additional capacitances in test circiut

Figure 3: Generic Layout with Control and Feeding Unit, Reactors and Collection
Point

F 14-7 / 6.16
AKZ: 581 588-10
Titel: Cable Test System for Off-Shore Array Cable up to Um=72,5 kV
Seite: 6 / 11
Datum: 06.11.2018

Figure 4: Top View with Footprint of Control and Feeding Unit, Reactors and Col-
lection Point

Figure 5: Connection Point for Test Objects (always the same for all layouts)

F 14-7 / 6.16
 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 7 of 62
Termination Work

Appendix-2 Sieyuan Solution

(Total 47Pages)

© LS Cable & System Ltd. All rights reserved (2021)

 Document Title

Specification of AC Voltage Testing Equipment

of Sieyuan Solution

Project Name

CHW01 & CHW02a Offshore Array Cable Supply and

Termination Work

by Winsome Engineering Consultant CO., Ltd.

 Contents
I. Sieyuan Solution ........................................................................................................................ 4
i. Application scope and test capability of this test system ...................................................... 4
ii. Explanation of applicability ................................................................................................... 4
iii. List of Sieyuan components for HV test set ........................................................................... 5
iv. Configuration and test range of various electrical equipment .............................................. 6
v. Manufacturing and testing standards of equipment .............................................................8
vi. Environment condition.......................................................................................................... 9
II. Description of Generator.......................................................................................................... 10
i. Specification......................................................................................................................... 10
ii. Illustration of needed power for test ................................................................................... 10
II. Illustration of fuel usage ....................................................................................................... 11
III. Description of Container .......................................................................................................... 12
i. Containers Overview ................................................................................................................ 12
1. Offshore container ....................................................................................................... 12
2. Offshore frame container ............................................................................................. 14
IV. Solution of Use and Lifting of Containers ................................................................................. 15
i. Offshore container ............................................................................................................... 16
ii. Offshore frame container ..................................................................................................... 17
V. Testing Layout ......................................................................................................................... 19
i. Grounding requirement ....................................................................................................... 19
ii. Grounding position .............................................................................................................. 19
iii. Grounding connection .........................................................................................................20
iv. Test connection .................................................................................................................... 21

2
Tables
Table 1. Two VF tank modules in parallel mode using for 69kV cable system ...................................... 4
Table 2. Information of longest length of cables from string of CHW01-07-503 .................................. 4
Table 3. List of electric test set ............................................................................................................ 5
Table 4. Spare part list ........................................................................................................................ 6
Table 5. Calculation results for each cable length ................................................................................ 8
Table 6. Manufacturing and testing standards of equipment ............................................................... 8
Table 7. Specification of generator* ................................................................................................... 10
Table 8. Containers overview ............................................................................................................ 12
Table 9. Specification of offshore container ....................................................................................... 12
Table 10. Specification of offshore frame container ........................................................................... 14
Table 11. Overview of Solution of containers ..................................................................................... 15
Figures
Figure 1. CHW01 OSS roof deck layout .................................................................................................... 6
Figure 2. CHW02 OSS roof deck layout ................................................................................................... 7
Figure 3. Schematic of test ....................................................................................................................... 7
Figure 4. Drawing of offshore container (see next page) ....................................................................... 12
Figure 5. Drawing of offshore frame container (with a reactor) ............................................................ 14
Figure 6. Footprint for each container ................................................................................................... 19
Figure 7. Grounding connection ............................................................................................................20
Figure 8. Test connection ....................................................................................................................... 21
Figure 9. Drawing of reactor .................................................................................................................. 27
Figure 10. Drawing of generator set ....................................................................................................... 39
Attachments
Attachment 1 .......................................................................................................................................... 23
Attachment 2 .......................................................................................................................................... 35
Attachment 3 .......................................................................................................................................... 41

3
 I. Sieyuan Solution

i. Application scope and test capability of this test system

Meets the frequency tuned AC withstand voltage test of 19.373km (0.302µF/km) XLPE
cable. The test frequency is 26 - 300Hz, the test voltage is 64.8kV, the capacitance of the
test product does not exceed 5.8516µF, and the duty cycle is 60min ON - 60min OFF -
60min ON - 60min OFF - 60min ON, 3 times/day).

Table 1. Two VF tank modules in parallel mode using for 69kV cable system

ii. Explanation of applicability

The cables which need to be tested in the project is the capacitance with 0.302 uF/km (630sqmm)
and with 0.232 uF/km (300sqmm), and the longest length of cables is 18.441km. The testable
length and capacitance of application scope from Sieyuan is 19.373km and 0.302µF/km, which
are longer and larger than needed in this project. That means the scope is applicable to the cables
which need to be tested.
More specifically, considering the snaking, j tube allowance, the total length of every string in
terms of the over pull length can be calculated. From the file1, the longest length of cables from
string of CHW01-07-503 is 18.441km, extracted from 8 strings as the photo below.

Table 2. Information of longest length of cables from string of CHW01-07-503

1 File name: CHW0102 Array Layout_28Apr2020

4
 For the string, the total cable length with 630 mm 2 is 9295.732m, and total cable length with 300
mm2 is 9145.462m2. The actual load capacitance is 4.929µF3. The cable sizes of the specification
from Sieyuan is in terms of 630 mm2. Its load capacitance is 5.8516 µF with testable cable length
19.373 km. That means the test equipment from Sieyuan can handle any possible conditions
(snaking, j tube, etc) with its enough load capacitance.

iii. List of Sieyuan components for HV test set

YDK--2720/85 Reactor: Rated capacity 2720kVA, Rated voltage 85kV, Rated

current 32A, Rated inductance 12H. Also, as per the contract, contractor is responsible for
any power and lighting. We will add a single phase isolation transformer to convert the 380V
power to 110/220V for future application, the socket will be assembled on the wall of VF and
exciter container.

Table 3. List of electric test set

Name Model parameters Quantity Single size Single weight

Variable frequency VF--3/300 1 800*800*1800mm 300kg
converter

Exciter transformer YD--300/5 1 1350*1450*1600mm 2100kg

HV Reactor YDK--2720/85 2 2200*1500*2100mm 3800kg
Divider TRF--350/0.001 2 sections Φ180*2500mm 25kg/section
Accessory VF--3 accessories 1 set NA
and divider
calibration report
issued by 3rd party4
Note: More detailed information and original specification from manufactures please see attachment 1.

2 (18441.194- 9295.732)≒9145.462
3 9145.462*0.232+ 9295.732*0.302≒4.929µF/km
4 Measurement and Testing Center of Shanghai Electric Tool Research Institute (Group) Co., Ltd. They will provide the
calibration certification according to ISO-17025.

5
 Table 4. Spare part list

No. Name Model no. Quantity

1 Main CPU Board VF--3 1
2 LCD module WG320240B--TFH--TZRW1 1
3 IGBT drive board QD1 1
4 IGBT module VF--3/IGBT 2
5 Power supply board VF--3/DY 1
6 Printer SP--RNDN32PH 1
7 SCR trigger board VF--3/CF 1
8 Short circuit bar VF--3/DL 1
9 85kV High voltage output bushing / 2
Note: These spare parts for maintenance purpose won’t be transported in the offshore container. All critical spares

are included. The member of test team of HLPE and (or) Winsome will maintain/fix the equipment if there is the

breakdown.

iv. Configuration and test range of various electrical equipment

The HVAC test equipment will be put in offshore substation (OSS) till the test is completed,
and will be moved to another OSS. The drawing of equipment allocation of CHW01 and
CHW01 OSS are as follows. They are all stored in the containers.

Figure 1. CHW01 OSS roof deck layout

6
 Figure 2. CHW02 OSS roof deck layout

The schematic of test wiring is as follows:

Figure 3. Schematic of test

Note: 50 Hz or 60 Hz is either for the test equipment, as long as the input voltage is correct, there is no problem for test

operation.

According to the resonance condition XL = XC;

FTEST = 1 / [2π√(LC)] can be used to calculate the resonance frequency;
Here, the calculations results as Table 5 (see next page) can be known by using following
parameters:

7
 Table 5. Calculation results for each cable length (Take longest string-CHW01-07-503 as an example)
Cable Unit Overall Preload* for
Item Capacitance Inductance Test Voltage Test Freq
size Capacitance Length 60Hz
Unit mm2 µF/km m µF H kV Hz nF
1 300 0.232 732.016 0.1698277 12 64.78 111.16 415
2 300 0.232 1215.496 0.2819951 12 64.78 86.37 304
3 630 0.302 9295.732 2.8073111 12 64.78 27.42 -**
4 300 0.232 740.482 0.1717918 12 64.78 110.53 413
5 300 0.232 740.38 0.1717682 12 64.78 110.53 413
6 300 0.232 740.482 0.1717918 12 64.78 110.53 413
7 300 0.232 740.38 0.1717682 12 64.78 110.53 413
8 300 0.232 4236.226 0.9828044 12 64.78 46.32 -
Total 18441.194 4.9290582 6 64.78 29.26
* The preload capacitance needs to be added into the test circuit for being close to power frequency (60 Hz).
**The test frequency is lower than 60Hz, unable to preload.

v. Manufacturing and testing standards of equipment

Table 6. Manufacturing and testing standards of equipment

8
vi. Environment condition

1. Temperature Operation -15℃ - 40℃

Storage -20℃ - 50℃
2. Daily Temperature Difference 25K Max
3. Sun Exposure Strength 0.1W/cm2 (Wind Speed 0.5m/s)
4. Altitude ≤1000m
5. Environment relative humidity at 25 ℃, the maximum daily average is 95%, no condensing.
The installation place is flat and the inclination of the reactor is not greater than 5°.

6. As indicated at point 1.9 of the attachment 1, 'Under output test capacity, Duty cycle: 1 hour
ON, 1 hour OFF, 3X/day'. It means the equipment can operate for one hour, and should be
off for one hour. It can take three times for the cycle (1 hr on / 1 hr off) within one day. There
is no over-heating issues.

9
II. Description of Generator (Brand: )

i. Specification

Table 7. Specification of generator*

Genset Engine EPA 60hz/1800rpm L(mm) W(mm) H(mm) Weight(kg)

Model Model Emission Prime standby
Level
GPD-200 1106D- Tier 3 182 200 2450 800 1420 1700**
E70TAG5
* The formal technical data sheet and diagram from Perkins please see attachment 2.
**1700kg is net weight of generator. Plus the weight of full oil tank (approximate net weight: 1000kg), the total weight is
2700kg. 1000kg is the estimated figure from manufacturer. The actual figure should be 918kg, which is:
Specific gravity of diesel: 0.84 kg/Liter
Fuel tank capacity: 950 Liter
Fuel tank Weight (Empty): 120 kg
Total weight of fuel tank with full diesel: 950 x 0.84 + 120 = 918 kg
***Above info is the approximate dimension, may differ a little bit from the diagram below.

ii. Illustration of needed power for test

The test equipment we will use is Variable Frequency Resonant System. Refer to the basic theory
of resonant system, for long cable networks, they are high capacitance base compared to resistance.
If the cable networks are in good quality conditions, the regular Q factor can be 100 and above.
The output kVAR is related to the input power by:

kVARout I x Vout Q x I x Vexc Q x kWinput

POUTPUT=Q x PINPUT, if Q=100, then we can use 250kVA PINPUT for 25000kVA POUTPUT,
the application on 4400kVA system output only needs 44kVA input, it may be less when Q gets
higher. Thus, the output (250kVA) of generator is pretty enough for the needed power of test.
According to the resonance condition XL = XC, when the test circuit is under resonance condition,
the voltage on the test object (CLOAD) will be as following formula:

𝑼 × 𝑿𝑪 𝑿𝑪 𝑿𝑳
𝑼𝑪 = 𝑰 × 𝑿 𝑪 = =𝑼× =𝑼× =𝑼×𝑸
√𝑹𝟐 + (𝑿𝑳 − 𝑿𝑪 )𝟐 𝑹 𝑹

When design the reactor coil, it is necessary to increase the cross section of the wire and reduce the
resistance of the coil, but simply increasing the cross section of the wire will cause the coil and the
iron core to be too large, resulting in the situation that the volume and weight of the test reactor
10
exceed the limit. Under the premise that the size and weight of the reactor allow, reduce the
resistance of the coil as much as possible. In this project, multiple wires are wound in parallel to
reduce the resistance of the HV reactor. The equivalent resistance of the wire is around 22Ω.

The Q value of the reactor can be calculated based on regular operation frequency range of 30Hz
to 300Hz as below:

𝑿𝑳 𝝎𝑳 𝟐 × 𝟑. 𝟏𝟒𝟏𝟔 × 𝟑𝟎 × 𝟏𝟐
𝑸= = = = 𝟏𝟎𝟐
𝑹 𝑹 𝟐𝟐

II. Illustration of fuel usage

1. Basic information
100% Prime power fuel consumption: 54.4 Liter/Hour
Fuel tank capacity: 950 Liter
Fuel grade: ASTM D975, Class 1D and Class 2D
2. Calculation
Consider the standby and preparing time, using 1.1 for calculation coefficient;
Fuel consumption base for calculation: 54.4 x 1.1 = 59.84 (Approx. 60 Liter/Hour);
100% Prime power with full fuel tank can be used for: 950/60 = 15.8 Hours;
It means the fuel tank needs refilling after every 5 strings (5 x 3 phase = 15 hours).
3. Fuel refilling
There is a fuel filling hole on the tank, fuel can either be refilled by manual or filled
with machine. It depends on the availability. Also, there is the oil sump/reservoir for
gathering the oil leak if any. The capacity of oil sump is 500 L, meaning it can gather
at least half of the capacity of fuel tank if it leaks.

11
III. Description of Container
i. Containers Overview
Table 8. Containers overview

ID 1a 1b 2a 2b
Offshore Offshore Offshore frame Offshore frame
Item
container container container container
Number of
2 2
each item
External: 2991mm (9’9”) x 2438mm External: 2991mm (9’9”) x 2438mm
(8’0”) x 2591mm (8’6”) (8’0”) x 2591mm (8’6”)
Dimension
Internal: 2777mm (9’3”) x 2352mm Internal: 2798mm (9’3”) x 2240mm
(7’5”) x 2390mm (7’5”) (7’5”) x 2245mm (7’5”)
Weight 2050kg (4,510 lbs) 1110kg (2,442 lbs)

1. Offshore container5

Table 9. Specification of offshore container

Model OSC-10
Dimension (L x W x H) External: 2991mm (9’9”) x 2438mm (8’0”) x 2591mm (8’6”)
Internal: 2777mm (9’3”) x 2352mm (7’5”) x 2390mm (7’5”)
Capacity 15.6m3 (551 Cu-ft)
Door Opening 2284mm (7’7”)W x 2340 mm (7’9”)H
Max. Gross Wight 10000kg (22,050 lbs)
Max. Payload 7950kg (17,490 lbs)
Tare 2050kg (4,510 lbs) Max.
Certificate DNV 2.7-1
Feature • Meet with Container Safety Convention, CSC plated
• A60 fire proof grade
• Equipped with explosion-proof lights, switches, socket, cabling
and exciter transformer output parallel connection board
• Durbar anti-slip flooring
• Designed for easy stacking
• Transportation: Fork-lift, Crane and Top-Lift
• Lifting shackles & slings

Figure 4. Drawing of offshore container (see next page)

5 Certification of inspection please see attachment 3.

12
d

13
 2. Offshore frame container

Table 10. Specification of offshore frame container

Model OSC-10F
Dimension (L x W x H) External: 2991mm (9’9”) x 2438mm (8’0”) x 2591mm (8’6”)
Internal: 2798mm (9’3”) x 2240mm (7’5”) x 2245mm (7’5”)
Capacity 14.1m3 (498 Cu-ft)
Door Opening 2284mm (7’7”)W x 2340 mm (7’9”)H
Max. Gross Wight 5000kg (11,000 lbs)
Max. Payload 3890kg (8,558 lbs)
Tare 1110kg (2,442 lbs) Max.
Certificate DNV 2.7-1
Feature • Meet with Container Safety Convention, CSC plated
• Designed for easy stacking
• Transportation: Fork-lift, Crane and Top-Lift
• Lifting shackles & slings

Figure 5. Drawing of offshore frame container (with a reactor)

14
IV. Solution of Use and Lifting of Containers
Table 11. Overview of Solution of containers

No. Name Purpose Total/gross ID

weight
1 Offshore For housing the VFC, 4500kg 1a
container transformer and a 2 sections-
divider
2 Offshore For housing Perkins 4750kg 1b
container generator set
3 Offshore frame For housing HV reactor #1, 4915kg 2a
container and tarpaulin cover
4 Offshore frame For housing HV reactor #2., 4915kg 2b
container and tarpaulin cover

Offshore containers and offshore frame containers are customized for meeting the requirements
of this project. All containers are DNV 2.7-1 certified for offshore use and lifting. This operation
container loads the variable frequency converter and exciter transformer, the divider will be take
out for being installed near the test object. We have TWO offshore containers and TWO offshore
frame containers to load test equipment. Those test equipment are loaded separately with total
four containers (two containers & two frame containers), NOT are lifted for several times by only
one container or one frame container.
When lifting the containers and frame containers, there are four M42 shackles (see left photo
below) connected on the top of the four corners of containers. One shackle with load capacity of
8 tons, so four shackles can load up to 32 tons. Then, using the sling (see right photo below) for
loading a whole container with loaded items.

15
 Although the total weight of no.2, no.3, and no.4 (ID: 1b, 2a, and 2b) seem to be quite close to
the crane limit, we have tried to keep our total load weight below the limit weight (5000kg). The
weight of equipment and tare of offshore container is not adjustable, and the reactor also cannot
be taken apart for crane limit consideration. We thought the crane limit weight (5000kg) should
be the "safe working load", meaning any dynamic effects should be already taken into
employer's/rule maker's consideration ahead.
i. Offshore container
1. Purpose: For loading “variable frequency converter”, “exciter transformer”,
“divider”, and “generator set”.
2. Explanation: there are TWO times for loading the above items:
2.1. First container (ID: 1a) for loading “variable frequency converter”, “exciter
transformer”, and “divider”. Total weight is 4500kg, which is less than the roof deck
crane limit (5000kg).

ID Item Quantity Weight

Variable frequency converter 1 300kg6
Exciter transformer 1 2100kg7
1a Divider 1 25*2=50kg8
Tare of offshore container 1 2050kg9
Total weight of above all items NA 4500kg

2.2. Second container (ID: 1b) for loading the generator set. Total weight of the set of
generator, and tare of offshore frame container is 4750kg, which is less than the roof deck
crane limit (5000kg).

ID Item Quantity Weight

Generator 1 1700+1000=2700kg10
Tare of offshore container 1 2050kg11
1b
Total weight of above all NA 4750kg
items

The generator is 14cm each side along with the installation length. When we operate the

6 Table 3. List of electric test set

7 Table 3. List of electric test set
8 Table 3. List of electric test set
9 Table 9. Specification of offshore container
10 Table 7. Specification of generator*
11 Table 9. Specification of offshore container

16
 generator, two side 4 doors will be opened for air circulation. It shall be no problem for
the generator operation, and the supplier will try to shorten the length of generator, it will
completely meet the 10' length demand.

ii. Offshore frame container

1. Purpose: For loading “reactors”. These test equipment can be protected by ‘tarpaulin
cover’. It is better to cover equipment itself than to cover the frame container. Use screw bolts
to fix all of the bottom of equipment to the bottom of containers. Fasten the tarpaulin and
equipment with screws and steel cable. Tarpaulin needs to be removed before testing. The
example figure is as below.

2. Explanation: there are TWO times for loading the above items:

2.1. First frame container (ID: 2a) for loading the first reactor: Total weight of a HV
reactor, a tarpaulin cover, and a tare of offshore frame container is 4915kg, which is
less than the roof deck crane limit (5000kg).

ID Item Quantity Weight

2a HV Reactor 2 3800kg12/per

12 Table 3. List of electric test set

17
 Tare of offshore frame 2 1110kg13/per
container
Tarpaulin cover 2 5kg (2200*1500*2100)/per

2.2. Second frame container (ID: 2b) for loading the second reactor: Total weight of a
HV reactor, a tarpaulin cover, and a tare of offshore frame container is 4915kg, which
is less than the roof deck crane limit (5000kg).

ID Item Quantity Weight

HV Reactor 2 3800kg14/per
Tare of offshore frame 2 1110kg15/per
2b
container
Tarpaulin cover 2 5kg (2200*1500*2100)/per

13 Table 10. Specification of offshore frame container

14 Table 3. List of electric test set

15 Table 10. Specification of offshore frame container

18
 V. Testing Layout
Figure 6. Footprint for each container

Transportation of Control Transportation of Reactor

Control Container in operation
Container Container
The containers with their loading items will be transported according to transportation requirements.
For the frame containers which load the two reactors, they are well protected/fastened with tarpaulin
as mentioned earlier. Thus, no additional fastening solutions required for loading reactors. When
loading all the system, it can be craned to its position as close as possible, just leave the door opening
clearance for diesel generator and control container when operation. An earth path resistance test will
be carried out after the container earths have been applied.

i. Grounding requirement

The grounding connections for each component in the test system is first priority for the safety
operation, all the peoples must keep in mind, “NEVER DO ANY TEST BEFORE YOU START THE
SYSTEM”.

ii. Grounding position

1. Diesel Generator: Two grounding M12 studs are pre-installed close to the door.
2. Control Container: This container has variable frequency converter with its control and exciter
transformer installed, the grounding studs are installed as generator container close to the door.
The operator can pick up the nearby stud for grounding connection.
3. High Voltage Reactor Container: The High Voltage Reactors are installed inside its own frame
type container, each container has two M12 grounding studs on the corner, the operator can pick
19
 up the nearby stud for the grounding connection.
4. High Voltage Divider: During the transportation, the High Voltage Divider is disassembly into
several sections with carrying case protection, and store inside the Control Container. There is
one grounding stud on its base for grounding connection.
iii. Grounding connection

Figure 7. Grounding connection

Earth wire

Earth wire

Earth
wire

1. The grounding connection shall made by 38mm2 welding cable at least, or 150mm x 0.5mm
copper foil.
2. The connection shall be as distribution from the station ground to each container directly, not
collect each container to go to station ground, and keep in mind, it shall be “AS SHORT AS
POSSIBLE”.
3. The divider ground shall go to the nearby container ground.
4. The shield of MV test cable must go to nearby container grounding stud directly.
5. All earthing cabling and accessories are supplied with the test set & generator. Those cabling and
earthing devices will be stored in the containers when transporting the whole test systems.
6. 'Check earthing status' will be shown in the QC checklist. Making sure everything is well
grounded is required. We won't record the resistance test value because it seems not meaningful
in the test.

20
iv. Test connection

Figure 8. Test connection

Please refer to above drawing for the system power connection. For the HV output connection, the
High Voltage Divider can be anywhere to be close to the High Voltage Reactor, but keeping the safety
clearance is required. In the test voltage of 66kV submarine cable network, 650mm HV clearance is a
must for all the time.

The connection between the High Voltage Divider to the cable network (DUT) shall be either high
voltage conduits (if test layout is allowed) or MV test cable. The MV test cable which comes with
35kV outdoor type cable termination will be connected to the prepared stud inside the top electrode of
High Voltage Divider. The other end of the MV test cable is the CONNEX 4 plug (Pfisterer female
inline joint16), before the test is conducted, the operator must have the CONNEX 4 plug plugged into
the dummy plug securely, NEVER has CONNEX 4 plug floating when voltage is applied.

The 100m MV test cable is stored inside the generator container when transportation, it is a special
cable drum, overall weight for the cable drum and a 100m length test cable is around 245kg, before
paying off the MV test cable, please carefully lead the cable end out, then rotate the cable drum, be

16 More information please see the point 6 of attachment 1.

21
note, the cable must all lead out for connection, NEVER have the cable on the drum before HV tests.
The overall weight for the generator without fuel will be around 4995kg.

22
 Attachment 1

i. Description of each part of the device

1. System specification
1.1. Input Voltage: 3 Phase 380V±10% 50Hz
1.2. Output Voltage: 0--340kV
1.3. Output Current: 128A/85kV; 32A/340kV
1.4. Maximum Test Capacity: 10880kVA
1.5. Output Waveform: Sine wave
1.6. Total Harmonic Distortion: ≤1%
1.7. Output frequency: 30 -- 300Hz, output frequency resolution: 0.1Hz, instability: <0.1%
1.8. Insulation level: withstand voltage for 1min at 1.1X rated voltage
1.9. Under output test capacity, Duty cycle: 1 hour ON, 1 hour OFF, 3X/day
1.10. Sound Noise: ≤75dB
1.11. Complete protection function including:
1.11.1. Overvoltage, overcurrent and discharge protection
In the abnormal status, the protection device will automatically switch OFF the power.
1.11.2. Overvoltage protection
The product has overvoltage protection function. The overvoltage protection value can
be set manually. The analog signal of the voltage divider is used for hardware protection.
Overvoltage protection accuracy is 2%.
1.11.3. Overcurrent and overheating protection
Overcurrent protection is dual. One side is each IGBT module has its own overcurrent
and overheating protection function. Another side is it uses Hall element to sample DC
and hardware protection according to the setting. The protection time is less than 1μs.
1.11.4. Discharge protection
After the sample is discharged, the test automatically trips within 1μs, and the LCD
screen displays "discharge protection". After the discharge, the parameters of the circuit
change abruptly, and the reactor is an inductive component. This may cause overvoltage
at the end of the reactor and damage the excitation transformer and the variable
frequency power supply. To this end, a lightning arrester must be installed on the high
voltage side of the excitation transformer, Install a filter at the outlet of the variable
frequency power supply. Since the capacitive sample will generate a pulse current after
discharge, it will cause a counterattack. Hence, a line protection is installed on the power
supply side to prevent the inverter from being damaged by the counterattack voltage.
1.11.5. High voltage no signal protection
When the divider signal cannot input to the frequency converter control box due to a

23
 failure, the voltage cannot be boosted normally in the automatic test mode, and appear
"No high voltage signal input”
1.11.6. Power OFF protection
In any case, the test device suddenly disconnects the AC power supply and the units
can work normally when the voltage is re--boosted.
1.11.7. Zero Start
The voltage regulation has high resolution and can be started from zero. If not closed
from zero, the converter will not start.
1.12. The complete equipment adopts sealing measures; the device can be stored, assembled and
disassembled outdoors, and the equipment is convenient for automobile transportation. After
normal railway and road transportation, the positions of the devices are not changed, the fasteners
are not loosened, and the components are not damaged.
2. Variable frequency converter VF--3/300
2.1 The frequency converter is a special frequency conversion for high--voltage test. The main
body of the control power supply has functions such as frequency regulation, voltage
regulation, control and protection.
2.2 Output Capacity: 300kW
2.3 Input Voltage: 380V±10% 50Hz
2.4 Output Voltage: 1 phase 0 -- 460V, Output Voltage Instability ≤1%
2.5 The power frequency withstand voltage level of the input and output main circuit and
auxiliary circuit for 1min is 2kV (RMS).
2.6 Input Current: 455A
2.7 Output Current: 652A
2.8 Frequency Adjustment Range: 20 -- 300Hz
2.9 Frequency Adjustment Sensitivity: ≤0.02Hz
2.10 Frequency Adjustment Instability: ≤0.05Hz
2.11 Sound Noise: ≤75dB
2.12 Continuous running time at rated capacity: 1 hour ON, 1 hour OFF, 3X/day
2.13 The following parameters can be displayed:
2.3.1. Frequency, voltage and current output through frequency conversion.
2.3.2. With multifunctional digital display peak voltage meter, it can display the peak value,
peak value/√2 , and RMS of the high--voltage test voltage.
2.3.3. The overvoltage protection voltage value can be set arbitrarily. When the output voltage
value reaches the protective set value, the device can be automatically switch OFF.
2.3.4. Overcurrent protection, when the output current of the variable frequency power
reaches the protection setting value, the device can be automatically switch OFF.
2.3.5. Breakdown protection. When a flashover to the ground occurs on the high--voltage side,
24
 the devices can be automatically switch OFF, and "discharge protection" is displayed.
The device is equipped with an isolation device to ensure that the equipment and people
are not damaged, and the electronic components in the inverter cabinet do not
breakdown.
2.3.6. With full voltage output protection, in the process of voltage regulation, once the
voltage regulation is out of control, the variable frequency power is immediately
blocked
2.3.7. Various protection status displays: such as overvoltage protection, discharge protection,
overcurrent protection, etc.
2.14. Following operation can be performed:
2.14.1. Frequency adjustment: rising and falling. The frequency adjustment is divided into
coarse adjustment and fine adjustment, and the test resonance point can be
automatically searched to ensure that the resonance frequency does not drift during the
entire test process.
2.14.2. Test voltage adjustment: rising and falling. There are two types of voltage adjustment:
coarse adjustment and fine adjustment. They can control the speed of voltage regulation
to ensure that the voltage rises and falls uniformly and stably. With overvoltage output
protection, it can automatically trip if the voltage is exceeded.
2.14.3. With a special key switch, the working power can be turned ON or OFF only after the
mechanical lock is released.
2.14.4. HV ON/OFF Pushbuttons.
2.14.5. With test data printing function
2.14.6. The variable frequency converter is controlled by a high--performance dedicated
microcomputer, with stable waveforms and minimal temperature drift. It uses high-
-permeability materials to isolate and shield each device and conductor. In order to
improve the response speed and reliability, and avoid damage due to external impact, a
hardware protection circuit should be used.
2.14.7. The power supply has a reliable ground terminal to ensure the safe operation of test
personnel.
2.14.8. The variable frequency power is equipped with special leads and plugs to connect with
other equipment, including special power leads to power supplies, low voltage leads to
excitation transformers, special measurement leads to voltage dividers, and special
ground leads.
2.14.9. The internal structure of the variable frequency power and its components do not change
with each other after normal railway and road transportation, without damage, and the
fasteners do not loosen.
3. Exciter transformer YD--300/5
25
 3.1. Oil--immersed self--cooling structure meets the requirements of national standards for
oil-immersed exciter transformers.
3.2. Rated capacity: 300kVA
3.3. Rated input voltage: 460V
3.4. Rated output: 1.25kV/2.5kV/3.75kV/5kV
3.5. Frequency range: 25 -- 300Hz
3.6. Exciter transformer is also an isolation transformer. An electrostatic shielding layer is provided
between the high and low voltage windings and the iron core. There is only a magnetic
connection between the high and low voltage windings and no electrical connection.
3.7. Be able to continuous work at rated capacity: 60min ON - 60min OFF - 60min ON --60min
OFF - 60min ON
3.8. The internal structure of the excitation transformer does not change with each other after
normal railway and road transportation, and the fasteners do not loosen.
4. High voltage reactor YDK--2720/85
4.1. Structural form: Tank type iron--core structure
4.2. Rated capacity: 2720kVA
4.3. Rated voltage: 85kV
4.4. Frequency range: 30 -- 300Hz
4.5. Rated current: 32A
4.6. Raged inductance: 12H
4.7. Continuous running time at rated capacity: 60min ON -60min OFF -60min ON -60min OFF -
60min ON.
4.8. The reactor base can withstand the requirements of mechanical strength and insulation
strength during use.
4.9. The internal structure of the reactor does not change with each other after normal train and car
transportation, and the fasteners are not loose.

26
 Figure 9. Drawing of reactor

5. High voltage divider TRF--350/0.001

5.1. Rated voltage: 350kV
5.2. Rated capacity as 1000pF, the body is divided into 2 sections, and the capacity
of a single section is 2000pF
5.3. Frequency range: 20 -- 300Hz, the accuracy and stability remain unchanged
5.4. Measurement error: RMS≤1%, Peak≤1.5%
5.5. The capacitor of the low--voltage arm uses the same material as the high-
-voltage body, the temperature coefficient is small, the voltage division ratio
does not change within 20 -- 300Hz
5.6. Voltage measurement is led to a variable frequency power supply through a
dedicated test lead
5.7. Maximum value of overvoltage is 1.1X of rated voltage
5.8. With aluminum alloy carrying case

27
6. Various accessories required for testing
6.1 Accessory box
6.2 Input and output power cables
6.3 Exciter Transformer output cable
6.4 System ground wire
6.5 Reactor short length parallel wire
6.6 High--voltage measurement cable (voltage divider signal output cable)
6.7 Lead wire (cable) will be a 35kV EPR (Dielectric voltage rating 91kV) 35mm2
100m length. Both end both been terminated as below:

Fixing on voltage divider

6.8 Test connector

According to the instruction of Singapore conjunction schematic below:

One end of PFISTERER CONNEX 4 will be terminated and connected to Singapore IPC, the
other end will be terminated for connecting to submarine cable. Both ends shall be male
termination (plug). For applying HV to CONNEX 4 socket (Female), we need one dummy plug
(male) for our interface. Both one CONNEX 4 socket (Female) and one dummy plug (male)
will be provided by Winsome.

Connex 4 Stress cone Standoff

6.9 1 copy of each Factory Inspection Report, Product Certificate, Instruction Manual, etc.; 1
copy of Packing List
6.10 Voltage Divider Calibration Report issued by third party

28
ii. Original specification from manufactures

29
30
31
32
33
34
Attachment 2

35
36
37
38
Figure 10. Drawing of generator set

39
40
 Attachment 3

The certificates of containers and frame containers are the documents for verifying that they were
manufactured according to DNV 2.7-1 standard. It is not like the HVAC test equipment which may
need calibration routinely, and thus there is no expiration issues for containers and frame containers.

41
42
43
44
45
46
47
 Specification of AC Voltage (External) LSC-18053-LD-22-1
Ref. No.
Testing Equipment (Internal) -
CHW01 & CHW02 Offshore Employer Ørsted Rev. No. G
Confidential and Proprietary
Array Cable Supply and
Information Date 30/07/2021 Page. 55 of 62
Termination Work

Appendix-3 Calibration Certificate

(The HVAC Test Equipment)
(Total 7 Pages)

© LS Cable & System Ltd. All rights reserved (2021)
