ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

42
41

43

14-2

44

45 50

46
47
48

49
51

52 53

54

55
56

57

58

V06237

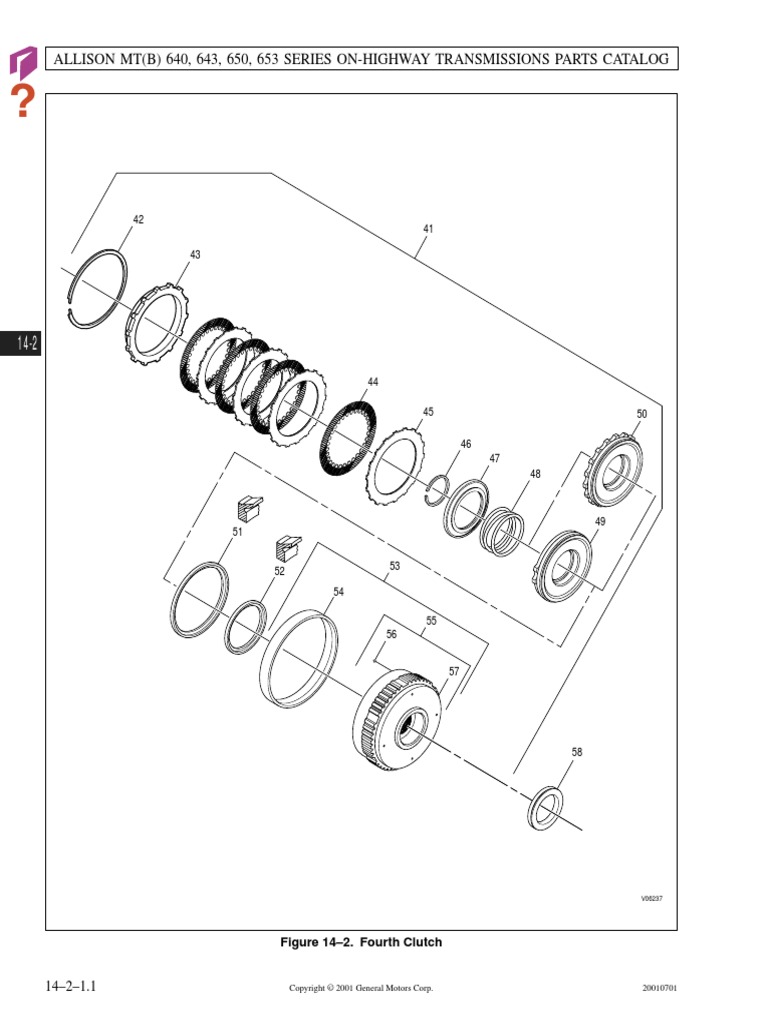

Figure 14–2. Fourth Clutch

14–2–1.1 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 14-687
Fourth Clutch, Figure 14–2
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043249 ** 1
42 Ring, Retaining, Internal, 7.998 inch OD . . . . . . . . . . . . . . . . . . . . 23018867 1 3 6 18
43 Backplate, Fourth-Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29516333 1 3 6 18
44 Plate, Internal-Splined Friction, Fourth-Clutch. Do Not Mix
6834370 Plate With 23042200 Plate. . . . . . . . . . . . . . . . . . . . 23042200 4 8 16 64
45 Plate, External-Tanged Reaction, Fourth-Clutch . . . . . . . . . . . . . . 23016610 4 12 24 96
46 Ring, Retaining, External, 2.550 inch ID . . . . . . . . . . . . . . . . . . . . 6885156 1 3 6 18
47 Retainer, Clutch Piston Return Spring . . . . . . . . . . . . . . . . . . . . . . 6834369 1 2 4 12
48 Spring, Fourth-Clutch Piston Return . . . . . . . . . . . . . . . . . . . . . . . 6836773 1 3 6 15
49 Piston, Fourth-Clutch, 0.995–1.005 inch, Selective.
Identified With Letter A. See SPI 5-TR-92. . . . . . . . . . . . . . . . 6834669 AR 1 2 5 14-2
49 Piston, Fourth-Clutch, 1.020–1.030 inch, Selective.
Identified With Letter B. See SPI 5-TR-92. . . . . . . . . . . . . . . . 6834668 AR 1 2 5
49 Piston, Fourth-Clutch, 1.045–1.055 inch, Selective.
Identified With Letter C. See SPI 5-TR-92. . . . . . . . . . . . . . . . 6834219 AR 1 2 5
50 Not Used In This Group.
51 Sealring, External Lip-Type, 6.655 inch ID . . . . . . . . . . . . . . . . . . 6833981 1 3 6 15
52 Sealring, External Lip-Type, 3.280 inch ID . . . . . . . . . . . . . . . . . . 23015880 1 3 6 15
53 Fourth-Clutch Housing Assembly. See SPI 60-TR-80. . . . . . . . . . 23011825 1 1 2 6
54 Ring, Reinforcing, Clutch Housing . . . . . . . . . . . . . . . . . . . . . 23046613 1 1 2 3
55 Housing Assembly, Fourth-Clutch. See SPI 33-TR-96. . . . . . 6834368 * 1
56 Ball, Check, 3⁄16 inch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8622757 4 4 8 15
57 Housing, Fourth-Clutch Piston . . . . . . . . . . . . . . . . . . . . . 6834223 * 1
58 Thrust Bearing Kit. Kit Contains 29503225 Roller Thrust Bearing
Assembly And 23019781 Instruction Sheet No. 196.
See SPI 33-TR-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23019782 1 3 6 15

GROUP 14-694
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-695
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010701 Copyright © 2001 General Motors Corp. 14–2–2.1

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 14-696
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-697
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

14-2
GROUP 14-698
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-699
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-700
Fourth Clutch, Figure 14–2
Same As Group 14-687.

GROUP 14-701
Fourth Clutch, Figure 14–2
Same As Group 14-687.

GROUP 14-702
Fourth Clutch, Figure 14–2
Same As Group 14-687.

** Not Serviced As An Assembly — Order Detail Parts.

14–2–2.2 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 14-709
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-710
Fourth Clutch, Figure 14–2
Same As Group 14-687.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

14-2
GROUP 14-712
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-865
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

GROUP 14-941
Fourth Clutch, Figure 14–2
Same As Group 14-687.

GROUP 14-949
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043251 ** 1
44 Plate, Internal-Splined Friction, Fourth-Clutch. Do Not Mix
6834370 Plate With 23042200 Plate. . . . . . . . . . . . . . . . . . . . 23042200 5 10 20 80
45 Plate, External-Tanged Reaction, Fourth-Clutch . . . . . . . . . . . . . . 23016610 5 15 30 120
49 Not Used In This Group.
50 Piston, Fourth-Clutch, 0.970–0.980 inch, Selective.
Identified With Letter J. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23017260 AR 1 2 5
50 Piston, Fourth-Clutch, 0.995–1.005 inch, Selective.
Identified With Letter K. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23017261 AR 1 2 5
(continued on next page)

** Not Serviced As An Assembly — Order Detail Parts.

20010701 Copyright © 2001 General Motors Corp. 14–2–2.3

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 14-949
Fourth Clutch, Figure 14–2
(cont’d)

Same As Group 14-687, Except For Parts Listed Below.

RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
50 Piston, Fourth-Clutch, 1.020–1.030 inch, Selective.
Identified With Letter L. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23017262 AR 1 2 5
53 Fourth-Clutch Housing Assembly. See SPI 60-TR-80. . . . . . . . . . 23017257 1 1 2 6
55 Housing Assembly, Fourth-Clutch. See SPI 33-TR-96. . . . . . 23018341 * 1
57 Housing, Fourth-Clutch Piston . . . . . . . . . . . . . . . . . . . . . 23018342 * 1

GROUP 14-965
14-2 Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043251 ** 1
44 Plate, Internal-Splined Friction, Fourth-Clutch. Do Not Mix
6834370 Plate With 23042200 Plate. . . . . . . . . . . . . . . . . . . . 23042200 5 10 20 80
45 Plate, External-Tanged Reaction, Fourth-Clutch . . . . . . . . . . . . . . 23016610 5 15 30 120
49 Not Used In This Group.
50 Piston, Fourth-Clutch, 0.970–0.980 inch, Selective.
Identified With Letter J. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23017260 AR 1 2 5
50 Piston, Fourth-Clutch, 0.995–1.005 inch, Selective.
Identified With Letter K. . . . . . . . . . . . . . . . . . . . . . . . . . . 23017261 AR 1 2 5
50 Piston, Fourth-Clutch, 1.020–1.030 inch, Selective.
Identified With Letter L. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23017262 AR 1 2 5
53 Fourth-Clutch Housing Assembly. See SPI 60-TR-80. . . . . . . . . . 23017257 1 1 2 6
55 Housing Assembly, Fourth-Clutch. See SPI 33-TR-96. . . . . . 23018341 * 1
57 Housing, Fourth-Clutch Piston . . . . . . . . . . . . . . . . . . . . . . . . 23018342 * 1

GROUP 14-1002
Fourth Clutch, Figure 14–2
Same As Group 14-687.

GROUP 14-1004
Fourth Clutch, Figure 14–2
Same As Group 14-687.

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

14–2–2.4 Copyright © 2001 General Motors Corp. 20010701

 ALLISON MT(B) 640, 643, 650, 653 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 14-1019
Fourth Clutch, Figure 14–2
Same As Group 14-687.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200

GROUP 14-1041
Fourth Clutch, Figure 14–2
Same As Group 14-687, Except For Parts Listed Below.
41 Fourth-Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23043248 ** 1

14-2

** Not Serviced As An Assembly — Order Detail Parts.

20010701 Copyright © 2001 General Motors Corp. 14–2–2.5
