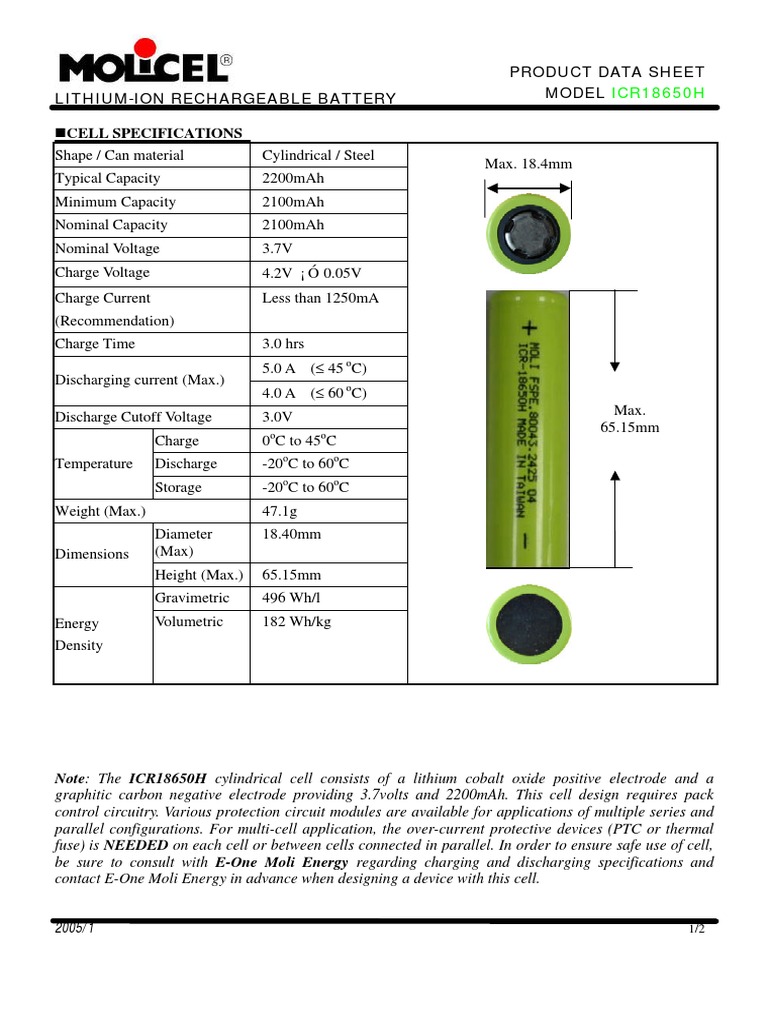

PRODUCT DATA SHEET

LITHIUM-ION RECHARGEABLE BATTERY MODEL ICR18650H

nCELL SPECIFICATIONS
Shape / Can material Cylindrical / Steel
Max. 18.4mm
Typical Capacity 2200mAh
Minimum Capacity 2100mAh
Nominal Capacity 2100mAh
Nominal Voltage 3.7V
Charge Voltage 4.2V ± 0.05V
Charge Current Less than 1250mA
(Recommendation)
Charge Time 3.0 hrs
5.0 A (≤ 45 oC)
Discharging current (Max.)
4.0 A (≤ 60 oC)
Discharge Cutoff Voltage 3.0V Max.
65.15mm
Charge 0oC to 45oC
Temperature Discharge -20oC to 60oC
Storage -20oC to 60oC
Weight (Max.) 47.1g
Diameter 18.40mm
Dimensions (Max)
Height (Max.) 65.15mm
Gravimetric 496 Wh/l
Energy Volumetric 182 Wh/kg
Density

Note: The ICR18650H cylindrical cell consists of a lithium cobalt oxide positive electrode and a
graphitic carbon negative electrode providing 3.7volts and 2200mAh. This cell design requires pack
control circuitry. Various protection circuit modules are available for applications of multiple series and
parallel configurations. For multi-cell application, the over-current protective devices (PTC or thermal
fuse) is NEEDED on each cell or between cells connected in parallel. In order to ensure safe use of cell,
be sure to consult with E-One Moli Energy regarding charging and discharging specifications and
contact E-One Moli Energy in advance when designing a device with this cell.

2005/1 1/2
 PRODUCT DATA SHEET
LITHIUM-ION RECHARGEABLE BATTERY MODEL ICR18650H

nCharge Characteristics nDischarge Rate Characteristics

4.0 5.0 120 5.0
Charge:
Constant Current-Constant Voltage Charge to 4.2V at 23oC.
3.5
100
4.0 4.0
3.0

1.25A
80
2.5 2.2A

Capacity (%)
3.0 3.0
Voltage (V)

Voltage (V)
Current (A)

4.4A 3.3A 2.2A 1.1A 0.44A

2.0 60

2.0 2.0
1.5 Charge: Constant Current-Constant Voltage, 1.25A, 4.2V, 3hr.
40 Discharge: Cut 0ff at 3.0V.
1.0 Temperature: 21oC.
1.0 1.0
20
0.5

0.0 0.0 0 0.0

0.0 0.5 1.0 1.5 2.0 2.5 0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
Time (hrs) Capacity (mAH)

nDischarge Temperature Characteristics nCycle Characteristics

120 120

100 100
23oC
0.44A

45oC
80 80
Capacity (%)

Capacity (%)

1.1A

60 60
2.0A

40 40
Charge: CC-CV, 1.25A, 4.2V, 3 hrs. Charge: Constant Current-Constant Voltage, 1.25A, 4.2V, 3hr
Discharge: Cut off at 3.0V. Discharge: Constant Current, 2.0A, Cut off at 3.0V
The discharge capacity at 21oC is taken as 100%.
20 20

0 0
-20 0 20 40 60 0 50 100 150 200 250 300
Temperature (oC) Cycle Number (times)

Molicel ICR18650H Applications:

* Notebook * Portable VCD/DVD player
* HID handy flash * Camcorder
* Medical devices

E-One Moli Energy, a pioneer in lithium ion battery development and manufacturing in Taiwan/Canada, is capable of
providing lithium ion cells with absolute safety, maturely size, high power, and long life.
