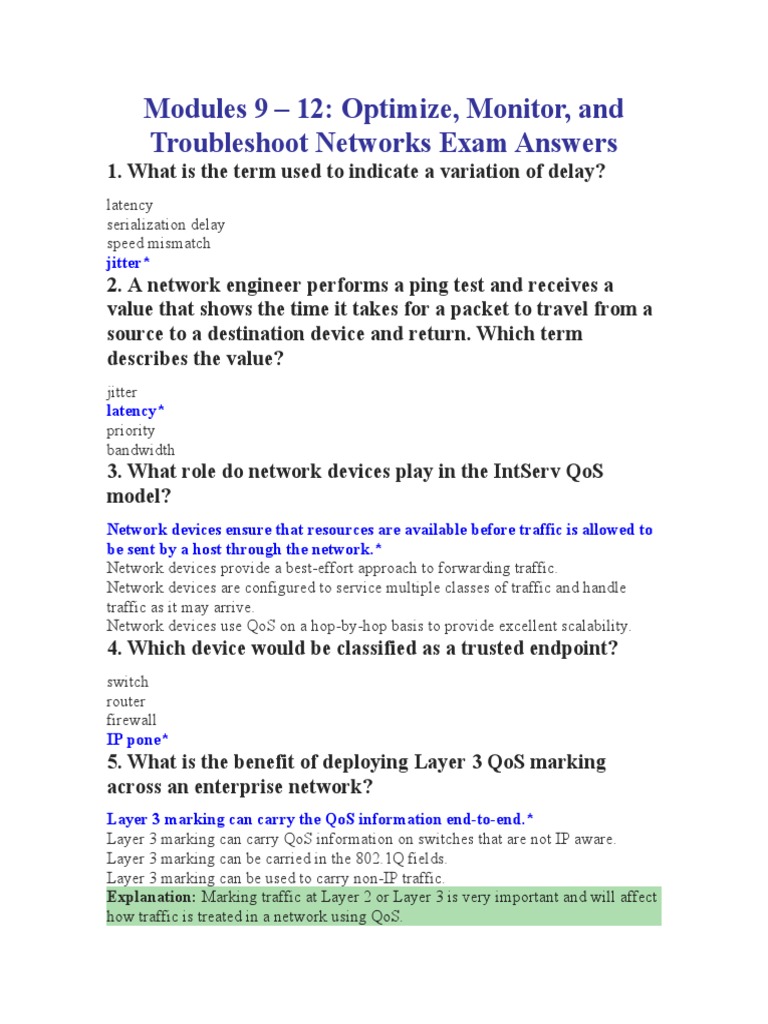

Modules 9 – 12: Optimize, Monitor, and

Troubleshoot Networks Exam Answers

1. What is the term used to indicate a variation of delay?
latency
serialization delay
speed mismatch
jitter*
2. A network engineer performs a ping test and receives a
value that shows the time it takes for a packet to travel from a
source to a destination device and return. Which term
describes the value?
jitter
latency*
priority
bandwidth
3. What role do network devices play in the IntServ QoS
model?
Network devices ensure that resources are available before traffic is allowed to
be sent by a host through the network.*
Network devices provide a best-effort approach to forwarding traffic.
Network devices are configured to service multiple classes of traffic and handle
traffic as it may arrive.
Network devices use QoS on a hop-by-hop basis to provide excellent scalability.
4. Which device would be classified as a trusted endpoint?
switch
router
firewall
IP pone*
5. What is the benefit of deploying Layer 3 QoS marking
across an enterprise network?
Layer 3 marking can carry the QoS information end-to-end.*
Layer 3 marking can carry QoS information on switches that are not IP aware.
Layer 3 marking can be carried in the 802.1Q fields.
Layer 3 marking can be used to carry non-IP traffic.
Explanation: Marking traffic at Layer 2 or Layer 3 is very important and will affect
how traffic is treated in a network using QoS.
Layer 2 marking of frames can be performed for non-IP traffic.
Layer 2 marking of frames is the only QoS option available for switches that are not
“IP aware.”
Layer 3 marking will carry the QoS information end-to-end.

6. What is the function of a QoS trust boundary?

A trust boundary identifies the location where traffic cannot be remarked.
A trust boundary only allows traffic to enter if it has previously been marked.
A trust boundary identifies which devices trust the marking on packets that
enter a network.*
A trust boundary only allows traffic from trusted endpoints to enter the network.
Explanation: Network traffic is classified and marked as close to the source device
as possible. The trust boundary is the location where the QoS markings on a packet
are trusted as they enter an enterprise network.

7. What are two approaches to prevent packet loss due to

congestion on an interface? (Choose two.)
Decrease buffer space.
Disable queuing mechanisms.
Drop lower-priority packets.*
Prevent bursts of traffic.
Increase link capacity.*
Explanation: There are three approaches to prevent sensitive traffic from being
dropped:
Increase link capacity to ease or prevent congestion.
Guarantee enough bandwidth and increase buffer space to accommodate bursts of
traffic from fragile flows.
Prevent congestion by dropping lower-priority packets before congestion occurs.

8. What configuration scenario would offer the most

protection to SNMP get and set messages?
SNMPv2 for in-band management with read-write community strings
SNMPv1 with out-of-band management in a private subnet
SNMPv3 configured with the auth security level*
SNMP community strings
Explanation: SNMPv3 supports authentication and encryption with the auth and
priv security levels. SNMPv1 and SNMPv2 do not support authentication or
encryption. Using a default community string is not secure because the default string
of “public” is well known and would allow anyone with SNMP systems to read
device MIBs.
9. Refer to the exhibit.

CCNA 3 v7.0 Modules 9 – 12 Exam Answers p9

The network administrator enters these commands into the R1

router:
R1# copy running-config tftp

Address or name of remote host [ ]?

When the router prompts for an address or remote host name,

what IP address should the administrator enter at the
prompt?
192.168.9.254
192.168.10.2
192.168.11.252*
192.168.11.254
192.168.10.1
Explanation: The requested address is the address of the TFTP server. A TFTP
server is an application that can run on a multitude of network devices including a
router, server, or even a networked PC.

10. The command ntp server 10.1.1.1 is issued on a router.

What impact does this command have?
determines which server to send system log files to
synchronizes the system clock with the time source with IP address 10.1.1.1*
identifies the server on which to store backup configurations
ensures that all logging will have a time stamp associated with it
Explanation: The ntp server ip-address global configuration command configures
the NTP server for IOS devices.

11. As the network administrator you have been asked to

implement EtherChannel on the corporate network. What
does this configuration consist of?
providing redundant links that dynamically block or forward traffic
grouping two devices to share a virtual IP address
grouping multiple physical ports to increase bandwidth between two switches*
providing redundant devices to allow traffic to flow in the event of device failure
Explanation: EtherChannel is utilized on a network to increase speed capabilities
by grouping multiple physical ports into one or more logical EtherChannel links
between two switches. STP is used to provide redundant links that dynamically
block or forward traffic between switches. FHRPs are used to group physical
devices to provide traffic flow in the event of failure.

12. What is a definition of a two-tier LAN network design?

access and core layers collapsed into one tier, and the distribution layer on a separate
tier
distribution and core layers collapsed into one tier, and the access layer on a
separate tier*
access, distribution, and core layers collapsed into one tier, with a separate backbone
layer
access and distribution layers collapsed into one tier, and the core layer on a separate
tier
Explanation: Maintaining three separate network tiers is not always required or
cost-efficient. All network designs require an access layer, but a two-tier design can
collapse the distribution and core layers into one layer to serve the needs of a small
location with few users.

13. What are two reasons to create a network baseline?

(Choose two.)
to select a routing protocol
to determine what kind of equipment to implement
to design a network according to a proper model
to identify future abnormal network behavior*
to evaluate security vulnerabilities in the network
to determine if the network can deliver the required policies*
Explanation: A network baseline is created to provide a comparison point, at the
time that the network is performing optimally, to whatever changes are implemented
in the infrastructure. A baseline helps to keep track of the performance, to track the
traffic patterns, and to monitor network behavior.

14. A computer can access devices on the same network but

cannot access devices on other networks. What is the probable
cause of this problem?
The computer has an incorrect subnet mask.
The computer has an invalid default gateway address.*
The cable is not connected properly to the NIC.
The computer has an invalid IP address.
Explanation: The default gateway is the address of the device a host uses to access
the Internet or another network. If the default gateway is missing or incorrect, that
host will not be able to communicate outside the local network. Because the host can
access other hosts on the local network, the network cable and the other parts of the
IP configuration are working.

15. In which step of gathering symptoms does the network

engineer determine if the problem is at the core, distribution,
or access layer of the network?
Gather information.
Narrow the scope.*
Document the symptoms.
Determine ownership.
Determine the symptoms.
Explanation: In the “narrow the scope” step of gathering symptoms, a network
engineer will determine if the network problem is at the core, distribution, or access
layer of the network. Once this step is complete and the layer is identified, the
network engineer can determine which pieces of equipment are the most likely
cause.

16. A network administrator is deploying QoS with the ability

to provide a special queue for voice traffic so that voice traffic
is forwarded before network traffic in other queues. Which
queuing method would be the best choice?
LLQ*
CBWFQ
WFQ
FIFO
Explanation: Low latency queuing (LLQ) allows delay-sensitive data, such as voice
traffic, to be defined in a strict priority queue (PQ) and to always be sent first before
any packets in any other queue are forwarded.

17. What are two characteristics of voice traffic? (Choose

two.)
Voice traffic latency should not exceed 150 ms.*
Voice traffic is unpredictable and inconsistent.
Voice traffic requires at least 384 kbs of bandwidth.
Voice traffic consumes lots of network resources.
Dropped voice packets are not retransmitted.*
Explanation: Voice traffic does not consume a lot of network resources, such as
bandwidth. However, it is very sensitive to delay and dropped packets cannot be
retransmitted. For good voice quality, the amount of latency should always be less
than 150 milliseconds.

18. Which type of network traffic cannot be managed using

congestion avoidance tools?
TCP
ICMP
IP
UDP*
Explanation: Queuing and compression techniques can help to reduce and prevent
UDP packet loss, but there is no congestion avoidance for User Datagram Protocol
(UDP) based traffic.

19. When QoS is implemented in a converged network, which

two factors can be controlled to improve network performance
for real-time traffic? (Choose two.)
Delay*
packet addressing
jitter*
packet routing
link speed
Explanation: Delay is the latency between a sending and receiving device. Jitter is
the variation in the delay of the received packets. Both delay and jitter need to be
controlled in order to support real-time voice and video traffic.
20. An administrator wants to replace the configuration file on
a Cisco router by loading a new configuration file from a
TFTP server. What two things does the administrator need to
know before performing this task? (Choose two.)
name of the configuration file that is currently stored on the router
configuration register value
name of the configuration file that is stored on the TFTP server*
router IP address
TFTP server IP address*
Explanation: In order to identify the exact location of the desired configuration file,
the IP address of the TFTP server and the name of the configuration file are essential
information. Because the file is a new configuration, the name of the current
configuration file is not necessary.

21. Refer to the exhibit.

CCNA 3 v7.0 Modules 9 – 12 Exam Answers p21

Which of the three Cisco IOS images shown will load into
RAM?
The router selects an image depending on the boot system command in the
configuration.*
The router selects an image depending on the value of the configuration register.
The router selects the third Cisco IOS image because it is the most recent IOS
image.
The router selects the third Cisco IOS image because it contains the advipservicesk9
image.
The router selects the second Cisco IOS image because it is the smallest IOS image.
Explanation: When performing an upgrade or testing different IOS versions,
the boot system command is used to select which image is used to boot the Cisco
device.

22. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p22

What two types of devices are connected to R1? (Choose two.)

Switch*
hub
router*
repeater
Source Route Bridge
Explanation: The capabilities of the devices displayed by the output show them to
be a Cisco 2811 series router, Cisco 1941 series router, and a Cisco 2960 switch.

23. What are three functions provided by the syslog service?

(Choose three.)
to select the type of logging information that is captured*
to periodically poll agents for data
to provide statistics on packets that are flowing through a Cisco device
to provide traffic analysis
to gather logging information for monitoring and troubleshooting*
to specify the destinations of captured messages*
Explanation: There are three primary functions provided by the syslog service:
1. gathering logging information
2. selection of the type of information to be logged
3. selection of the destination of the logged information

24. What is the function of the MIB element as part of a

network management system?
to collect data from SNMP agents
to send and retrieve network management information
to change configurations on SNMP agents
to store data about a device*
Explanation: The Management Information Base (MIB) resides on a networking
device and stores operational data about the device. The SNMP manager can collect
information from SNMP agents. The SNMP agent provides access to the
information.
25. What network design would contain the scope of
disruptions on a network should a failure occur?
the reduction in the number of redundant devices and connections in the network
core
the installation of only enterprise class equipment throughout the network
the deployment of distribution layer switches in pairs and the division of access
layer switch connections between them*
the configuration of all access layer devices to share a single gateway
Explanation: One way to contain the impact of a failure on the network is to
implement redundancy. One way this is accomplished is by deploying redundant
distribution layer switches and dividing the access layer switch connections between
the redundant distribution layer switches. This creates what is called a switch block.
Failures in a switch block are contained to that block and do not bring down the
whole network.

26. Which action should be taken when planning for

redundancy on a hierarchical network design?
add alternate physical paths for data to traverse the network*
continually purchase backup equipment for the network
implement STP portfast between the switches on the network
immediately replace a non-functioning module, service or device on a network
Explanation: One method of implementing redundancy is path redundancy,
installing alternate physical paths for data to traverse the network. Redundant links
in a switched network supports high availability and can be used for load balancing,
reducing congestion on the network.

27. What are two benefits of extending access layer

connectivity to users through a wireless medium? (Choose
two.)
increased flexibility*
increased network management options
decreased number of critical points of failure
reduced costs*
increased bandwidth availability
Explanation: Wireless connectivity at the access layer provides increased
flexibility, reduced costs, and the ability to grow and adapt to changing business
requirements. Utilizing wireless routers and access points can provide an increase in
the number of central points of failure. Wireless routers and access points will not
provide an increase in bandwidth availability.
28. What is a basic function of the Cisco Borderless
Architecture access layer?
aggregates Layer 2 broadcast domains
provides access to the user*
aggregates Layer 3 routing boundaries
provides fault isolation
Explanation: A function of the Cisco Borderless Architecture access layer is
providing network access to the users. Layer 2 broadcast domain aggregation, Layer
3 routing boundaries aggregation, and high availability are distribution layer
functions. The core layer provides fault isolation and high-speed backbone
connectivity.

29. Which characteristic would most influence a network

design engineer to select a multilayer switch over a Layer 2
switch?
ability to have multiple forwarding paths through the switched network based on
VLAN number(s)
ability to build a routing table*
ability to provide power to directly-attached devices and the switch itself
ability to aggregate multiple ports for maximum data throughput
Explanation: Multilayer switches, also known as Layer 3 switches, can route and
build a routing table. This capability is required in a multi-VLAN network and
would influence the network designer to select a multilayer switch. The other
options are features also available on Layer 2 switches, so they would not influence
the decision to select a multilayer switch.

30. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p30

Why are routers R1 and R2 not able to establish an OSPF

adjacency?
The serial interfaces are not in the same area.*
The process numbers are not the same in both routers.
A backbone router cannot establish an adjacency with an ABR router.
The router ID values are not the same in both routers.
Explanation: On router R1, the network 192.168.10.0/30 is defined in the wrong
area (area 1). It has to be defined in area 0 in order to establish adjacency with router
R2, which has the network 192.168.10.0/30 defined in area 0.

31. When is the most appropriate time to measure network

operations to establish a network performance baseline?
whenever high network use is detected, so that how the network performs under
stress can be monitored
during quiet vacation periods, so that the level of non-data traffic can be determined
at the same time each day across a set period of average working days, so that
typical traffic patterns can be established*
at random times during a 10 week period, so that abnormal traffic levels can be
detected
Explanation: The purpose of establishing a network performance baseline is to
provide a reference of normal or average network use to enable data traffic
anomalies to be detected and then investigated. Network operations that are not
average, or are not normal, cannot be used to establish a network performance
baseline.

32. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p32

A user has configured a NIC on the PC as shown but finds

that the PC is unable to access the Internet. What is the
problem?
The preferred DNS address is incorrect.
The default gateway address is incorrect.*
The settings were not validated upon exit.
There should not be an alternate DNS server.
Explanation: In order for a computer to communicate outside its network, it must
have a valid default gateway configured.This address cannot be the same as the IP
address of the computer.

33. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p33

A network engineer configured an ACL preventing Telnet and

HTTP access to the HQ web server from guest users in the
Branch LAN. The address of the web server is 192.168.1.10
and all guest users are assigned addresses in the
192.168.10.0/24 network. After implementing the ACL, no one
can access any of the HQ servers. What is the problem?
Inbound ACLs must be routed before they are processed.
The ACL is implicitly denying access to all the servers.*
Named ACLs require the use of port numbers.
The ACL is applied to the interface using the wrong direction.
Explanation: Both named and numbered ACLs have an implicit deny ACE at the
end of the list. This implicit deny blocks all traffic.

34. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p34

A network administrator has configured OSPFv2 on the two

Cisco routers as shown. PC1 is unable to connect to PC2.
What should the administrator do first when troubleshooting
the OSPFv2 implementation?
Disconnect the serial link between router R1 and R2.
Turn off OSPFv2.
Implement the network 192.168.255.0 0.0.0.3 area 0 command on router R1.
Test Layer 3 connectivity between the directly connected routers.*
Explanation: A prerequisite for OSPFv2 neighbor relationships to form between
two routers is Layer 3 connectivity. A successful ping confirms that a router
interface is active and may be able to form an OSPF neighbor adjacency.

35. What type of traffic is described as requiring latency to be

no more than 150 milliseconds (ms)?
Voice*
video
data
36. A network manager wants to add a time to log messages so
that there is record of when the message was generated. What
command should the administrator use on a Cisco router?
show cdp interface
ntp server 10.10.14.9
service timestamps log datetime*
clock timezone PST -7
37. Match the functions to the corresponding layers. (Not all
options are used.)

CCNA 3 v7.0 Modules 9 – 12 Exam Answers p37

38. Match the borderless switched network guideline

description to the principle. (Not all options are used.)
 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p38

39. What are two characteristics of the best-effort QoS model?

(Choose two.)
It allows end hosts to signal their QoS needs to the network.
It uses a connection-oriented approach with QoS.
It provides preferential treatment for voice packets.
It does not provide a delivery guarantee for packets.*
It treats all network packets in the same way.*
Explanation: The best-effort QoS model provides no guarantees and it is commonly
used on the Internet. The best-effort QoS model treats all network packets in the
same way.

40. Why is QoS an important issue in a converged network

that combines voice, video, and data communications?
Data communications are sensitive to jitter.
Legacy equipment is unable to transmit voice and video without QoS.
Correct Response
Voice and video communications are more sensitive to latency.*
Data communications must be given the first priority.
Explanation: Without any QoS mechanisms in place, time-sensitive packets, such
as voice and video, will be dropped with the same frequency as email and web
browsing traffic.

41. A network administrator configures a router with the

command sequence:
R1(config)# boot system tftp://c1900-universalk9-
mz.SPA.152-4.M3.bin

R1(config)# boot system rom

What is the effec#t of the command sequence?

On next reboot, the router will load the IOS image from ROM.
The router will search and load a valid IOS image in the sequence of flash, TFTP,
and ROM.
The router will copy the IOS image from the TFTP server and then reboot the
system.
The router will load IOS from the TFTP server. If the image fails to load, it will
load the IOS image from ROM.*
Explanation: The boot system command is a global configuration command that
allows the user to specify the source for the Cisco IOS Software image to load. In
this case, the router is configured to boot from the IOS image that is stored on the
TFTP server and will use the ROMmon imagethat is located in the ROM if it fails to
locate the TFTP server or fails to load a valid image from the TFTP server.

42. Which statement describes SNMP operation?

An SNMP agent that resides on a managed device collects information about the
device and stores that information remotely in the MIB that is located on the NMS.
A set request is used by the NMS to change configuration variables in the agent
device.*
An NMS periodically polls the SNMP agents that are residing on managed devices
by using traps to query the devices for data.
A get request is used by the SNMP agent to query the device for data.
Explanation: An SNMP agent that resides on a managed device collects and stores
information about the device and its operation. This information is stored by the
agent locally in the MIB. An NMS periodically polls the SNMP agents that are
residing on managed devices by using the get request to query the devices for data.

43. Refer to the exhibit.

CCNA 3 v7.0 Modules 9 – 12 Exam Answers p43

A network administrator issues the show lldp neighbors
command on a switch. What are two conclusions that can be
drawn? (Choose two.)
Dev1 is connected to interface Fa0/5 of S1.*
Dev1 is a switch with mixed types of interfaces.
Dev2 is a switch.*
Dev1 is connected to interface Fa0/4 of Dev2.
S1 has only two interfaces.
Explanation: In the output from the show lldp command, under Capability, R
indicates a router and B indicates a bridge (switch). Nothing indicates that Dev1 and
Dev2 are connected to one another.

44. What are the three layers of the switch hierarchical design
model? (Choose three.)
Distribution*
network access
data link
enterprise
access*
core*
Explanation: The access layer is the lowest layer and it provides network access to
users. The distribution layer has many functions, but it aggregates data from the
access layer, provides filtering, policy control, and sets Layer 3 routing boundaries.
The core layer provides high speed connectivity.

45. Refer to the exhibit.

 CCNA 3 v7.0 Modules 9 – 12 Exam Answers p45

Which devices exist in the failure domain when switch S3 loses

power?
S4 and PC_2
PC_3 and PC_2
PC_3 and AP_2*
S1 and S4
AP_2 and AP_1
Explanation: A failure domain is the area of a network that is impacted when a
critical device such as switch S3 has a failure or experiences problems.

46. A network designer is considering whether to implement a

switch block on the company network. What is the primary
advantage of deploying a switch block?
This is network application software that prevents the failure of a single network
device.
The failure of a switch block will not impact all end users.*
This is a security feature that is available on all new Catalyst switches.
A single core router provides all the routing between VLANs.
Explanation: The configuration of a switch block provides redundancy so that the
failure of a single network device generally has little or no effect on end users.
47. Which troubleshooting tool would a network administrator
use to check the Layer 2 header of frames that are leaving a
particular host?
knowledge base
protocol analyzer*
CiscoView
baselining tool
Explanation: A protocol analyzer such as Wireshark is capable of displaying the
headers of data at any OSI Layer.

48. Refer to the exhibit.

CCNA 3 v7.0 Modules 9 – 12 Exam Answers p48

R1 and R3 are connected to each other via the local serial 0/0/0
interface. Why are they not forming an adjacency?
They have different routing processes.
They have different router IDs.
They are in different subnets.*
The connecting interfaces are configured as passive.
Explanation: The routers need to be in the same subnet in order to form an
adjacency. The routing processes can be different on each router. The router IDs
must be different for routers that participate in the same routing domain. The
interfaces are not passive.

49. What type of traffic is described as not resilient to loss?

data
video*
voice
50. A network manager wants lists the contents of flash. What
command should the administrator use on a Cisco router?
show file systems
dir*
lldp enable
service timestamps log datetime
51. Voice packets are being received in a continuous stream by
an IP phone, but because of network congestion the delay
between each packet varies and is causing broken
conversations. What term describes the cause of this
condition?
buffering
latency
queuing
jitter*
52. A user is unable to reach the website when typing
http://www.cisco.com in a web browser, but can reach the
same site by typinghttp://72.163.4.161 . What is the issue?
DHCP
DNS*
Default Gateway
TCP/IP Protocol stack
53. What type of traffic is described as tending to be
unpredictable, inconsistent, and bursty?
Audio
Video*
Data
Voice
54. A network manager wants to determine the size of the
Cisco IOS image file on the networking device. What
command should the administrator use on a Cisco router?
show flash:0*
copy flash: tftp:
config-register 0x2102
confreg 0x2142
55. What is the principle that is applied when a network
technician is troubleshooting a network fault by using the
divide-and-conquer method?
Testing is performed at Layer 7 and at Layer 1, then at Layers 6 and 2, and so on,
working towards the middle of the stack until all layers are verified as operational.
Once it is verified that components in a particular layer are functioning properly, it
can then be assumed that components in the layers below it are also functional.
Testing is performed at all layers of the OSI model until a non-functioning
component is found.
Once it is verified that a component in a particular layer is functioning
properly, testing can then be performed on any other layer.*
56. Which queuing algorithm has only a single queue and
treats all packets equally?
CBWFQ
FIFO*
LLQ
WFQ
57. What type of traffic is described as traffic that requires at
least 30 Kbps of bandwidth?
voice*
data
video
