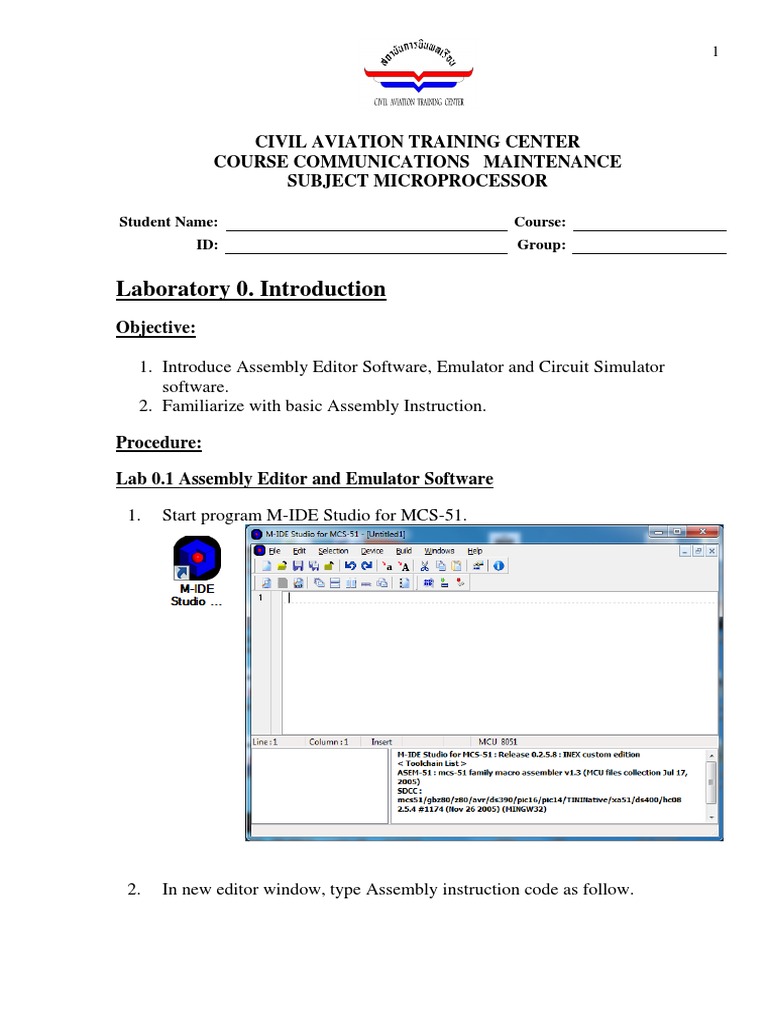

CIVIL AVIATION TRAINING CENTER

COURSE COMMUNICATIONS MAINTENANCE
SUBJECT MICROPROCESSOR

Student Name: Course:

ID: Group:

Laboratory 0. Introduction
Objective:

1. Introduce Assembly Editor Software, Emulator and Circuit Simulator

software.
2. Familiarize with basic Assembly Instruction.

Procedure:

Lab 0.1 Assembly Editor and Emulator Software

1. Start program M-IDE Studio for MCS-51.

2. In new editor window, type Assembly instruction code as follow.

 2

Table 1
Line Assembly Code 1 Register Describe the operation
No. A R0 R1 R2
1 ORG 0000H
2 MOV R0, #078H
3 MOV A, #E4H
4 MOV R1, A
5 MOV A, R0
6 MOV R2, A
7 INC A
8 XCH A, R2
9 MOV R1, A
10 MOV A, #01AH
11 MOV R0, A
12 END

3. Save file as Lab0_1.asm

4. Compile and build Hex code from an assembly code by menu Build / Build
(or press F9) and check the result from the bottom of M-IDE window.
5. If some error report, check and revise assembly code and try function Build
again until no error report. The program will build file Lab0_1.hex in the
same folder.
6. Start program TS Controls Emulator 8051. Use menu “Load HEX file” to
open Lab0_1.hex
 3

7. Select menu RUN / Step (or press F11) to start simulation step by step.
8. Record results register A, R0, R1, R2 and describe the operation to Table 1
9. Repeat step 7 and 8 until finish the last instruction.

Lab 0.2 Simulator Software

10. Open Proteus 8 Professional version and draw an attached document

Circuit 1

11. Without program for MCS-51 Microcontroller, Start simulation by click

“Play button” at the left bottom corner.

Observe indication color of each port of microcontroller. Explain the result:

_______________________________________________________________

_______________________________________________________________
 4

12. Simulate the operation of the circuit with the following assembly code.

Code 2: Code 3:
ORG 00H ORG 00H
MOV P3, #11110000B MOV P3, #0FH
END END

Explain the observed result in the table below.

Result 2: Result 3:

13. Simulate the operation of the circuit with the following assembly code.

Code 4: :
ORG 0000H
MOV P3,#00H
MOV A, #00000001B
WaitSW: JB P2.0, WaitSW
Loop: MOV P3,A
ACALL Delay
RR A
JMP Loop
Delay:
MOV R3,#21D
DelayLoop:
MOV TL1,#08H
MOV TH1,#1H
SETB TR1
Monitoring: JNB TF1, Monitoring
CLR TR1
CLR TF1
DJNZ R3, DelayLoop
RET
END

Explain the observed result in the table below.

Result 4:
